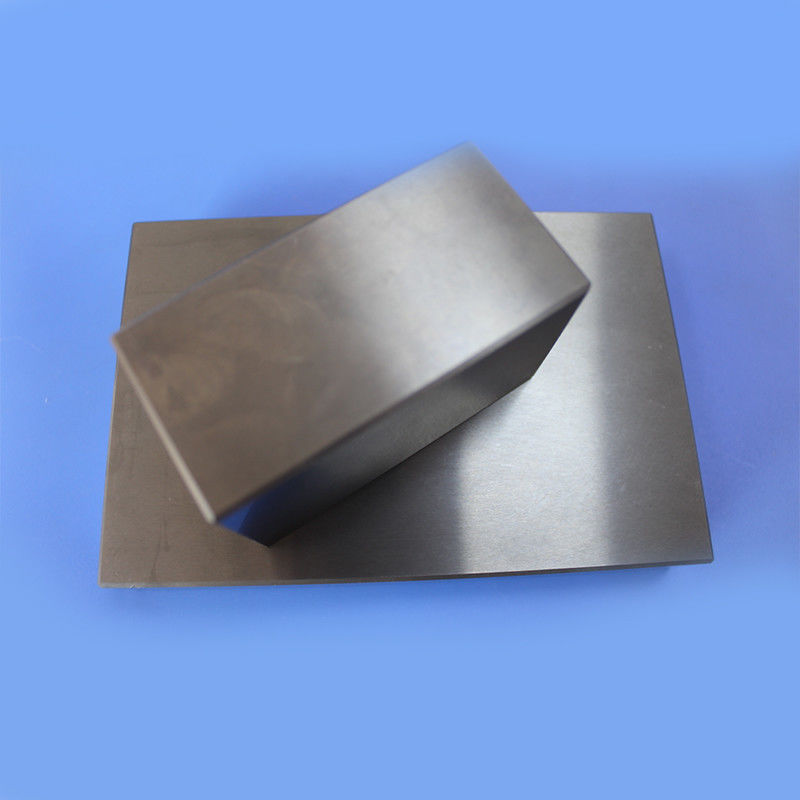

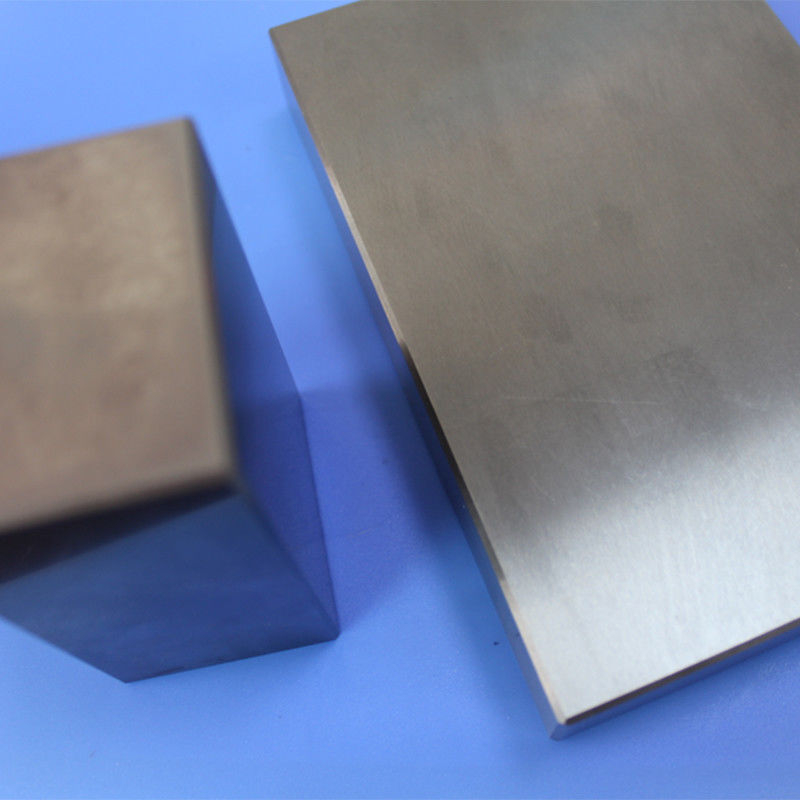

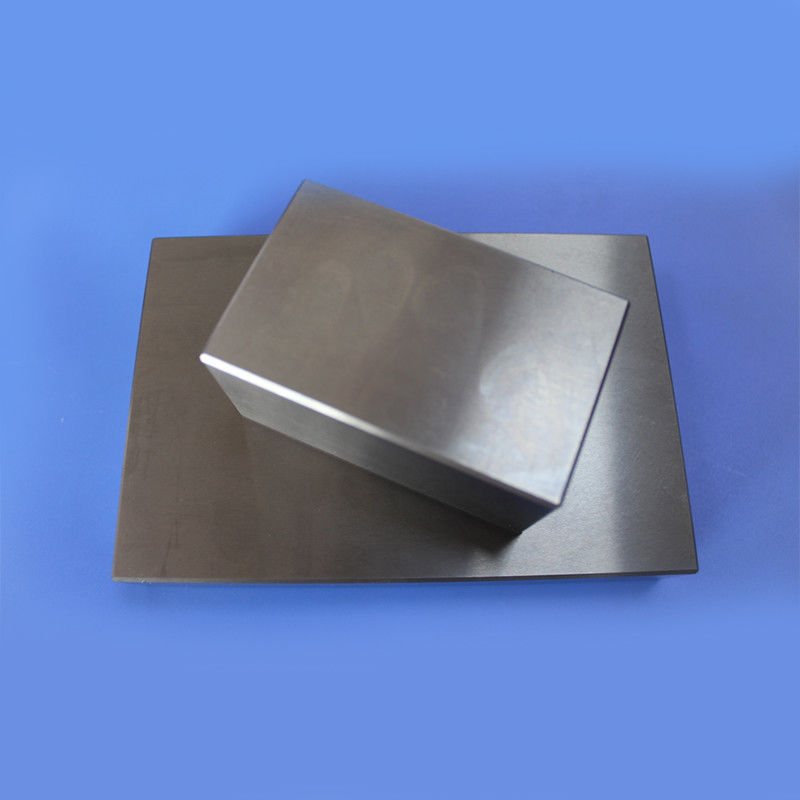

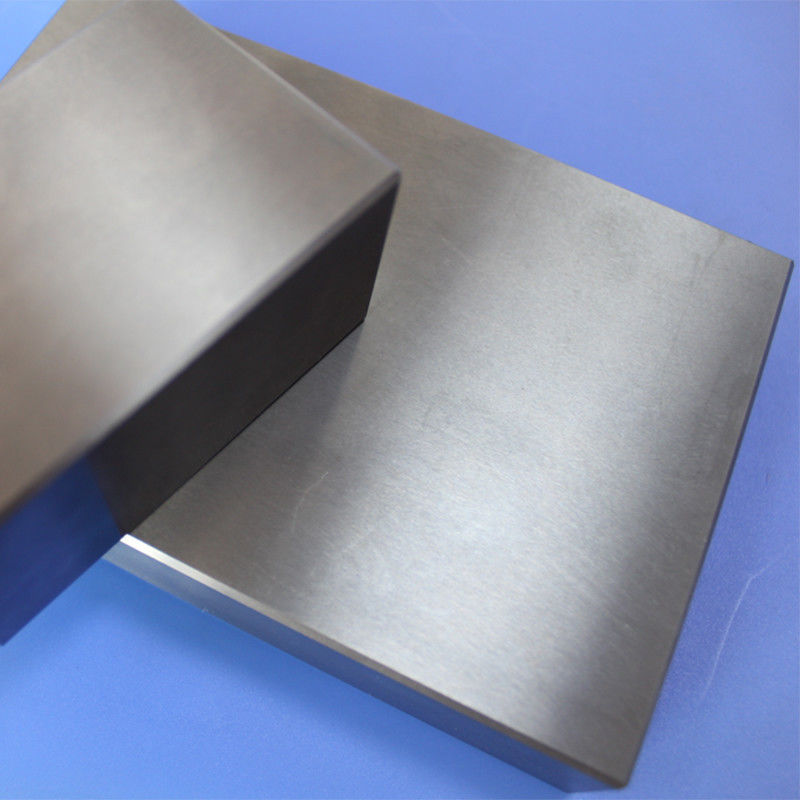

High Density Heavy Steel Tungsten Alloy Weighted Block for Anti Vibration with Customized Dimensions
High density heavy steel W90Ni6Fe, also known as DENSIMET distributed by Ceratizit, is primarily used by PCD and PCBN tool manufacturers as a tool body for brazing PCD-PCBN plates. In addition to tungsten steel cubes, blocks, and custom shapes, tungsten alloy bars are typically produced in batch orders.
Standard Bar Specifications
Available diameters range from 6.0 mm to 25.0 mm, ground to h6 tolerances, with lengths from 330-600 mm.
Chemical Composition
| Ni |
49.0-51.0 |
Fe |
Bal. |
Mn |
0.3-0.6 |
| Mo |
- |
Cu |
≤0.2 |
S |
≤0.02 |
| C |
≤0.03 |
P |
≤0.02 |
Si |
0.15-0.3 |
Product Specifications
| Place of Origin |
Zhuzhou, China |
| Brand Name |
Sanxin |
| Model Number |
Tungsten heavy alloy block/cube/plate/bar |
| Shape |
Customized weight and dimension |
| Surface |
Polished/Sintered |
| Product Name |
Tungsten Alloy Block/Cube/Plate |
| Dimension |
Customized weight and dimension/cube/block |
| Density |
17-19.3 g/cm³ or as requested |
| Components |
Wolfram content 85-99.95%, W-Ni-Fe/Cu |
| Material |
W90NiFe4 |
| Certificate |
ISO9001:2015 |
| Dimensions |
Customized |
| Application |
Counterweight, Radiation Shielding, Industry, Element Collections |
Tungsten Heavy Alloy Characteristics
Tungsten heavy alloy uses tungsten as matrix with small amounts of nickel, iron, copper, and other alloying elements. Key characteristics include:
- High and adjustable density (~18.5g/cm³)
- Excellent absorption of high-energy radiation (1/3 higher than lead)
- Low coefficient of thermal expansion (4-6×10⁻⁶/ºC)
- Good plasticity, high strength and elasticity modulus
- Excellent machinability and weldability
- Non-magnetic properties (tungsten nickel copper alloys)
Applications
Radiation Protection and Guidance:
Due to high density (~18.8 g/cm³), excellent X-ray and gamma ray absorption capacity, and superior processability, tungsten nickel iron alloy serves as ideal material for radiation therapy collimators and protection components.
Balance Weights:
Widely used in automobile crankshaft counterweights, oil weights, security defense systems, and precision optical instruments. The non-magnetic properties of tungsten copper nickel alloy make it particularly suitable for aviation electronic systems.
Company Profile
Zhuzhou Sanxin cemented carbide products include nozzles, bushings & sleeves, sealing rings, molds, inserts, mill rollers, and customized components.
Cemented carbide is a composite hard alloy material consisting of refractory metal bonded together by a metallic binder through powder metallurgy. It offers exceptional properties including high hardness, wear resistance, strength, and toughness, making it ideal for industrial parts and tools in harsh and aggressive environments.
Machining Capabilities
Maximum Size: Φ85 × 1200mm
Minimum Size: Φ0.045 × 14mm
