Name:	W90NiFe4 Tungsten Steel Sheet	Usage:	For Making Tools
Trial Orders:	Acceptable	Material:	Tungsten Steel, Tungsten Alloy
Sizes:	Customized	Surface Condition:	Blank Or Grinding
Highlight:	Customized Tungsten Steel Sheet , W90NiFe4 Sheet , Rohs Polished Tungsten Steel Sheet

Product Description

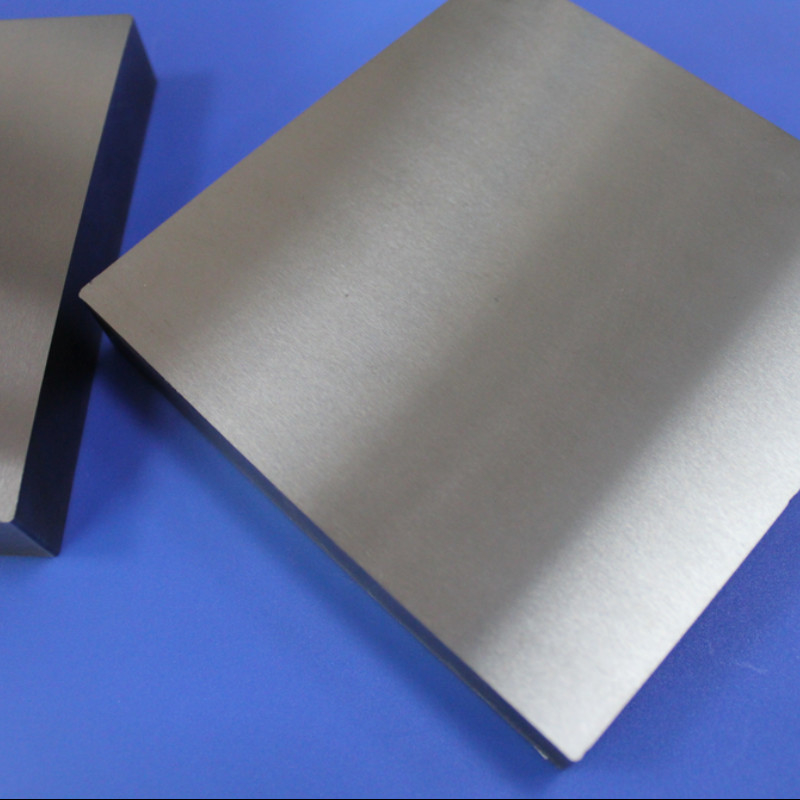

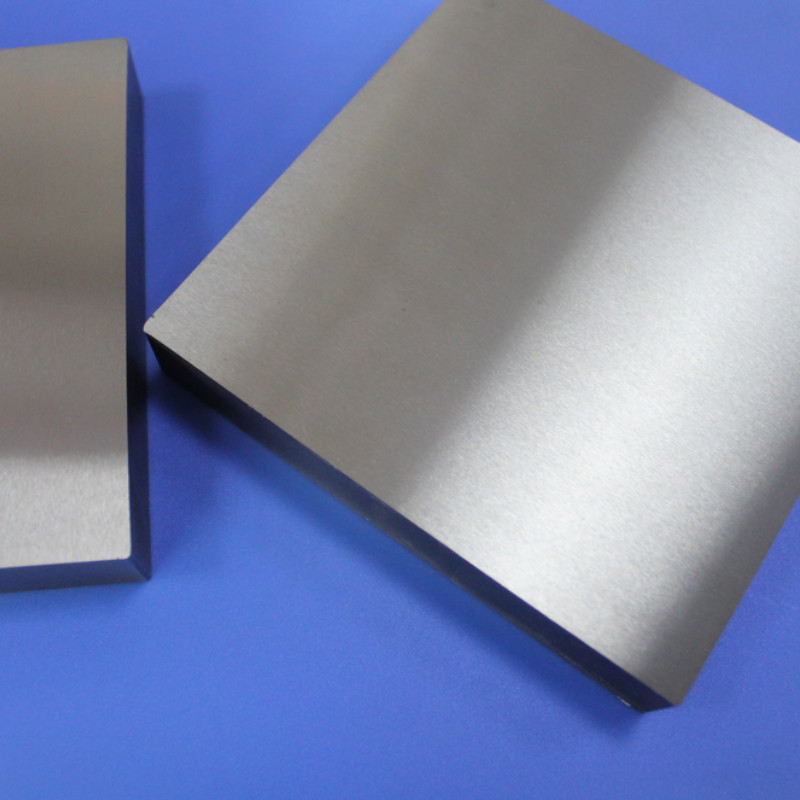

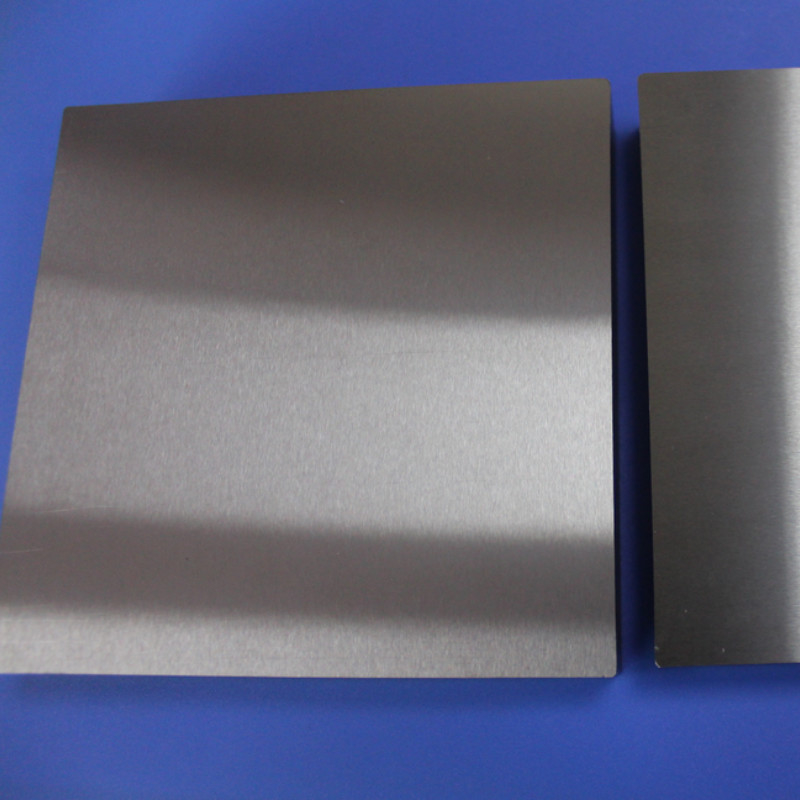

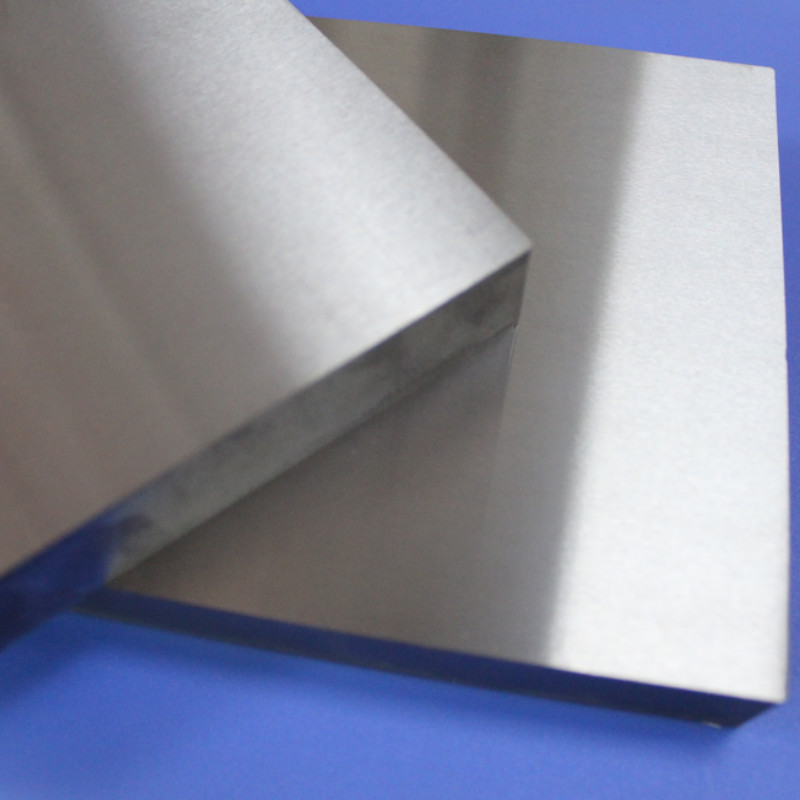

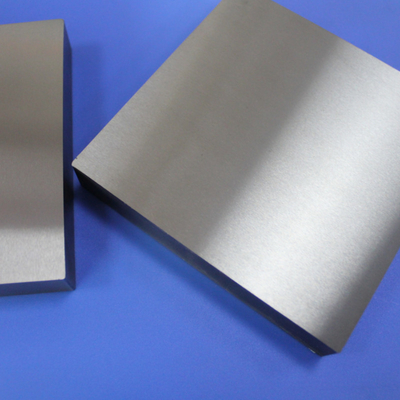

Premium Grade Precision Ground Tungsten Steel Sheet

Our precision-machined tungsten alloy sheets, manufactured from W90NiFe4 plates, are engineered to deliver exceptional performance for precision machining applications in mechanical equipment. These tungsten steel plates offer superior hardness and wear resistance, making them ideal for mold applications across various industrial sectors.

Material Properties

Tungsten heavy alloy utilizes tungsten as the base matrix with carefully controlled additions of nickel, iron, copper, and other alloying elements. This composition delivers exceptional characteristics including high adjustable density (~18.5g/cm³), superior high-energy radiation absorption capacity (33% higher than lead), low thermal expansion coefficient (4-6×10⁻⁶/ºC), excellent plasticity, high strength and elasticity modulus, along with superior machinability and weldability.

Key Applications

Radiation Protection

Ideal for radiation therapy collimators and protection components due to high density (~18.8 g/cm³) and excellent X-ray/gamma ray absorption capacity.

Balance Weights

Widely used in automotive crankshaft counterweights, oil weights, security defense systems, and precision optical instruments.

Technical Advantages

Property	Specification
High Density	Maximum 18.8 g/cm³
High Strength	Tensile strength 700-1000 MPa
Radiation Protection	1.7 times more effective than lead at same thickness
Thermal Conductivity	5 times higher than die steel
Thermal Expansion	Coefficient of 4-6×10⁻⁶/ºC (1/2-1/3 of iron/steel)

Product Features

Superior Material: Crafted from high-quality W90NiFe4 alloy ensuring exceptional hardness, wear resistance, and corrosion resistance
Precision Customization: Available in standard sizes including 250×150×44, 105×105×70, 200×200×55, with support for custom specifications
Precision Machining: Dimensional tolerances from ±0.01 to ±0.002 with professional grinding capabilities
Comprehensive Specifications: Standard sizes 105-105-6, 150-150-8, plus custom specifications like 200-200-13.5, 105-105-70
High Customizability: Flexible solutions for size, tolerance, and machining requirements
Surface Finish: Precision machining delivers surface finishes meeting Ra0.2, Ra0.4, Ra0.8 standards

Technical Support & Services

Our expert team provides comprehensive technical support and services for tungsten carbide product processing. We leverage extensive expertise and experience to deliver superior quality products and services including:

Design and engineering assistance
Processing and machining
Heat treatment and brazing
Casting and finishing
Quality control and testing

Utilizing the latest technology and techniques, we ensure our products meet the highest industry standards while providing technical support to optimize your tungsten steel processing applications.

Tag:

Product Details:
Place of Origin:	China
Brand Name:	Sanxin
Certification:	ISO
Model Number:	SX1121
Payment & Shipping Terms:
Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	Safety Packing
Delivery Time:	15~45 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10-50000pcs/month

Premium Grade Precision Ground Tungsten Steel Sheet For Making Tools

Customized Tungsten Steel Sheet

W90NiFe4 Sheet

Rohs Polished Tungsten Steel Sheet
