Hard Alloy Tungsten Steel Sheet 3D Glass Heating Plate Tungsten Sheet Metal
Hard Alloy Tungsten Steel Sheet 3D Glass Heating Plate Tungsten Sheet Metal Hard Alloy Tungsten Steel Sheet 3D Glass Heating Plate Tungsten Sheet Metal Hard Alloy Tungsten Steel Sheet 3D Glass Heating Plate Tungsten Sheet Metal Hard Alloy Tungsten Steel Sheet 3D Glass Heating Plate Tungsten Sheet Metal

Hard Alloy Tungsten Steel Sheet 3D Glass Heating Plate Tungsten Sheet Metal

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX2006S
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable

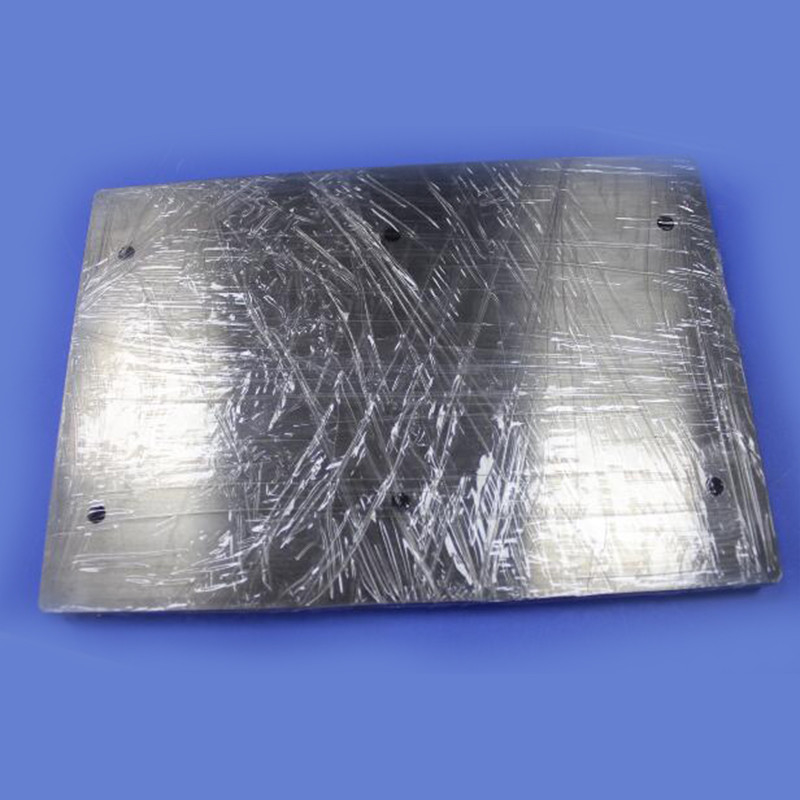

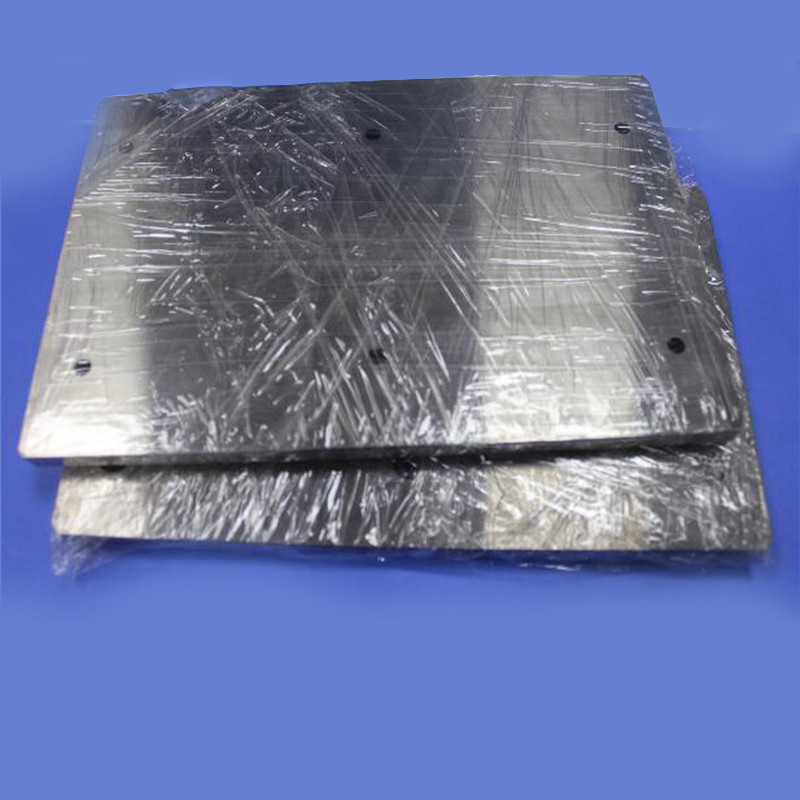

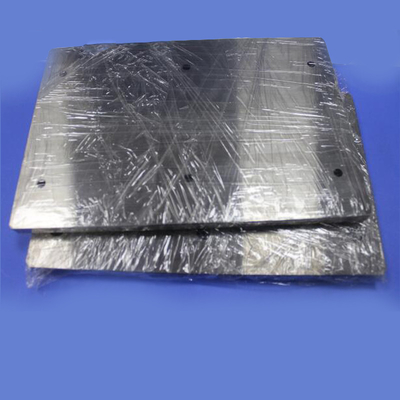

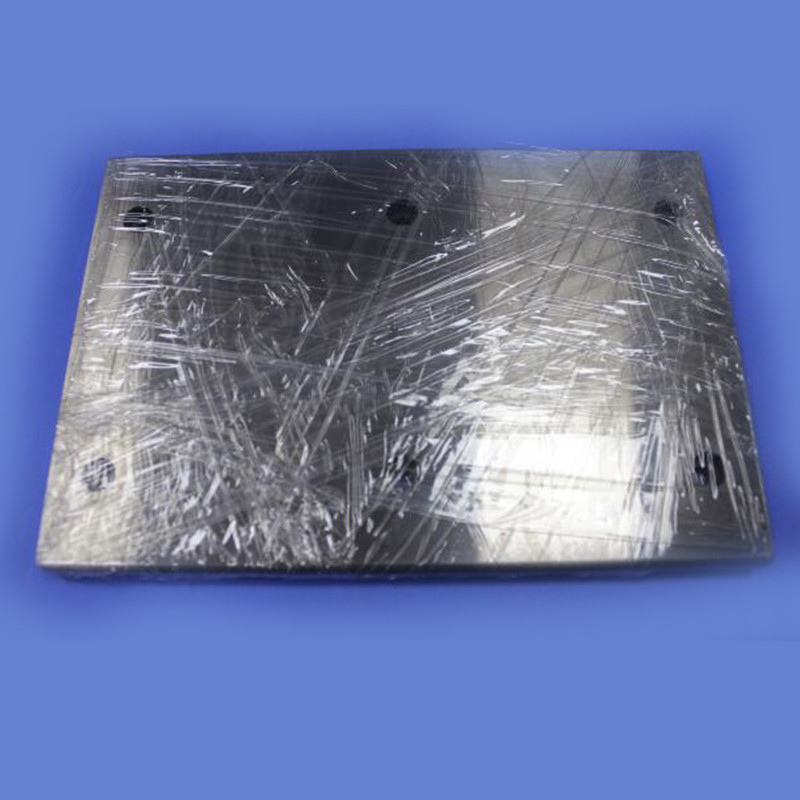

Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10-50000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: Tungsten Steel Sheet Material: Tungsten Sheet Metal
Samples: Available Usage: Hot Bending Machine Heating Plate
Heat Resistance: Excellent Grade: K10,K20,K30,YG8,YG6X
Highlight:

tungsten steel sheet

,

hardened steel sheet

Product Description

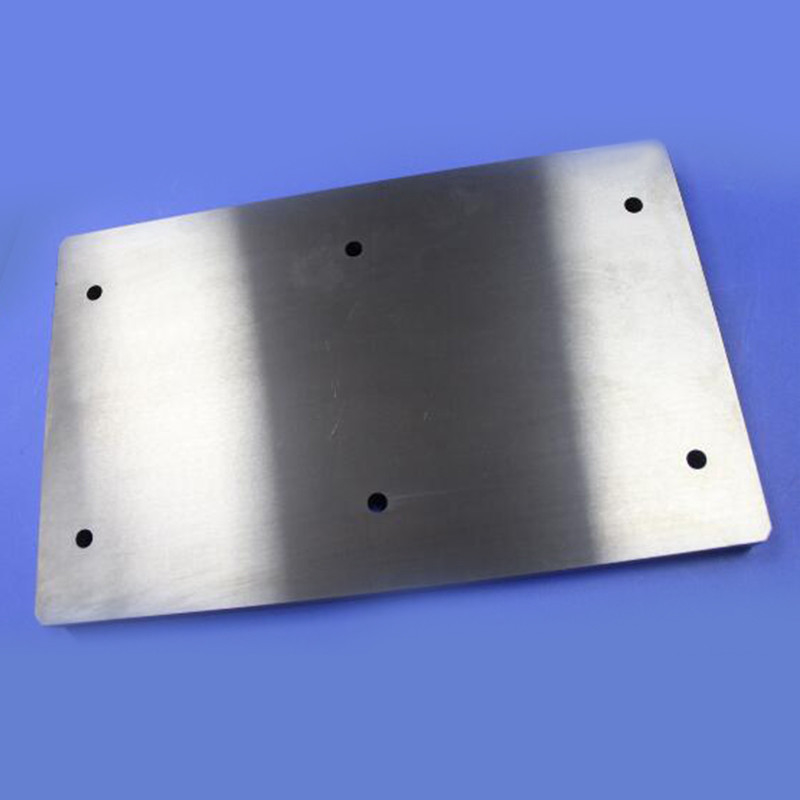

Hard Alloy Tungsten Steel Sheet 3D Glass Heating Plate Tungsten Sheet Metal

Dimension: 200x125x12mm
Tolerance: High
Hole numbers: 6pcs
Hole diameter: Φ10xΦ5.5
Chamfer: 4-2x45°

Hard Alloy Tungsten Steel Sheet 3D Glass Heating Plate Tungsten Sheet Metal 0

Introduction:

Our company uses high-quality ultra-fine tungsten carbide powder as raw material, and adopts advanced preparation technology to mass produce ultra-fine crystal hard alloy sheet. It has high strength and high hardness, is the first-choice materials for mechanical processing and mold production. It is widely used in various production and processing fields, can be customized according to your specifications to meet your needs.



The concept of cemented carbide: A composite material consisting of refractory metal compound (hard phase) and binder metal (bonded phase) produced by powder metallurgy.

Basic characteristics of cemented carbide:

1. High hardness and high wear resistance

2. High modulus of elasticity

3. High compressive strength

4. Good chemical stability (acid and alkali resistance, high temperature oxidation)

5. Low impact toughness

6. Low expansion coefficient, thermal conductivity, electrical conductivity and similar to iron and its alloys

Application of cemented carbide: modern tool materials, wear resistant materials, high temperature and corrosion resistant materials.



Technical parameters:

Steel sheet

Grade Co% WC% Hardness HAR Density g/cm³ Bending strength MPa Characteristics and application
SX01 12 88 89.2 14.29 3500 With exclusive formulation of selected WC raw materials and imported cobalt powder of HIP follow-up treatment, mainly suitable for producing high-speed die and multi-station progressive die.
SX02 11.8 88.2 88.2 14.3 3300
SX03 14 86 87.1 14.1 3200 suitable for producing punching molds for processing hardware and standard parts.
SX04 15 85 86.5 13.9 3200
Material specification and dimension tolerance
Blank specification:mm (L×W×T) Tolerance
Blank Finish blank
Length: mm Width: mm Thickness: mm
100×100×5.0 ±2.2 ±2.2 ±0.35 ±0.01
100×100×5.5 ±2.2 ±2.2 ±0.45 ±0.01
100×100×6.0 ±2.2 ±2.2 ±0.45 ±0.01
100×100×6.5 ±2.2 ±2.2 ±0.45 ±0.01
100×100×7.0 ±2.2 ±2.2 ±0.45 ±0.01
100×100×7.5 ±2.2 ±2.2 ±0.45 ±0.01
100×100×8.0 ±2.2 ±2.2 ±0.45 ±0.01
100×100×8.5 ±2.2 ±2.2 ±0.45 ±0.01
100×100×9.0 ±2.2 ±2.2 ±0.45 ±0.01
100×100×9.5 ±2.2 ±2.2 ±0.45 ±0.01
100×100×10 ±2.2 ±2.2 ±0.45 ±0.01
100×100×11 ±2.2 ±2.2 ±0.45 ±0.01
100×100×12 ±2.2 ±2.2 ±0.6 ±0.01
100×100×13 ±2.2 ±2.2 ±0.6 ±0.01
100×100×14 ±2.2 ±2.2 ±0.6 ±0.01
100×100×15 ±2.2 ±2.2 ±0.6 ±0.01
100×100×16 ±2.2 ±2.2 ±0.6 ±0.01
100×100×17 ±2.2 ±2.2 ±0.6 ±0.01
100×100×18 ±2.2 ±2.2 ±0.6 ±0.01
100×100×19 ±2.2 ±2.2 ±0.6 ±0.01
100×100×20 ±2.2 ±2.2 ±0.7 ±0.01
100×100×22 ±2.2 ±2.2 ±0.7 ±0.01
100×100×24 ±2.2 ±2.2 ±0.7 ±0.01
100×100×26 ±2.2 ±2.2 ±0.9 ±0.01
100×100×28 ±2.2 ±2.2 ±0.9 ±0.01
100×100×30 ±2.2 ±2.2 ±0.9 ±0.01
100×100×32 ±2.2 ±2.2 ±0.9 ±0.01
100×100×34 ±2.2 ±2.2 ±0.9 ±0.01
100×100×36 ±2.2 ±2.2 ±1.1 ±0.01
100×100×38 ±2.2 ±2.2 ±1.1 ±0.01
100×100×40 ±2.2 ±2.2 ±1.1 ±0.01
100×100×45 ±2.2 ±2.2 ±1.1 ±0.01
100×100×50 ±2.2 ±2.2 ±1.3 ±0.01
100×100×55 ±2.2 ±2.2 ±1.3 ±0.01
100×100×60 ±2.2 ±2.2 ±1.5 ±0.01
100×100×70 ±2.2 ±2.2 ±1.5 ±0.01
100×100× ±2.2 ±2.2 ±1.5 ±0.01

Advantages:

The concept of cemented carbide: A composite material consisting of refractory metal compound (hard phase) and binder metal (bonded phase) produced by powder metallurgy.

Basic characteristics of cemented carbide:

1. High hardness and high wear resistance

2. High modulus of elasticity

3. High compressive strength

4. Good chemical stability (acid and alkali resistance, high temperature oxidation)

5. Low impact toughness

6. Low expansion coefficient, thermal conductivity, electrical conductivity and similar to iron and its alloys

Application of cemented carbide: modern tool materials, wear resistant materials, high temperature and corrosion resistant materials.

Hard Alloy Tungsten Steel Sheet 3D Glass Heating Plate Tungsten Sheet Metal 1
