Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Sanxin |
| Certification: | ISO |
| Model Number: | SX0004-3 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Safety Packing |
| Delivery Time: | 15~45 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10-50000pcs/month |
|
Detail Information |
|||
| Name: | Tungsten Carbide Nozzle | Carbide Grade: | Co 10%, And Other Grades Like K10, K20, K30 Etc |
|---|---|---|---|
| Surface Polish: | Shiny Mirror Polishing | Type: | Carbide Nozzle Tin Ball Spray |
| Application: | Semiconductor Industry | Usage: | Electronics |
| Highlight: | tungsten carbide sandblast nozzles,hardened steel nozzle |
||
Product Description

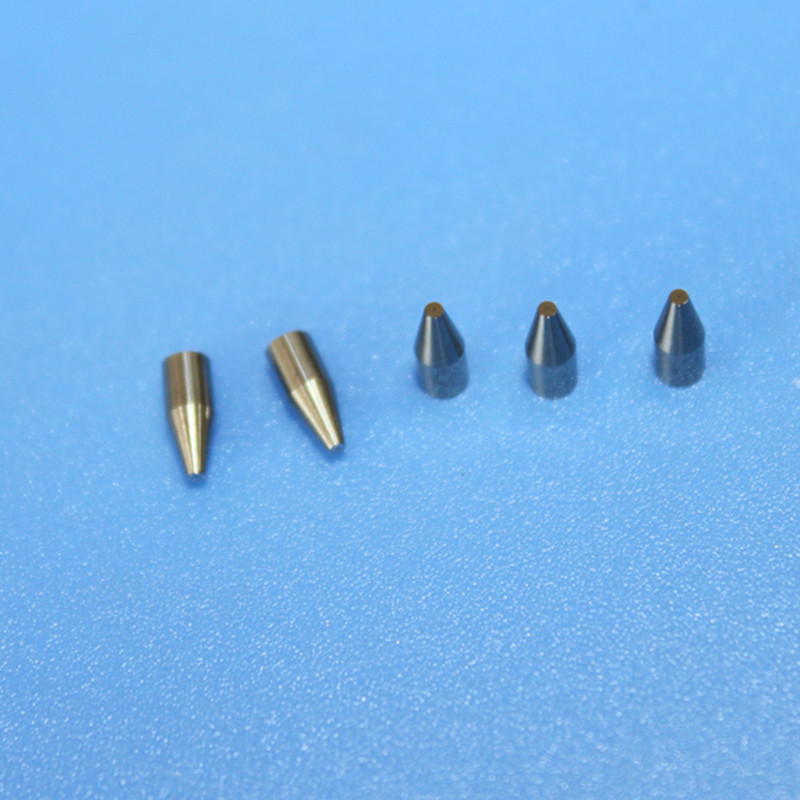

15mm Tin Ball Tungsten Steel Nozzle
Zhuzhou Sanxin tungsten carbide steel processing tin ball tungsten steel nozzle, producing precision laser welding tungsten steel nozzle for laser tin ball welding, tin ball laser injection equipment operation.
According to the size of the solder ball to complete the welding of different joints, welding quality is stable, high yield rate.
With just φ0.09mm laser beam inlet hole, where the carbide nozzle laser heating tin ball to do soldering purpose.
It took us, Sanxin carbide technician team, six years to accomplish our end, carbide nozzle service life more than 400,000 times per unit.
Thus, to meet a huge consumption need for soldering machines, to improve the production efficiency and to save maintenance cost.
Size D2.2*0.8*0.09*5.7L*d1.5
And your customized sizes based on drawing is available.
As per the below drawings
Material is tungsten carbide, a kind of cemented carbide new material, with chemical formula WC (wolfram carbide).
The standard data sheet of our carbide grade is YL10.2.
Customer's appointed material grades are acceptable, too.
| Grain size(um) | 0.4~2.0 |
| Co% | 6.0~20 |
| Density g/cm3 | 13.96~14.85 |
| Hardness HRA | 89.5~93 |
| Flexural strength Mpa | 3200~4500 |
| Young's Modulus Gpa | 570~620 |
The advanced laser Soldering system is for PCB or component package by laser beam as heat reservoir.
- Excellent quality repeatability of assuring the fixed soldering volume.
- Precise soldering by non-contact method and laser beam size control.
Working Parameter:
| Laser Power | 20-300W |
| Wavelength | 880-1064nm |
| Tin ball diameter | 0.1-0.5mm |
| Soldering speed | 3-6pcs/s |
Safe plastic box packing with fancy inner holder insert like eva.
