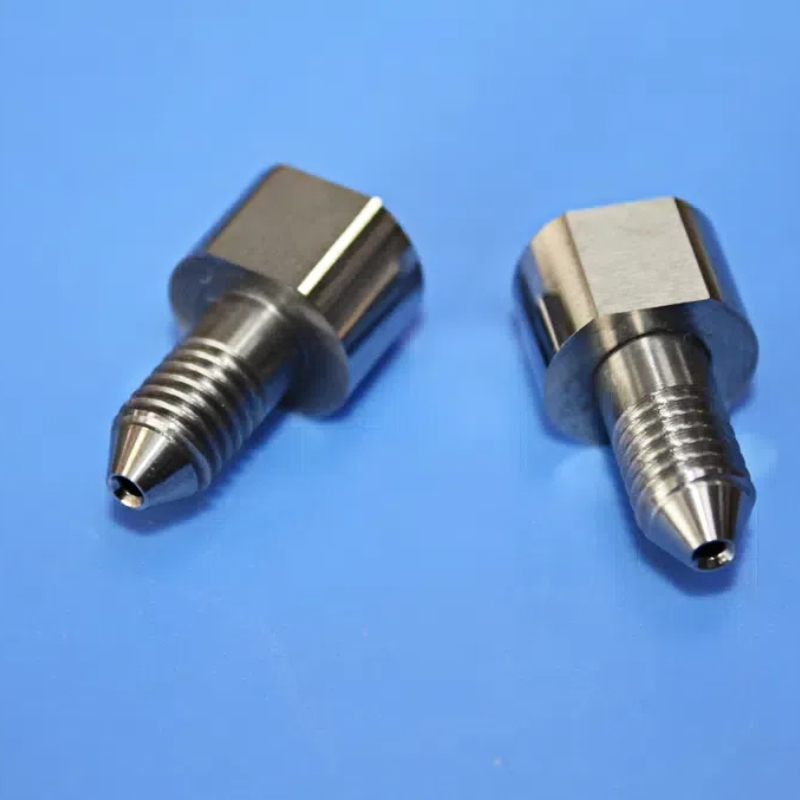

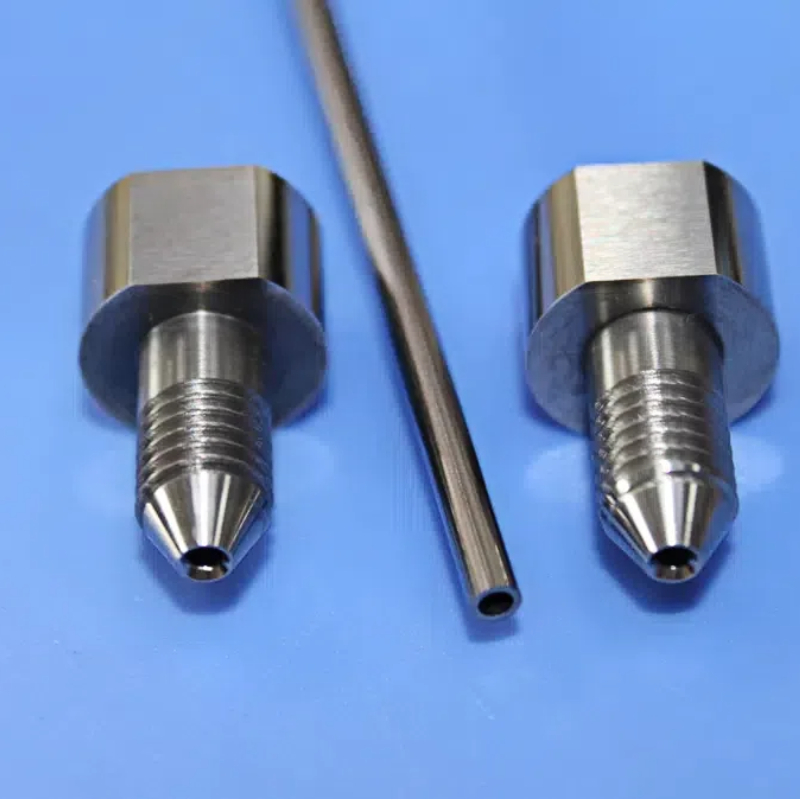

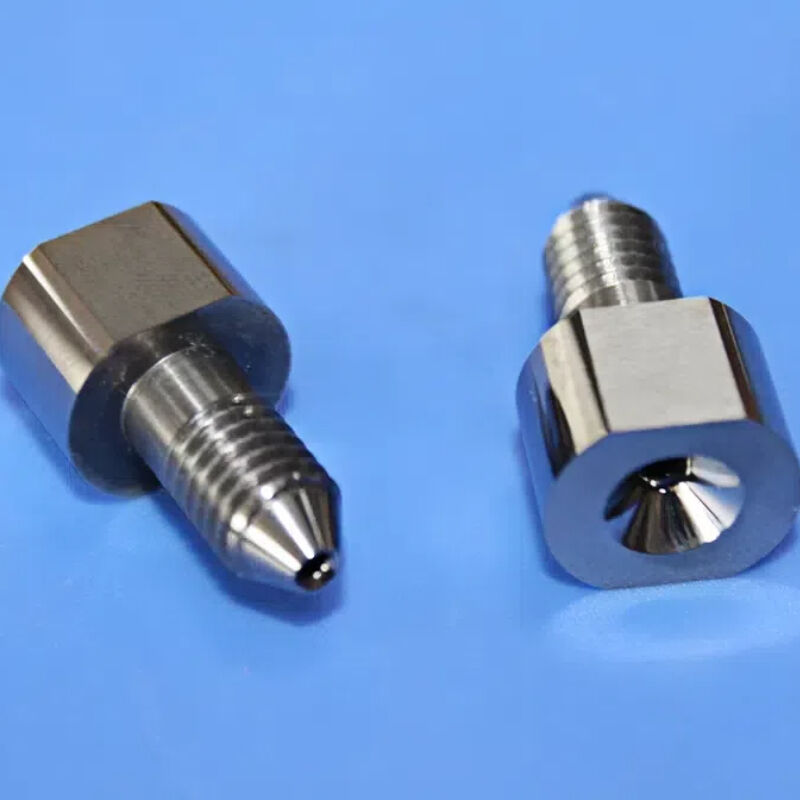

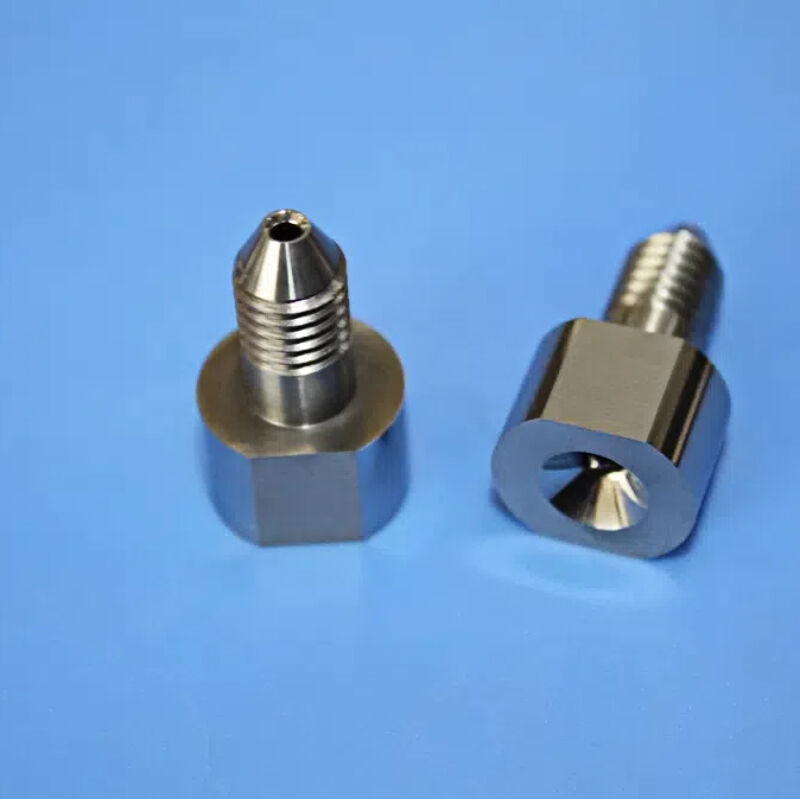

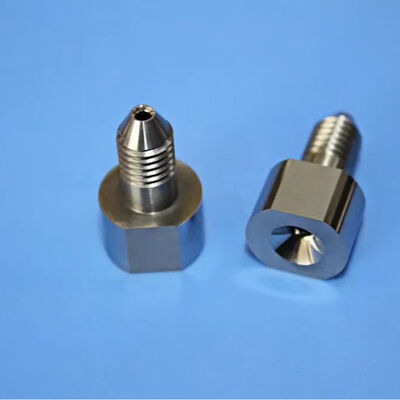

Wear-Resistant Tungsten Carbide Nozzle with Customizable Thread for High-Pressure Cleaning

In high-pressure fluid systems, abrasive blasting equipment, and oilfield drilling operations, nozzles are critical components that direct and accelerate media—whether liquid, gas, or abrasive particles—through controlled orifices. When nozzles fail due to erosion, wear, or improper mounting, the result is inefficient operation, increased downtime, and costly replacements.

Our Tungsten Carbide Threaded Conical Nozzle is engineered to meet these demanding challenges. Featuring a precision-machined conical (tapered) bore and integrated threaded mounting for secure, leak-free installation, this nozzle delivers exceptional wear resistance, stable flow characteristics, and extended service life in the harshest industrial environments.

Available in a range of thread types—including NPT, BSPT, and Metric—and customizable bore diameters, our threaded conical nozzles are versatile solutions for oil & gas fracturing, sandblasting, high-pressure waterjet cleaning, slurry transport, and chemical spraying applications.

Tungsten carbide (hardmetal) is the material of choice for high-wear nozzle applications due to its unique combination of properties:

• Exceptional Erosion & Wear Resistance: Tungsten carbide nozzles significantly outperform steel and ceramic alternatives in abrasive and high-velocity applications, delivering 30-50 times longer service life than stainless steel or technical ceramics.
• Superior Corrosion Resistance: Tungsten carbide resists degradation from acids, alkalis, and salts, making it suitable for harsh environments in chemical processing, marine engineering, and oilfield operations.
• High-Temperature Stability: Maintains hardness and mechanical properties at temperatures up to 1,000°C, ideal for thermal spraying and high-temperature fluid applications.
• Precision Flow Control: CNC-machined internal geometries ensure uniform media distribution and directional accuracy.

The threaded connection is a critical feature of this nozzle, enabling secure, leak-free integration into existing systems:

• Secure Mounting: Threaded connections prevent nozzle displacement under high pressure and vibration.
• Easy Replacement: Threaded installation enables quick nozzle changes without specialized tools.
• Leak-Free Operation: Precision-machined threads ensure a tight seal, preventing bypass and maintaining system pressure.
• Versatile Integration: Compatible with standard pipe fittings, manifolds, and equipment interfaces.

The conical tapered bore is a defining feature of this nozzle, engineered to optimize flow characteristics:

• Convergent Flow Path: The tapered bore accelerates fluid or media as it passes through the nozzle, increasing velocity and directional control.
• Reduced Turbulence: The smooth conical transition minimizes flow separation and turbulence, improving efficiency and reducing pressure loss.
• Enhanced Erosion Resistance: The tapered design distributes wear more evenly across the bore surface, extending service life.
• Optimized Spray Pattern: The conical geometry produces a focused, high-velocity jet with consistent distribution.

• Single Taper: Simple conical bore for general-purpose flow acceleration
• Compound Taper: Multi-stage conical bore for optimized fluid dynamics
• Cylindrical-Conical Combination: Straight section followed by conical taper for specific flow requirements
