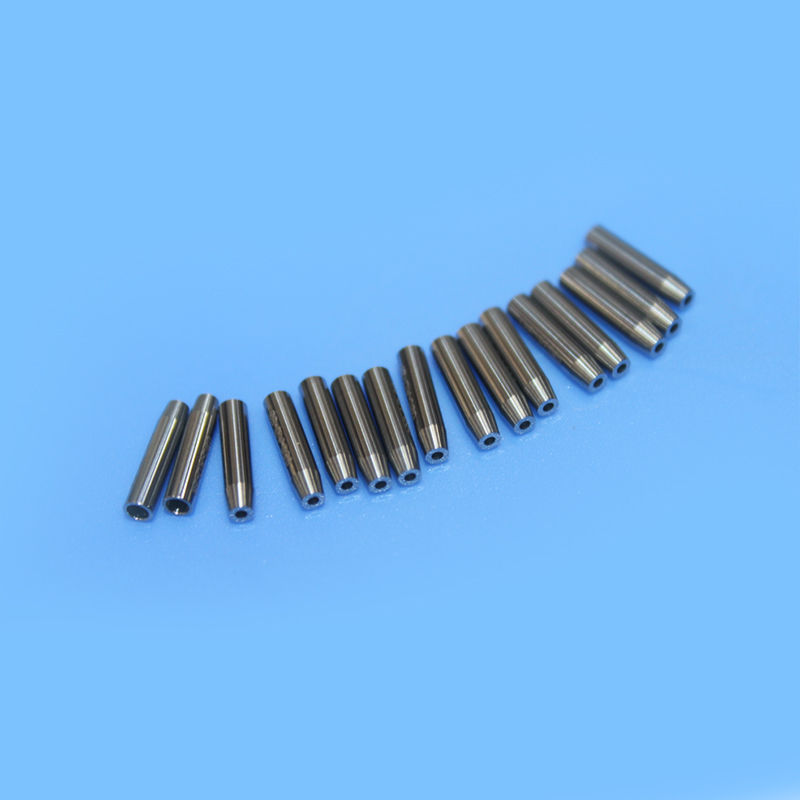

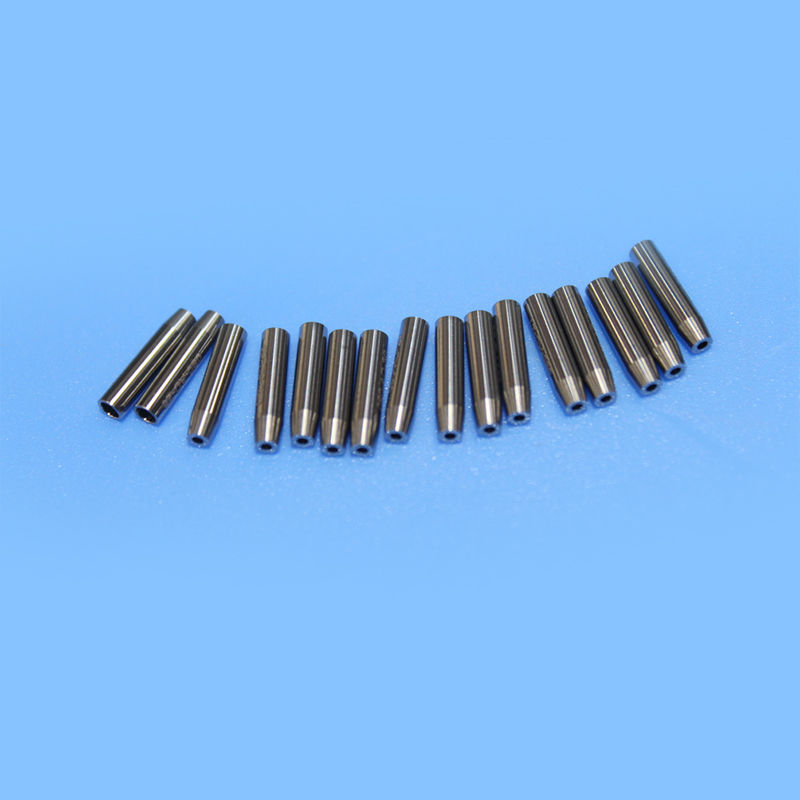

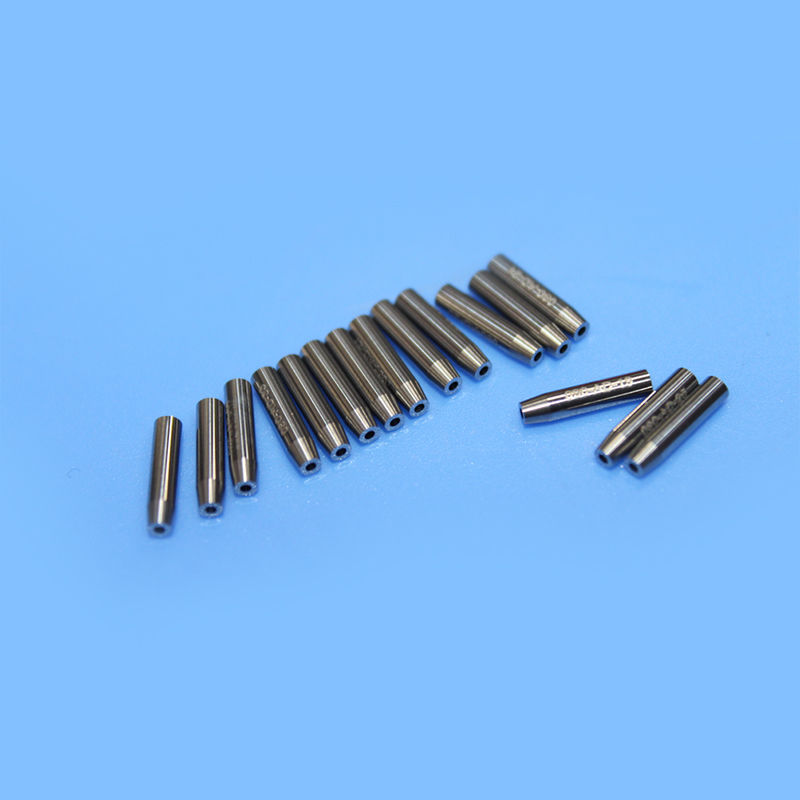

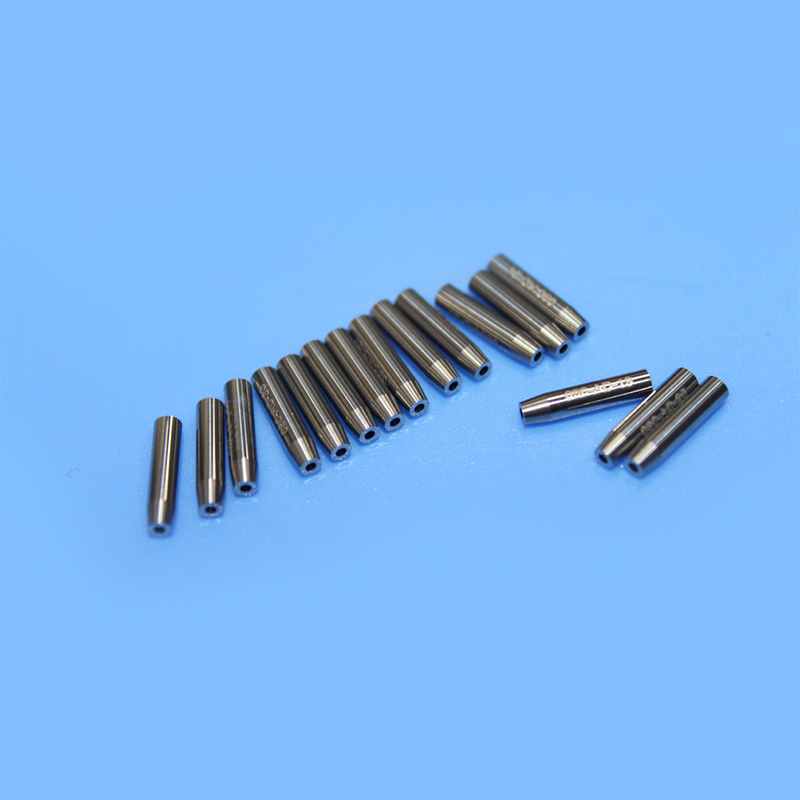

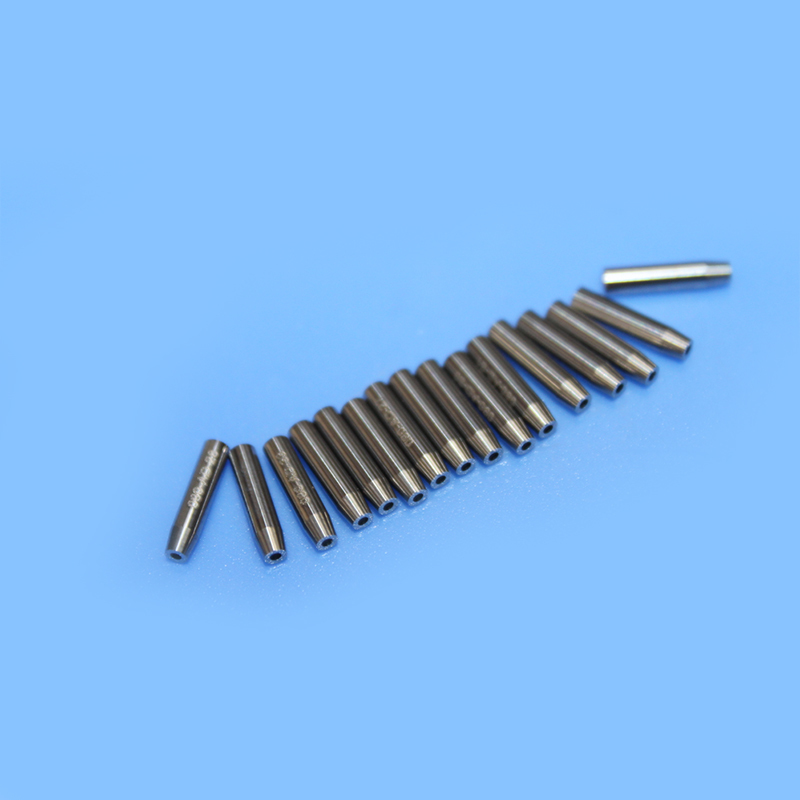

High Wear Resistance Tungsten Carbide Nozzle with 0.885mm Aperture and HRA90 Hardness for Power Tools
High Wear Resistance Tungsten Carbide Nozzle with 0.885mm Aperture and HRA90 Hardness for Power Tools High Wear Resistance Tungsten Carbide Nozzle with 0.885mm Aperture and HRA90 Hardness for Power Tools High Wear Resistance Tungsten Carbide Nozzle with 0.885mm Aperture and HRA90 Hardness for Power Tools High Wear Resistance Tungsten Carbide Nozzle with 0.885mm Aperture and HRA90 Hardness for Power Tools

High Wear Resistance Tungsten Carbide Nozzle with 0.885mm Aperture and HRA90 Hardness for Power Tools

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO9001
Model Number: SX2361
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: L/C,T/T
Supply Ability: 10000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Material: 100% Virgin Tungsten Carbide Product Name: Tungsten Carbide Nozzle
Type: Power Tool Part Size: Cusotmized
Hardness: HRA89-HRA92.9 Surface: Polished
Grade: YG6/YG8/YG8C/YG11/YG11C Advantage: High Wear Resistance
Density: 14.6~14.8g/cm3 Service: OEM & ODM
Highlight:

High Wear Resistance Tungsten Carbide Nozzle

,

YG11C Tungsten Carbide Nozzle

,

Power Tool Part Tungsten Carbide Nozzle

Product Description

High Wear Resistance Tungsten Carbide Nozzle
0.885mm Aperture for Power Tool Part Grade
Product Overview
The 0.885mm aperture tungsten carbide nozzle is a high-performance industrial component engineered for high-pressure and high-wear applications. Precision-manufactured from ultra-hard tungsten carbide (WC) material, it delivers exceptional wear resistance and dimensional stability to meet demanding industrial requirements.
Key Advantages
  • Superior Wear Resistance: Tungsten carbide material with hardness ≥HRA90, offering 5 times greater wear resistance than stainless steel nozzles
  • Precision Aperture: 0.885mm±0.005mm high-precision machining ensures stable flow performance
  • High Pressure Resistance: Withstands working pressures up to 3000Bar
  • Corrosion Resistance: Compatible with various media including acids, alkalis, and oils
  • High Temperature Resistance: Operating temperature range from -50°C to 600°C
Technical Specifications
Parameter Specification
Material Tungsten Carbide (WC-Co alloy)
Aperture Accuracy 0.885mm±0.005mm (customizable)
Hardness Grade ≥HRA90
Max Working Pressure 3000Bar
Temperature Range -50°C～+600°C
Connection Types 1/4"NPT, M5, etc. (customizable)
Compatible Media Water, oil, abrasives, chemical solvents, etc.
Typical Applications
  1. High-Pressure Waterjet Cutting: Precision cutting of metals, composites, and other materials with smooth edges
  2. Industrial Cleaning: Effective removal of pipeline deposits and surface coatings
  3. Precision Spraying: Ensures uniform atomization for improved coating quality
  4. Semiconductor Processing: Wafer cleaning, etching, and other precision processes
  5. Petrochemical Industry: Suitable for high-pressure water injection, medium transportation, and related applications
Quality Assurance
  • Each product undergoes laser inspection and flow testing
  • Pressure pulse tested (≥100,000 cycles)
  • 3D topography inspection ensures dimensional accuracy
  • Comprehensive after-sales technical support
Customization Services
We offer comprehensive customization options including:
  • Aperture size customization (accuracy ±0.002mm)
  • Special connection designs
  • Surface treatment optimization
  • Bulk purchase discounts
High Wear Resistance Tungsten Carbide Nozzle with 0.885mm Aperture and HRA90 Hardness for Power Tools 0
