Precision Ground Tungsten Carbide Shaft with Stepped Conical Tip for Valve & Positioning Systems

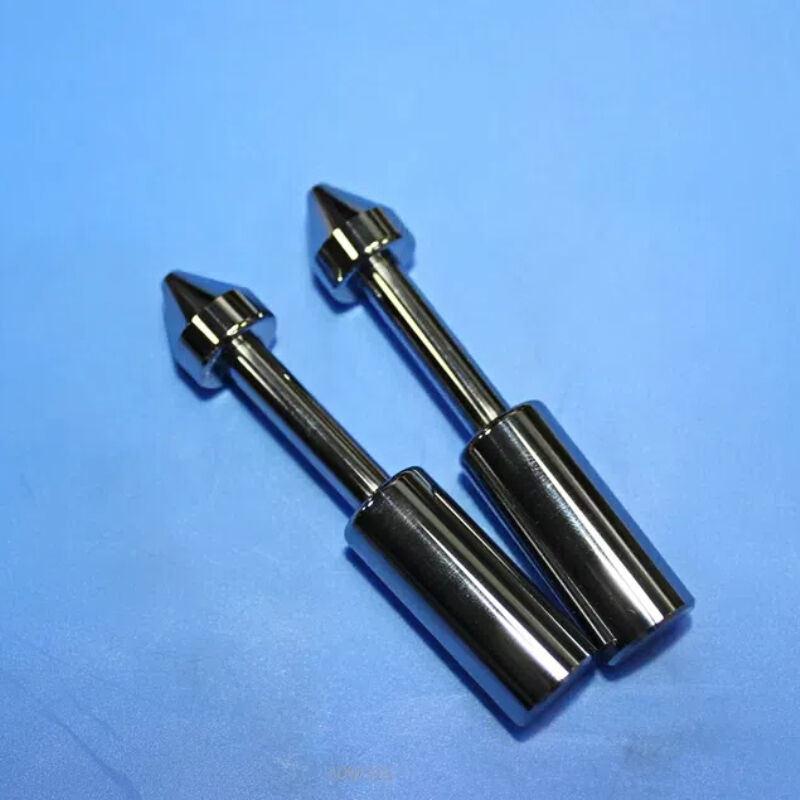

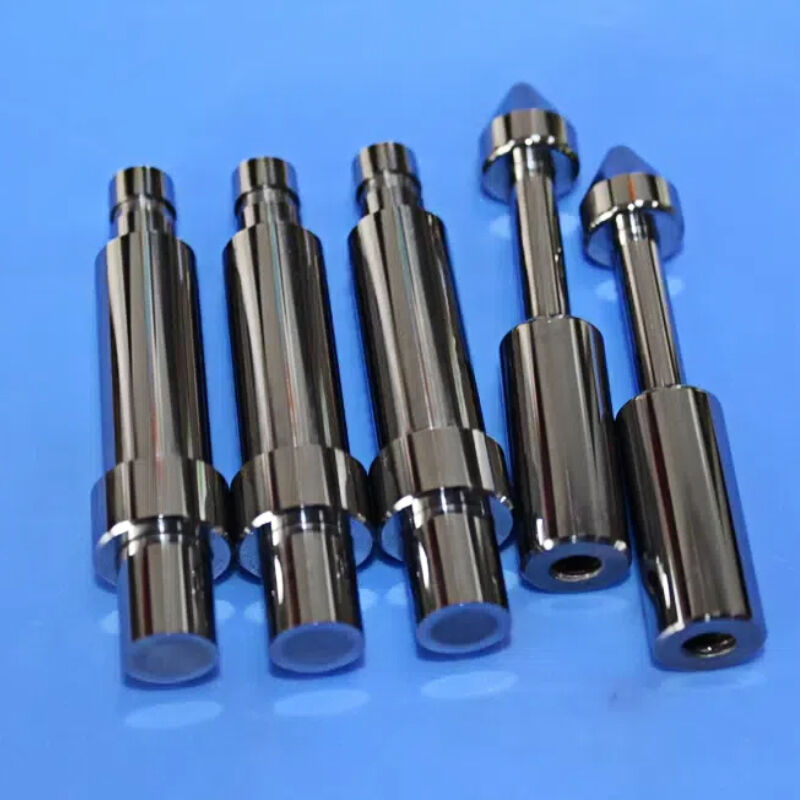

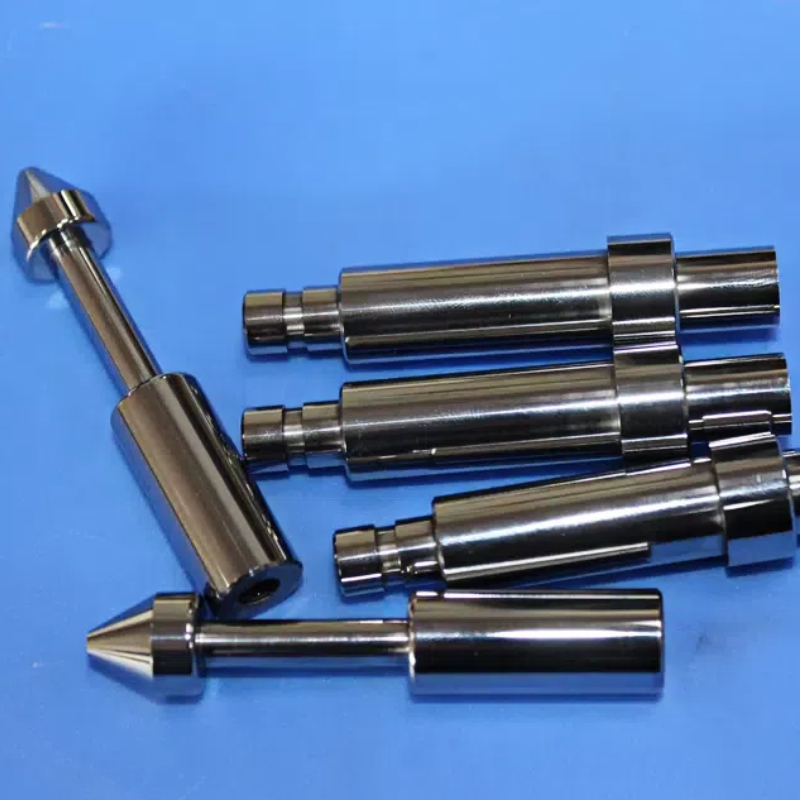

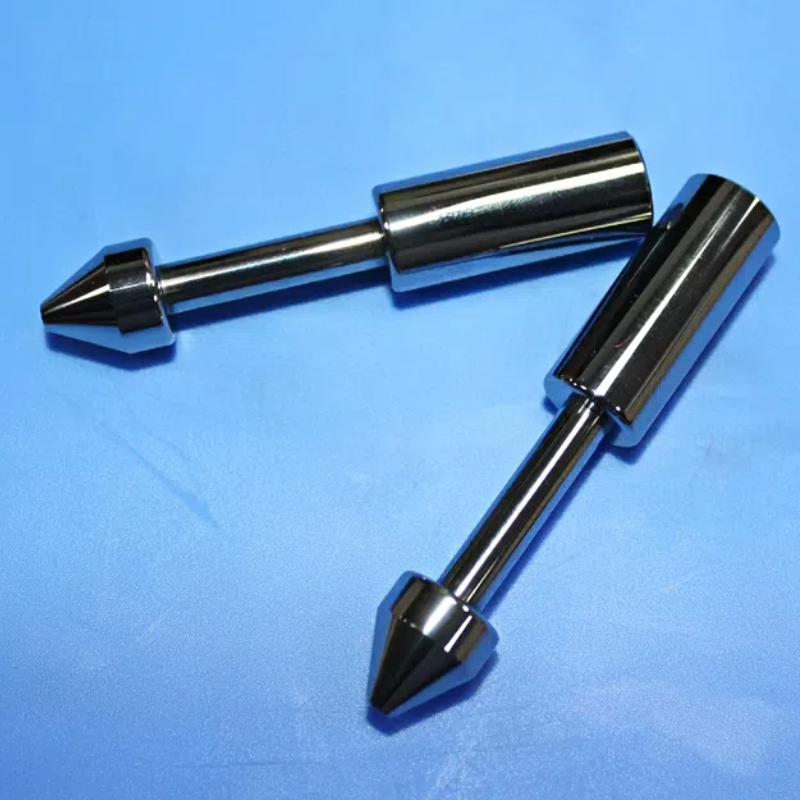

This tungsten carbide shaft represents a distinct category of precision component: a stepped wear pin with an integrated conical working tip, machined as a single solid piece from premium cemented carbide. Unlike simple cylindrical pins or standard shafts, this component combines multiple functional features—a large-diameter mounting body, a reduced-diameter guide shank, and a conical engagement tip—into one monolithic piece of tungsten carbide.

A stepped cylindrical body transitioning to a slender shaft that terminates in a conical tip with a distinct shoulder is typical of components used as valve stems, metering pins, guide pins, or wear-resistant actuation elements in precision mechanical systems. The conical tip serves as the working surface, engaging a mating seat or orifice to control flow or establish a precise mechanical stop.

The shaft’s design incorporates several distinct functional zones, each serving a specific purpose in the assembly:

This integrated design eliminates the need for multi-part assemblies, reducing stack-up tolerances and improving overall system reliability.

Tungsten carbide (hardmetal) is a composite material produced by powder metallurgy—mixing tungsten carbide powder with a metallic binder (typically cobalt) and sintering at high temperatures. For precision wear shafts, this material offers distinct advantages:

Tungsten carbide wear parts offer the advantage of being incredibly strong, hard, corrosion resistant, and dimensionally stable, which extends the time between replacements and increases overall productivity.

Every tungsten carbide stepped shaft can be customized to meet specific application requirements:
