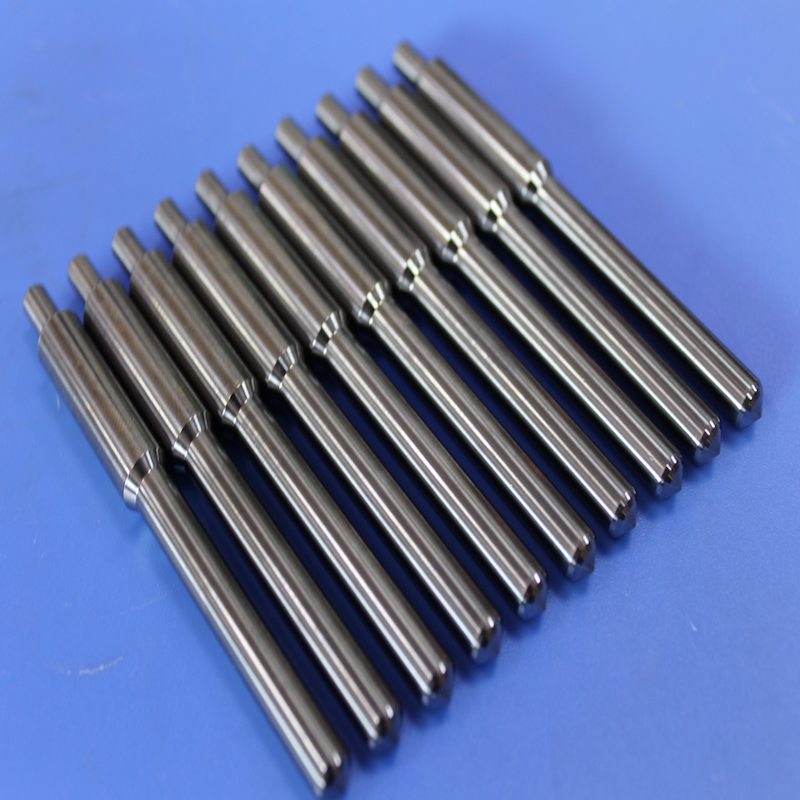

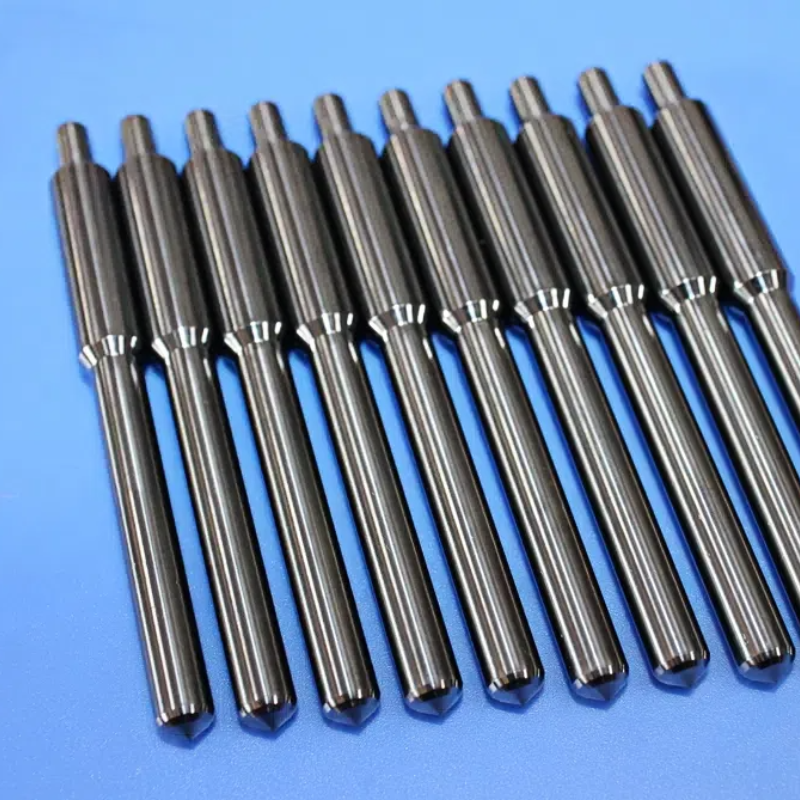

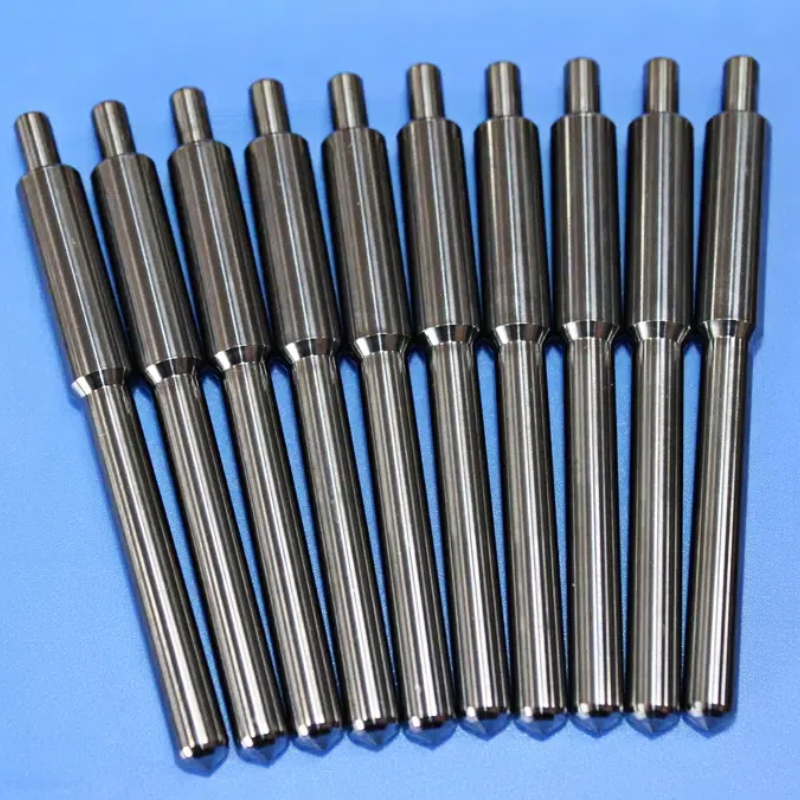

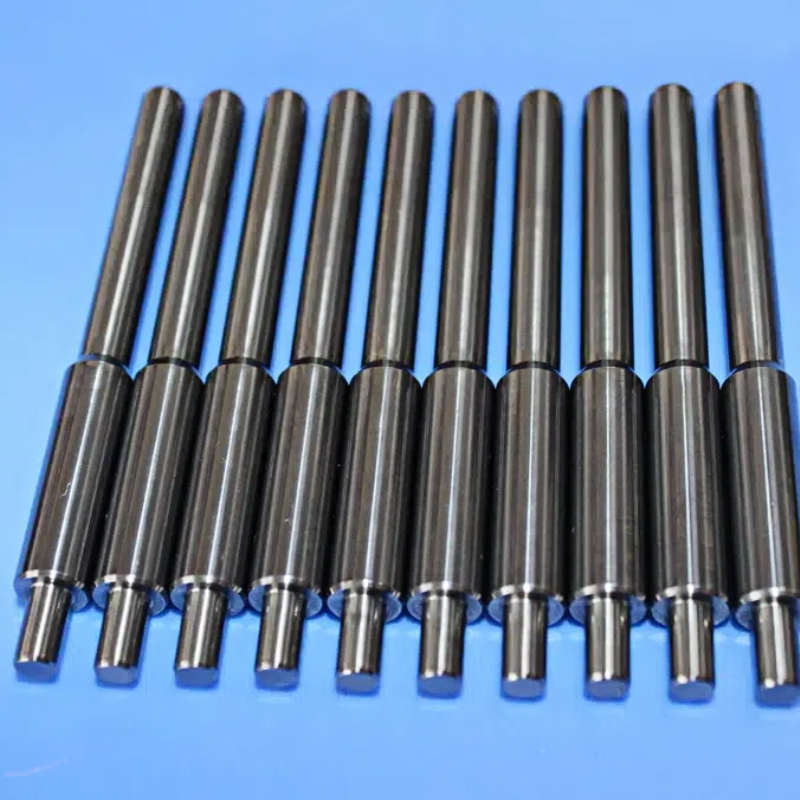

Tungsten Carbide Needle Valve Stems High-Performance Valve Needles for Precision Flow Control & Hot Runner Systems
High-precision tungsten carbide needle valve stems for hot runner injection molding, oil & gas choke valves, and industrial flow control. HRA 89-92 hardness, mirror-polished finish, and exceptional wear resistance for glass-filled plastics and high-pressure media. Custom sizes and geometries available. Request a quote.
Product Overview
In precision fluid control systems, the needle valve stem—often referred to as the "valve needle" or "needle"—is the critical component that regulates flow with micron-level accuracy. Whether metering molten plastic in a hot runner injection mold, throttling high-pressure oil and gas in a wellhead choke, or precisely controlling chemical flow in a processing plant, the needle valve stem must withstand extreme conditions: abrasive media, high pressures, corrosive fluids, and millions of operating cycles.
Our Tungsten Carbide Needle Valve Stems (also known as carbide valve needles, hardmetal needle valves, or tungsten steel valve pins) are engineered to meet these demanding requirements. Manufactured from premium tungsten carbide (WC-Co) via advanced powder metallurgy, isostatic pressing, and precision diamond grinding, these components deliver exceptional hardness, wear resistance, and dimensional stability required for long-term reliability in the most challenging fluid control applications.
Unlike standard steel valve needles that wear rapidly in abrasive or high-pressure environments, tungsten carbide needles maintain their precise conical geometry over millions of cycles—ensuring consistent flow characteristics, reliable sealing, and extended service life.
Core Applications
Hot Runner Injection Molding
In needle valve hot runner systems, the valve needle opens and closes the gate to control the flow of molten plastic into the mold cavity. The needle must withstand the abrasive effects of glass-filled and other engineering plastics while maintaining precise sealing over millions of injection cycles.
- Service Life: 3-5 million cycles under normal operating conditions
- Key Advantage: Tungsten carbide needles resist wear from glass fiber reinforcement, maintaining gate sealing integrity far longer than steel alternatives
- Widely Used In: Automotive, electronics, medical, packaging, and consumer goods industries
Oil & Gas Choke Valves
In oilfield choke manifolds, production trees, and wellhead equipment, needle-type choke valves use tungsten carbide needles and seats to control the flow of high-pressure drilling fluids, crude oil, and natural gas.
- Operating Pressure: Up to 20,000 PSI
- Key Advantage: Tungsten carbide provides exceptional resistance to erosion, corrosion, and wear from abrasive fracturing fluids and sour service environments
- Common Applications: Wellhead throttling, choke & kill manifolds, managed pressure drilling (MPD), and flowback testing
Industrial Flow Control & Metering
In metering valves, throttle valves, and precision flow control systems, tungsten carbide needles enable fine-tuned adjustment of fluid flow with exceptional repeatability and long-term stability.
- Key Advantage: Tungsten carbide's hardness ensures the needle maintains its precise conical geometry, enabling consistent flow characteristics over extended service life
- Suitable For: High-pressure gas/liquid sealing, small flow rates, and applications requiring precise regulation
- Common Applications: Chemical processing, water treatment, and industrial fluid control systems
Product Specifications
| Parameter | Standard Capability | Custom Option |
|---|
| Material | Tungsten Carbide (WC-Co) | Multiple grades available |
| Hardness | HRA 89-92 | Grade-dependent |
| Common Grades | YG6, YG6X, YG8, YL10.1, YL10.2 | Per application requirements |
| Tip Geometry | Conical (1:50 taper or 60° cone angle) | Custom angles available |
| Tip Surface Finish | Mirror-polished (Ra ≤ 0.2μm) | Ra ≤ 0.1μm available |
| Diameter Tolerance | ±0.002mm (standard) | ± 0.001mm (high-precision) |
| Length Tolerance | ±0.05mm | ± 0.02mm |
| Concentricity | ≤0.005mm | ≤ 0.003mm |
| Surface Treatment | Polished, TiN-coated | DLC, TiAlN, or custom coatings |
| Thread Options | Custom per customer drawing | Metric, UNF, or custom threads |
| Maximum Operating Temperature | Up to 900°C | Grade-dependent |
Frequently Asked Questions (FAQ)
Q1: What is a tungsten carbide needle valve stem used for?
A tungsten carbide needle valve stem (also called a valve needle or needle valve core) is a critical component in needle valves, used to regulate fluid flow with high precision. It is widely used in hot runner injection molding systems, oil & gas choke valves, and industrial flow control applications.
Q2: Why choose tungsten carbide over steel for needle valve stems?
Tungsten carbide offers significantly higher hardness (HRA 89-92 vs. HRC 58-62 for tool steel), 10-30× greater wear resistance, superior corrosion and erosion resistance, and maintains performance at temperatures up to 900°C.
Q3: What is the typical service life of a tungsten carbide needle valve stem?
In hot runner injection molding applications, tungsten carbide needle valve stems typically achieve 3-5 million cycles under normal operating conditions. In oilfield choke valve applications, service life is significantly extended compared to steel alternatives due to tungsten carbide's erosion and wear resistance.
Q4: Do you offer coated needle valve stems?
Yes. We offer TiN coating (titanium nitride) as standard for enhanced durability, with additional coating options including DLC and TiAlN available upon request.
Q5: Can you manufacture custom needle geometries?
Yes. We manufacture needle valve stems to your exact specifications, including custom cone angles, diameters, lengths, and thread configurations. Please provide your drawing or requirements for a prompt quote.
