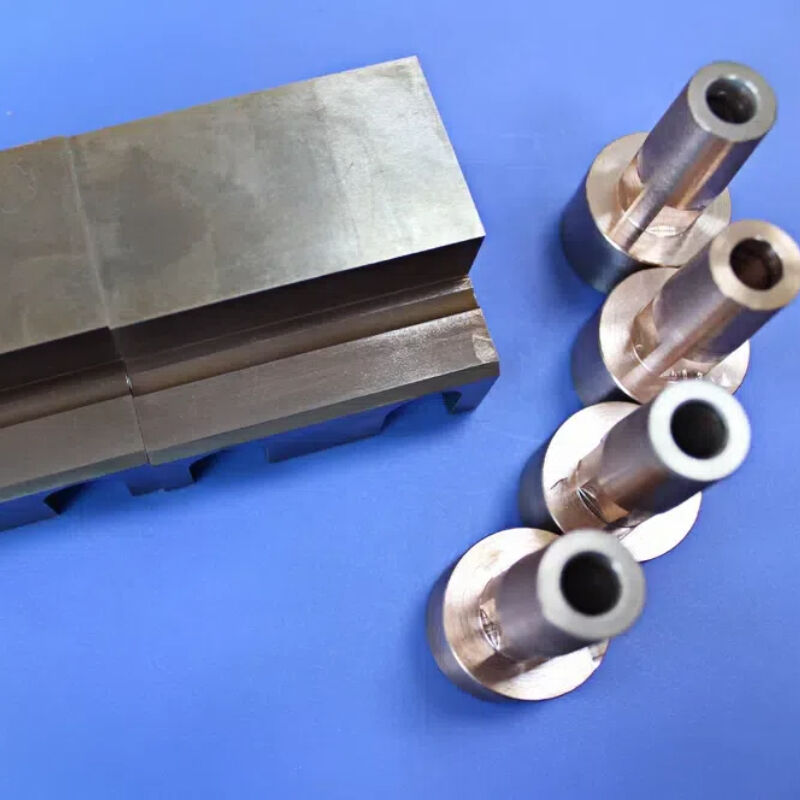

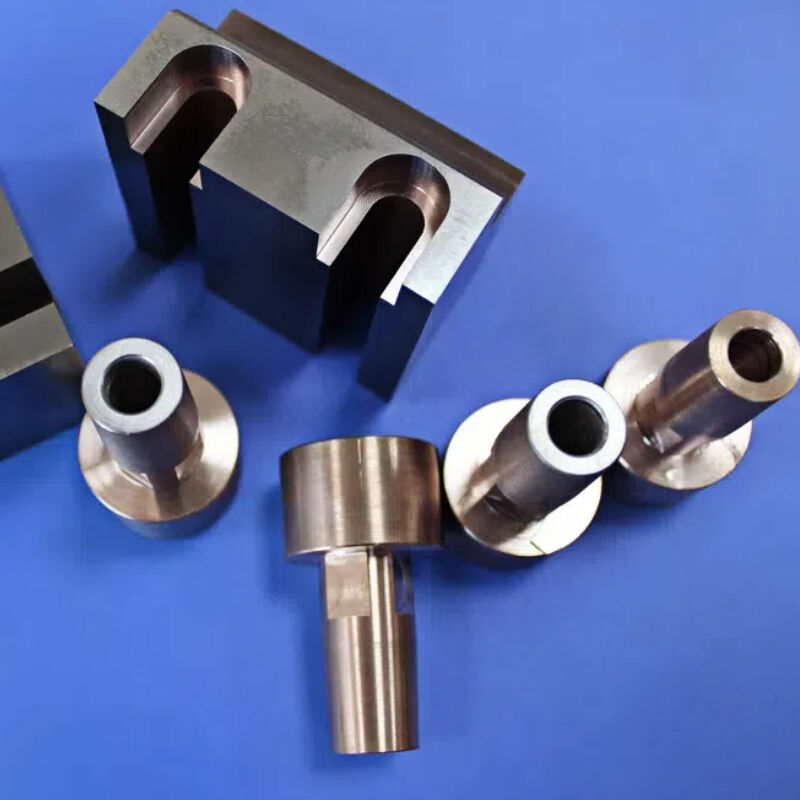

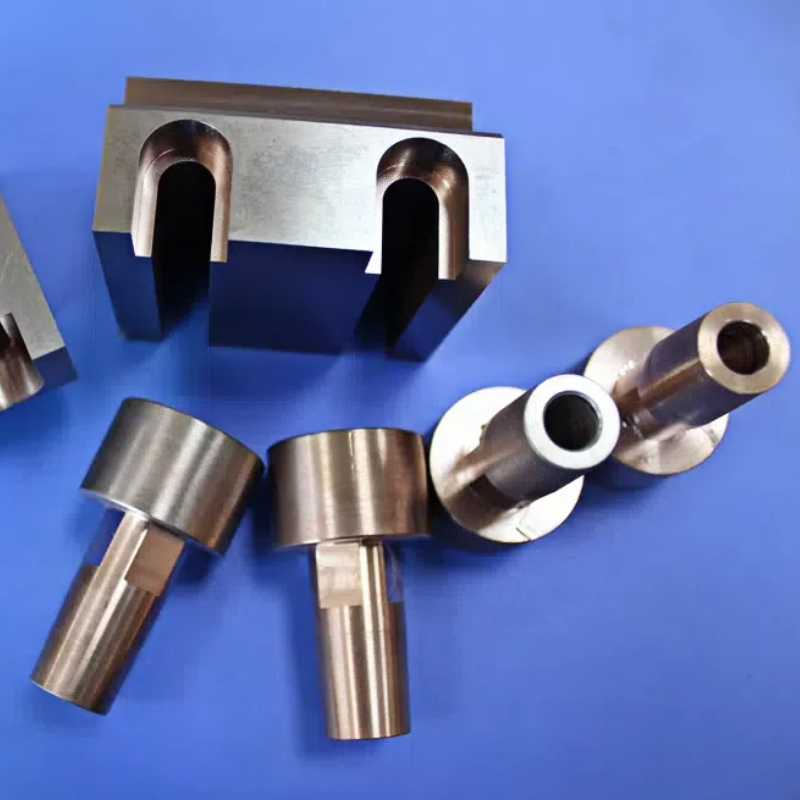

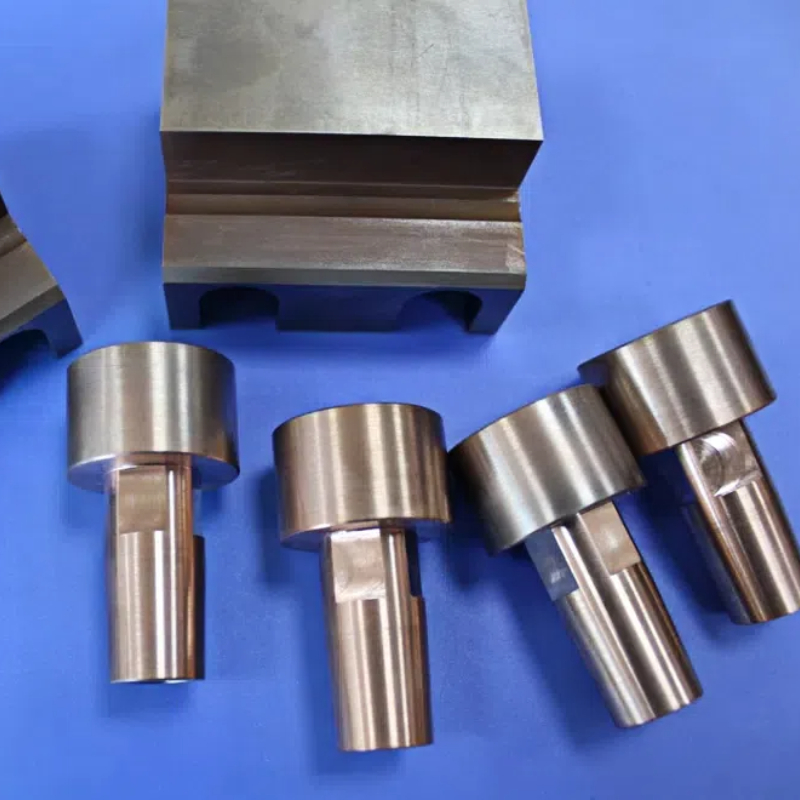

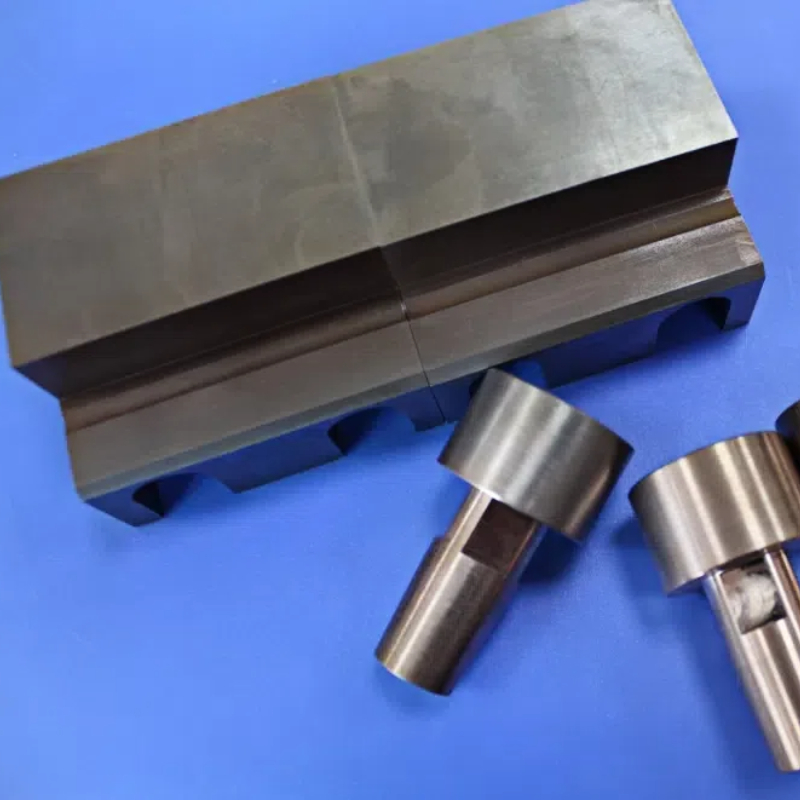

High Strength Tungsten Copper Alloy Electrodes with High Corrosion Resistance and Long Life Span for EDM and Resistance Welding

Tungsten-copper (WCu) alloy electrodes are among the most versatile and widely used electrode materials in modern industry. They combine the ultra-high temperature resistance of tungsten with the excellent electrical and thermal conductivity of copper, resulting in performance far exceeding that of pure metals or traditional alloys.

This unique composite material—often referred to as a "quasi-alloy" due to the immiscibility of tungsten and copper—is manufactured using powder metallurgy and infiltration processes. Tungsten particles form a durable, high-melting-point structure that maintains structural integrity even at extreme temperatures, while the interconnected copper phases ensure efficient current and heat transfer.

Our tungsten-copper alloy electrodes offer a full range of compositions from WCu60 to WCu90, allowing for precise customization of hardness, conductivity, and arc resistance to meet your specific application needs.

Tungsten-copper electrodes are widely used in electrical discharge machining (EDM) for machining hard materials and precision molds:

• Precision Mold Manufacturing: Ideal for machining tungsten steel, cemented carbide, and high-temperature superalloy molds
• Difficult-to-Machine Materials: Excel at processing materials that are challenging with conventional electrodes
• Fine and Mirror-Finish EDM: Enable high-precision machining with excellent surface finish
• Extended Dimensional Accuracy: Maintain shape and accuracy longer than copper or graphite electrodes

Tungsten copper electrodes are widely used in resistance welding processes, especially suitable for applications requiring high conductivity, thermal stability, and wear resistance:

• Spot Welding: Provides localized current and pressure for reliable welds
• Projection Welding: Ideal for high-pressure applications
• Seam Welding: Used for continuous weld seams in pipe and container production
• Butt Welding and Spot Welding: Withstands repeated thermal cycling and mechanical stress

Applicable Workpiece Materials: Low-carbon steel, galvanized steel, coated steel, stainless steel, aluminum, copper, and highly conductive non-ferrous metals.

Tungsten copper alloys are the preferred material for high-voltage and ultra-high-voltage electrical contacts:

• High-Voltage Vacuum Switches and SF6 Circuit Breakers: Resist arc erosion and fusion welding
• Arc Contacts and Guard Rings: Ensure reliable operation under extreme temperature spikes
• Load Switches and Surge Arresters: Offer long service life and reliable high current interruption

• Electronic Packaging and Heat Sinks: Ideal for chip carriers, substrates, and heat sink materials
• Plasma Cutting Nozzles: Withstand extreme temperatures of plasma arcs
• Electrochemical Machining (ECM): Offer excellent conductivity stability and corrosion resistance

• Versatility Across Applications: One material system serves EDM, resistance welding, and high-voltage contacts
• Extended Service Life: Tungsten's hardness and arc resistance deliver significantly longer electrode life
• Consistent Performance: Thermal stability ensures consistent electrode geometry and energy transfer
• Reduced Downtime: Longer electrode life means fewer changes and higher equipment effectiveness
• Application-Optimized Compositions: Optimal WCu grade selection for specific requirements
• Full Traceability: Material certifications and dimensional inspection reports available
