Detail Information
Product Description

Detail Information
Size Range:	Customizable	Categories:	Tungsten Steel Sleeve
Services:	OEM & ODM	Surface Roughness:	1.6~0.1
High:	8-150mm	Dimensions:	Customer's Request
Wear Resistance:	Excellent	Product Material:	100% Virgin Tungsten Carbide
Hardness:	Up To 90 HRA	Chemical Composition:	WC-Ni
Standard:	Non-standard/ Standard Are Available
Highlight:	Precision tungsten carbide sleeve with ±0.001mm tolerance , WC-Ni alloy carbide sleeve for magnetic-sensitive applications , Tungsten carbide sleeve with 89-92 HRA hardness

Product Description

Precision-Machined Non-Magnetic Alloy Positioning & Bearing Components for Magnetic-Sensitive Machinery

WC-Ni alloy with µ < 1.002 permeability, 89-92 HRA hardness, and ±0.001mm OD tolerance for semiconductor, medical, and aerospace applications. Custom diameters up to 300mm.

Our Precision-Machined Non-Magnetic Alloy Outer Diameter (OD) Rings are engineered specifically to overcome these challenges. Manufactured from advanced WC-Ni (Tungsten Carbide-Nickel) alloy and other specialized non-ferrous materials, these precision annular components deliver the essential combination of absolute magnetic neutrality, micron-level OD tolerance, and outstanding dimensional stability for the most demanding metalworking and precision assembly applications.

Key Performance Benefits

Recent breakthroughs in WC-Ni sintered ring technology have achieved magnetic permeability consistently below 1.002, providing:

Zero magnetic signature – no disruption to sensitive electronic or magnetic systems
No ferrous particle attraction, preventing contamination in cleanroom environments
Complete compatibility with MRI-adjacent equipment, wafer handling stages, and precision measurement systems
Safe integration into medical, semiconductor, and aerospace machinery

Technical Specifications & Precision Manufacturing

Parameter	Standard Capability	High-Precision Option
Primary Material	WC-Ni Non-Magnetic Alloy	Also available: Cupronickel, Non-Magnetic Stainless Steel, Aluminum Bronze
Hardness Range	89 - 92 HRA	Consistent throughout the component
Magnetic Permeability	< 1.002 (certifiable per batch)	Material-dependent grades available
Outer Diameter (OD) Range	2 mm - 300 mm	Custom diameters available
OD Tolerance	±0.005 mm (standard, h6/g6)	± 0.001 mm (h4/h5 grade)
Inner Diameter (ID)	Custom, through-hole or blind bore	Matched to shaft specification
Concentricity (ID to OD)	≤ 0.005 mm	≤ 0.003 mm
Thickness / Width	0.5 mm - 50 mm	Custom per drawing
Surface Finish	Ra 0.4 μm (ground)	Ra 0.1 μm or better (lapped/polished)
Parallelism (End Faces)	≤ 0.003 mm	≤ 0.002 mm
Working Temperature Range	-200°C to +800°C	Material-dependent
Additional Features	Oiling grooves, chamfers, radii, mounting holes, flanges, threads	Per customer drawing

Our manufacturing process utilizes CNC turning, precision grinding, lapping, and advanced EDM techniques to achieve these exacting tolerances. We specialize in transforming customer drawings into ready-to-install, high-precision components that fit perfectly on the first try.

Customization Capabilities

We understand that every precision application is unique. Our non-magnetic alloy outer diameter rings can be fully customized:

Customization Parameter	Options
Material Grade	WC-Ni (multiple grades from HRA 89 to 92)
OD Geometry	Straight, stepped, flanged, tapered, profiled
Surface Features	Lubrication grooves (spiral, axial), chamfers (inner/outer), radii, notches
Holes / Mounting Features	Radial through-holes, threaded holes, counterbores, slots
Surface Treatment	Polished, ground, DLC-coated for dry-running applications
Quantity	Prototype (single pieces) to high-volume production

Why Partner With Us?

Specialized Expertise: Years of experience manufacturing precision non-magnetic components for demanding industrial applications
Advanced Manufacturing: In-house CNC turning, grinding, EDM, lapping, and polishing capabilities
Maintenance & Wear Support: The ultra-hard carbide provides tens of thousands of hours of service before needing replacement, drastically reducing total cost of ownership
Global Supply: Consistent quality, reliable delivery, and professional export documentation worldwide

Tag:

Product Details:
Place of Origin:	China
Brand Name:	Sanxin
Certification:	ISO
Model Number:	SX1305
Payment & Shipping Terms:
Minimum Order Quantity:	1
Delivery Time:	5-30days
Payment Terms:	T/T,L/C,Western Union

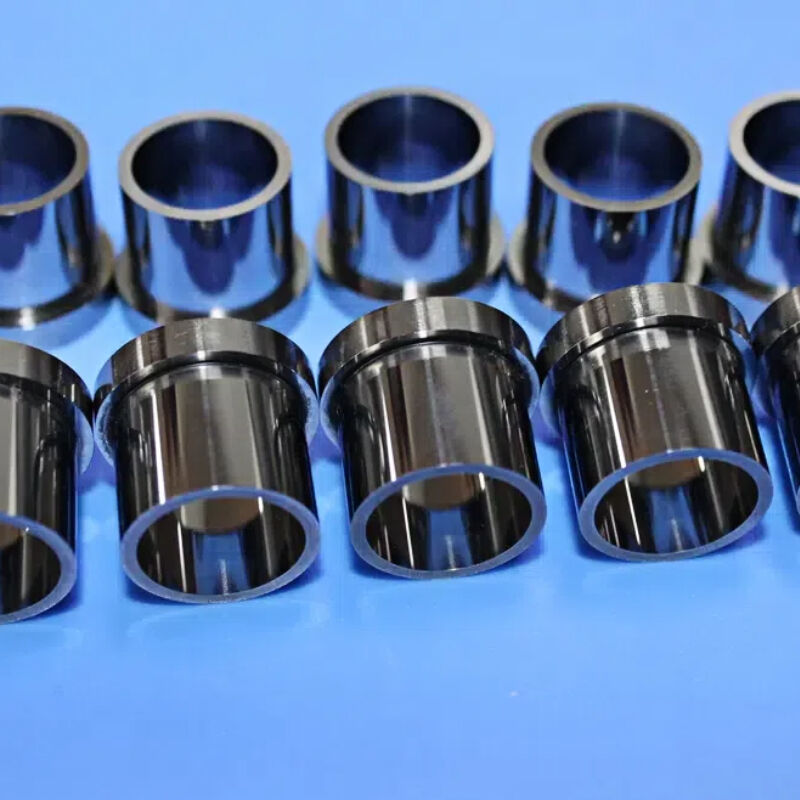

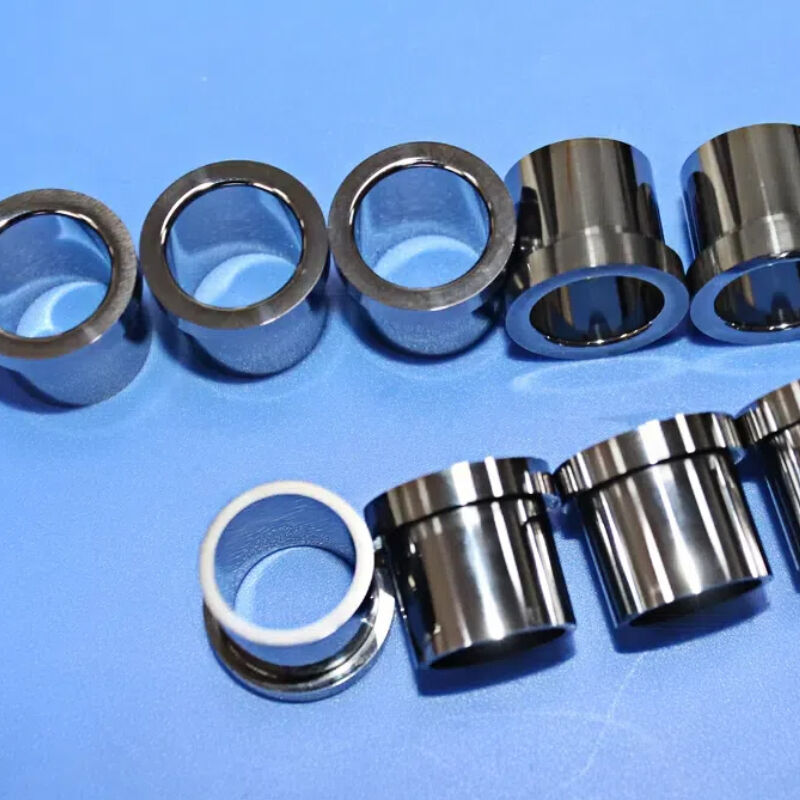

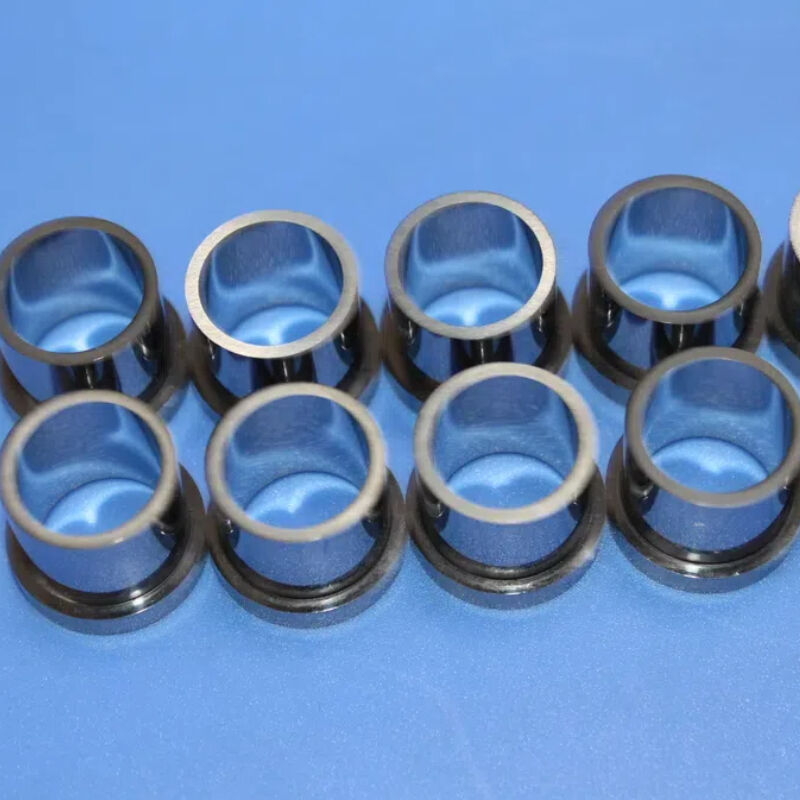

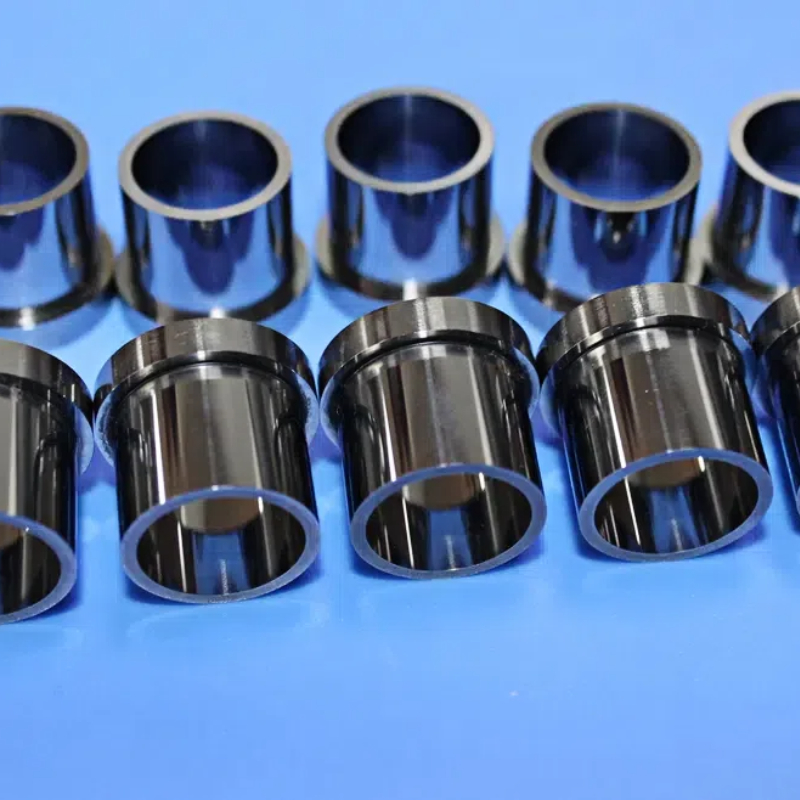

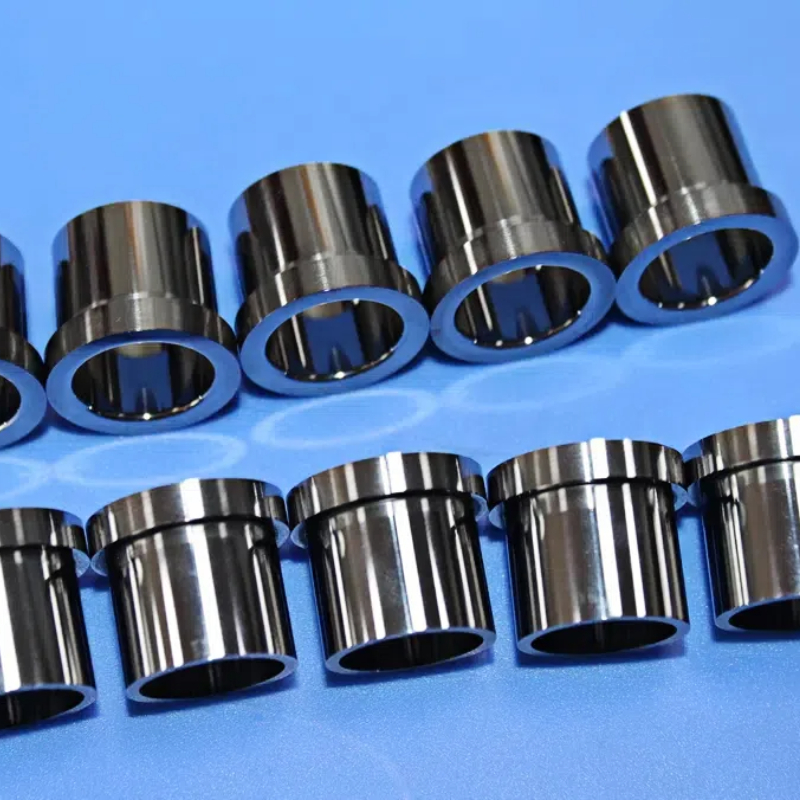

Precision WC-Ni Alloy Tungsten Carbide Sleeve with ±0.001mm OD Tolerance and 89-92 HRA Hardness for Magnetic-Sensitive Applications

Precision tungsten carbide sleeve with ±0.001mm tolerance

WC-Ni alloy carbide sleeve for magnetic-sensitive applications

Tungsten carbide sleeve with 89-92 HRA hardness
