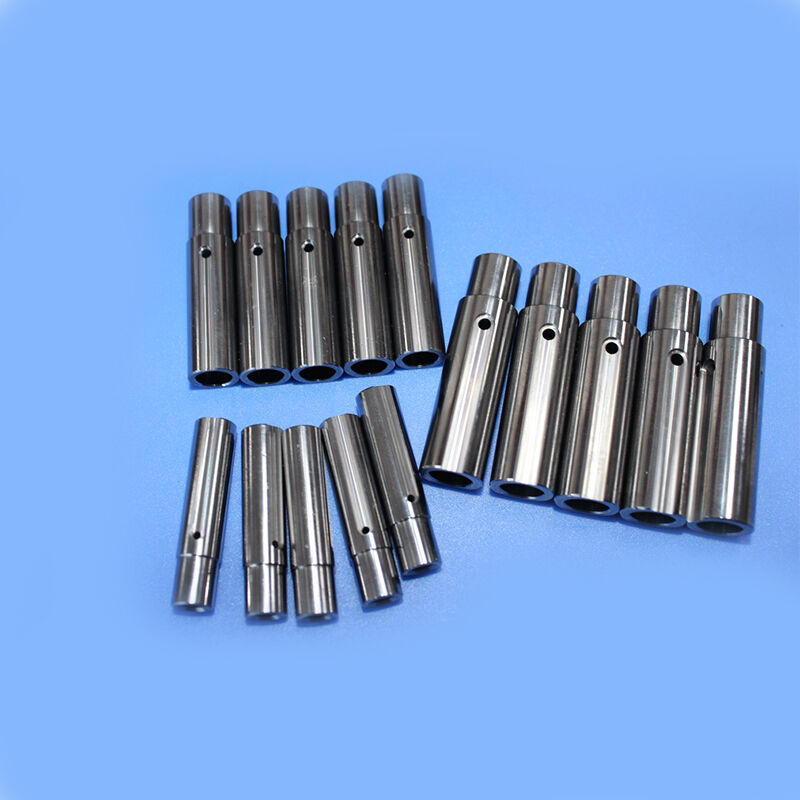

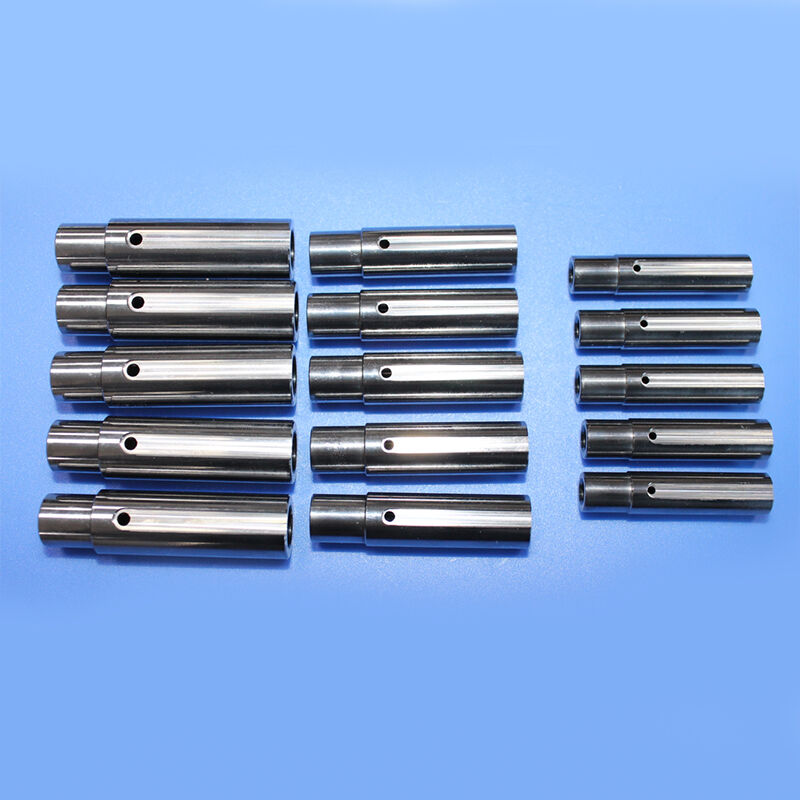

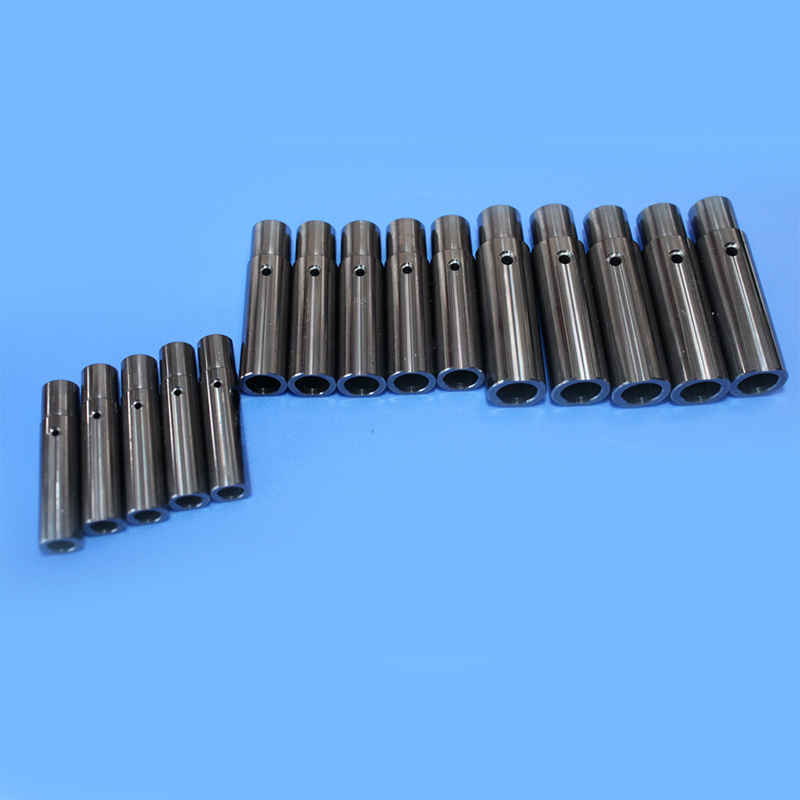

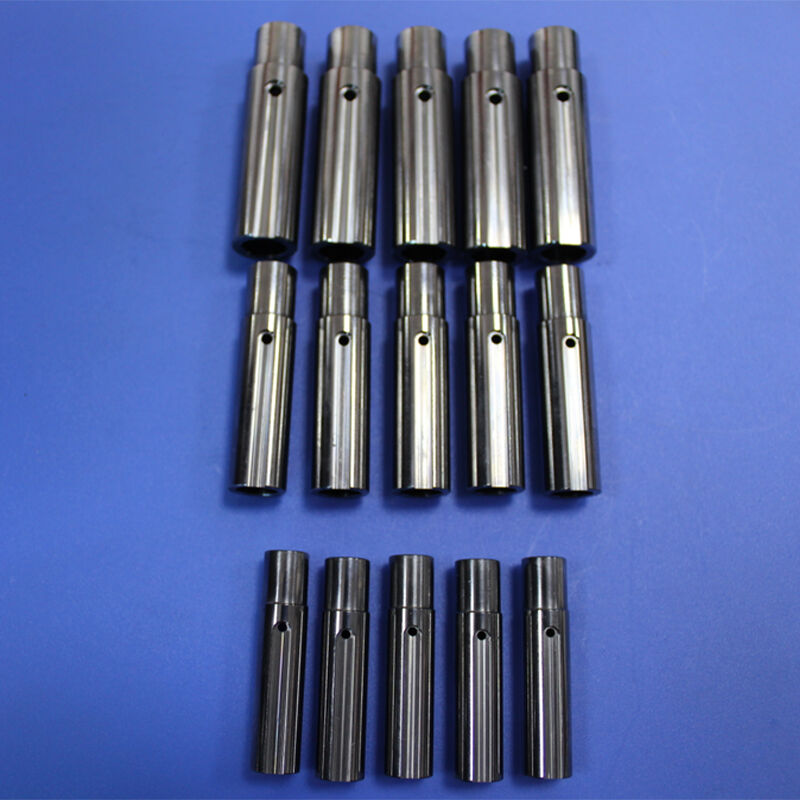

Precision Tungsten Carbide Bushing with ±0.01 mm Tolerance, Super Durable and High Wear-Resistance for Industrial Applications

Tungsten carbide bushings are high-performance plain bearing components precision-manufactured through powder metallurgy using high-purity tungsten carbide (WC) powder and metallic binders. They are extensively used in the oil and gas industry, pump and valve systems, mining machinery, chemical equipment, and various industrial machines. Serving as support, guidance, and wear protection between rotating shafts and stationary housings, they are critical to ensuring long-term, reliable operation of equipment.

Tungsten carbide bushings consist of tungsten carbide particles as the hard phase and metallic binders such as cobalt (Co) or nickel (Ni) as the matrix. The manufacturing process includes batching, wet milling, spray drying, and forming via die pressing or cold isostatic pressing (CIP), followed by vacuum or protective-atmosphere sintering at 1400-1500°C to achieve full densification. Finally, precision grinding and polishing with diamond wheels deliver micron-level tolerances and a mirror-like surface finish (Ra as low as 0.05 μm). This structure endows the material with both exceptionally high hardness and usable toughness.

• Exceptional wear resistance: Hardness far surpasses hardened steel, delivering service life typically 5 to 20 times longer than conventional steel bushings in abrasive environments
• Corrosion resistance: Nickel-based grades withstand corrosive media including acids, alkalis, salt solutions, seawater, and fluids containing hydrogen sulfide (H₂S) and carbon dioxide (CO₂)
• Dimensional stability: Extremely low thermal expansion coefficient provides minimal deformation under temperature fluctuations and heavy loads
• High-temperature performance: Retains high hardness and strength at temperatures above 500°C, enabling continuous operation in HPHT conditions

In practical systems, tungsten carbide bushings fulfill multiple roles: as shaft support and guidance elements, they maintain concentricity of rotating components and reduce runout; as controlled wear interfaces, they replace the shaft or housing in bearing friction and erosion, protecting more expensive critical parts; through long-term retention of tight clearances, they prevent leakage and efficiency loss caused by wear; and in corrosive media, they form a durable barrier that mitigates combined chemical-mechanical damage. The cumulative effect of these functions is improved equipment reliability, fewer unscheduled shutdowns, and a significantly reduced total cost of ownership over the equipment lifecycle.

Tungsten carbide bushings play an irreplaceable role across multiple industrial sectors:

• Oil and gas industry: downhole tools, mud pumps, MWD tools, and electric submersible pumps
• Pump and valve systems: shaft sleeves or seal bushings for water pumps, chemical pumps, and slurry pumps
• Mining and heavy machinery: slurry pumps, crushers, and conveyors
• Automotive and industrial machinery: high-performance engines, transmissions, and high-speed machine tools

Tungsten carbide bushings are highly customizable. We recommend the most suitable grade based on specific operating conditions and can machine non-standard dimensions (outside diameters up to 780 mm), tolerance classes (down to IT5 or finer), and special surface treatments (such as polishing, chamfering, and coatings) per customer drawings. We provide full-process technical support—from material selection and evaluation, process design, to finished-product delivery—and perform quality inspections in accordance with ISO 9001, API, and other applicable standards to ensure every product meets design expectations.

For further assistance in obtaining grade recommendations for specific service conditions, drawing technical reviews, or trial sample support, please do not hesitate to contact our technical team. We are ready to provide professional and timely solutions tailored to your needs.
