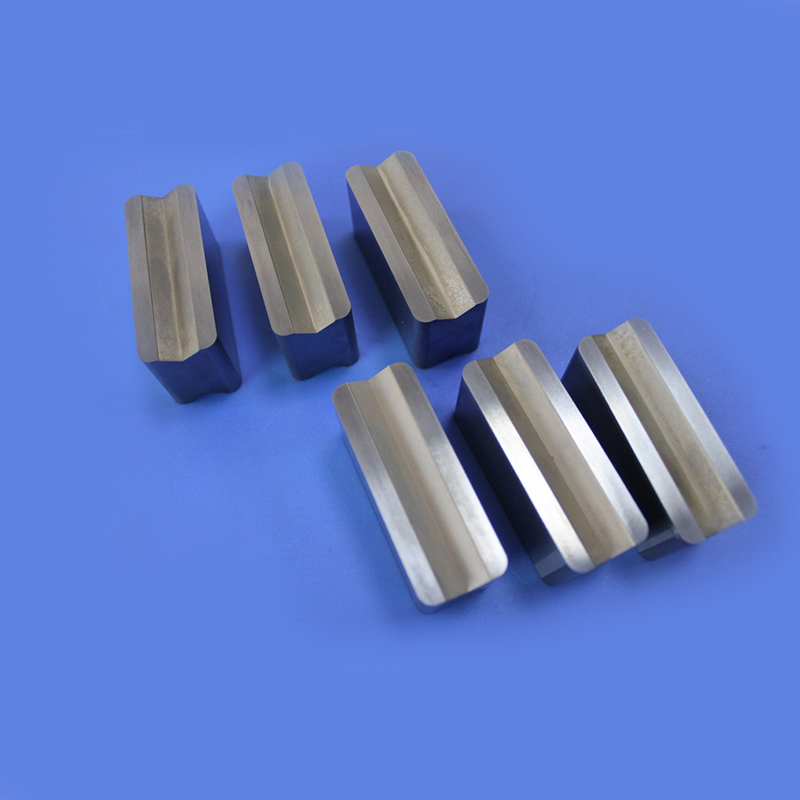

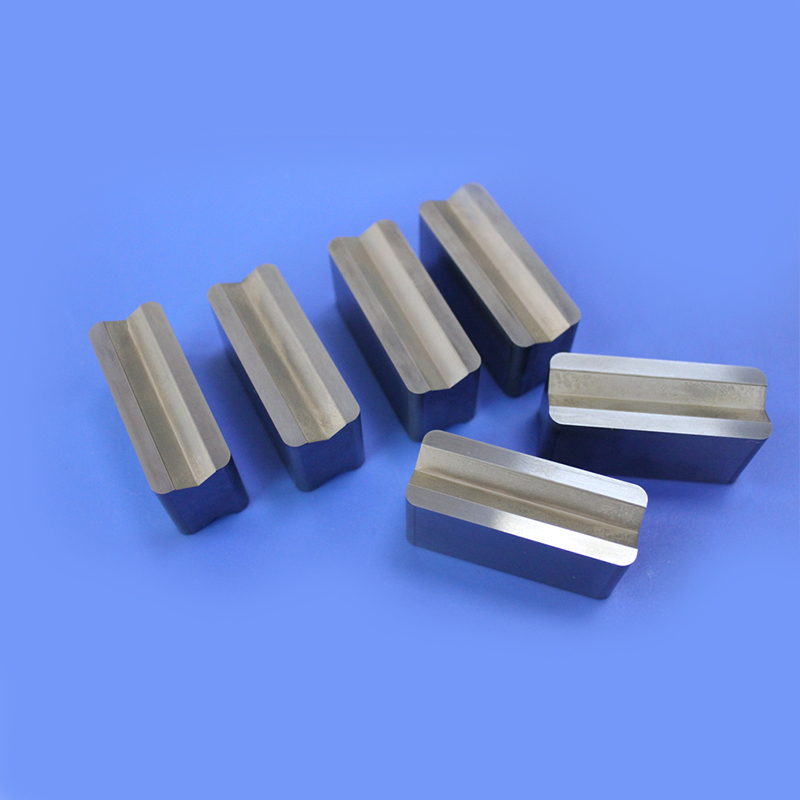

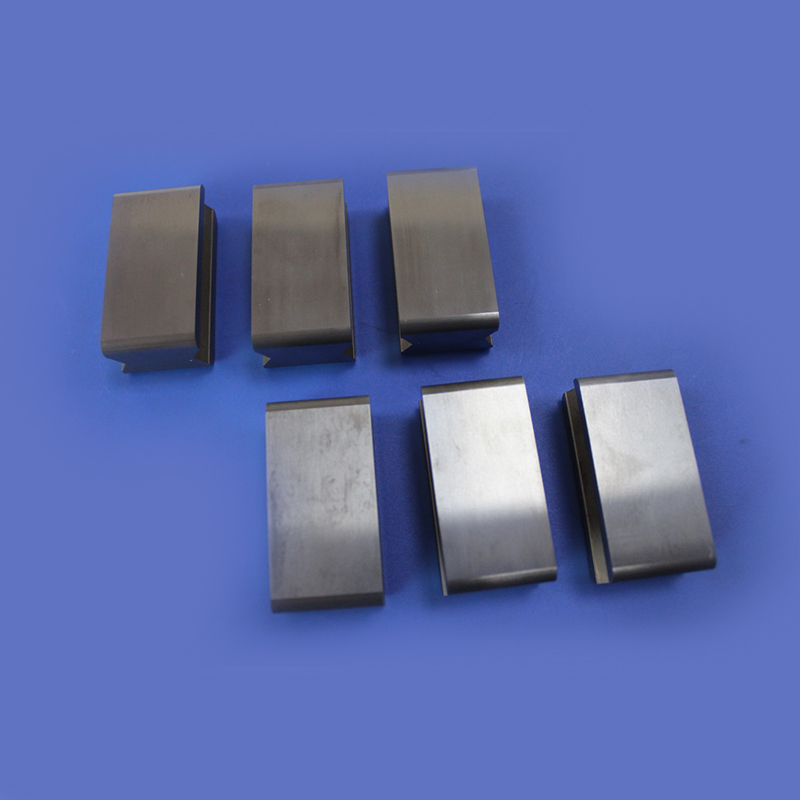

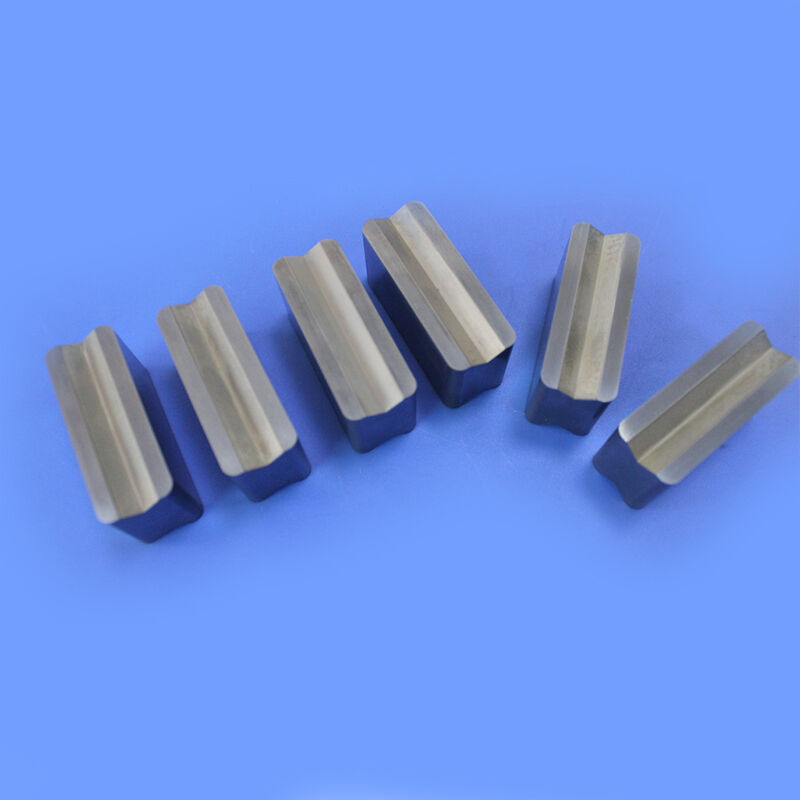

Customized Design Tungsten Carbide Shaped Block Assemblies with High Chemical Inertness and Up to 89 HRC Hardness
Customized Design Tungsten Carbide Shaped Block Assemblies with High Chemical Inertness and Up to 89 HRC Hardness Customized Design Tungsten Carbide Shaped Block Assemblies with High Chemical Inertness and Up to 89 HRC Hardness Customized Design Tungsten Carbide Shaped Block Assemblies with High Chemical Inertness and Up to 89 HRC Hardness Customized Design Tungsten Carbide Shaped Block Assemblies with High Chemical Inertness and Up to 89 HRC Hardness

Customized Design Tungsten Carbide Shaped Block Assemblies with High Chemical Inertness and Up to 89 HRC Hardness

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO9001
Model Number: SX-2300
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Payment Terms: L/C,T/T
Supply Ability: 10000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Design: Customized Chemical Inertness: High
Surface: Polished Grinding Hardness: Up To 89 HRC
Alloy Specification: YG6/YG8/YG8C/YG11/YG11C Size: Custom Made
Wear Resistance: Excellent Magnetic Properties: Non-magnetic Available
Precision: 0.001 - 0.01 Mm Service: OEM & ODM
Productname: Tungsten Carbide Processing
Highlight:

Customized Design Tungsten Carbide Blocks

,

High Chemical Inertness Tungsten Carbide Modular Components

,

Up to 89 HRC Hardness Tungsten Carbide Shaped Block Assemblies

Product Description

Tungsten Carbide Shaped Block Assemblies
Tungsten Carbide Shaped Block Assemblies are high-performance engineered components manufactured from ultra-hard, wear-resistant material. These precision-machined tungsten carbide block units are formed into specific geometric shapes and optimally designed for combination, integrating extreme wear resistance and high hardness with superior structural design.
Core Features
Exceptional Hardness and Wear Resistance
  • Hardness reaches above HRA 90 with wear resistance 10-30 times that of high-speed steel
  • Ideal for high-intensity wear environments, significantly extending equipment service life
High Compressive Strength and Rigidity
  • Compressive strength exceeds 4000 MPa, maintaining shape under heavy loads
  • Ensures dimensional stability for precision assembly and positioning applications
Excellent Corrosion and High-Temperature Resistance
  • Resistant to acid and alkali corrosion with stability in high-temperature environments (800-1000°C)
  • Suitable for severe conditions in metallurgy, chemical processing, and related industries
Modular Shaped Design
  • Block units customizable into various shapes including trapezoidal, dovetail, wedge, and interlocking types
  • Enables quick assembly and replacement, reducing maintenance costs
Advantages of Assembled Structure
  • Utilizes interlocking, inlaying, and other combination methods to optimize overall performance
  • Distributes stress effectively, improving impact resistance and structural integrity
Technical Specifications
Parameter Specification
Material Tungsten Carbide (WC-Co, WC-Ni grades, etc.)
Density 14.6 g/cm³
Hardness HRA 89 - 93
Transverse Rupture Strength 1500 - 3500 MPa
Fracture Toughness 8 - 15 MPa*m¹/²
Coefficient of Thermal Expansion 5.0 - 6.5 × 10⁻⁶/°C
Maximum Service Temperature 1000°C (in inert/vacuum atmosphere)
Standard Block Size 10×10×10mm to 50×50×50mm (Customizable)
Shape Types Standard Block, Trapezoidal Block, Dovetail Block, Wedge Block, Interlocking Block, etc.
Assembly Methods Mechanical Interlocking, Welding, Bonding, Embedded Assembly
Application Fields
  • Mining & Construction Machinery: Excavator teeth, crusher liner plates, wear liners for screening equipment
  • Metallurgical Industry: Guide plates for rolling mills, guide rollers for continuous casters, high-temperature wear plates
  • Building Materials & Ceramics: Mold liners, press rolls, mixer blades
  • Energy & Chemical Processing: Wear blocks for screw drills, valve sealing faces, reactor linings
  • Precision Manufacturing: Fixture locating blocks, mold inserts, precision guide components
Advantages of Assembled Design
Customizable Design
  • Optimizes block shape and arrangement based on wear patterns and stress analysis
  • Provides non-standard design and simulation support
Easy Maintenance & Cost-Effectiveness
  • Individual worn blocks can be replaced locally without discarding the entire assembly
  • Significantly reduces downtime and spare parts costs
Enhanced Overall Toughness
  • Incorporates flexible connections or buffer layers to compensate for tungsten carbide's brittleness
  • Improves impact resistance in demanding applications
Multi-Functional Integration
  • Can be combined with other materials (alloy steel, ceramics) to achieve integrated multi-functionality
  • Provides combined benefits of wear resistance, corrosion resistance, and thermal conductivity

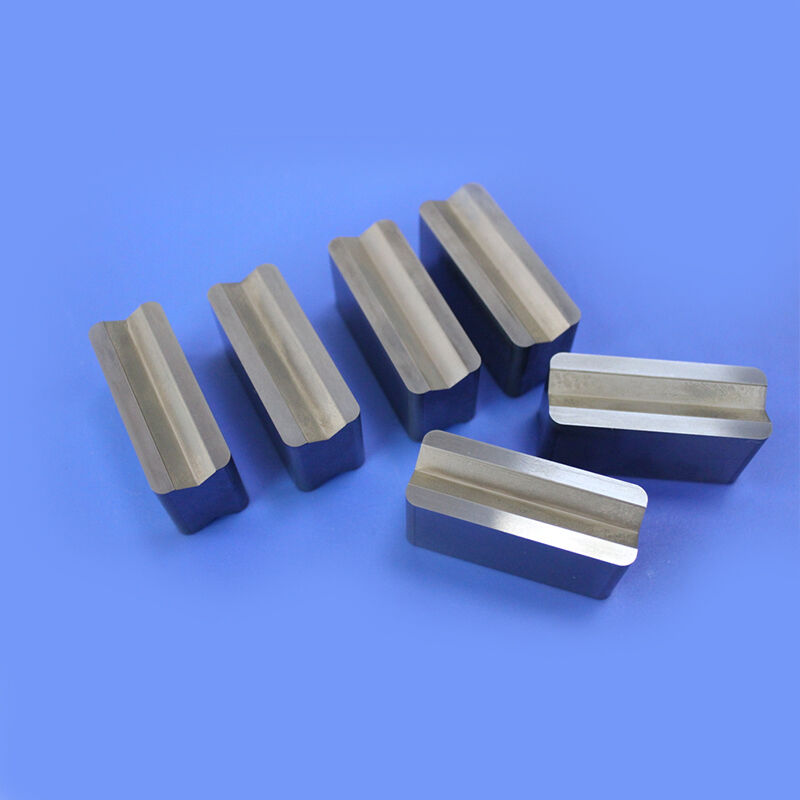

Customized Design Tungsten Carbide Shaped Block Assemblies with High Chemical Inertness and Up to 89 HRC Hardness 0
