Tungsten Carbide Shear-Cut Punch with 100% Virgin Tungsten Carbide HRA89-HRA92.9 Hardness and YG6/YG8/YG10X/YG20C Alloy Specification
Tungsten Carbide Shear-Cut Punch with 100% Virgin Tungsten Carbide HRA89-HRA92.9 Hardness and YG6/YG8/YG10X/YG20C Alloy Specification Tungsten Carbide Shear-Cut Punch with 100% Virgin Tungsten Carbide HRA89-HRA92.9 Hardness and YG6/YG8/YG10X/YG20C Alloy Specification Tungsten Carbide Shear-Cut Punch with 100% Virgin Tungsten Carbide HRA89-HRA92.9 Hardness and YG6/YG8/YG10X/YG20C Alloy Specification Tungsten Carbide Shear-Cut Punch with 100% Virgin Tungsten Carbide HRA89-HRA92.9 Hardness and YG6/YG8/YG10X/YG20C Alloy Specification

Tungsten Carbide Shear-Cut Punch with 100% Virgin Tungsten Carbide HRA89-HRA92.9 Hardness and YG6/YG8/YG10X/YG20C Alloy Specification

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO9001
Model Number: SX-2329
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Payment Terms: L/C,T/T
Supply Ability: 10000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Material: 100% Virgin Tungsten Carbide Product Name: Tungsten Carbide Punch
Type: Power Tool Parts Size: Cusotmized
Hardness: HRA89-HRA92.9 Surface: Polished
Alloy Specification: YG6/YG8/YG10X/YG20C Advantage: High Wear Resistance And Long Service Life
Service: One Step Customized Service
Highlight:

100% Virgin Tungsten Carbide Punch

,

HRA89-HRA92.9 Hardness Shear-Cut Punch

,

YG6/YG8/YG10X/YG20C Alloy Specification Punch

Product Description

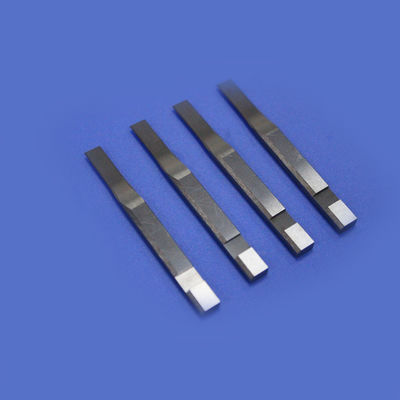

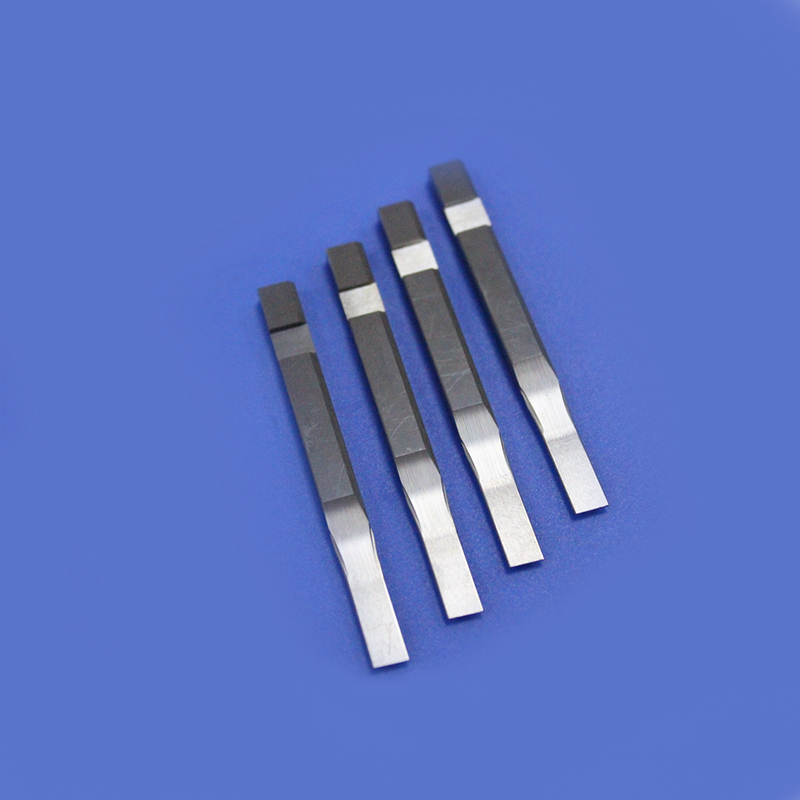

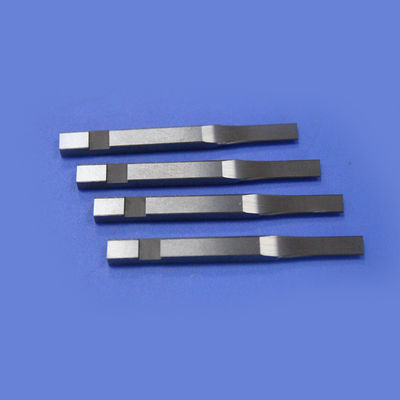

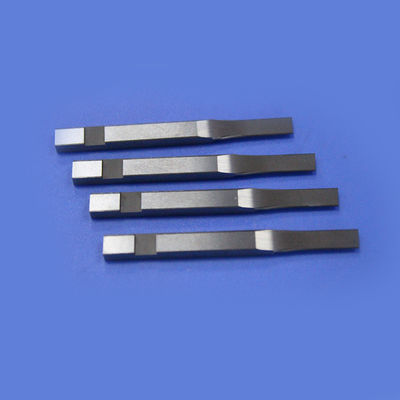

Tungsten Carbide Shear-Cut Punch
Product Overview

The Tungsten Carbide Shear-Cut Punch is an industrial-grade cutting tool engineered for high-precision blanking and piercing operations. Manufactured from ultra-fine grain tungsten carbide, it features an optimized shear-angle geometry that enables clean material separation while significantly reducing punching force and tool wear. Ideal for processing challenging materials including stainless steel, silicon steel, and high-strength alloys.

Technical Advantages
Shear-Angle Design
  • Reduces peak punching force by 30-40% compared to standard punches
  • Minimizes burr formation through controlled material fracture
  • Extends die life by lowering impact stress on tooling components
Premium Material Performance
  • Core hardness: 90-92 HRA
  • Transverse rupture strength: ≥3500 MPa
  • Exceptional edge retention maintains cutting sharpness 8-10x longer than HSS
Precision Engineering
  • Concentricity: ≤0.003mm
  • Surface finish: Ra ≤ 0.1μm (working surfaces)
  • Angular tolerance: ±0.1°
Technical Specifications
Parameter Specification Range
Material Grade YG15/YG20 Customizable
Hardness 90-92 HRA
TRS 3500-4200 MPa
Diameter Range 1.0-25.0mm
Length Tolerance ±0.01mm
Coating Options TiN, TiCN, DLC (Optional)
Application Scenarios
  • Progressive dies for electronic components
  • Precision blanking of magnetic materials
  • High-speed punching of automotive parts
  • Precision piercing of connector terminals
Quality Commitment
  • 100% dimensional inspection with optical comparators
  • Batch traceability with material certification
  • Custom geometry design services available
  • Technical support for die design optimization
Tungsten Carbide Shear-Cut Punch with 100% Virgin Tungsten Carbide HRA89-HRA92.9 Hardness and YG6/YG8/YG10X/YG20C Alloy Specification 0
