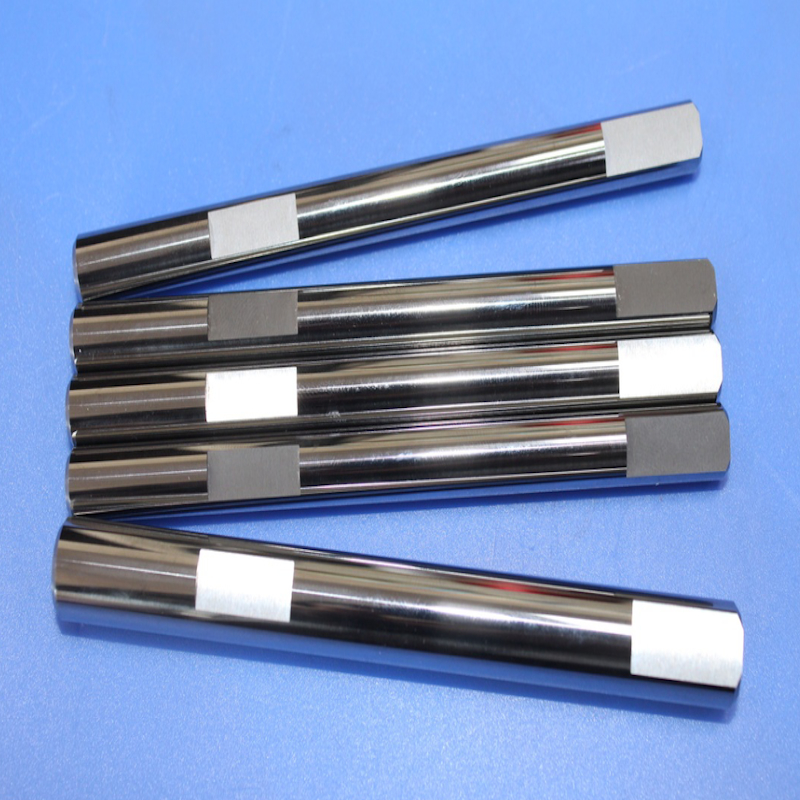

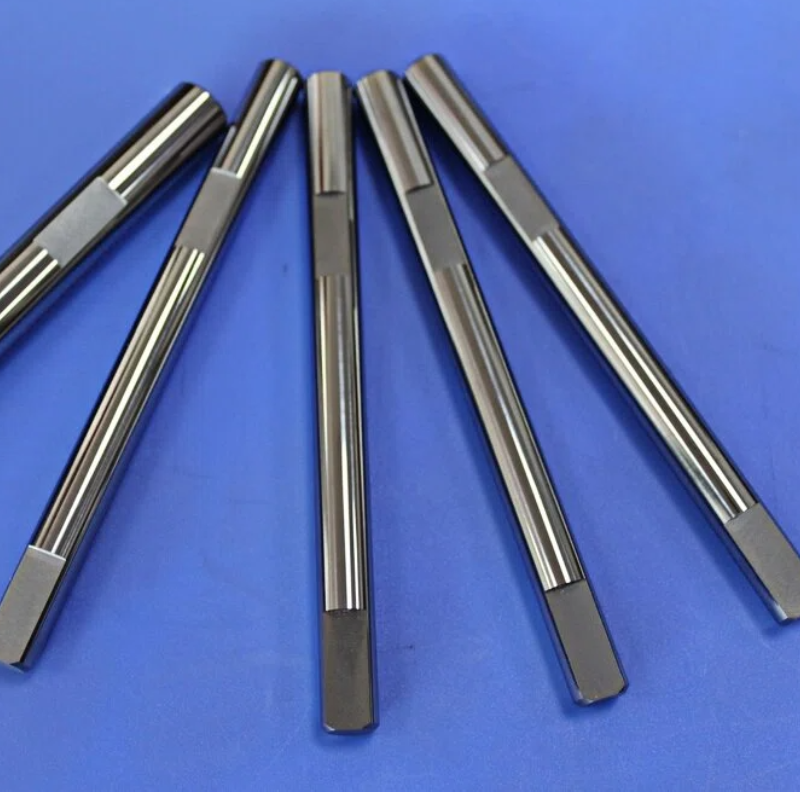

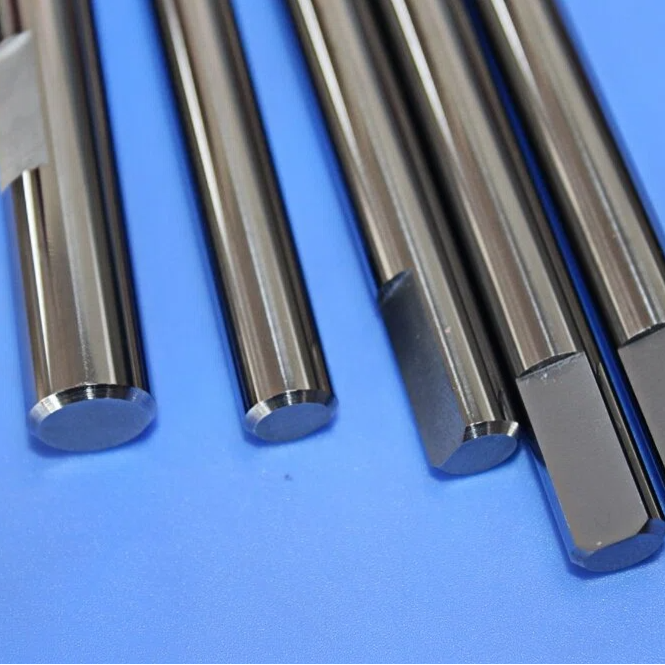

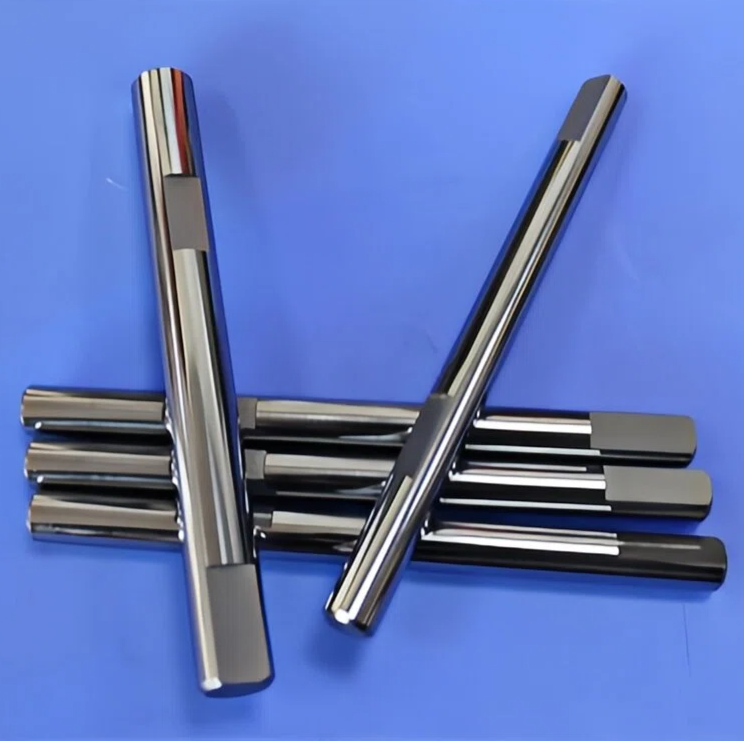

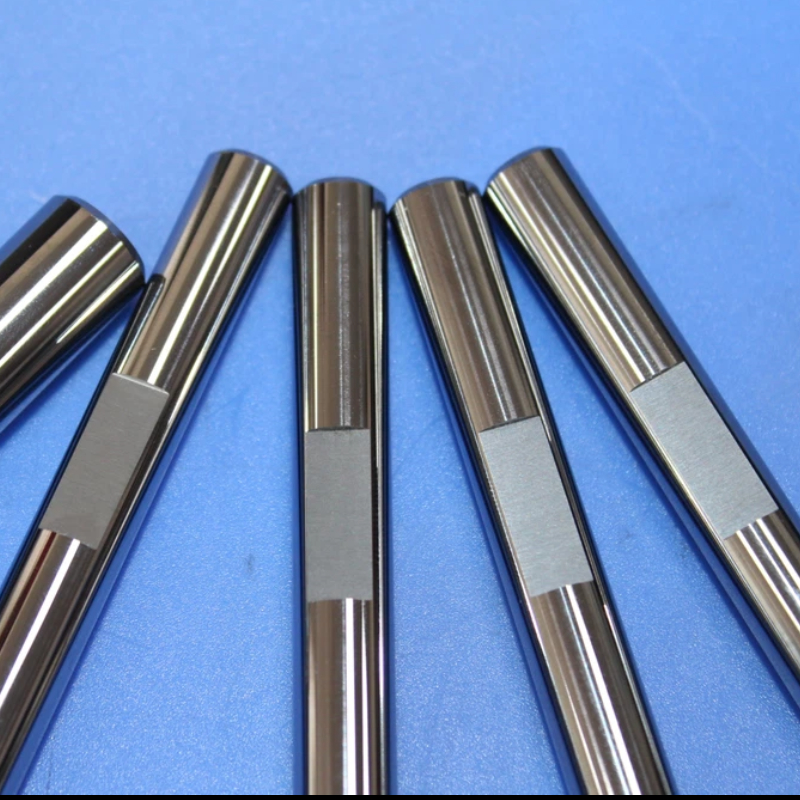

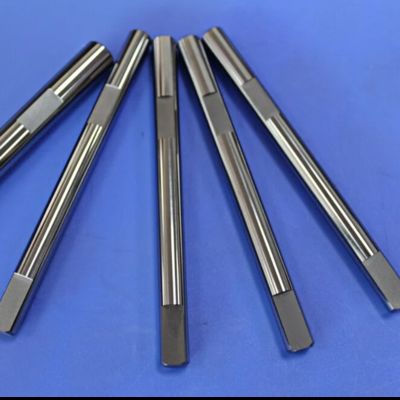

Precision Groove Accuracy ±0.003mm Non-magnetic Tungsten Carbide Drive Shaft for Semiconductor and Medical Equipment
Precision Groove Accuracy ±0.003mm Non-magnetic Tungsten Carbide Drive Shaft for Semiconductor and Medical Equipment Precision Groove Accuracy ±0.003mm Non-magnetic Tungsten Carbide Drive Shaft for Semiconductor and Medical Equipment Precision Groove Accuracy ±0.003mm Non-magnetic Tungsten Carbide Drive Shaft for Semiconductor and Medical Equipment Precision Groove Accuracy ±0.003mm Non-magnetic Tungsten Carbide Drive Shaft for Semiconductor and Medical Equipment Precision Groove Accuracy ±0.003mm Non-magnetic Tungsten Carbide Drive Shaft for Semiconductor and Medical Equipment

Precision Groove Accuracy ±0.003mm Non-magnetic Tungsten Carbide Drive Shaft for Semiconductor and Medical Equipment

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO9001
Model Number: SX1270
Payment & Shipping Terms:
Minimum Order Quantity: 5
Delivery Time: 5-25days
Payment Terms: L/C,T/T,Western Union
Contact Now
  • Detail Information
  • Product Description

Detail Information
Features: High Abrasive Resistance Quality: 100% Test
Thermal Conductivity: 110 W/mK Package: Paper Box + Paper Carton
Customized: Acceptable Service: OEM & ODM
Payment Term: T/T,L/C,Western Union Technology: Imported Equipment HIP Sinter
Type: Tungsten Steel Alloy Cetificate: ISO 9001
Tungsten: Cemented Carbide Shaft Shipments Terms: By Sea,air Or Express
Highlight:

Groove Accuracy ±0.003mm Tungsten Carbide Drive Shaft

,

Non-magnetic Tungsten Carbide Drive Shaft

,

Semiconductor Equipment Tungsten Carbide Drive Shaft

Product Description

Groove Accuracy ±0.003mm Non-magnetic Alloy Semiconductor And Medical Equipment Dedicated Drive Shaft
The grooved shaft is precision-manufactured from WC-Ni non-magnetic cemented carbide. By replacing cobalt with a nickel-based binder phase and utilizing nano-scale groove processing technology, it simultaneously addresses the magnetic interference and positioning accuracy issues of traditional drive shafts. This enables superior transmission performance with zero magnetic interference, precise positioning, and long-term stability in magnetic field-sensitive environments such as semiconductor equipment and medical instruments.
Material Science
  • Matrix Composition: 90% WC + 10% Ni, a special non-magnetic formula
  • Magnetic Properties: Permeability <1.002, Residual Magnetization <0.05 mT
  • Physical Properties:
    • Hardness: 92 HRA (Vickers Hardness 1800 HV)
    • Density: 14.8-15.1 g/cm³
    • Coefficient of Thermal Expansion: 5.2*10⁻⁶/K
  • Non-magnetic Principle: A nickel binder phase replaces the traditional cobalt phase, fundamentally eliminating ferromagnetism
Product Specifications
Parameter Type Standard Range Accuracy Level Testing Method
Shaft Diameter Φ3-50mm ±0.002mm Laser Diameter Gauge
Groove Width 1-10mm ±0.003mm Optical Projector
Shaft Runout ≤0.005mm 0.002mm Coordinate Measuring
Surface Roughness Ra 0.2μm Ra 0.1μm White Light Interferometer
Dynamic Balancing Grade G1.0 G0.4 ISO 1940 Standard
Manufacturing Excellence
Core Manufacturing Processes
1. Non-Magnetic Material Preparation
  • Nano-Scale WC-Ni Powder Proportioning
  • Isostatic Pressing Technology
  • Vacuum Sintering Process
2. Precision Groove Machining
  • Micro-EDM
  • Diamond Wheel Precision Grinding
  • Online Measurement and Real-Time Compensation
3. Surface Treatment Technology
  • Mirror Polishing
  • Electrolytic Passivation Deburring
  • Ultrasonic Cleaning
Precision Groove Accuracy ±0.003mm Non-magnetic Tungsten Carbide Drive Shaft for Semiconductor and Medical Equipment 0
