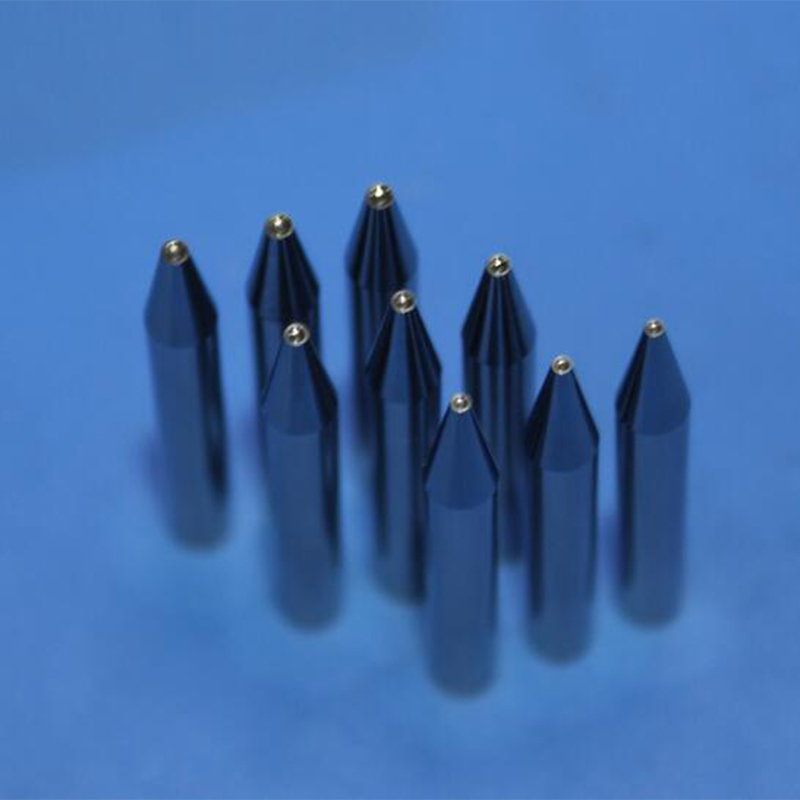

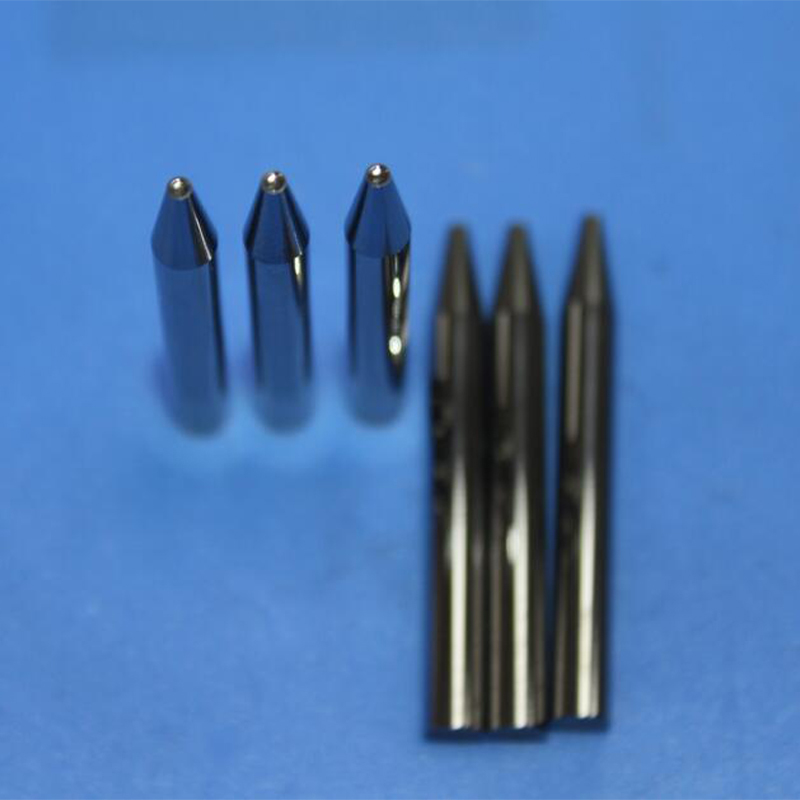

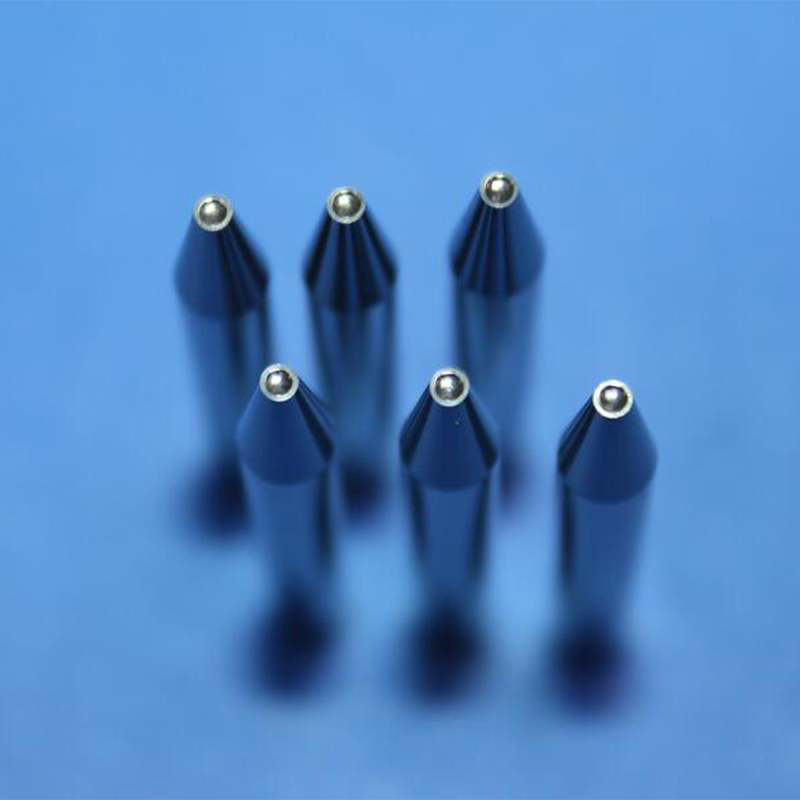

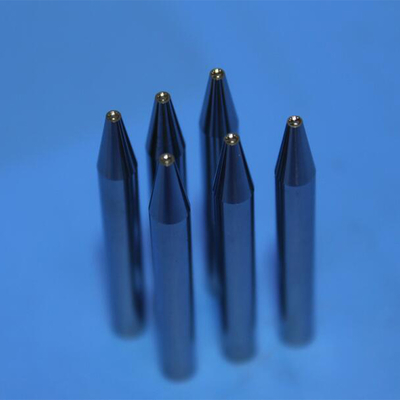

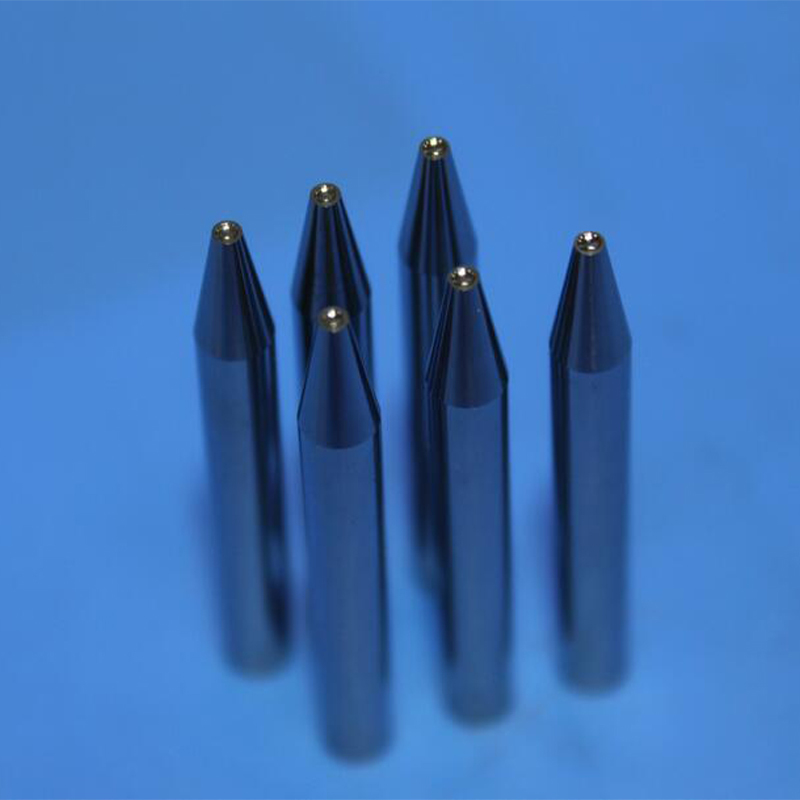

Tungsten Carbide Riveting Head 700-1000 MPa Tensile Strength
Tungsten Carbide Riveting Head 700-1000 MPa Tensile Strength Tungsten Carbide Riveting Head 700-1000 MPa Tensile Strength Tungsten Carbide Riveting Head 700-1000 MPa Tensile Strength Tungsten Carbide Riveting Head 700-1000 MPa Tensile Strength

Tungsten Carbide Riveting Head 700-1000 MPa Tensile Strength

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO9001
Model Number: SX-2350
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Payment Terms: L/C,T/T
Supply Ability: 10000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Material: Tungsten Carbide Tensile Strength: 700 - 1000 MPa
Flexural Strength: 1400 - 2100 MPa Ductility: Good Ductility And Machinability
Surface Finish: Ra 0.02 Thermal Conductivity: 70 - 100 W/m·K
Product Name: Tungsten Carbide Riveting Type: Power Tool Parts
Grade: K10,K20,K30,YG8,YG6X Advantage: High Wear Resistance
Service: One Step Customized Service
Highlight:

Tungsten Carbide Riveting Head

,

High Tensile Strength Riveting Head

,

700-1000 MPa Tungsten Carbide Tool

Product Description

Good Wear Resistance Tungsten Carbide Riveting Head with High Compressive Strength
Precision Riveting Solution

Our tungsten carbide riveting heads are manufactured through precision powder metallurgy using ultra-hard and wear-resistant tungsten carbide (WC) material. Designed specifically for high-intensity, high-frequency riveting operations, this professional tool offers unparalleled wear resistance and fatigue strength. It significantly improves riveting efficiency and quality while drastically reducing downtime for replacements, making it the ideal choice for modern manufacturing that pursues production efficiency and process precision.

Performance Advantages

The following table illustrates the performance differences between tungsten carbide riveting heads and traditional tool steel riveting heads:

Feature Tungsten Carbide Riveting Head Standard Tool Steel Riveting Head Value for You
Hardness HRA ≥ 90 (Rockwell A Scale) HRC 58-62 (Rockwell C Scale) Extreme wear resistance, handles abrasive materials
Service Life Extremely Long, 20-100 times that of tool steel Short, requires frequent replacement Reduces downtime, increases productivity, lowers cost per part
Rivet Consistency Excellent, maintains shape and dimensional accuracy over time Average, wear leads to deformed rivet heads Ensures stable product quality, reduces scrap rate
Anti-Galling Excellent, low adhesion to soft metals like Al, Cu Poor, prone to material build-up (cold welding) Creates clean, aesthetic rivet points, no workpiece scratching, less cleaning
High-Temp Resistance Excellent, good red hardness, stable performance at high temps Poor, softens at high temps accelerating wear Suitable for high-speed continuous operation, consistent performance
Initial Investment Higher Lower Exceptional overall cost-effectiveness, significant long-term savings

In addition to the advantages in the table, our riveting heads undergo high-precision grinding and mirror polishing to ensure smooth operation and clean riveting.

Technical Specifications
  • Material: High-quality Tungsten Carbide Hard Alloy (e.g., YG6, YG8)
  • Hardness: ≥ HRA 90
  • Density: ≥ 14.0 g/cm³
  • Transverse Rupture Strength: ≥ 3000 MPa
  • Surface Finishing: Ra ≤ 0.2μm (Working End Face)
  • Suitable Rivets: Aluminum, Copper, Steel, Stainless Steel, etc.
  • Compatible Machines: Radial/Orbital Riveting Machines, Pneumatic Rivet Guns, Hydraulic Equipment
Application Fields

This product is widely used in industries requiring high-quality and high-reliability riveting processes:

  • Automotive Manufacturing: Body panels, seats, safety belts, engine components
  • Aerospace: Aircraft skins, internal structures (where weight and reliability are critical)
  • Electronics & Appliances: Server chassis, precision connectors, household appliances
  • Hardware & Furniture: Premium luggage, office furniture, door and window hardware
