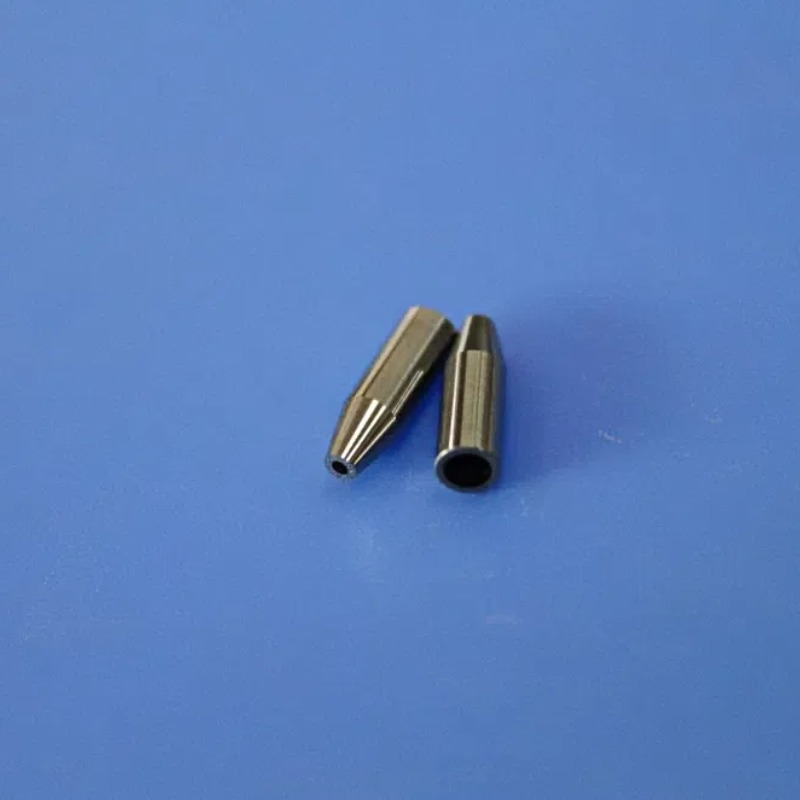

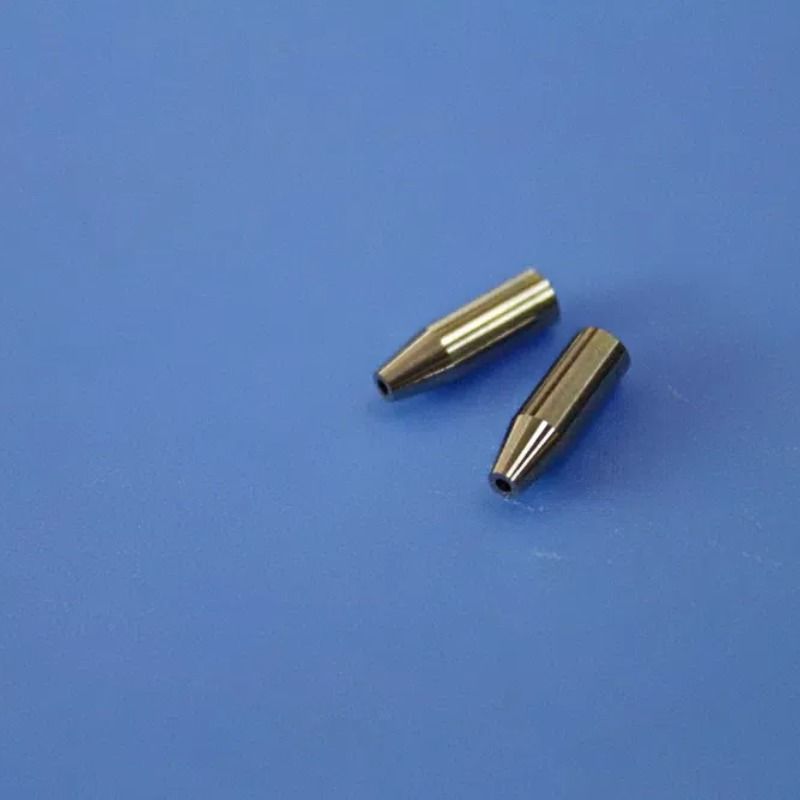

Φ2.3mm High Hardness HRA92 Tungsten Carbide Nozzle with Thermal Expansion Coefficient 5.0-6.5 x 10-6/K
Φ2.3mm High Hardness HRA92 Tungsten Carbide Nozzle with Thermal Expansion Coefficient 5.0-6.5 x 10-6/K Φ2.3mm High Hardness HRA92 Tungsten Carbide Nozzle with Thermal Expansion Coefficient 5.0-6.5 x 10-6/K Φ2.3mm High Hardness HRA92 Tungsten Carbide Nozzle with Thermal Expansion Coefficient 5.0-6.5 x 10-6/K Φ2.3mm High Hardness HRA92 Tungsten Carbide Nozzle with Thermal Expansion Coefficient 5.0-6.5 x 10-6/K Φ2.3mm High Hardness HRA92 Tungsten Carbide Nozzle with Thermal Expansion Coefficient 5.0-6.5 x 10-6/K

Φ2.3mm High Hardness HRA92 Tungsten Carbide Nozzle with Thermal Expansion Coefficient 5.0-6.5 x 10-6/K

Product Details:
Place of Origin: Zhuzhou
Brand Name: Sanxin
Certification: ISO 9001
Model Number: SX1258
Payment & Shipping Terms:
Minimum Order Quantity: 2
Delivery Time: 5-25days
Payment Terms: L/C,T/T,Western Union
Contact Now
  • Detail Information
  • Product Description

Detail Information
Features: Excellent Wear And Corrosion Resistance Model: Tungsten Carbide Nozzle
Categories: Tungsten Carbide Processing High Hardness: HRA92
Applications: Cutting Tools, Wear Parts, Mining Tools Advantage: High Wear Resistance
Surface: Polished Grinding Feature: Enhanced Durability
Type: Tungsten Steel Parts Wear Resistance: Excellent
Density: 15.63 G/cm3 Thermal Expansion Coefficient: 5.0-6.5 X 10-6/K
Highlight:

Polished Grinding Surface tungsten carbide products

,

Enhanced Durability tungsten carbide products

,

Vibration Resistance tungsten carbide products

Product Description

Vibration Resistance Φ2.3mm Tungsten Carbide Products with Enhanced Durability and Polished Grinding Surface
Φ 2.3mm Solder Core Vibration Resistance Tungsten Carbide Products
The tungsten carbide nozzle designed for 1500-2000μm solder balls features an extremely thin wall thickness of 0.5mm (depth-to-diameter ratio of 1.43). This design overcomes deformation and cracking challenges in large-aperture nozzles, enabling zero-spatter precision spraying under high heat load conditions in electric vehicle and industrial power supply welding applications.
Processing Difficulties and Solutions
  • Thin-wall sintering deformation control:
    - Wall thickness: 0.5mm (outer diameter 3.3mm/inner diameter 2.3mm)
    - SPS gradient sintering temperature control ±3℃ (suppresses ellipticity deviation)
  • Deep hole mirror polishing:
    - Inner hole depth-to-diameter ratio: 1.43 (Ra≤0.2μm)
    - Customized diamond reamer (feed rate 0.5μm/rpm)
  • Coaxiality precision:
    - Inner/outer circle coaxiality: ±0.005mm (3* higher than national standard G grade)
    - Industrial CT online correction (resolution 2μm)
  • Thermal stress cracking prevention:
    - Cobalt phase gradient strengthening (reduces interface stress by 40%)
    - Pulse electrolytic sharp edge treatment (eliminates corner collapse risk)
Specifications
Parameter Standard Value Processing Accuracy
Outer diameter Φ3.3mm ±0.003mm
Inner diameter Φ2.3mm +0/-0.005mm
Wall thickness 0.5mm ±0.015mm
End face flatness ≤0.005mm Laser interferometer detection
The size data is for reference only and can be customized

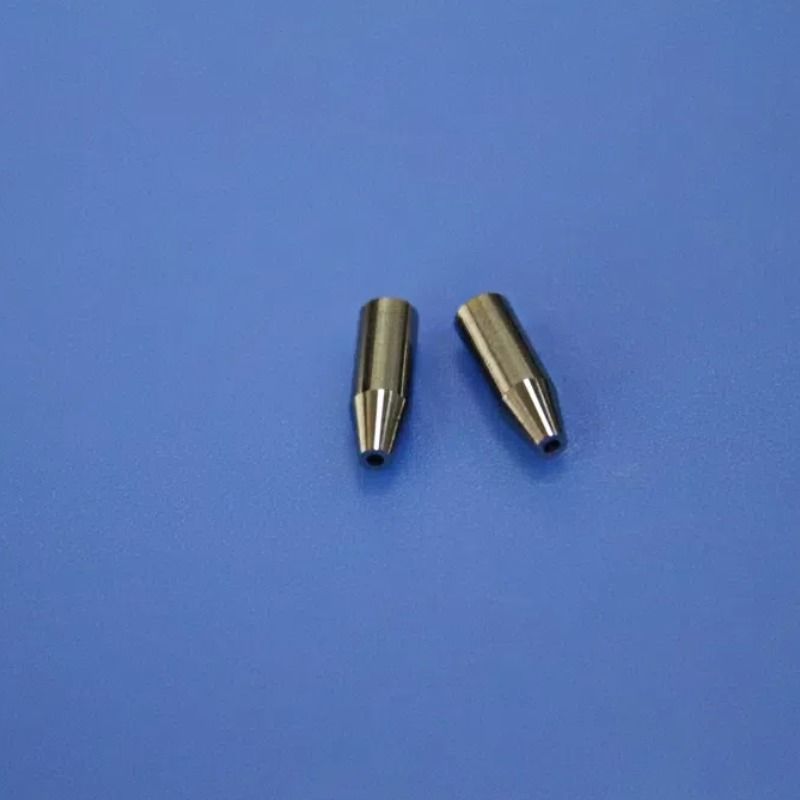

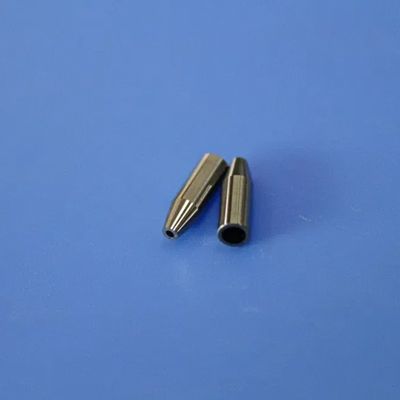

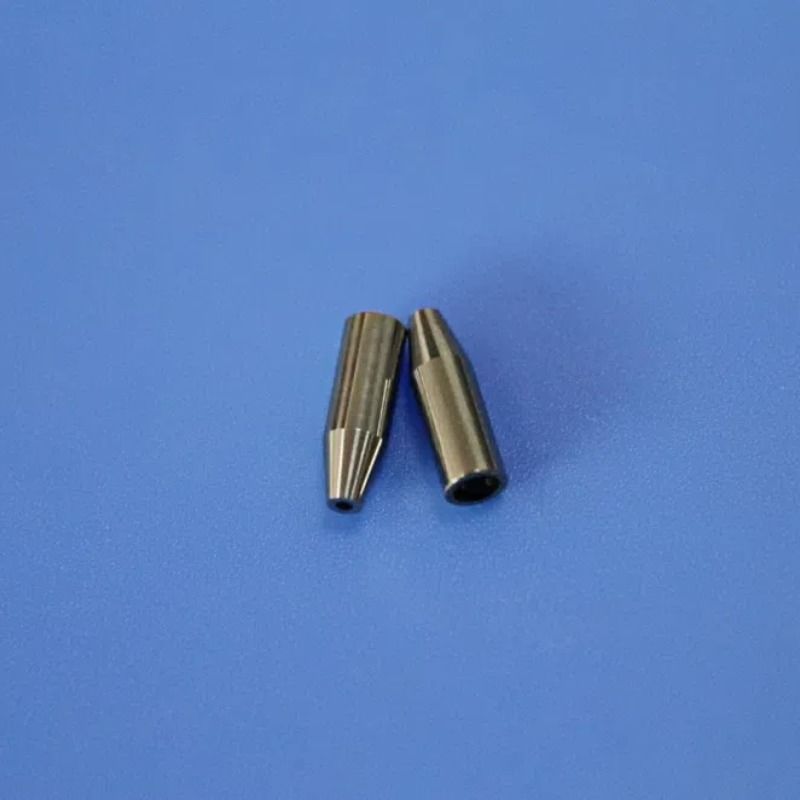

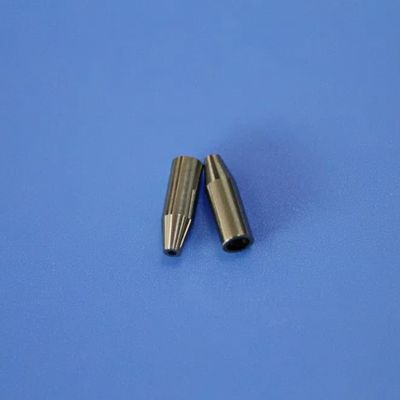

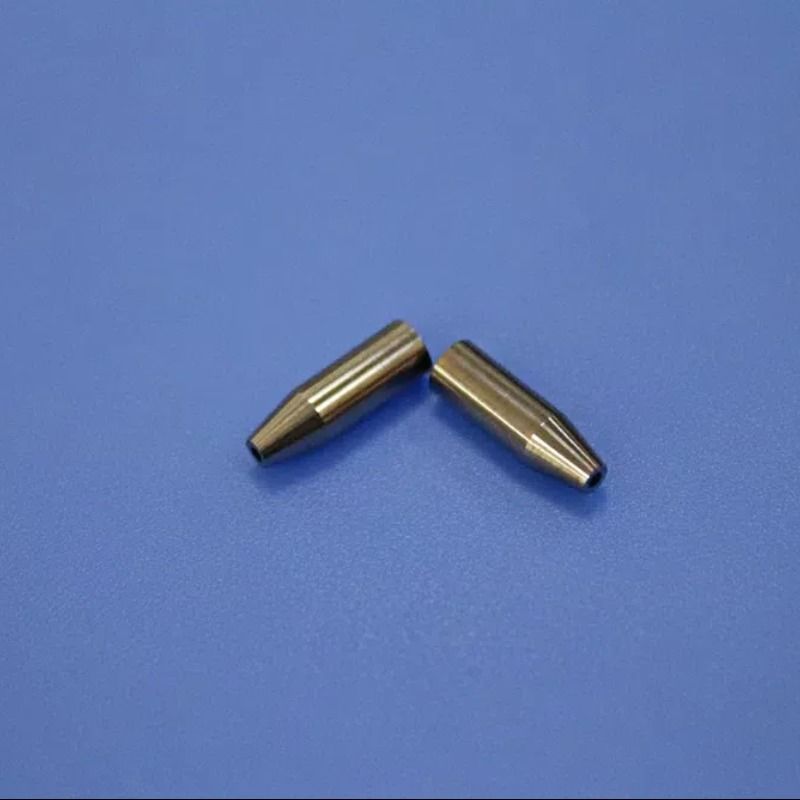

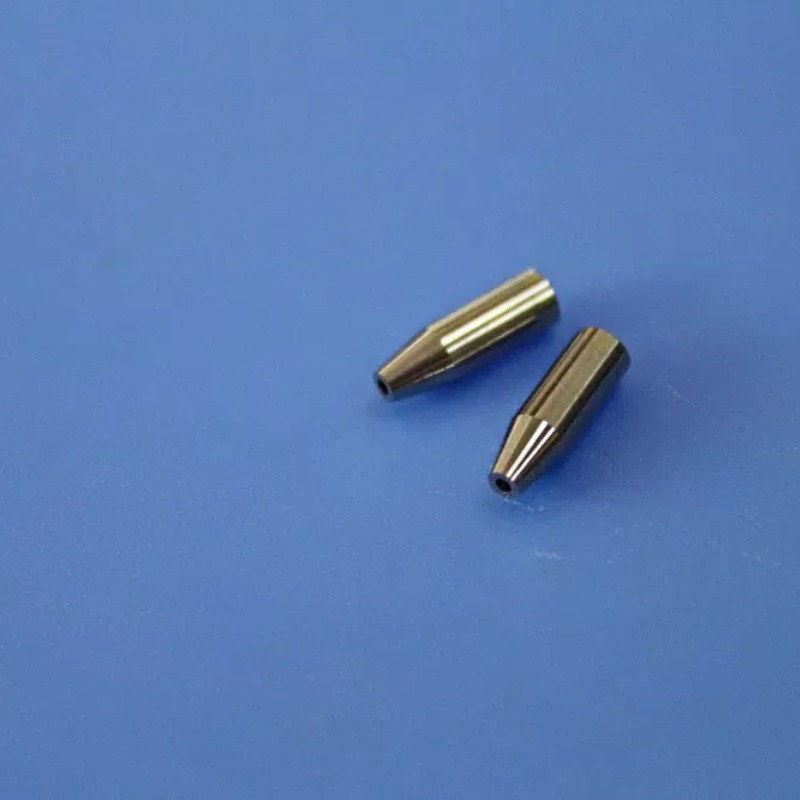

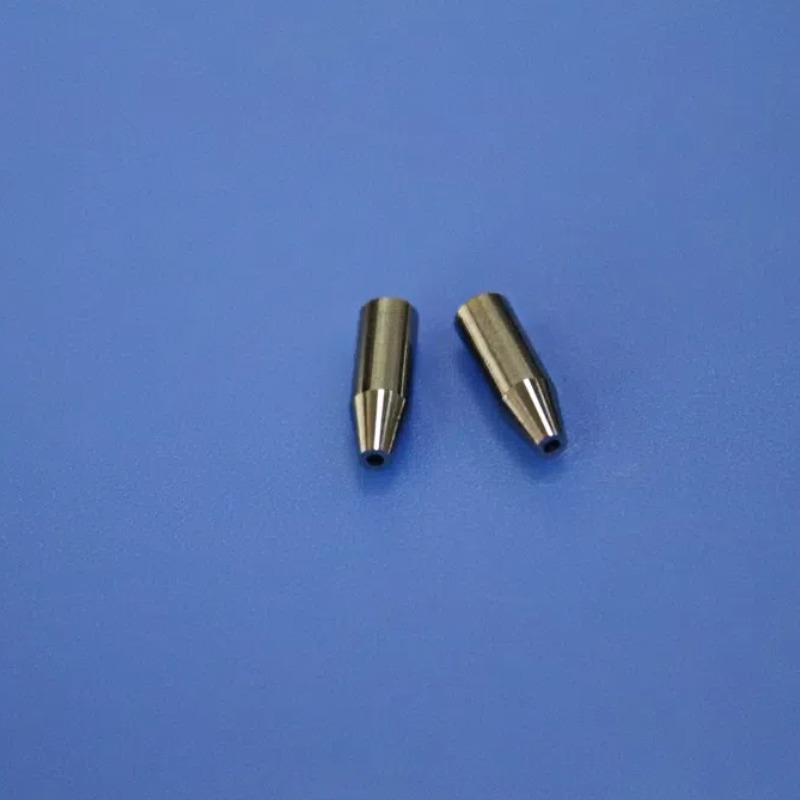

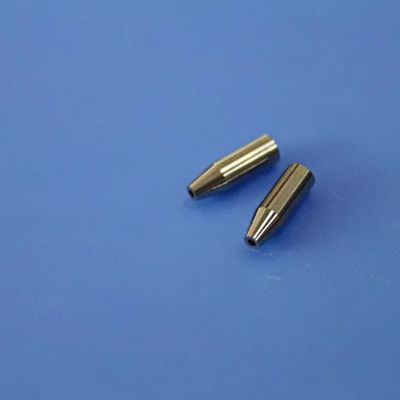

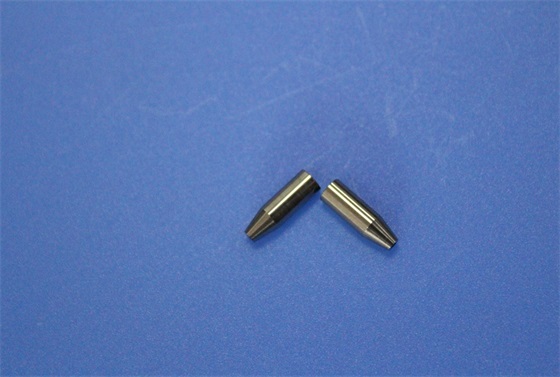

Close-up view of Φ2.3mm tungsten carbide nozzle showing precision machining Φ2.3mm High Hardness HRA92 Tungsten Carbide Nozzle with Thermal Expansion Coefficient 5.0-6.5 x 10-6/K 1
