Customized Tungsten Carbide Processing Micro Slot Carbide Roller with Mirror Polishing

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX0008
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiatial
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10-50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Features: Excellent Wear And Corrosion Resistance Name: Micro Slot Tungsten Carbide Roller
Surface Finish: Smooth, Shiny, Mirror Polishing Tolerance: ±0.01mm Or ±0.001mm
Material: Tungsten Carbide Density: 14.5-15.0g/cm3
Highlight:

Shiny Surface Tungsten Carbide Processing

,

Smooth Tungsten Carbide Processing

,

Customized Tungsten Carbide Parts

Product Description

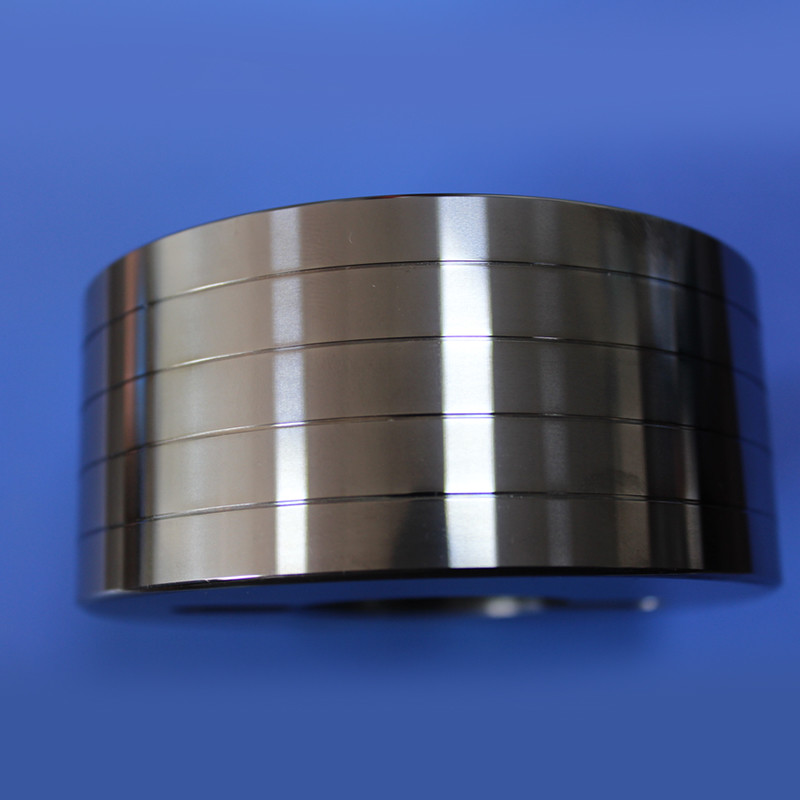

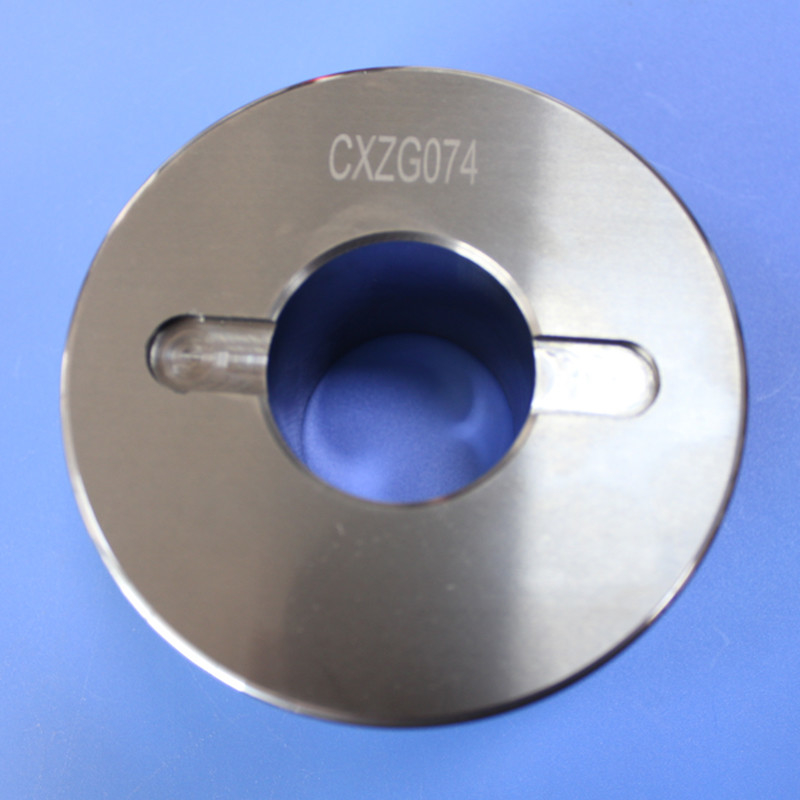

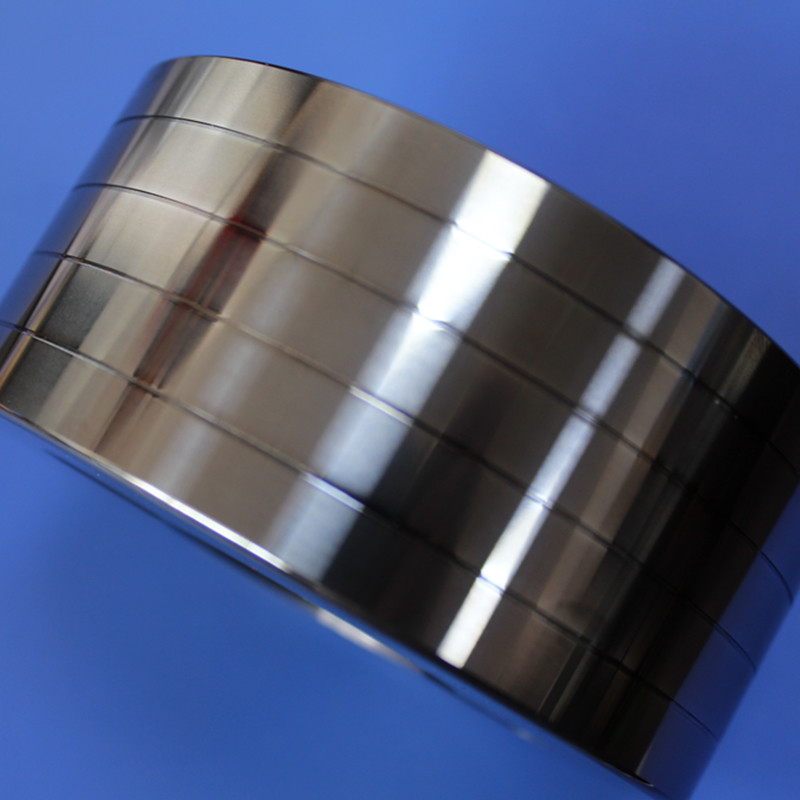

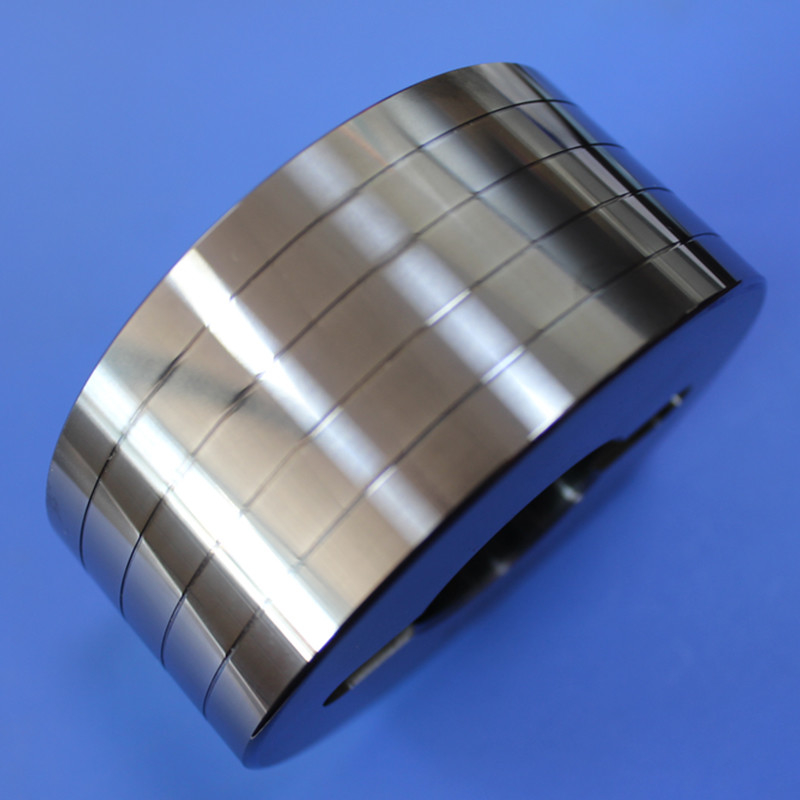

Customized Tungsten Carbide Processing Micro Slot Carbide Roller with Mirror Polishing



0.583mm Micro Slot Tungsten Carbide Roller for Rolling Mills

The manufacturing is mainly for micro-slot processing, and the other requests are simple.
This roller is produced using high-performance tungsten carbide grade.
Especially for the processing of micro slot roughness requirement is Ra0.1 without processing marks.
Dimensional accuracy requires a tolerance of ±0.005mm.
The inner slot is an arc surface. The entire groove is processed by PG Profile Grinder, fully meeting client's customized production requirements.

Our new and extended range of micro slot carbide roller is precise and highly accurate.
You will already be familiar with our solid carbide micro precision copy slot roller and torus cutter for graphite, CRP, GRP and other composite materials.
But now there is an extension to the range:
You can also obtain the solid carbide micro precision slot roller from us.
Its application areas are high-alloy and hardened steel wire rolling or pipeline auxiliary materials.



Dimensions as per the drawing:

Customized Tungsten Carbide Processing Micro Slot Carbide Roller with Mirror Polishing 0

Dimensional Inspection Report:

Room temperature, Unit: mm
Sr. No. # Tolerance Data 1 Data 2 Measure instruments Comments
1 8 ±0.01 7.990   Imaging meter OK
2 3-8 ±0.01 7.992 8.005 OK
3 0.583 +0.005/-0 0.585 0.588 OK
4 0.19 +0/-0.005 0.186   OK
5 14° / 14.02°   OK
6 +1°/-0° 7.30°   OK
7 R0.05 / 0.052   OK
8 R1.45 +0.05/-0 1.470   OK
9 0.5 +0.005/-0 0.501   OK
10 0.19 +0/-0.005 0.187   OK
11 R0.05 ±0.005 0.055   OK
12 0.45 ±0.005 0.452 0.454 OK
13 / 7.15°   OK



Sanxin Carbide Products Features:
1, 100% virgin cemented carbide materials;
2, Fine-grain tungsten carbide;
3, Excellent wear, abrasion, corrosion resistance;
4, High fracture strength and high hardness;
5, Longer service life;
6, Varied grades;
7, Competitive EXW factory price;
8, Customization service.



Zhuzhou Sanxin cemented carbide products mainly include nozzles, bushings & sleeves, sealing rings, molds, inserts, mill rollers, and other customized components.
Cemented carbide is a composite hard alloy material that consists of refractory metal bonded together by a metallic binder through powder metallurgy.
High hardness, wear resistance, strength, and toughness are all its exceptional properties to be widely used in industrial parts and tools for most harsh and aggressive environments.
It is generally accepted that tungsten carbide and tungsten alloy best fit the definitions of cemented carbide, which is also well known as the name metal ceramic.

Customized Tungsten Carbide Processing Micro Slot Carbide Roller with Mirror Polishing 1
