Customized Tool Grade Round Tungsten Carbide Flange Disc Processing

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX0993
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiatial
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10-50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Product Name: Tungsten Carbide Flange Disc Processing Material: 100% Virgin Tungsten Carbide
Tolerance: ±0.01mm Or ±0.001mm Processing Method: Cutting, Grinding, Polishing
Shape: Round, Square, Rectangular Density: 14.5-15.0g/cm3
High Light:

Wear Resistance Tungsten Carbide Processing

,

Corrosion Resistant Tungsten Carbide Processing

,

HRC90 Tungsten Carbide Parts

Product Description

Customized Tool Grade Round Tungsten Carbide Flange Disc Processing

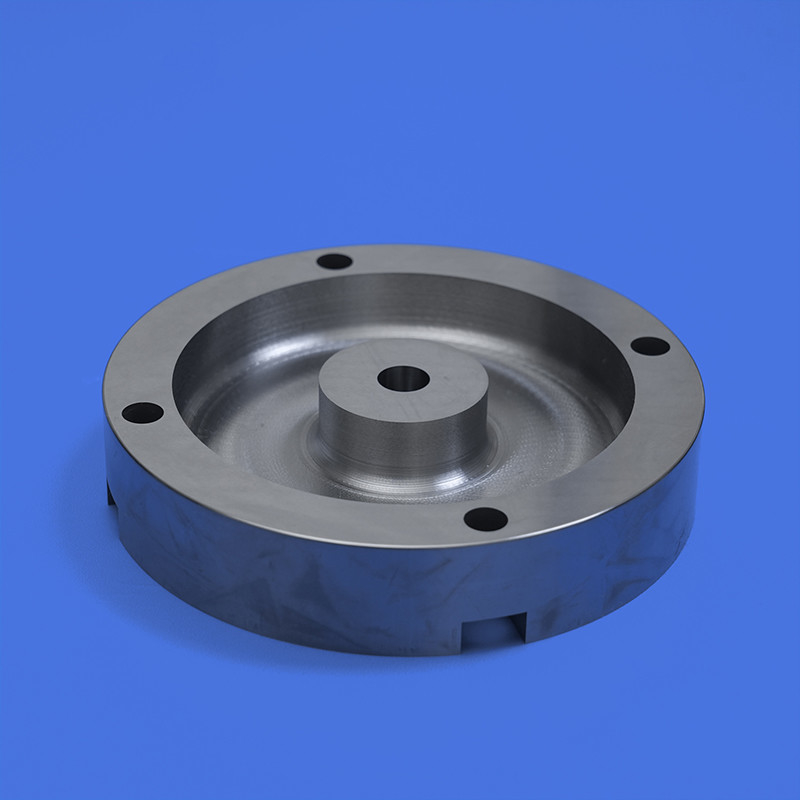

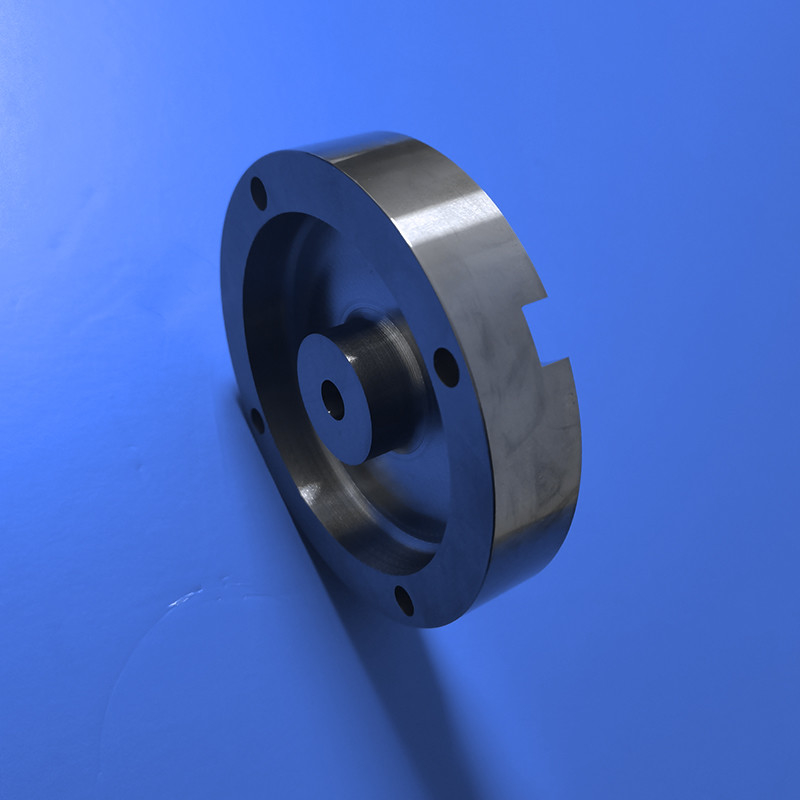

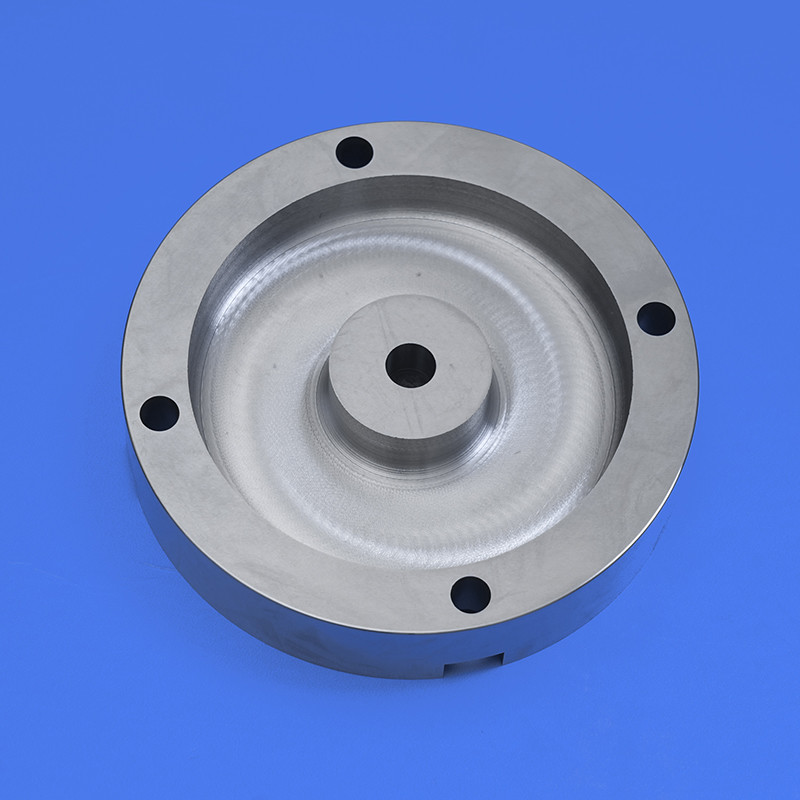

Round Tungsten Carbide Flange Disc
Round carbide flange disc is typically found on suction cups for helping to lock items securely into place.
There are screw holes designed because the carbide flange disc is fastened using the five retaining screws.
We provide fast shipping and design support for custom needs.



"Mechanical Processing," which involves various machining processes applied to the tungsten carbide blank that has undergone heat treatment. This is done to achieve the desired shape for the final product.
Here's a detailed explanation of the mechanical processing of tungsten carbide products:

  1. Cutting: Utilize cutting tools to cut the heat-treated tungsten carbide blank into the required shape and dimensions. This step is often used to establish the overall dimensions of the product.
  2. Milling: Employ milling processes to cut into the surface of tungsten carbide using rotating tools, further refining the product's shape and surface characteristics. Milling can be used to process flat surfaces, grooves, and other specific shapes.
  3. Grinding: Use grinding tools to grind the tungsten carbide, achieving higher surface smoothness and precision. Grinding also helps refine the dimensions and shape of the product.
  4. Turning: Use a lathe for turning operations, where the tungsten carbide undergoes rotational cutting, particularly useful for processing cylindrical products or components.
  5. Hole Machining: Use drilling machines or other hole machining equipment to create holes in the tungsten carbide, meeting the specified diameter requirements in the product design.

The selection and sequence of these mechanical processing steps depend on the design specifications and intended use of the final product. Through mechanical processing, tungsten carbide products can be precisely shaped into various forms, and their surface characteristics can be further optimized to meet specific application requirements.



Our Advantages:

1 100% virgin wolfram carbide materials;
2 Fine-grain, even ultra fine grain tungsten carbide is available;
3 Excellent wear, abrasion, corrosion resistance;
4 High fracture strength and high hardness;
5 Longer service life;
6 Varied cemented carbide material grades;
7 Competitive EXW factory price;
8 Customization service.
