High Density Tungsten W90Ni6Fe Rod Anti Vibration Wear Resistant

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX2159
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10-50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Name: Tungsten Alloy Rod Surface Condition: As Sintered Or Grinded
Tungsten Steel Slider Insert Head: Customized Type: W90Ni6Fe Tungsten Bar
Model: W90NiFe4 Tungsten Alloy Bar Size: OEM Accepted
Tolerance: H6
High Light:

Tungsten W90Ni6Fe Rod

,

Anti Vibration Tungsten Alloy Rod

,

Wear Resistant Tungsten W90Ni6Fe Rod

Product Description

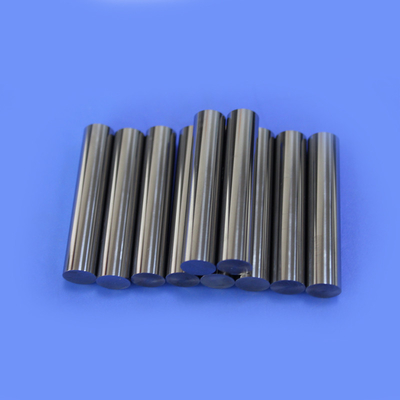

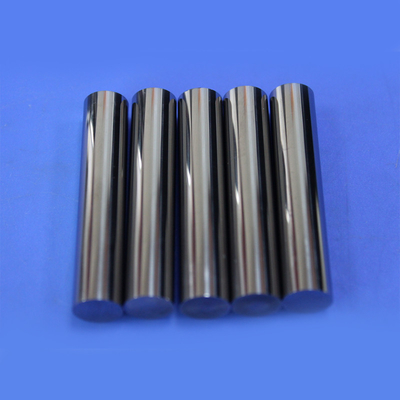

High Density Anti-Vibration Wear-Resistant Tungsten W90Ni6Fe Rod

High Performance Grinded Tungsten Nickel Copper Alloy Rod

Tungsten heavy alloy is a kind of alloy using tungsten as matrix and adding a small amount of nickel, iron, copper, and other alloying elements, with the characteristics such as: high and adjustable density (~ 18.5g/cm3), good absorption ability of high-energy radiation (1/3 higher than the absorptivity of lead ray), low coefficient of thermal expansion (4 ~ 6×10-6/ºC), good plasticity, high strength and elasticity modulus, machinability, and weldability.
Tungsten Nickel Copper alloys also has non-magnetic property, which make them extensively used in radiation protection with sensitive environment.
Size details:
The maximum diameter we can produce h6 grinded tungsten alloy bar is 80mm.

Application:

Radiation protection and guidance:
Because of its high density (~18.8 g / cm3), and excellent X-ray, gamma ray absorptive capacity, excellent process ability, making Tungsten Nickel Iron alloy become ideal material for radiation therapy collimator and protection components.

Balance weights:
It is widely used in automobile crankshaft counterweight, oil weight, security defense, precision optical instruments, due to the magnetic properties, high proportion of tungsten copper nickel alloy especially for in the aviation electron system.

Tungsten Nickel Copper Alloy Property:
Chemical Component Density
(g/cm3)
Tensile strength
(MPa)
Yield
strength
(MPa)
Elongation rate
(%)
Hardness
(HRC)
Magnetic
W NiCu

90 Remain 16.85-17.25 ≥648 ≥517 ≥2 32 No
92.5 Remain 17.15-17.85 ≥648 ≥517 ≥2 33 No
95 Remain 17.75-18.35 ≥648 ≥517 ≥1 34 No
Advantages:
High Density Max as 18.8 g/cm3
High Strength Tensile strength as 700-1000 MPa.
Excellent Radiation Protection Tungsten alloy is 1.7 times than Lead in radiation protection capability with same thickness.
The Coefficient of Thermal Conductivity The thermal conductivity coefficient of tungsten alloy is 5 times of die steel.
Small Thermal Expansion Coefficient Tungsten thermal expansion coefficient is 4~6×10-6/ºC, only iron or steel 1/2-1/3.

- Good Plasticity, Machining and Welding Capability.
- Compared with lead toxicity, tungsten alloy is zero damage of environment. Radiation detectors made by tungsten alloy has no harm to human body.
- Compared with tungsten nickel copper alloy, tungsten nickel iron alloy has ferromagnetic property, and the mechanical properties, processing properties are better than tungsten copper nickel alloy.
- Compared with tungsten nickel iron alloy, tungsten nickel copper alloy has unique performance with non-magnetic environment.
