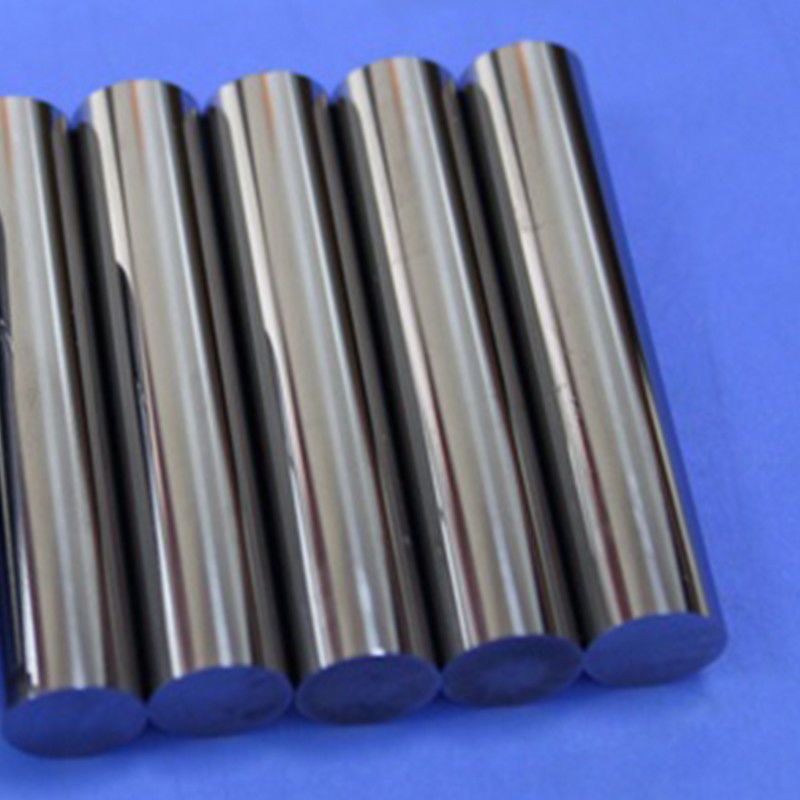

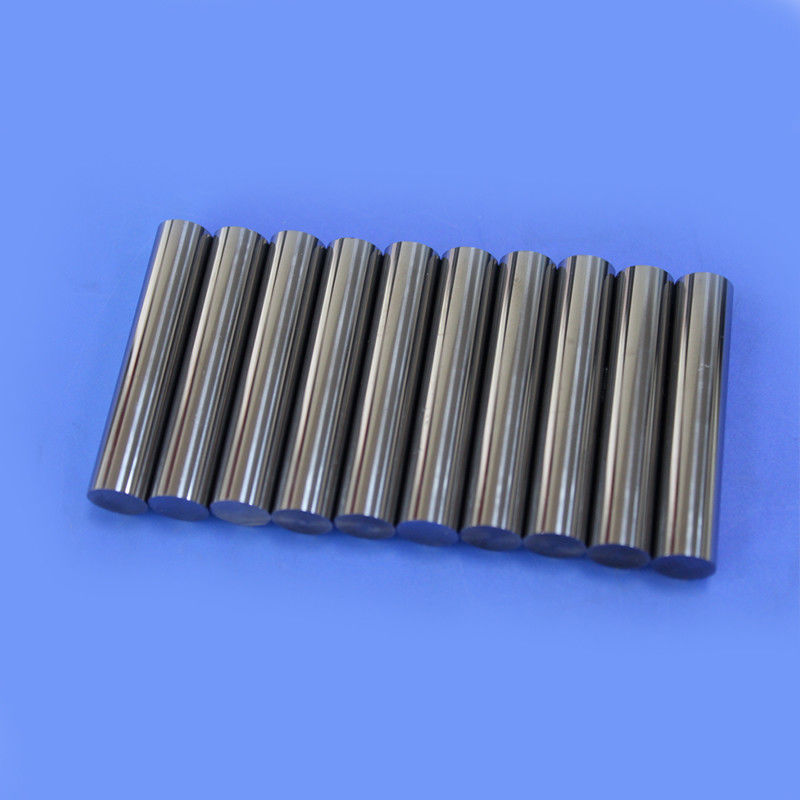

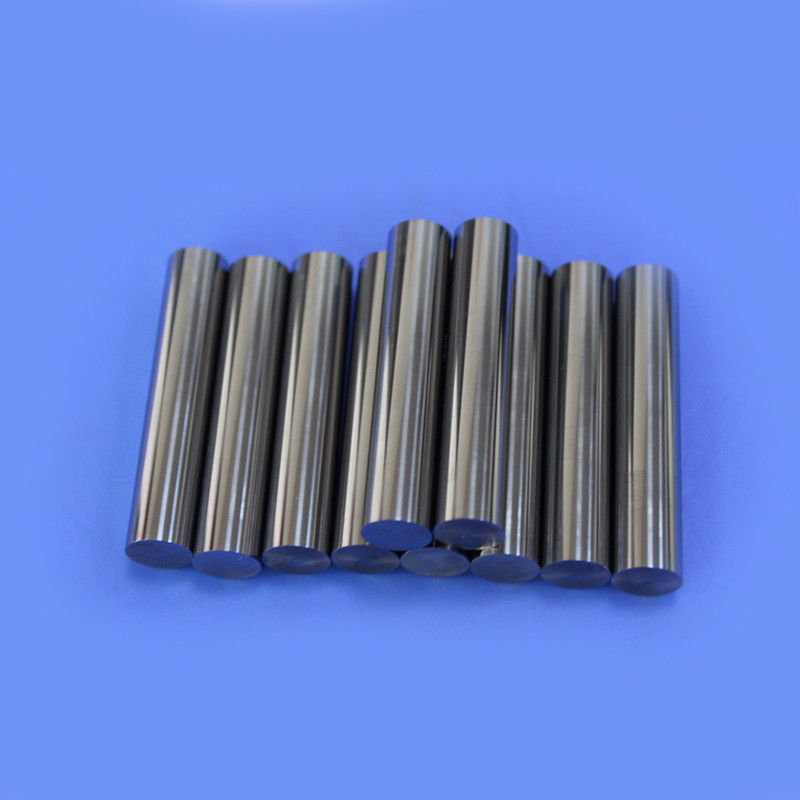

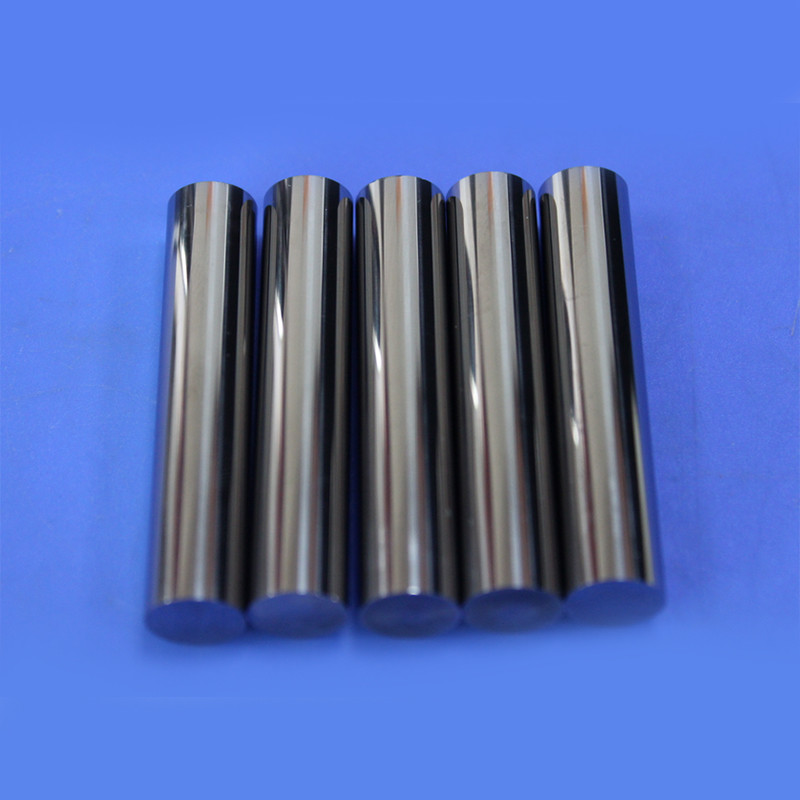

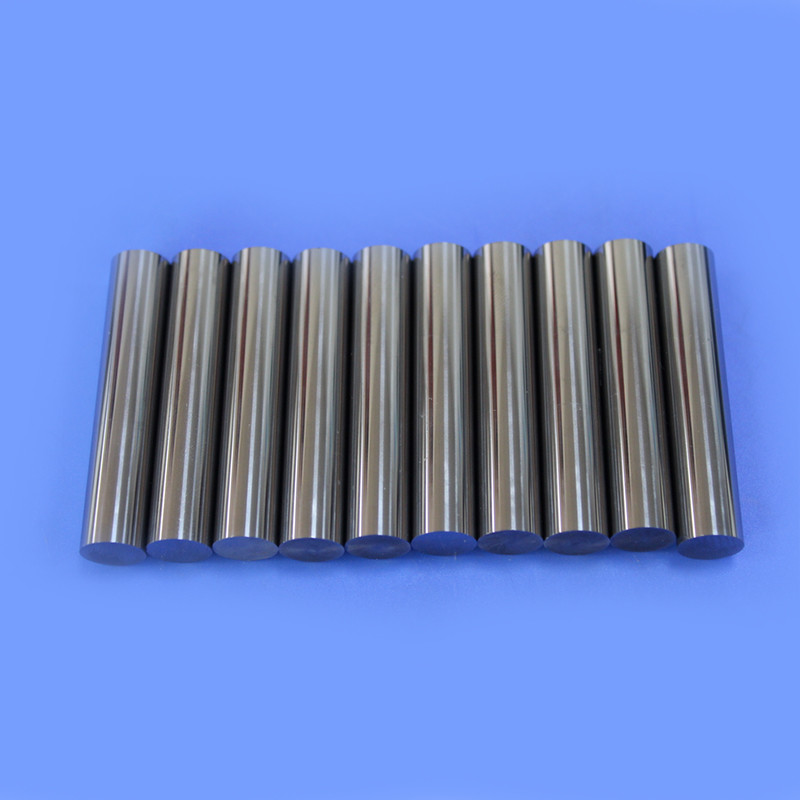

High Density Anti-Vibration Wear Resistant Tungsten Alloy Rod W90Ni6Fe Tungsten Nickel Iron Bar
High Density Anti-Vibration Wear Resistant Tungsten Alloy Rod W90Ni6Fe Tungsten Nickel Iron Bar
High Density Anti-Vibration Wear Resistant Tungsten Alloy Rod W90Ni6Fe Tungsten Nickel Iron Bar High Density Anti-Vibration Wear Resistant Tungsten Alloy Rod W90Ni6Fe Tungsten Nickel Iron Bar High Density Anti-Vibration Wear Resistant Tungsten Alloy Rod W90Ni6Fe Tungsten Nickel Iron Bar High Density Anti-Vibration Wear Resistant Tungsten Alloy Rod W90Ni6Fe Tungsten Nickel Iron Bar High Density Anti-Vibration Wear Resistant Tungsten Alloy Rod W90Ni6Fe Tungsten Nickel Iron Bar High Density Anti-Vibration Wear Resistant Tungsten Alloy Rod W90Ni6Fe Tungsten Nickel Iron Bar

High Density Anti-Vibration Wear Resistant Tungsten Alloy Rod W90Ni6Fe Tungsten Nickel Iron Bar

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX2159
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: Tungsten Alloy Rod Surface Condition: As Sintered Or Grinded
Tungsten Steel Slider Insert Head: Customized Type: W90Ni6Fe Tungsten Bar
Model: W90NiFe4 Tungsten Alloy Bar Size: OEM Accepted
Tolerance: H6
Highlight:

Tungsten W90Ni6Fe Rod

,

Anti Vibration Tungsten Alloy Rod

,

Wear Resistant Tungsten W90Ni6Fe Rod

Product Description

High Density Tungsten W90Ni6Fe Rod
Anti-Vibration Wear-Resistant Tungsten Alloy
High-performance grinded tungsten nickel copper alloy rod with exceptional density and mechanical properties. Tungsten heavy alloy utilizes tungsten as the matrix with small additions of nickel, iron, and copper, delivering superior performance characteristics.
Key Characteristics
  • High and adjustable density (~18.5 g/cm³)
  • Superior high-energy radiation absorption (33% higher than lead)
  • Low coefficient of thermal expansion (4-6×10⁻⁶/ºC)
  • Excellent plasticity, strength, and elasticity modulus
  • Superior machinability and weldability
  • Non-magnetic properties for sensitive environments
Technical Specifications
Maximum Production Size
Maximum diameter for h6 grinded tungsten alloy bar: 80mm
Tungsten Nickel Copper Alloy Properties
Chemical Component Density (g/cm³) Tensile Strength (MPa) Yield Strength (MPa) Elongation Rate (%) Hardness (HRC) Magnetic
W90 NiCu Remain 16.85-17.25 ≥648 ≥517 ≥2 32 No
W92.5 NiCu Remain 17.15-17.85 ≥648 ≥517 ≥2 33 No
W95 NiCu Remain 17.75-18.35 ≥648 ≥517 ≥1 34 No
Applications
Radiation Protection & Guidance
With high density (~18.8 g/cm³) and excellent X-ray/gamma ray absorption capacity, tungsten nickel iron alloy serves as ideal material for radiation therapy collimators and protection components.
Balance Weights
Widely used in automotive crankshaft counterweights, oil weights, security defense systems, and precision optical instruments. The non-magnetic properties make tungsten copper nickel alloy particularly suitable for aviation electronic systems.
Material Advantages
High Density
Maximum density of 18.8 g/cm³
High Strength
Tensile strength of 700-1000 MPa
Radiation Protection
1.7 times more effective than lead at same thickness
Thermal Conductivity
5 times higher than die steel
Thermal Expansion
Low coefficient of 4-6×10⁻⁶/ºC (½-⅓ of iron/steel)
  • Excellent plasticity, machining, and welding capabilities
  • Environmentally safe - zero environmental damage compared to toxic lead
  • Radiation detectors made from tungsten alloy are harmless to human body
  • Superior mechanical and processing properties compared to alternative alloys
  • Non-magnetic performance ideal for sensitive environments
High Density Anti-Vibration Wear Resistant Tungsten Alloy Rod W90Ni6Fe Tungsten Nickel Iron Bar 0
