High Density Tungsten Alloy Rod Tungsten Steel Round Bar With Nickel and Ferrum

High Density Tungsten Alloy Rod Tungsten Steel Round Bar With Nickel and Ferrum

Product Details:
Place of Origin:	China
Brand Name:	Sanxin
Certification:	ISO
Model Number:	SX1198
Payment & Shipping Terms:
Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	Safety Packing
Delivery Time:	15~45 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10-50000pcs/month

Contact Now

Detail Information
Product Description

Detail Information
Name:	Tungsten Alloy Rod	Shape:	Customized
Tungsten Steel Slider Insert Head:	Customized	Type:	W90NiFe4 Tungsten Bar
Model:	W90NiFe4 Tungsten Alloy Bar	Other Similar Products:	WNiCu Alloy Bar
Highlight:	High Density Tungsten Alloy Rod , Nickel Ferrum Tungsten Alloy Rod , WNiCu Tungsten Steel Round Bar

Product Description

High Density Tungsten Alloy Rod

Tungsten Steel Round Bar With Nickel and Ferrum

Product Overview

High Density Tungsten Alloy Rod with composition W90NiFe4, designed for tool manufacturing applications. Available with polished surface or customized to meet specific requirements.

Standard Specifications

Available diameter range: 10-30mm (custom sizes available)

Maximum producible diameter: 80mm (h6 grinded)

Available Sizes

Item	Description	Tolerance
1	Φ16 x 600	h6
2	Φ25 x 600	h6
3	Φ14 x 600	h6
4	Φ10 x 400	h6
5	Φ12 x 400	h6
6	Φ13 x 400	h6
7	Φ20 x 600	h6
8	Φ8 x 400	h6
9	Φ12.7 x 330	h6
10	Φ12.7 x 400	h6
11	Φ18 x 400	h6
12	Φ18 x 600	h6

Standard Tungsten Nickel Iron Alloy Properties

W Component	Density (g/cm³)	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	HRC Max	Magnetic
90	16.85-17.25	≥758	≥517	≥5	32	Yes
92.5	17.15-17.85	≥758	≥517	≥5	33	Yes
95	17.75-18.35	≥724	≥517	≥3	34	Yes
97	18.25-18.85	≥689	≥517	≥2	35	Yes

High Performance Sintering Alloy Properties

Density (g/cm³)	Tensile Strength (MPa)	Yield Strength Rp0.2 (MPa)	Elongation A (%)	Hardness (HRC)	Magnetic
16.85-17.25	900	600	15	≤32	Yes
17.15-17.85	900	600	15	≤33	Yes
17.75-18.35	850	600	10	≤34	Yes
18.25-18.85	800	600	7	≤35	Yes

Key Advantages

High specific density: 16.5-18.75 g/cm³
Exceptional strength: tensile strength 700-1000 MPa
Superior radiation absorption: 30-40% higher than lead
High thermal conductivity: 5 times that of die steel
Low thermal expansion coefficient: 1/2-1/3 of iron or steel
Excellent electrical conductivity for lighting and welding applications
Good weldability and workability

Packaging & Shipping

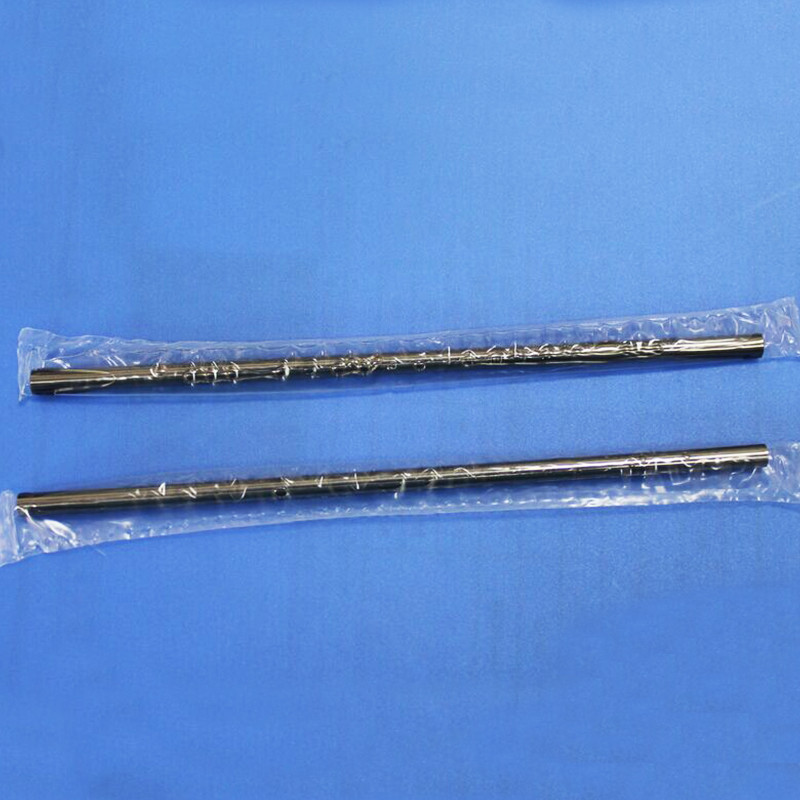

Tungsten alloy products are carefully packaged in sturdy boxes with bubble wrap, foam, bubble bags, and cardboard to ensure safe delivery. We use premium packaging materials and reliable courier services including DHL, FedEx, and UPS for express shipping of urgent orders.
