Customized High Precision ±0.001mm Tungsten Carbide Round Bar with High Wear Resistance and High Polishing

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX0029
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Name: Tungsten Carbide Round Bars Main Feature: Hard Metal Alloy
Tolerance: High Precision ±0.001mm Surface Treatment: High Polishing
Fteature: High Wear Resistance Wear Resistance: Superior
Alloy Specification: YG6/YG8/YG10X/YG20C Size: OEM Accepted
Process: Sintering And Processing
Highlight:

Customized Precision Tungsten Bars

,

Tungsten Bars Insert Pin

,

Round W90NiFe4 Insert Pin

Product Description

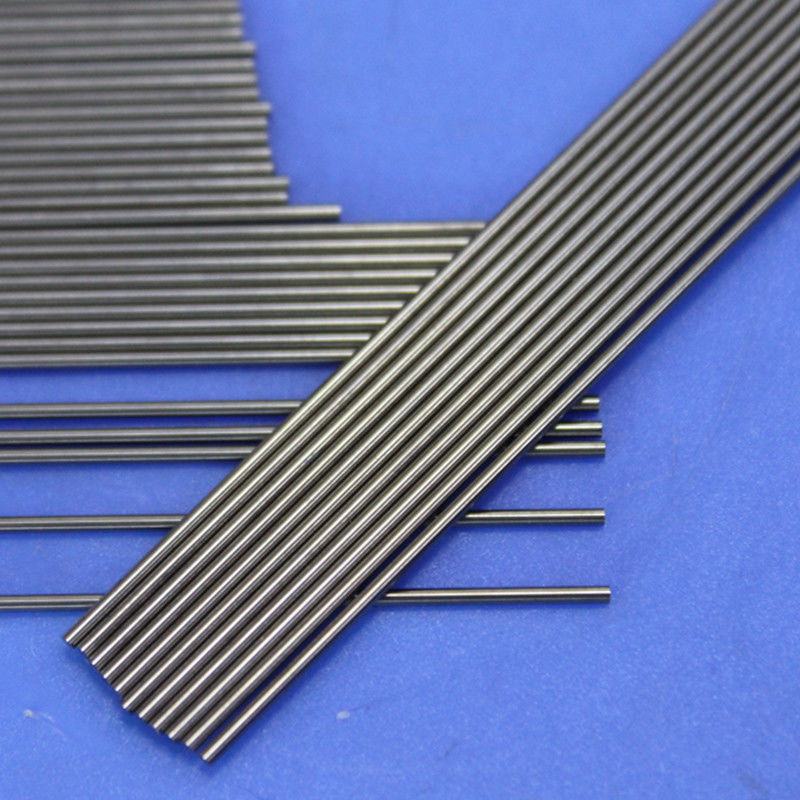

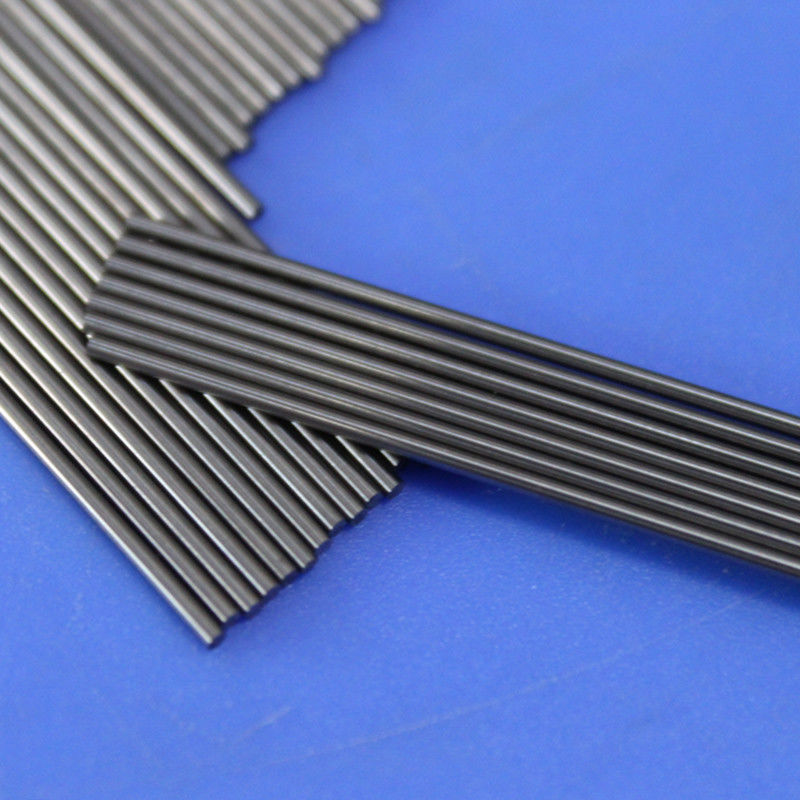

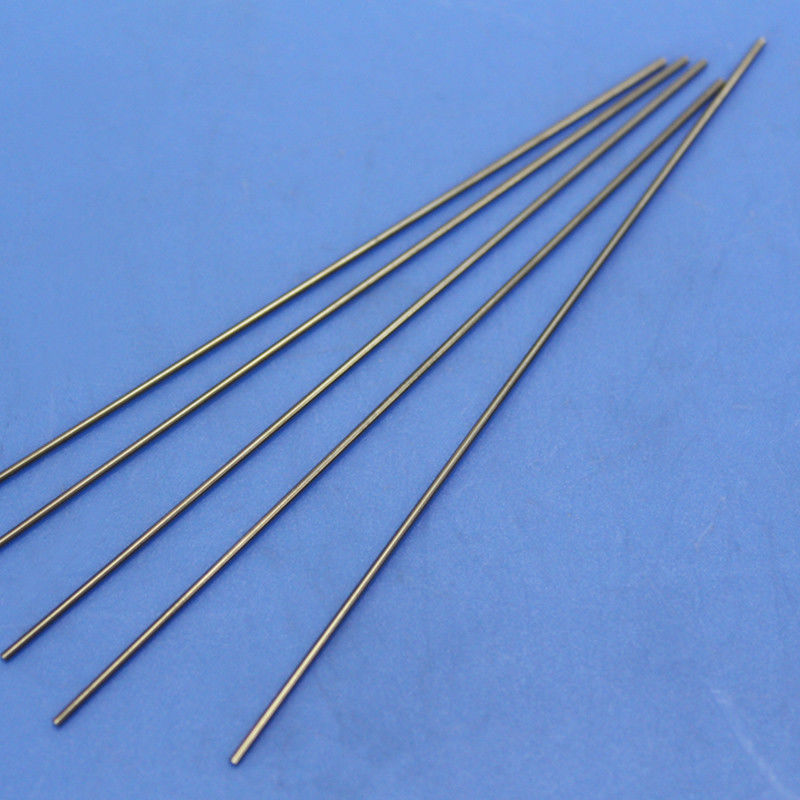

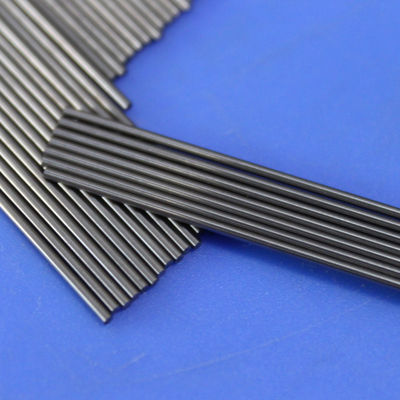

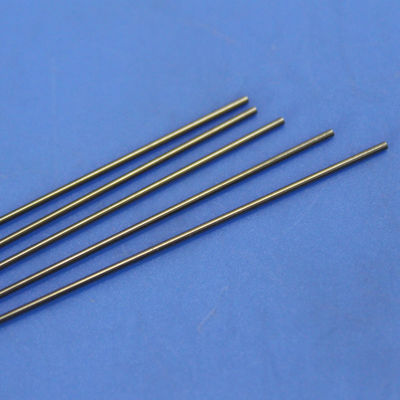

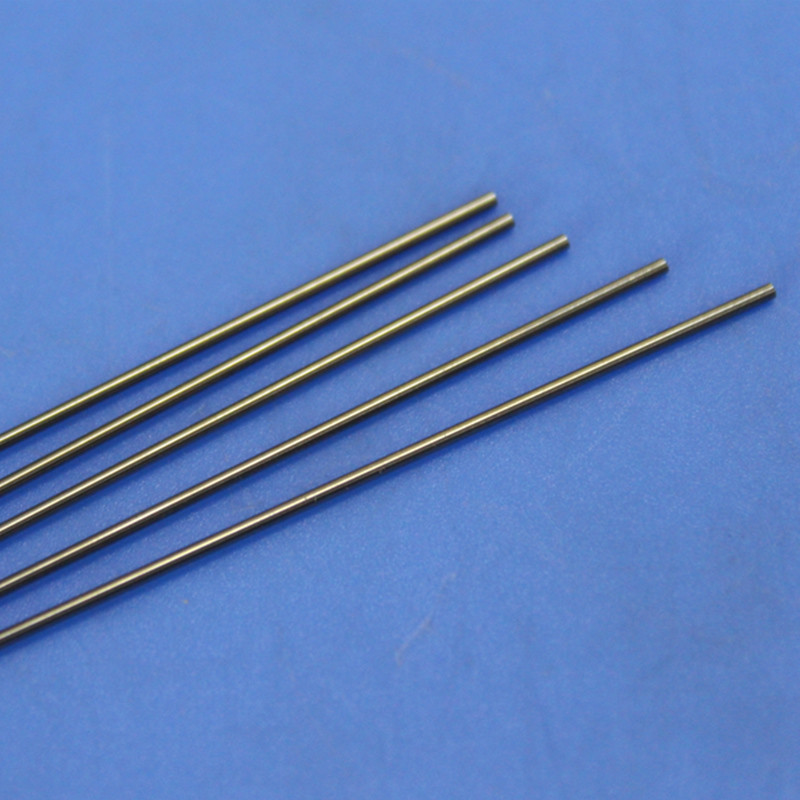

Customized High Precision Hard Metal Tungsten Carbide Round Bars
These precision-engineered tungsten carbide round bars represent the pinnacle of cutting tool performance, meticulously crafted for exceptional accuracy and durability. Manufactured from premium tungsten carbide materials, these bars deliver superior cutting and shaping capabilities across demanding metalworking applications.
Key Advantages
  • 100% virgin material composition
  • Comprehensive size range with full inventory availability
  • Custom manufacturing to meet specific requirements
Product Features
  • Superior wear resistance and high toughness for extended service life
  • Enhanced deformation and fracture resistance ensuring dimensional accuracy
  • Advanced automated extrusion manufacturing process
  • HIP sintering and precision grinding for optimal performance
  • Available as blanks or finished tungsten carbide rods
  • Mirror-finish surface achievable through precision grinding and polishing
Applications
Anti-vibration tool holder tungsten carbide bars are utilized across diverse machining operations including milling, turning, drilling, and boring. These components are particularly effective in high-speed machining, deep-hole drilling, and other demanding applications where vibration control significantly impacts productivity and part quality.
Compatibility
Designed for universal compatibility with various cutting tools including end mills, drills, and inserts. Suitable for integration with machining centers, CNC machines, and turning centers, offering versatile adaptation to diverse machining configurations.
Technical Specifications
Grade Co% Hardness (HRA) Density (g/cm³) Bending Strength (Mpa) Elastic Modulus (Gpa) Suitable Processing Materials
SX10F 6 92.9 14.8 3300 530 Copper aluminum alloy, PCB, glass fiber reinforced material, brake material, graphite
SX11F 8 92.3 14.6 3800 510 Aluminum alloy, hardened steel, chilled cast iron, brake material
SX12F 9 93.8 14.4 5100 500 Stainless steel, high hardened steel, especially suitable for high speed cutting and dry cutting of metals
SX20F 10 91.7 14.4 4300 490 Strong versatility, mainly suitable for gray cast iron, chilled cast iron, alloy steel, etc.
SX25F 12 92.5 14.1 4500 460 Superalloy, stainless steel, titanium alloy, hardened steel, tap
Production Process
Customized High Precision ±0.001mm Tungsten Carbide Round Bar with High Wear Resistance and High Polishing 0
Quality Commitment
We maintain strict adherence to "quality first, customer first" principles, offering competitive pricing for both wholesale and retail orders with guaranteed timely delivery. Our commitment to mutual growth and customer satisfaction drives our market expansion.
Innovation Focus
Our continuous advancement philosophy emphasizes innovation, quality foundation, brand development, and delivering exceptional value through products that exceed customer expectations.
Partnership Philosophy
We operate on the principles of "quality is life," "service creates value," and "cooperation promotes development," fostering mutually beneficial partnerships that drive collective growth and success.
