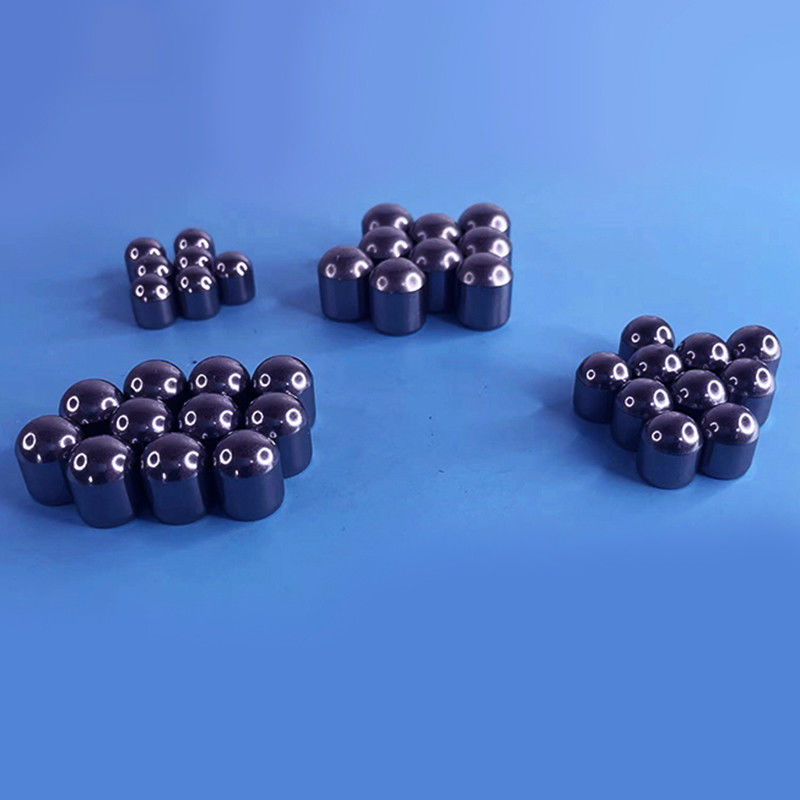

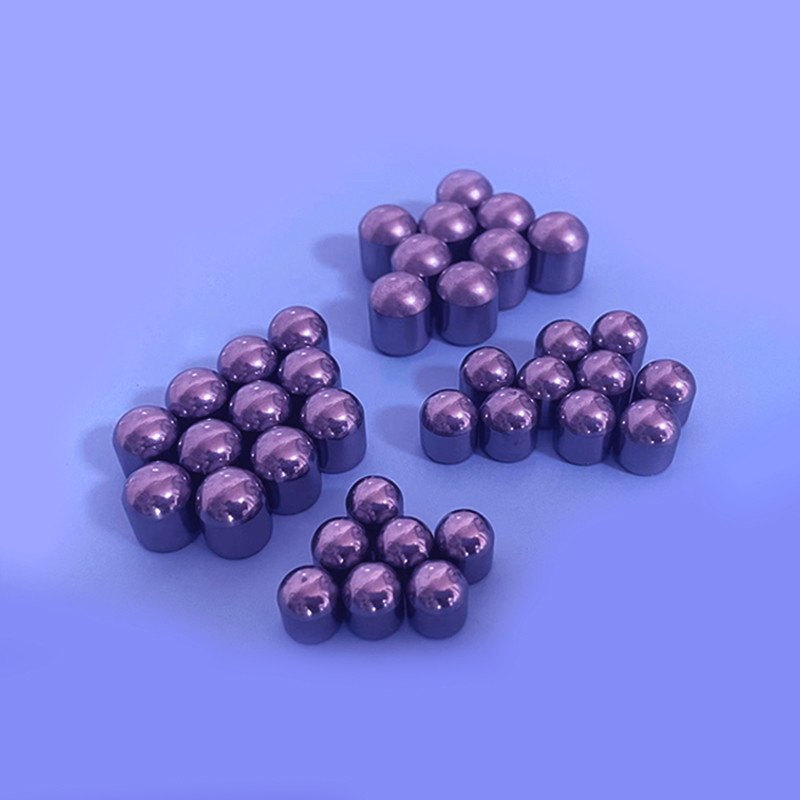

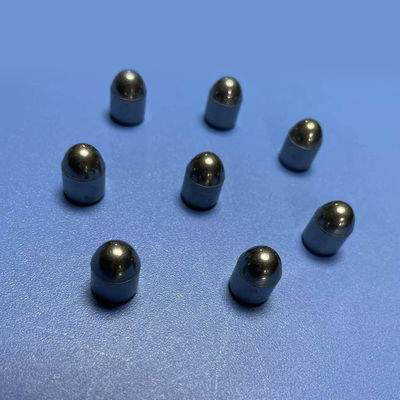

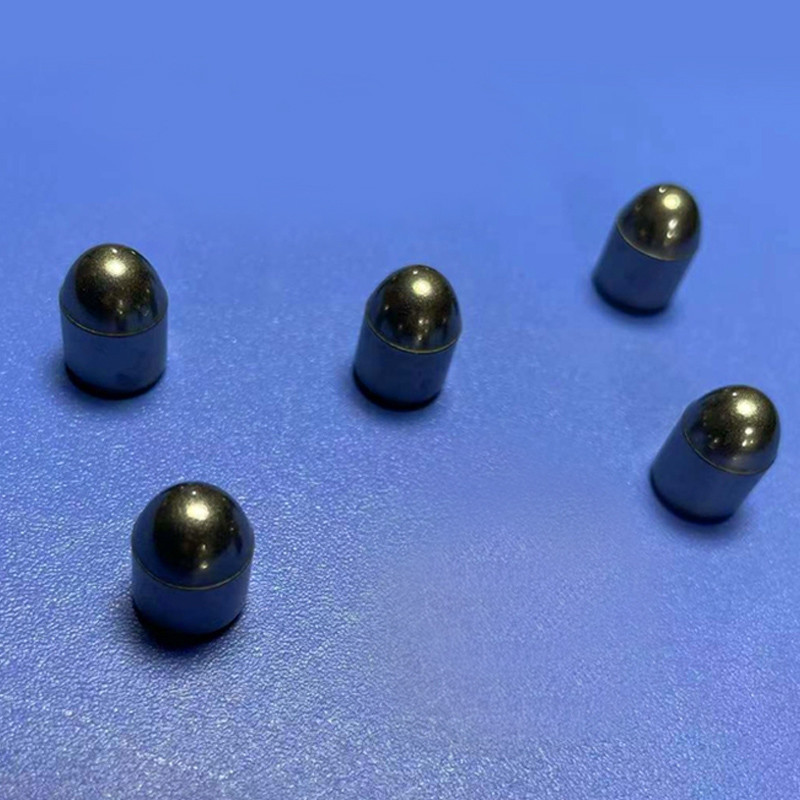

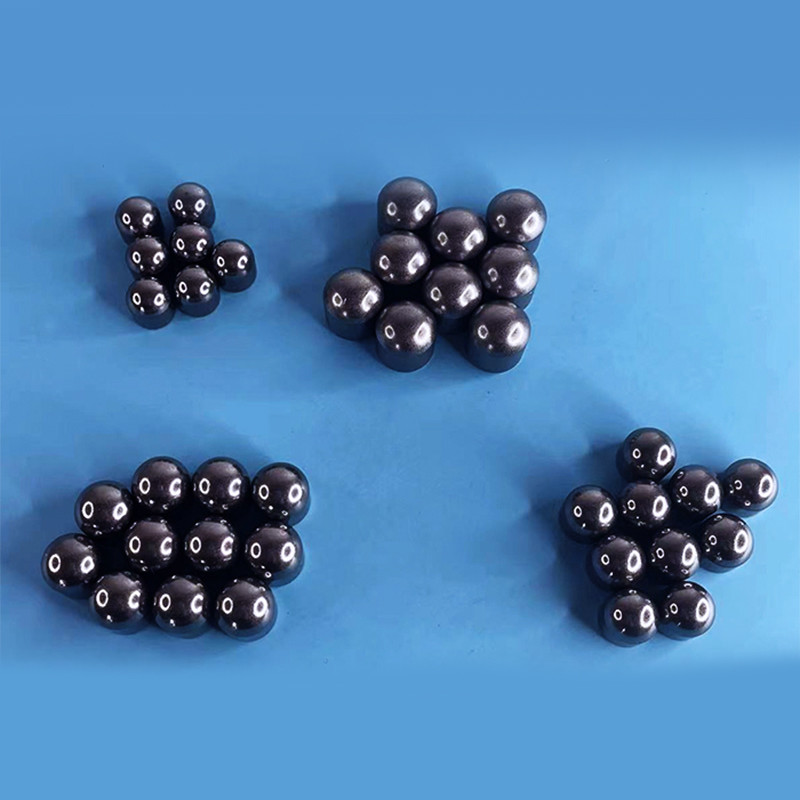

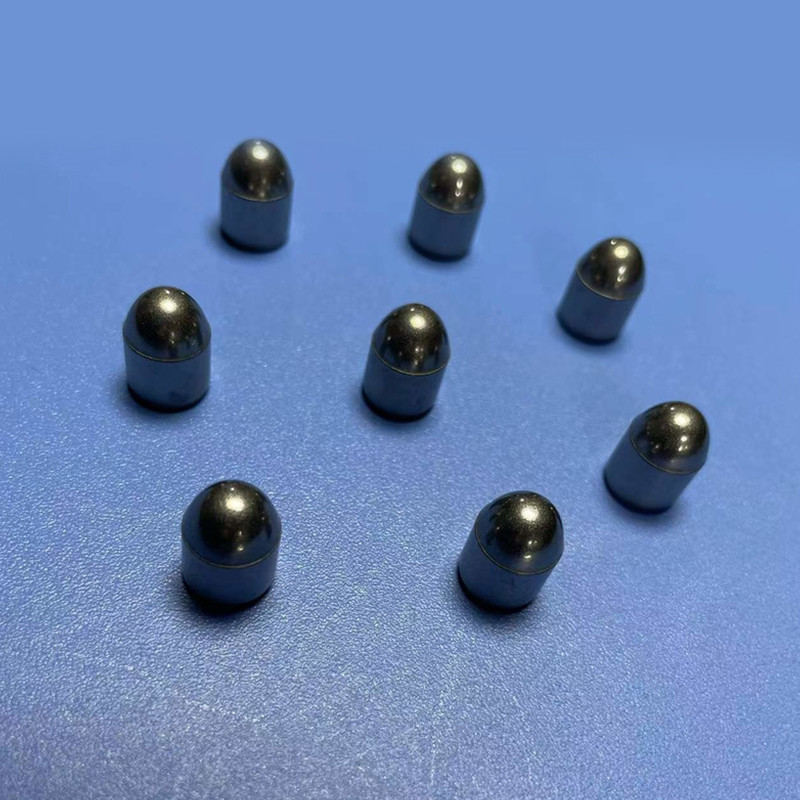

Spherical Buttons Tungsten Carbide Inserts
Spherical Carbide Buttons: Precision Tools for Superior Performance
Introducing our high-quality carbide spherical buttons, meticulously crafted to elevate drilling and excavation operations to new levels of efficiency and effectiveness. These precision-engineered tools are designed to withstand the toughest conditions while delivering exceptional performance in various applications.
Cemented carbide is a composite material made of refractory metal hard compounds (WC, TiC, etc.) and bonding metals (CO, Ni, Fe, etc.) through powder metallurgy. Cemented carbide offers high hardness, high wear resistance, high strength, high modulus of elasticity, low coefficient of thermal expansion, high red hardness and stable chemical properties.
Standard Specifications
| Dimensions (mm) |
Density (g/cm³) |
Hardness (HRA) |
TRS (Mpa) |
Diameter | Height
20 | 25 |
14.50 |
87.50 |
2400 |
| 22 | 35 |
14.50 |
86.00 |
2480 |
| 24.8 | 33 |
14.50 |
86.50 |
2600 |
| 25 | 35 |
|
|
|
| 26.5 | 38 |
|
|
|
Tungsten Carbide Buttons can be customized according to your drawing to match your drilling tools.
These components operate in complex application environments, including underground coal mining with unclear geological components, and high-power equipment with propulsion force and shear force, requiring excellent impact resistance, heat resistance and wear resistance.
Spherical Buttons for Tri-Cone Drill Bits
| Type |
Dimension |
| ZQ11.5*12.5KP |
D: 11.25 | H: 12.5 | SR: 6.0 | a°: 18 | e: 2.0 |
| ZQ13*13.5KP |
D: 13.25 | H: 13.5 | SR: 6.7 | a°: 18 | e: 2.5 |
| ZQ14*14.5KP |
D: 14.5 | H: 14.5 | SR: 7.2 | a°: 18 | e: 2.5 |
Spherical Buttons for High Pressure DTH Drilling
| Type |
Dimension |
| ZQ14*20K(P) |
D: 14.2 | H: 20 | SR: 7.2 | a°: 18 | P°: 27 |
| ZQ16*22K(P) |
D: 16.25 | H: 22 | SR: 9 | a°: 18 | P°: 27 |
| ZQ18*25K |
D: 18.35 | H: 25 | SR: 9.2 | a°: 18 | P°: 30 |
Spherical Buttons for Shield Machine Hob
| Type |
Dimension |
| ZQ16*23KP |
D: 16.25 | H: 23 | SR: 9 | a°: 18 | P°: 1.8 |
| ZQ16*21KP |
D: 16.25 | H: 21 | SR: 9 | a°: 18 | P°: 1.8 |
Applications
Polyconical, Parabolic and Mushroom Tungsten carbide buttons are the general button shapes for coal mining series.
Suitable for welding coal mining, coal mining machines in mid-soft rock formation, tunnel excavation in hard rock formation, drilling on extra hard rock formation or tunnel excavation in complicated rock formation.
