Ultimate Wear-Resistant M10 Threaded Complex Tungsten Carbide Rods
Ultimate Wear-Resistant M10 Threaded Complex Tungsten Carbide Rods Ultimate Wear-Resistant M10 Threaded Complex Tungsten Carbide Rods Ultimate Wear-Resistant M10 Threaded Complex Tungsten Carbide Rods Ultimate Wear-Resistant M10 Threaded Complex Tungsten Carbide Rods

Ultimate Wear-Resistant M10 Threaded Complex Tungsten Carbide Rods

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX2340
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: Tungsten Carbide Rods Design: M10 Threaded Rod
Service Life: Super Durable Carbide Grade: K20/K30/K40/YG8/YG11C/YG13C/YG15C Etc.
Tolerance: ±0.01mm Or ±0.001mm Machining: Tungsten Carbide Processing
Highlight:

tungsten carbide production

,

tungsten carbide parts

,

HIP Treated Tungsten Carbide Valve Seats

Product Description

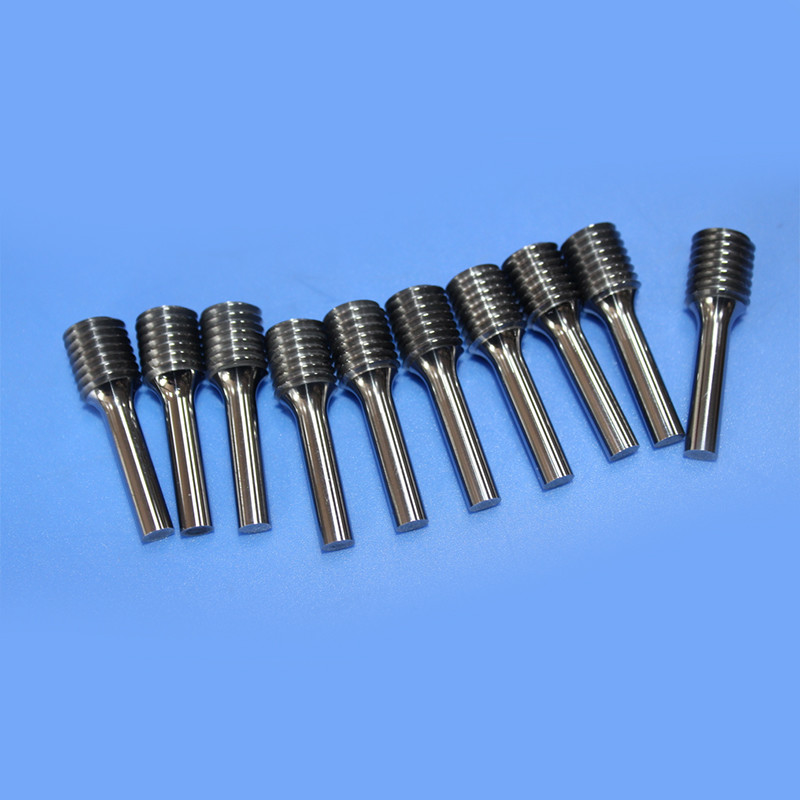

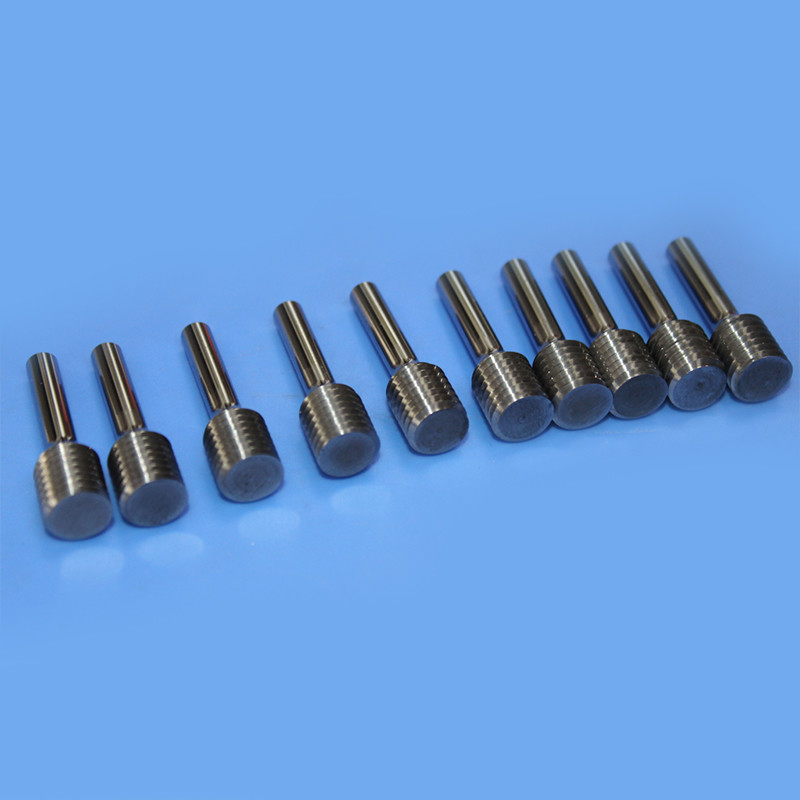

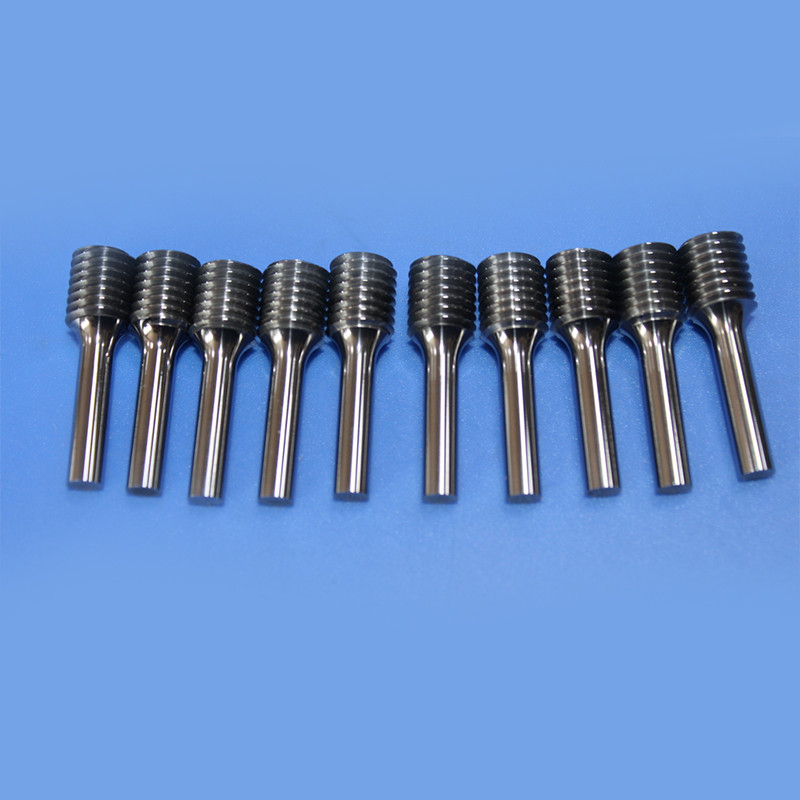

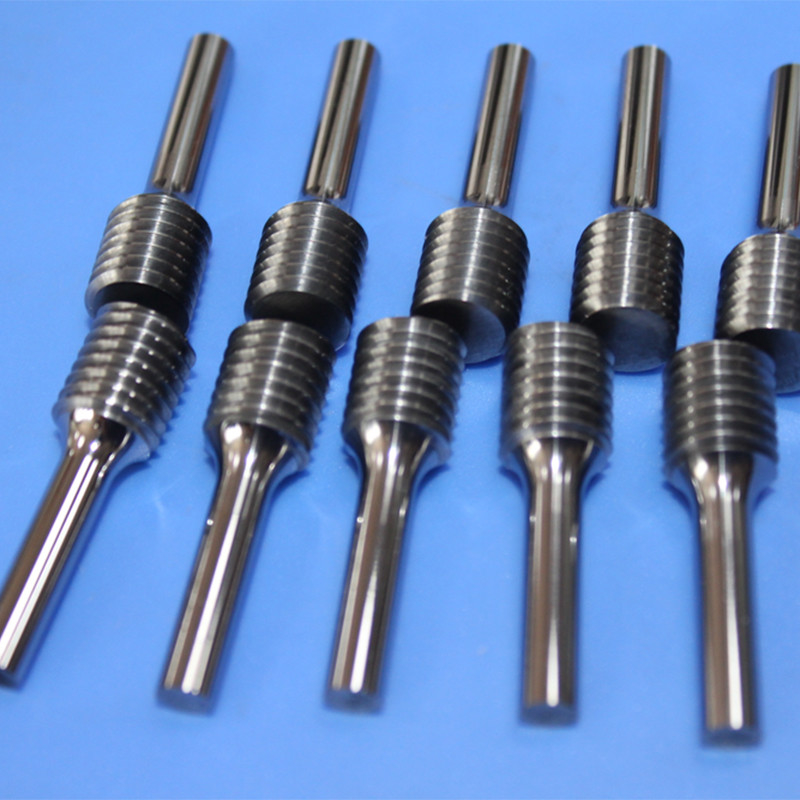

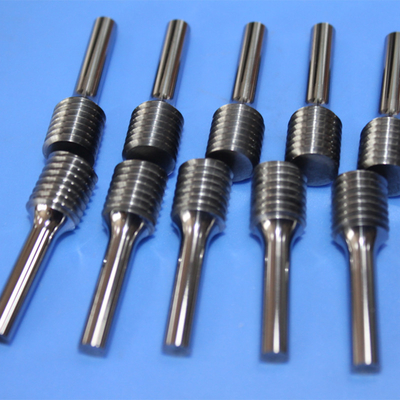

Ultimate Wear-Resistant M10 Threaded Complex Tungsten Carbide Rods
The tungsten carbide M10 threaded rod is a high-performance mechanical fastener engineered for industrial applications demanding extreme wear resistance, corrosion resistance, and superior strength. Manufactured with precision processes, this component excels in the most demanding operational environments.
Key Features
  • Material: Tungsten Carbide
  • Thread Size: M10
  • Hardness: Extreme hardness ensures wear resistance under high-stress conditions
  • Wear Resistance: Excellent durability significantly extends service life
  • Corrosion Resistance: Exceptional performance in harsh working environments
  • High Precision: Precisely machined for accurate dimensions and superior thread engagement
Application Fields
  • Machinery Manufacturing: High-strength components requiring superior wear resistance
  • Mold Manufacturing: Precision cutting and machining of mold components
  • Automotive Industry: Engine and transmission systems requiring high-precision thread connections
  • Aerospace: Manufacturing of high-precision threaded components meeting stringent standards
  • Petrochemical Industry: Ideal for harsh chemical environments preventing corrosion and wear
Technical Specifications
Property Range
Grain Size (μm) 0.4-2.0
Cobalt Content (% Co) 6-20
Density (g/cm³) 13.96-14.85
Hardness (HRA) 86-93
Flexural Strength (MPa) 3200-4500
Young's Modulus (GPa) 570-620
About Zhuzhou Sanxin Cemented Carbide
Zhuzhou Sanxin specializes in manufacturing high-quality cemented carbide components including nozzles, bushings & sleeves, sealing rings, molds, inserts, mill rollers, and custom parts. These products utilize cemented carbide, a composite hard alloy material created through powder metallurgy that bonds refractory metal with a metallic binder. This process results in exceptional hardness, wear resistance, strength, and toughness, making these components ideal for harsh industrial environments. Tungsten carbide and tungsten alloy materials are recognized as premium choices in the cemented carbide category, often referred to as metal ceramics due to their superior properties.
Ultimate Wear-Resistant M10 Threaded Complex Tungsten Carbide Rods 0
