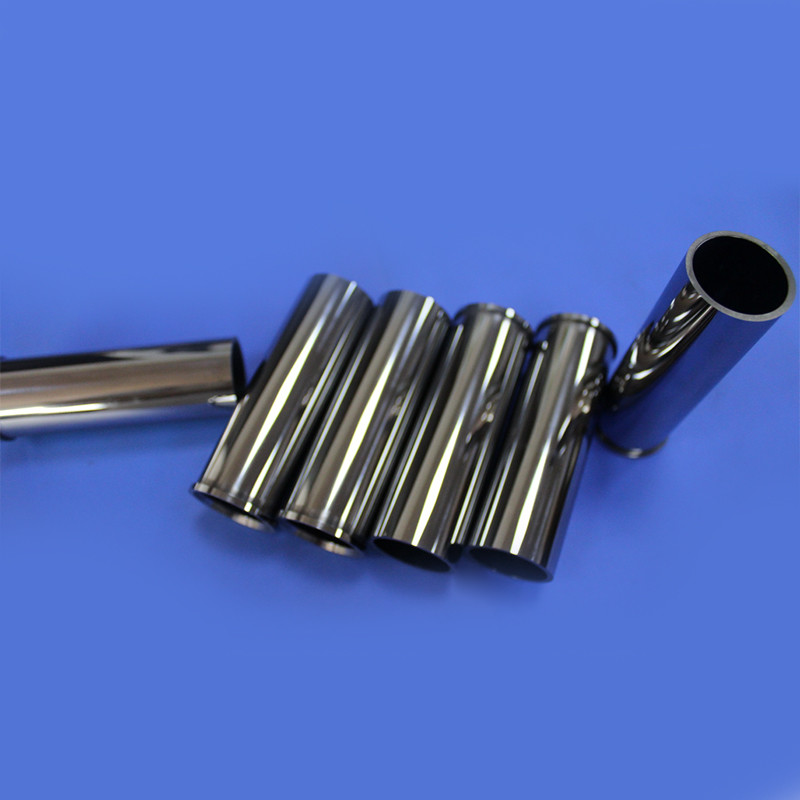

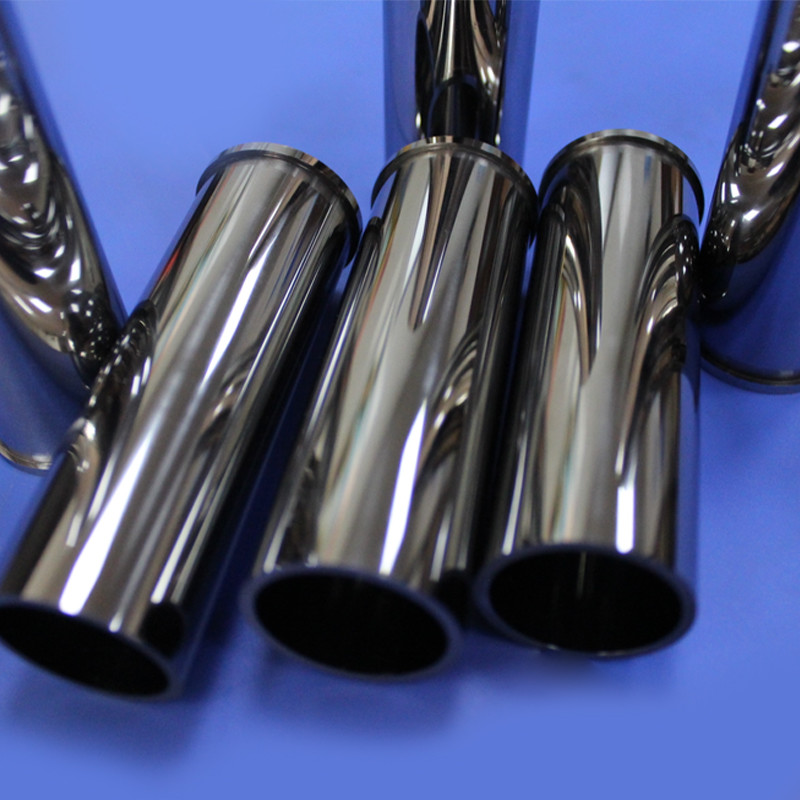

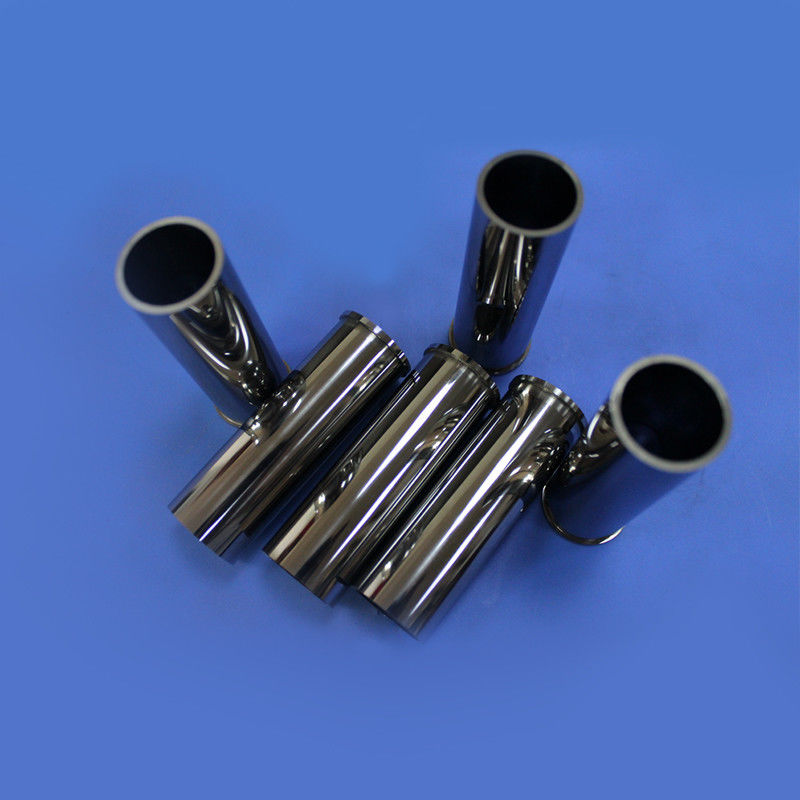

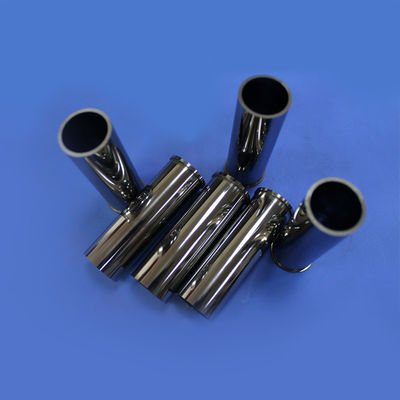

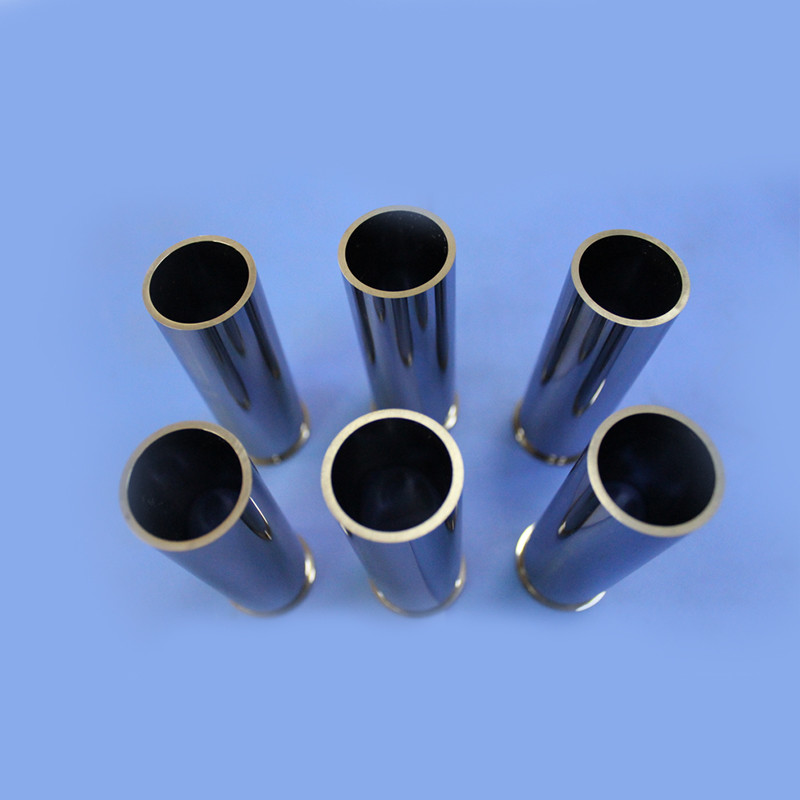

Durable Non-Magnetic Tungsten Steel Carbide Pipe for Industrial Use
Crafted from high-wear and corrosion-resistant YN hard alloy material, providing exceptional durability for plunger sleeve applications.
Precision Dimensional Specifications
| Dimension |
Φ29.2*Φ27.2*Φ23.7*83 |
| Outer Circle Tolerance |
s6 (+0.035, +0.048) |
| Inner Circle Tolerance |
(+0.009, 0) |
Quality Control Standards
With a concentricity requirement of 0.01 and cylindricity fluctuation requirement of 0.004, ensuring each plunger sleeve meets rigorous quality standards.
Assembly Features
Equipped with a 2*30° ground assembly dimensional fixture for optimal positioning and assembly performance.
Application Scenarios
Specifically designed for use with plungers in applications requiring high wear and corrosion resistance, particularly in marine environments.
Performance Requirements
Engineered to exhibit superior wear resistance and corrosion resistance for prolonged stable operation.
YN Hard Alloy Plunger Sleeve Series
Custom machined from Tungsten carbide, the YN series provides superior lifespan and performance. Available material grades include standard YN12, YN9, and others.
Manufacturer: Zhuzhou Sanxin Cemented Carbide Manufacturing Co., Ltd.
Specialization in Precision Manufacturing
Expertise in Hard Alloy Insert Pins
Specialized in producing hard alloy insert pins specifically for precision mold customers, particularly electronic ceramic injection molds.
Quality Assurance
- High Precision Requirements: Ensuring perfect consistency and meeting stringent precision demands
- Stringent Quality Control: Maintaining consistency across all insert pins through controlled processing
- Guaranteed Tolerances: Meeting tolerance requirements of ±0.002 to highest industry standards
- Exceptional Surface Finish: Achieving surface finish of 0.2 for demanding applications
Custom Manufacturing Solutions
Producing hard alloy insert pins according to specific requirements of precision mold manufacturers, ensuring optimal performance through precise specifications.
By leveraging these strengths, Sanxin Carbide provides high-quality, reliable insert pins that meet the exacting standards of the precision mold industry.
