Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Sanxin |
| Certification: | ISO |
| Model Number: | SX2095 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Safety Packing |
| Delivery Time: | 15~45 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10-50000pcs/month |
|
Detail Information |
|||
| Features: | High Hardness But Light Weight | Name: | Silicon Nitride Piston Shaft |
|---|---|---|---|
| Industry: | Powder Metallurgy | Design: | Non-standard Shaped Parts |
| Size: | Various Sizes Available | Custom Service: | Available |
| Highlight: | carbide disc cutter,paper cutter blade |
||
Product Description

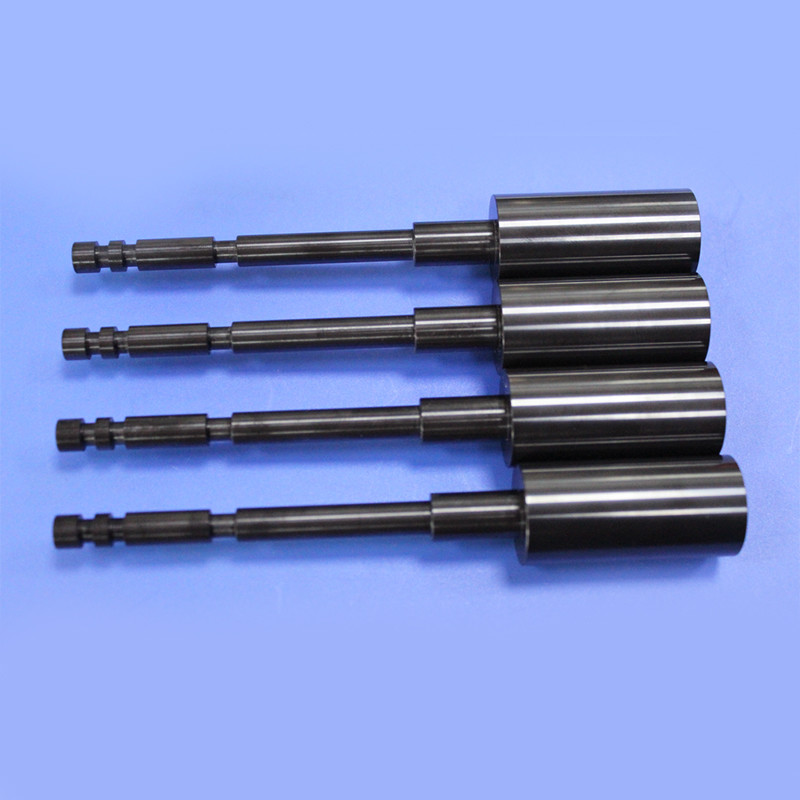

Industrial-Grade Light Weight Powder Metallurgy Silicon Nitride Piston Shaft
An industrial-grade silicon nitride piston shaft offers exceptional performance and durability in demanding applications. Silicon nitride, known for its excellent mechanical properties, is a popular choice for piston shafts due to its high strength, wear resistance, and thermal stability.
Here are some key advantages of using an industrial-grade silicon nitride piston shaft:
Using silicon nitride for piston shafts offers several advantages over other materials:
Overall, the combination of high strength, wear resistance, temperature resistance, and other beneficial properties makes silicon nitride a preferred material for piston shafts in industries where reliability, performance, and longevity are key considerations.
The manufacturing process for silicon nitride components involves several steps to transform raw materials into finished parts:
| 1 | Raw Material Preparation | The process begins with the selection and preparation of raw materials. Silicon nitride powder is typically produced by reacting silicon powder with nitrogen gas at high temperatures in a process called nitridation. |
| 2 | Powder Mixing | The silicon nitride powder is mixed with binders and additives to achieve the desired properties and characteristics for the final component. This mixture is often referred to as a "green body." |
| 3 | Shaping | The green body is then shaped into the desired form using techniques such as dry pressing, isostatic pressing, or injection molding. This step helps to achieve the initial shape of the component before further processing. |
| 4 | Drying | The shaped green body is dried to remove any moisture and binders. This is typically done in a controlled environment to prevent cracking or distortion of the part. |
| 5 | Sintering | The dried green body is then subjected to a high-temperature sintering process in a specialized furnace. During sintering, the powder particles bond together, and the component undergoes densification to achieve the desired mechanical properties. |
| 6 | Machining | After sintering, the silicon nitride component may undergo machining processes such as grinding, milling, or polishing to achieve the final dimensions, surface finish, and tolerances required for the specific application. |
| 7 | Surface Treatment | Depending on the application requirements, the silicon nitride component may undergo surface treatments such as coating, polishing, or finishing to enhance its performance or aesthetics. |
| 8 | Quality Control | Throughout the manufacturing process, quality control measures are implemented to ensure that the silicon nitride components meet the specified requirements for dimensions, mechanical properties, and performance. |
