High Quality Advanced Tungsten Alloy Bottle and Bottle Cap for Medical Devices
High Quality Advanced Tungsten Alloy Bottle and Bottle Cap for Medical Devices High Quality Advanced Tungsten Alloy Bottle and Bottle Cap for Medical Devices High Quality Advanced Tungsten Alloy Bottle and Bottle Cap for Medical Devices High Quality Advanced Tungsten Alloy Bottle and Bottle Cap for Medical Devices

High Quality Advanced Tungsten Alloy Bottle and Bottle Cap for Medical Devices

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX0979
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: Tungsten Alloy Bottle Usage: For Medical Devices
Set: Bottle And Bottle Cap Custom Service: Available
Hardness: HRA 85-93 Design: Non-standard Shaped Parts
Highlight:

carbide disc cutter

,

paper cutter blade

Product Description

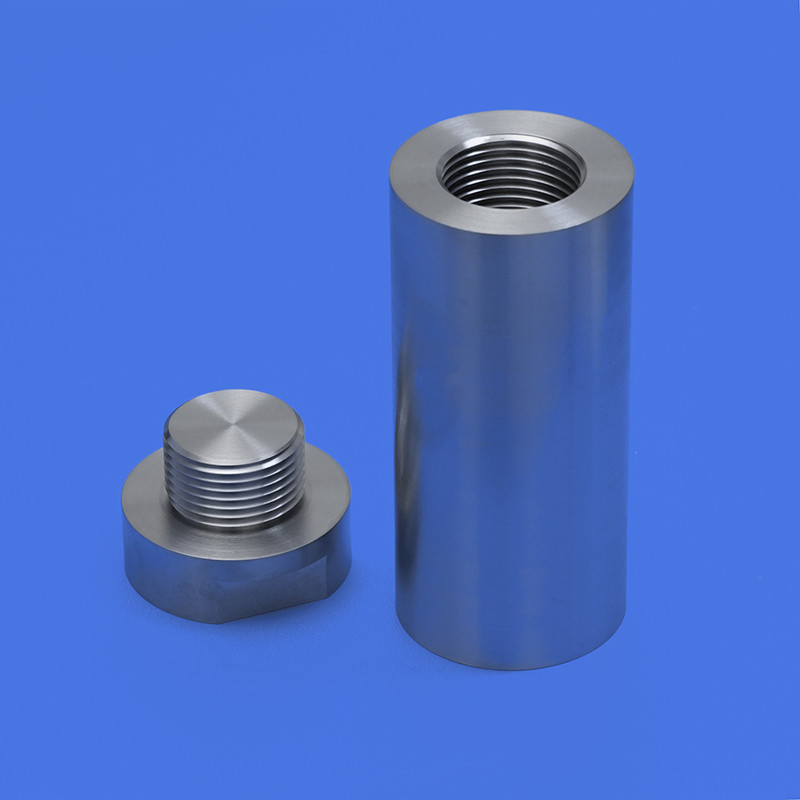

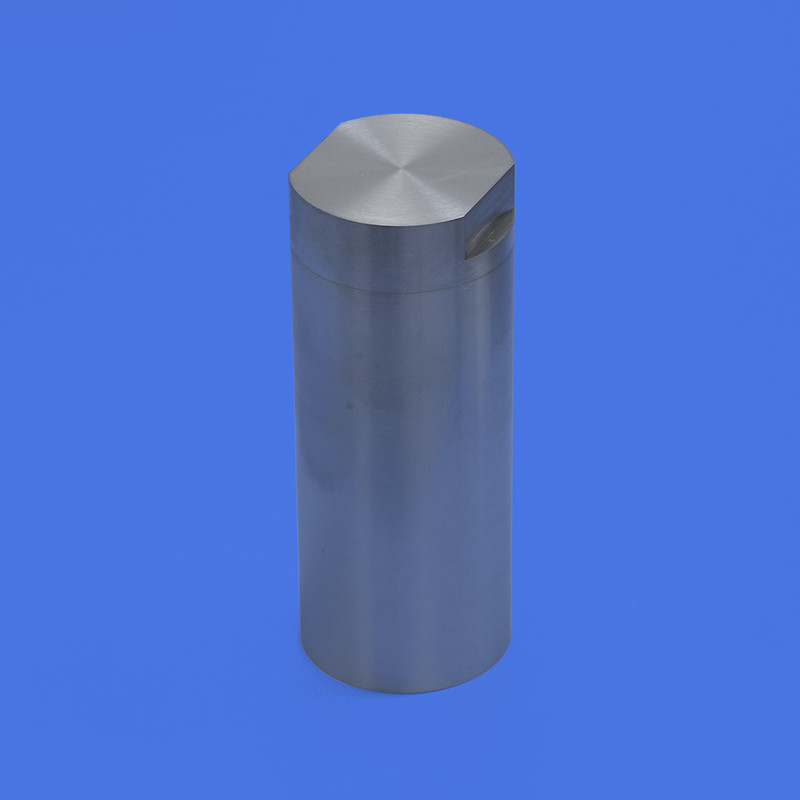

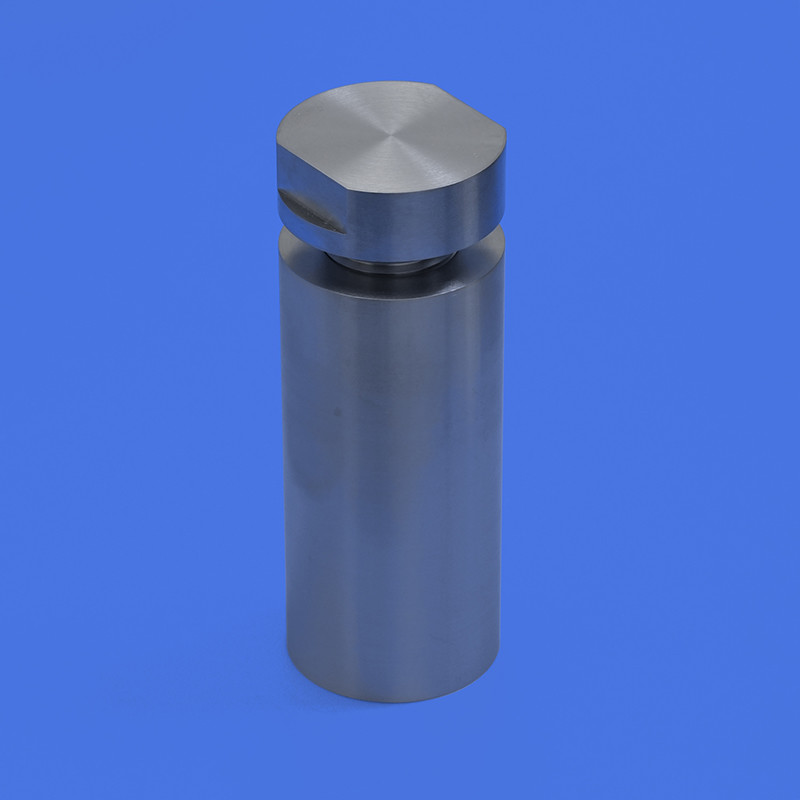

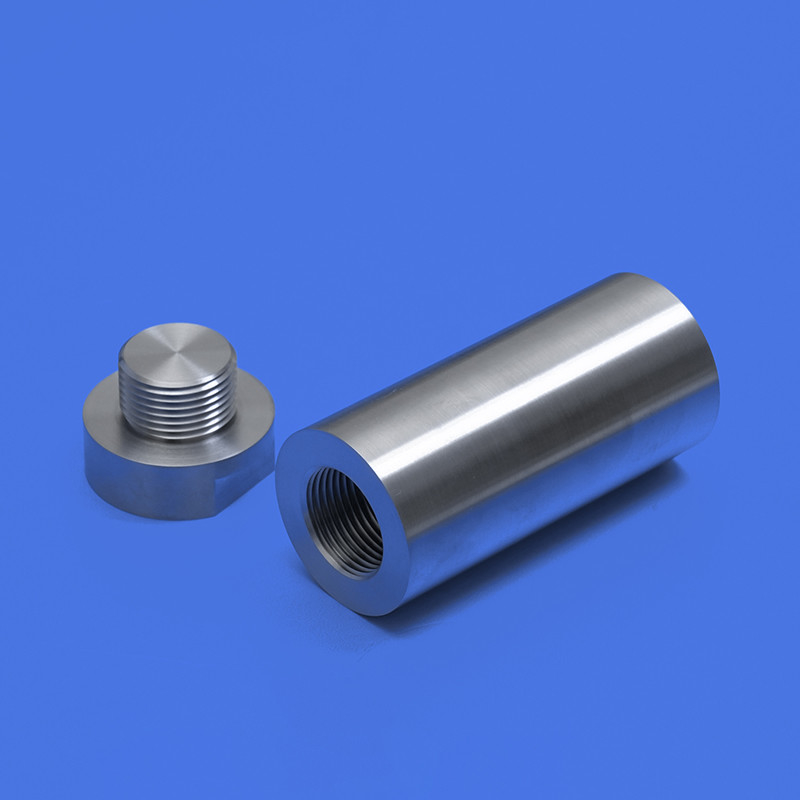

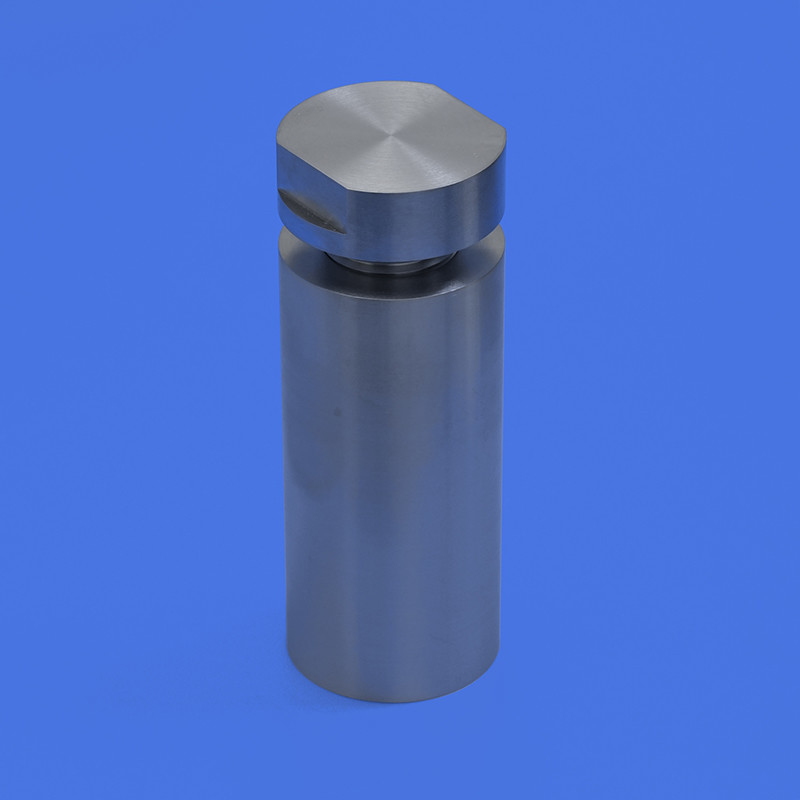

High Quality Advanced Tungsten Alloy Bottle and Bottle Cap for Medical Devices
This specialized tungsten alloy bottle and bottle cap is engineered for demanding medical applications involving radioactive materials. The design provides effective radiation shielding to protect medical personnel while enabling therapeutic use of radioactive rays for disease treatment.
Applications
Radiation Protection and Guidance
With high density (~18.8 g/cm³) and excellent X-ray and gamma ray absorption capacity, Tungsten Nickel Iron alloy serves as an ideal material for radiation therapy collimators and protective components.
Balance Weights
Widely used in automotive crankshaft counterweights, oil weights, security defense systems, and precision optical instruments. The magnetic properties and high density of tungsten copper nickel alloy make it particularly suitable for aviation electronic systems.
Special Characteristics
  • Material composition of tungsten, nickel, and iron provides effective radioactive radiation shielding for medical devices
  • Heavy structure with tightly joined internal and external threads ensures complete radiation containment
Technical Specifications
High Performance Sintering Tungsten Nickel Iron Alloy Properties
Density (g/cm³) Tensile Strength (MPa) Yield Strength Rp0.2 (MPa) Elongation A (%) Hardness (HRC) Magnetic
16.85-17.25 900 600 15 ≤32 Yes
17.15-17.85 900 600 15 ≤33 Yes
17.75-18.35 850 600 10 ≤34 Yes
18.25-18.85 800 600 7 ≤35 Yes
Tungsten Nickel Copper Alloy Properties
Chemical Component Density (g/cm³) Tensile Strength (MPa) Yield Strength (MPa) Elongation Rate (%) Hardness (HRC) Magnetic
W 90%, Remain NiCu 16.85-17.25 ≥648 ≥517 ≥2 32 No
W 92.5%, Remain NiCu 17.15-17.85 ≥648 ≥517 ≥2 33 No
W 95%, Remain NiCu 17.75-18.35 ≥648 ≥517 ≥1 34 No
Material Advantages
High Density
Maximum density of 18.8 g/cm³
High Strength
Tensile strength of 700-1000 MPa
Excellent Radiation Protection
1.7 times more effective than lead at same thickness
Thermal Conductivity
5 times higher than die steel
Low Thermal Expansion
Coefficient of 4-6×10⁻⁶/ºC, half that of iron or steel
Manufacturing Capabilities
Zhuzhou Sanxin cemented carbide products include nozzles, bushings & sleeves, sealing rings, molds, inserts, mill rollers, and customized components. Cemented carbide is a composite hard alloy material consisting of refractory metal bonded by metallic binder through powder metallurgy, offering exceptional hardness, wear resistance, strength, and toughness for harsh industrial environments.
Machining Capabilities:
Maximum Size: Φ85 × 1200mm
Minimum Size: Φ0.045 × 14mm
High Quality Advanced Tungsten Alloy Bottle and Bottle Cap for Medical Devices 0 High Quality Advanced Tungsten Alloy Bottle and Bottle Cap for Medical Devices 1
