Detail Information
Product Description

Detail Information
Name:	Tungsten Alloy Screws	Material:	Densimet Heavy Metal
Feature:	High Density	Custom Service:	Available
Chemical Stability:	High	Dimension:	Customizable
Highlight:	carbide disc cutter , paper cutter blade

Product Description

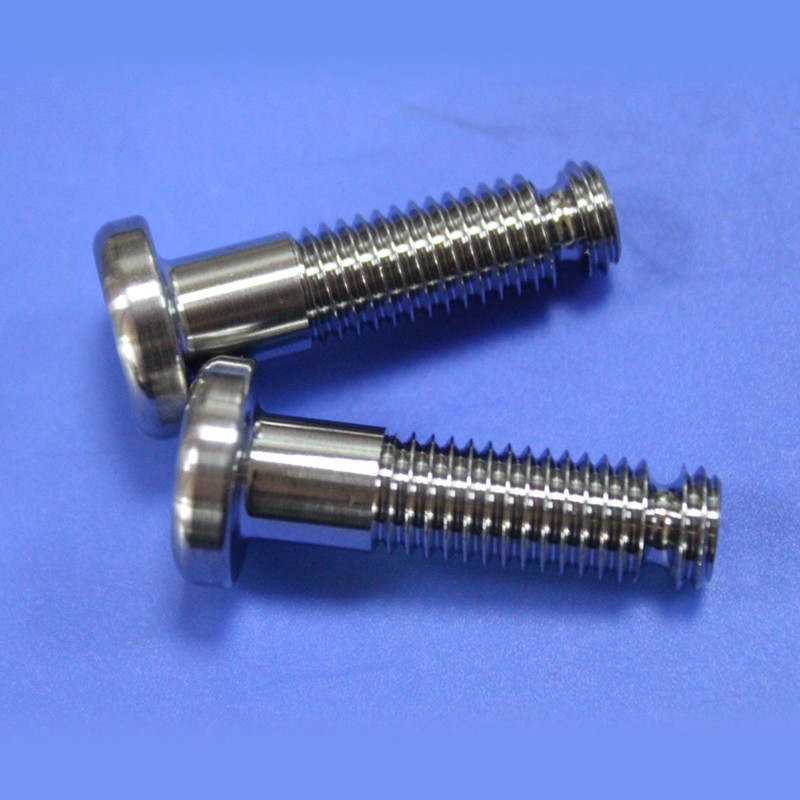

Densimet Heavy Metal High Density Tungsten Alloy Screw for Air Terminations
Air terminations provide a critical role in the lightning protection system, capturing the fullness of the lightning strike current and channelling this current safely to the conductor network to protect buildings and substations.

Furse air termination products are specifically designed to provide highly effective protection against the risks and consequences of a direct lightning strike.
Complete protection against lightning strikes with Furse air termination.
Furse air rods are manufactured from highly-conductive, hard-drawn copper or aluminium, and provide an excellent, durable strike point for lightning - the comprehensive range of air rod bases, conductor fasteners and earth clamps are manufactured from high quality copper or aluminium alloys, ensuring that a high level of conductivity is maintained throughout the air termination system. It also ensures these components are robust enough to last a significant number of years on exposed roof lines.

All these components link together with copper or aluminium conductors, which provide the low resistance path for lightning current - from strike point, safely to earth.

Normal Tungsten Nickel Iron Alloy Property

Chemical Component%		Density (g/cm3)	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	HRC Max (HRC)	Magnetic
W Component	NiFe	Density (g/cm3)	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	HRC Max (HRC)	Magnetic
90	Remain	16.85-17.25	≥758	≥517	≥5	32	Yes
92.5	Remain	17.15-17.85	≥758	≥517	≥5	33	Yes
95	Remain	17.75-18.35	≥724	≥517	≥3	34	Yes
97	Remain	18.25-18.85	≥689	≥517	≥2	35	Yes

High Performance Sintering Tungsten Nickel Iron Alloy Property

Density (g/cm3)	Tensile Strength (MPa)	Yield Strength Rp0.2(MPa)	Elongation A(%)	Hardness (HRC)	Magnetic
16.85-17.25	900	600	15	≤32	Yes
17.15-17.85	900	600	15	≤33	Yes
17.75-18.35	850	600	10	≤34	Yes
18.25-18.85	800	600	7	≤35	Yes

Tungsten Nickel Copper Alloy Property

Chemical Component		Density (g/cm3)	Tensile strength (MPa)	Yield strength (MPa)	Elongation rate (%)	Hardness (HRC)	Magnetic
W	NiCu	Density (g/cm3)	Tensile strength (MPa)	Yield strength (MPa)	Elongation rate (%)	Hardness (HRC)	Magnetic

90	Remain	16.85-17.25	≥648	≥517	≥2	32	No
92.5	Remain	17.15-17.85	≥648	≥517	≥2	33	No
95	Remain	17.75-18.35	≥648	≥517	≥1	34	No

After sales service

Zhuzhou Sanxin Cemented Carbide Production Co., Ltd. promise:

1. Each piece of the factory blade will have a digital security identification code to ensure that you are buying the original authenticity produced by Zhuzhou Sanxin Company.

2. The customer will complete the product delivery within one working day after the order is placed. The specific method is mainly based on express delivery.

3. All the cut legs blades that are manufactured by our company will have detailed instructions for use.

4. Based on the use characteristics and applicability of the carbide cut legs blade, we solemnly promise that after customer first using the cut legs blade (ie, does not sharpen the knife after use), comes out the applicability is not strong, we provide replacement, return and technology guided services to meet customer needs.

5. We are committed to quality production and integrity.

6. Our company can provide customers with detailed cut legs blade use solutions.

Tag:

Product Details:
Place of Origin:	China
Brand Name:	Sanxin
Certification:	ISO
Model Number:	SX0016
Payment & Shipping Terms:
Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	Safety Packing
Delivery Time:	15~45 Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10-50000pcs/month

Densimet Heavy Metal High Density Tungsten Alloy Screws for Air Terminations
