φ0.1mm Inner Diameter Tungsten Carbide Processing Tungsten Steel Rod

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX1120
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Name: Tungsten Steel Rod Material: 100% Virgin Tungsten Carbide
Corrosion Resistance: Excellent Surface Finish: Smooth, Shiny
Service: OEM & ODM Grade: K10,K20,K30,YG8,YG6X
Size: Customized Type: Tool Parts
Highlight:

tungsten carbide production

,

tungsten carbide parts

,

0.1mm Tungsten Steel Rod

Product Description

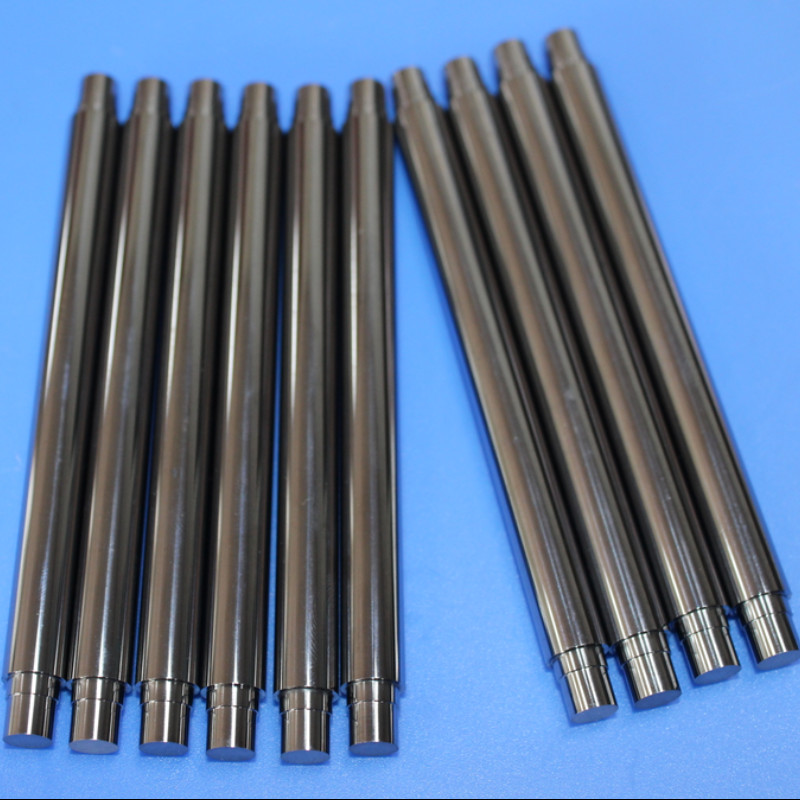

φ0.1mm Inner Diameter Tungsten Carbide Processing Tungsten Steel Rod
Product Overview
Tungsten steel rod, also known as carbide round bar, is a widely used tungsten carbide (WC) material characterized by its cylindrical shape. This material offers exceptional hardness, superior bending strength, corrosion resistance, rust prevention, and outstanding wear resistance properties.
Applications
Tungsten steel round bars are primarily used in manufacturing:
  • High-speed tungsten steel drill bits
  • Tungsten steel milling cutters
  • Tungsten steel boring tools
  • Tungsten steel micro drills
  • Tungsten steel needle punches
  • Tungsten steel wear rods
  • Tungsten steel bearings
These components are ideal for processing materials including aluminum alloy, PCB, glass fiber reinforced materials, brake materials, graphite, high temperature alloys, stainless steel, titanium alloys, hardened steel, and for mechanical wear parts applications.
Technical Specifications
Tungsten steel grinding rod wear-resistant parts are manufactured according to mechanical electric spindle equipment requirements and customer specifications. Our precision machining capabilities include:
Size Range Capabilities
Smallest Inner Diameter φ0.045mm
Current Product (High Demand) φ0.1mm
Largest Outer Diameter Produced φ102 × 1155mm
Outer Diameter Concentricity 0.002
Outer Circle Finish 0.8
Head Axiality 0.005

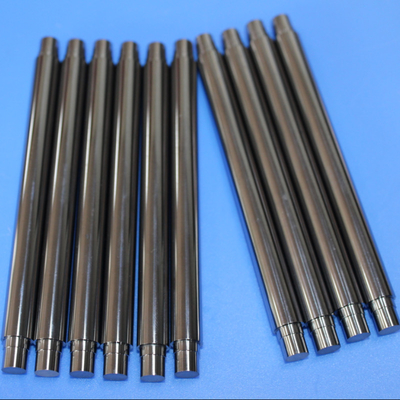

φ0.1mm Inner Diameter Tungsten Carbide Processing Tungsten Steel Rod 0
Material Properties & Product Range
Tungsten steel offers high hardness, exceptional strength, and extremely stable physical properties, making it an excellent choice for wear-resistant components. The long-lasting service life and superior wear resistance are particularly crucial for electric spindle operations.
Product Series
We provide comprehensive tungsten carbide solutions including:
  • Tungsten steel grinding rods
  • Tungsten steel bushings
  • Tungsten steel sleeves
  • Custom non-standard precision components
Standard Tungsten Steel Pipe Specifications
Largest Outer Diameter φ102mm
Smallest Outer Diameter φ1mm
Largest Inner Diameter φ68mm
Smallest Inner Diameter φ0.045mm
Maximum Length 1155mm
Zhuzhou Sanxin Cemented Carbide Products
Our comprehensive product line includes:
  • Nozzles
  • Bushings & Sleeves
  • Sealing Rings
  • Molds
  • Inserts
  • Mill Rollers
  • Customized Components
Cemented carbide is a composite hard alloy material manufactured through powder metallurgy, combining refractory metals with metallic binders. This material exhibits exceptional hardness, wear resistance, strength, and toughness, making it ideal for industrial parts and tools operating in harsh and aggressive environments.

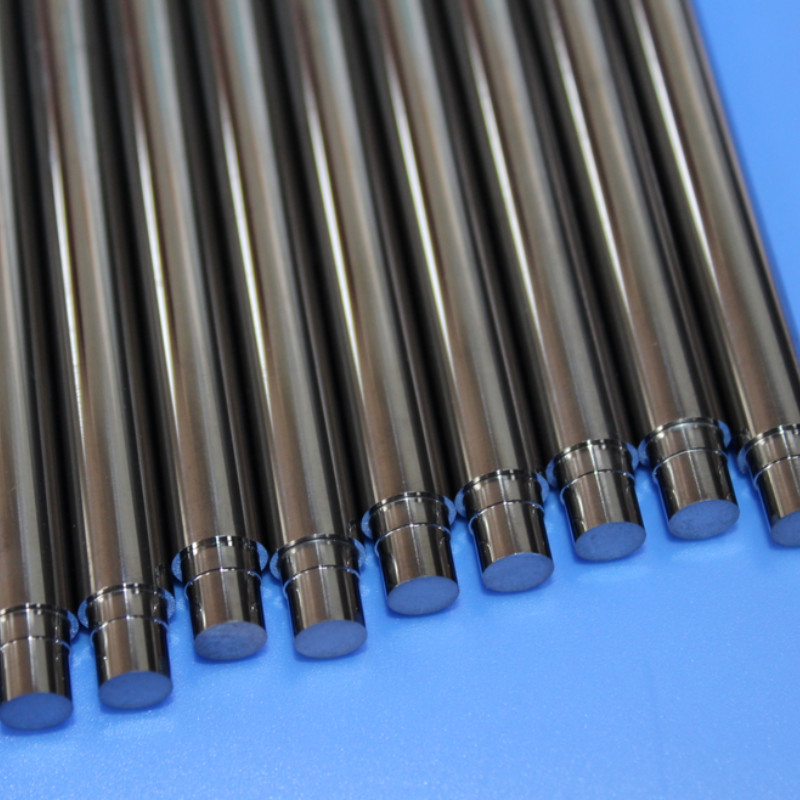

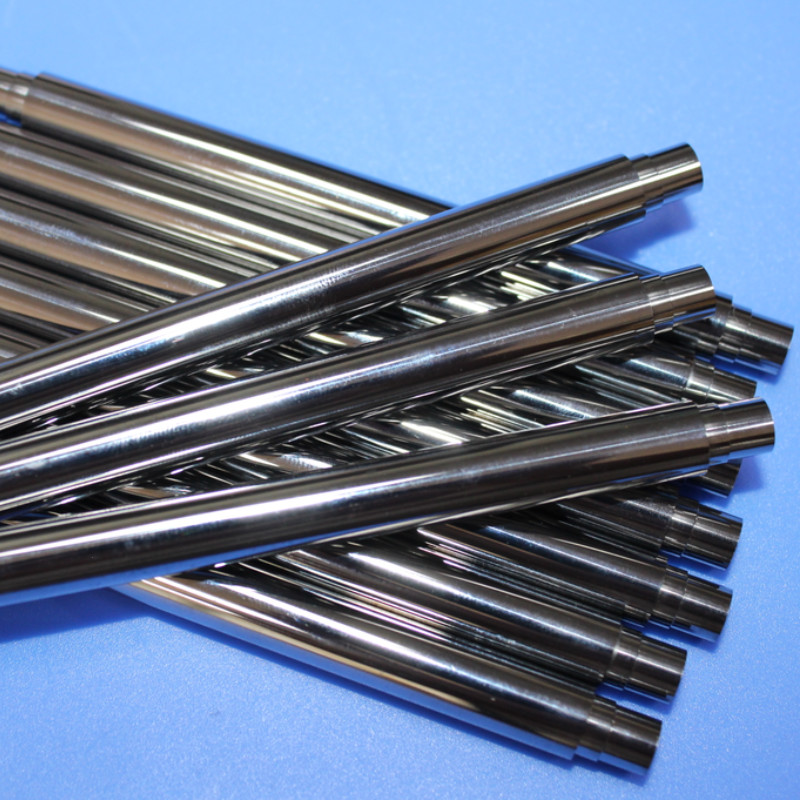

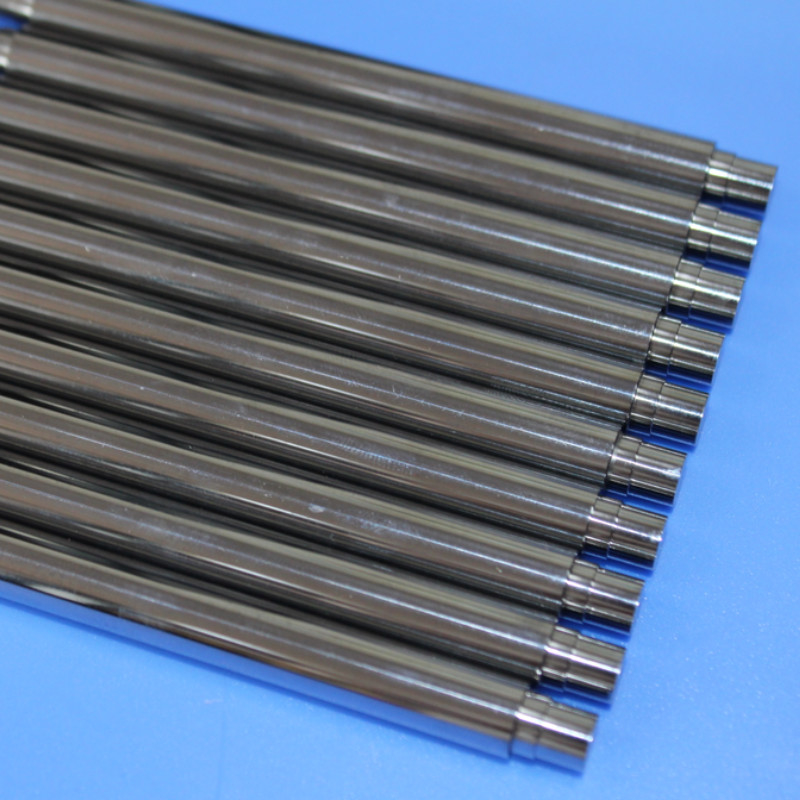

φ0.1mm Inner Diameter Tungsten Carbide Processing Tungsten Steel Rod 1 φ0.1mm Inner Diameter Tungsten Carbide Processing Tungsten Steel Rod 2
