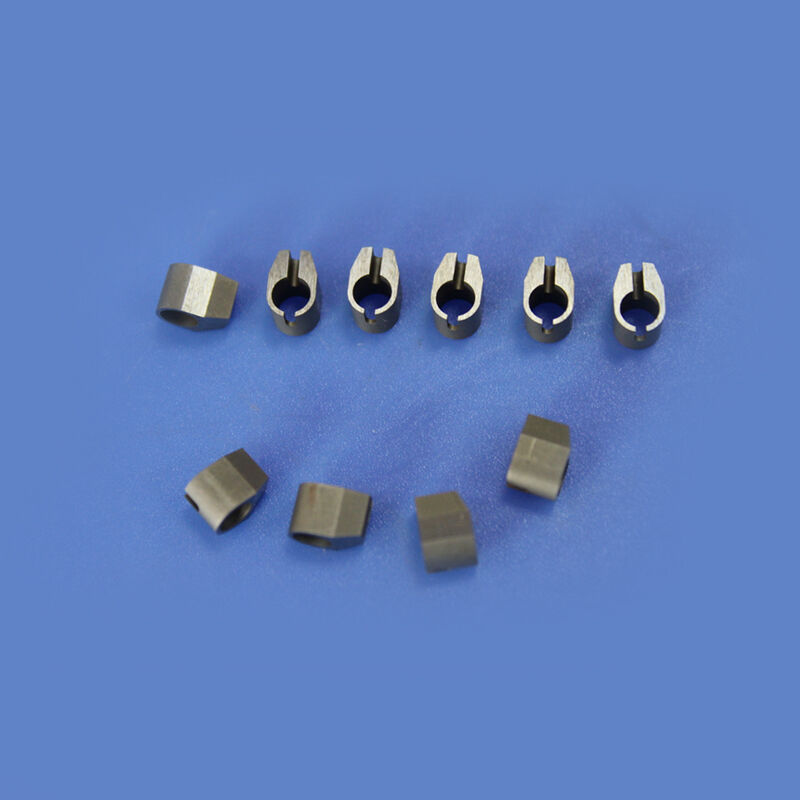

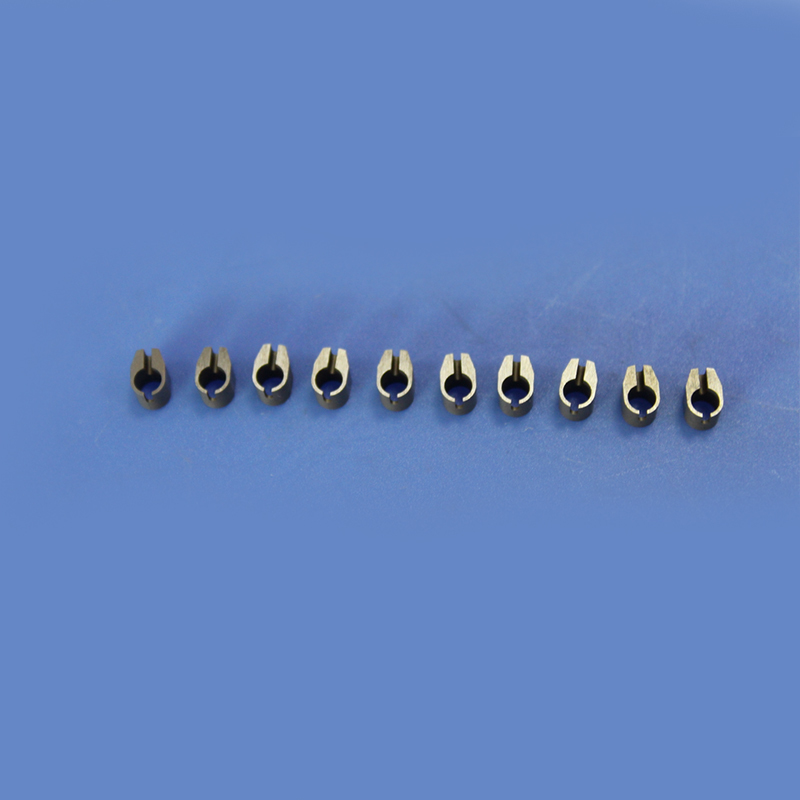

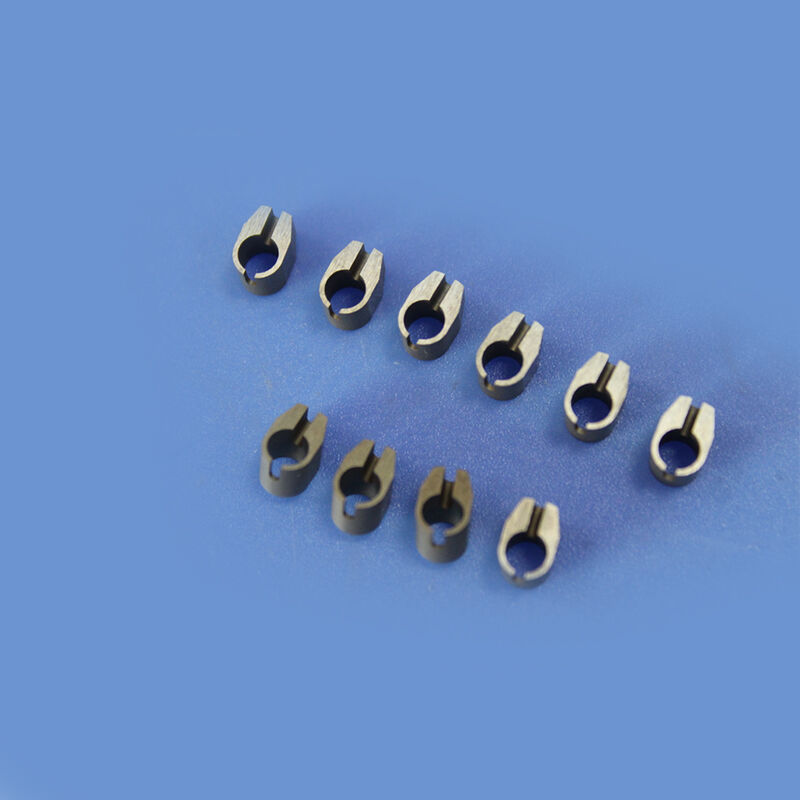

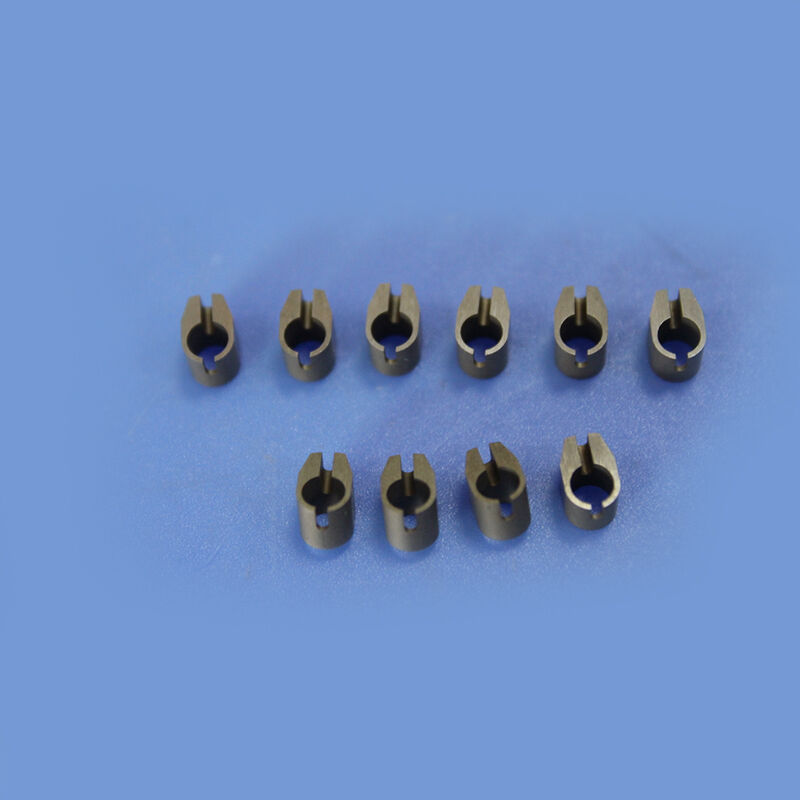

Tungsten Carbide Guide Nose and Pilot Head with Excellent Wear and Corrosion Resistance, Super Durable, and HRA92 Hardness

The Tungsten Carbide Guide Nose is a precision guiding component designed for high-wear and high-impact conditions. Utilizing the high hardness (HRA 89-93), extremely high compressive strength, and excellent thermal conductivity of tungsten carbide, it solves the technical problems of short service life and damage to mating parts commonly seen with traditional alloy steel guide noses under harsh environments.

As a key centering and guiding component in drilling, cutting, or conveying systems, it significantly reduces equipment maintenance frequency while maintaining high alignment accuracy.

• Extremely High Wear Resistance: The hardness and wear resistance of tungsten carbide guide noses are approximately 10-20 times that of quenched tool steel. When working in media containing grit, gravel, or hard rock debris, their wear rate is extremely low, allowing them to maintain precise outer diameter dimensions over long periods.
• High Impact & Fracture Resistance: By optimizing the cobalt (Co) content (typically 6%-15%), the product does not easily chip or crack under high-frequency impact loads, achieving a balance between hardness and toughness.
• Excellent Corrosion & High-Temperature Resistance: In acidic/alkaline environments or high-temperature conditions up to 500°C, mechanical properties remain stable, making it suitable for deep-sea drilling, chemical conveying, or geothermal exploration.
• Precise Geometric Tolerances: Machined using high-precision centerless grinders, outer diameter tolerances can reach h6 or h7 standards, with roundness controlled within 0.005mm, ensuring guiding concentricity.

• Geological Exploration & Oil Drilling: Centering guide noses in Measurement While Drilling (MWD) systems, mud motor drive shaft guide sleeves
• Mining Machinery: Cable guides for skidding systems, crusher discharge pilot heads
• Wire & Pipe Processing: Centering dies in high-speed wire drawing machines, pipeline pig guide noses
• Precision Machining Equipment: Drill pipe stabilizers in deep hole drilling machines, honing machine guide tips
• Subsea Operations: ROV umbilical cable guiding devices, subsea pipe laying equipment

• Shapes: Cylindrical, tapered, ball-nose, flanged, spiral groove
• Features: Coolant holes, keyways, external/internal threads
• Surface Treatment: Mirror polish, TiN/TiAlN coating (for higher temperature or chemical corrosion)

• Full In-House Production: From powder mixing, pressing, sintering, precision grinding to quality inspection - all completed in automated domestic production lines, ensuring short delivery times
• Non-Magnetic Option: For special detection equipment (e.g., MWD), non-magnetic tungsten carbide guide noses are available (nickel-based binder phase, relative magnetic permeability < 1.01)
• Failure Analysis Service: In case of unexpected fracture or rapid wear, our laboratory provides metallographic analysis reports and formula optimization
