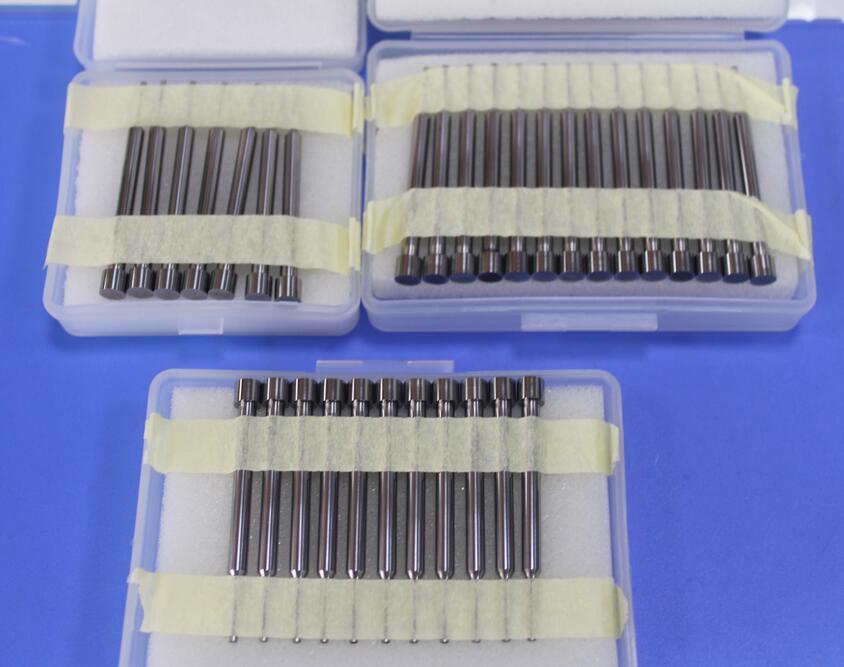

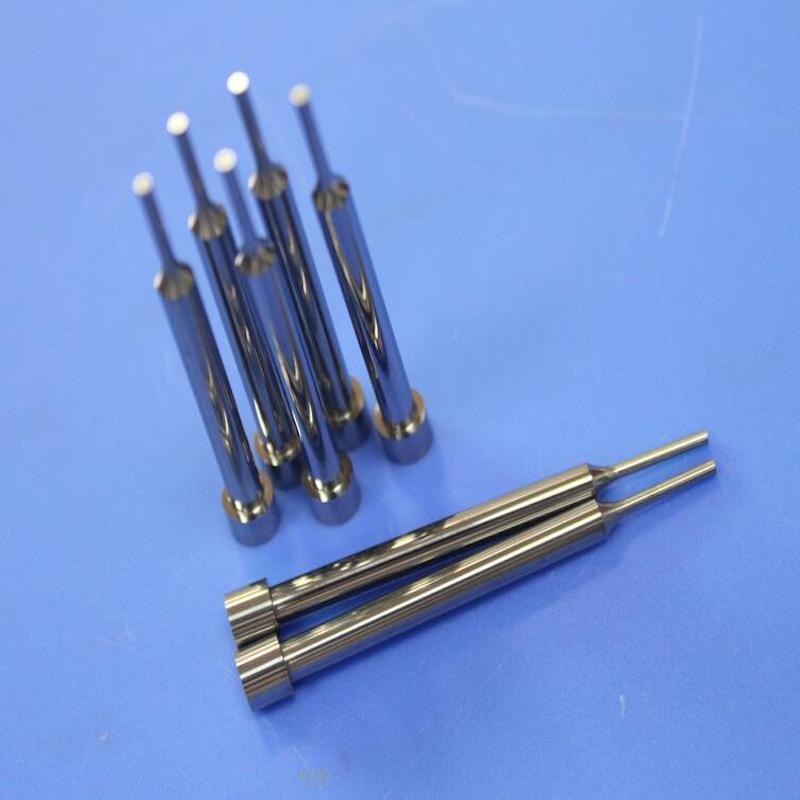

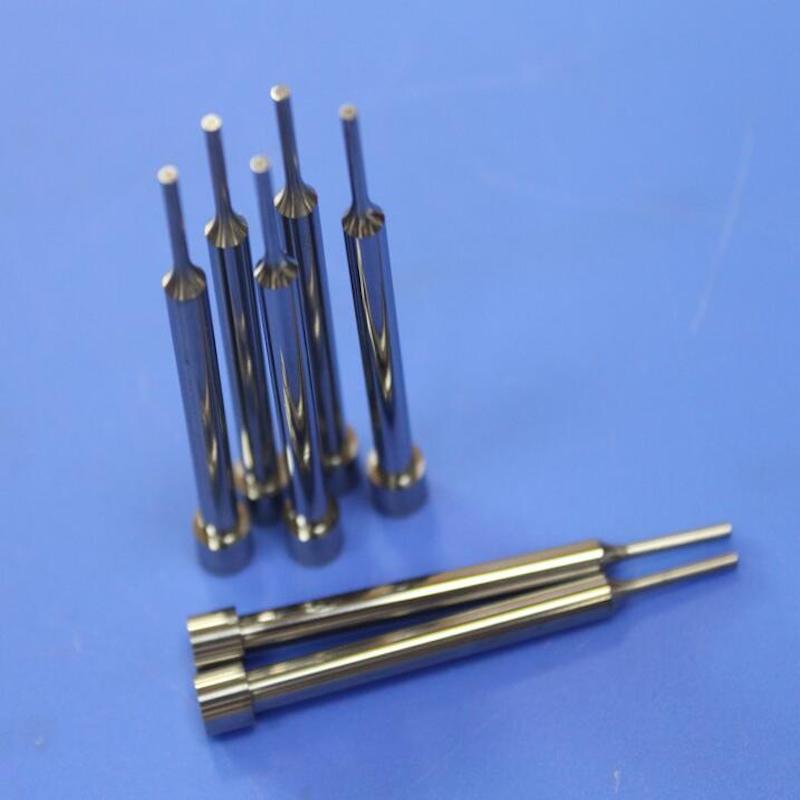

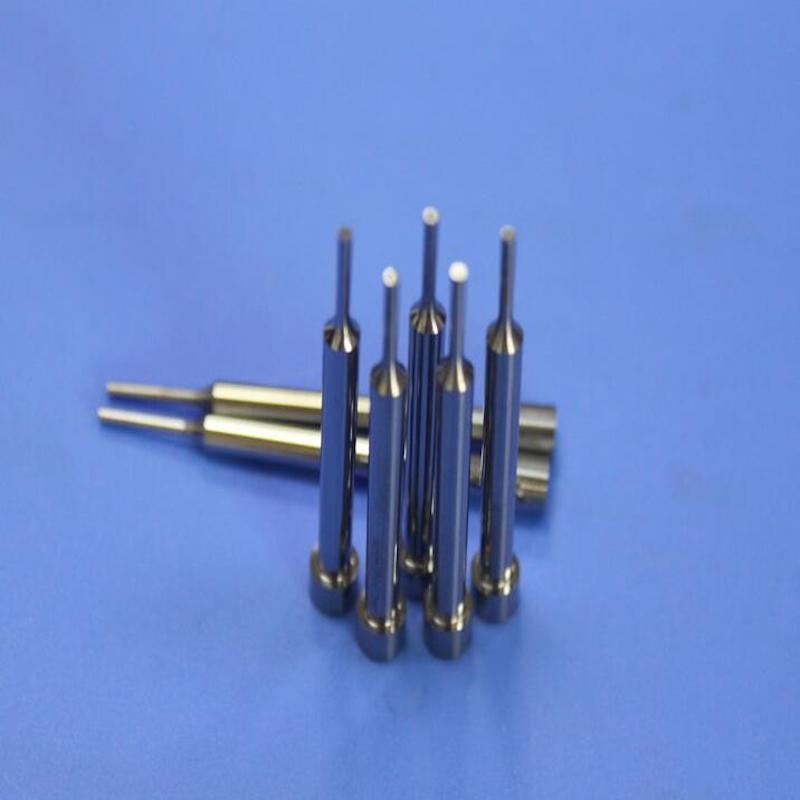

Nano-edge Tungsten Carbide Punch 15.63 g/cm3 Density for Precision Cutting
Nano-edge Tungsten Carbide Punch 15.63 g/cm3 Density for Precision Cutting Nano-edge Tungsten Carbide Punch 15.63 g/cm3 Density for Precision Cutting Nano-edge Tungsten Carbide Punch 15.63 g/cm3 Density for Precision Cutting Nano-edge Tungsten Carbide Punch 15.63 g/cm3 Density for Precision Cutting

Nano-edge Tungsten Carbide Punch 15.63 g/cm3 Density for Precision Cutting

Product Details:
Place of Origin: Zhuzhou
Brand Name: Sanxin
Certification: ISO9001
Model Number: SX1262
Payment & Shipping Terms:
Minimum Order Quantity: 2
Delivery Time: 5-25days
Payment Terms: L/C,T/T,Western Union
Contact Now
  • Detail Information
  • Product Description

Detail Information
Density: 15.63 G/cm3 Application: High Hardness And Wear Resistance
Categories: Tungsten Carbide Processing Feature: Strong
Coefficient Of Thermal Expansion: 5.0-6.5 × 10-6/K Chemical Resistance: Resistant To Most Acids And Alkalis
Oem: Yes Surface: Polished
Impact Resistance: Excellent Applications: Cutting Tools, Wear Parts, Mining Tools
Flexural Strength: 2,000 MPa Melting Point: 2,870°C
Highlight:

high-density tungsten carbide punch

,

nano-edge precision cutting punch

,

tungsten carbide processing punch

Product Description

Expert in Precision Cutting of Fiber Tubes Nano-edge Tungsten Carbide Punch
The precision punch with a 92% tungsten carbide matrix, nano-level edge processing technology + multi-layer composite coating, breaks through the delamination and burr problems of traditional cutting tools, and achieves a perfect processing effect of cross-sectional finish Ra ≤ 0.8μm in the cutting of carbon fiber, glass fiber, and aramid composite tubes.
Application Areas
Medical Equipment
  • Precision Cutting of Vascular Interventional Catheters
  • Endoscope Instrument Tubing Processing
  • Ventilator Bellows Forming
Automotive Industry
  • Turbocharger Piping Systems
  • Brake System Oil Piping Processing
  • New Energy Vehicle Battery Piping
Aerospace
  • Aviation Hydraulic Piping Systems
  • Satellite Fuel Delivery Pipes
  • UAV Composite Structural Components
High-End Manufacturing
  • Industrial Robot Cable Conduits
  • Optical Cable Reinforcement Core Processing
  • Specialty Equipment Transmission Piping
Technological Innovation and Process Breakthroughs
Nano-level Edge Strengthening
  • Pulsed Electron Beam Polishing Technology
  • Surface Residual Compressive Stress +300 MPa
  • Edge Straightness ≤ 0.002 mm/50 mm
Anti-Adhesion Microstructure Treatment
  • Laser Microtexturing Surface Technology
  • 0.03 mm x 500 pores/mm² Microporous Oil Reservoir
  • MoS₂ Ion Implantation Layer (Reduces Resin Release Force by 80%)
Intelligent Thermal Management System
  • Embedded Copper Core Heat Pipe Design
  • Constant Operating Temperature ≤ 80°C
  • Composite Thermal Expansion Coefficient Matching
Quality Assurance
  • Material Certification: ISO 9001 quality management system certified
  • Performance Testing: Complies with ASTM D5687 composite material testing standards
  • Lifespan Verification: Each batch undergoes ≥100,000 cycles of actual operating condition testing
