Non Standard High Precision Long Lasting Tungsten Carbide Punch and Mold Insert

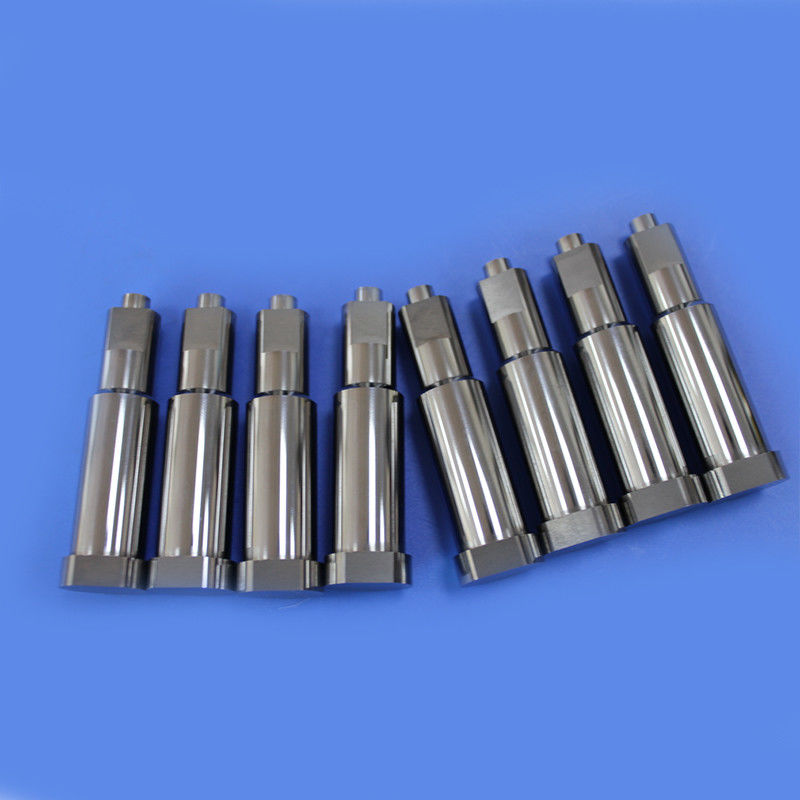

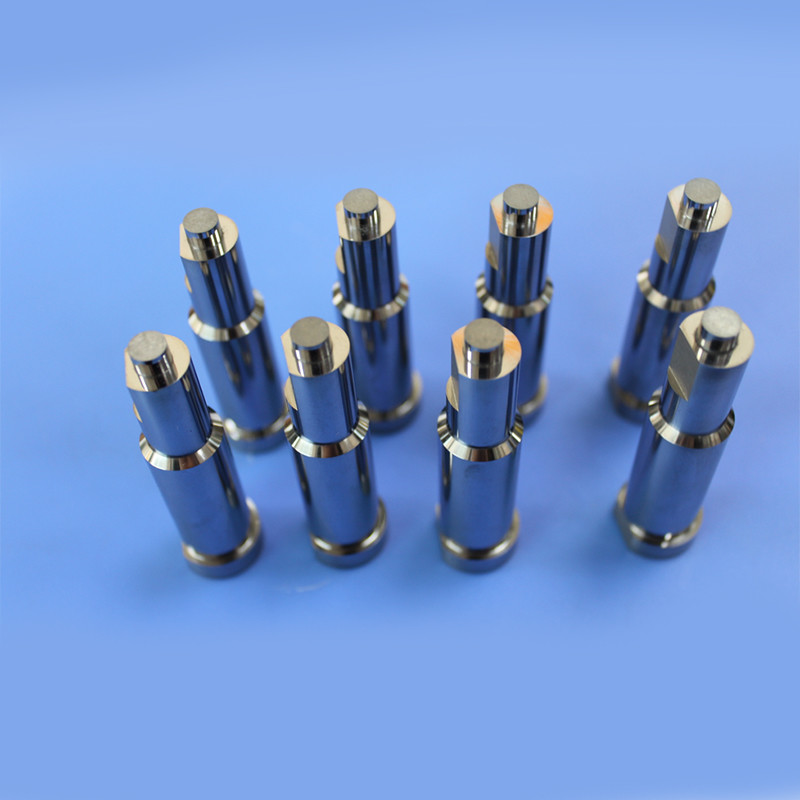

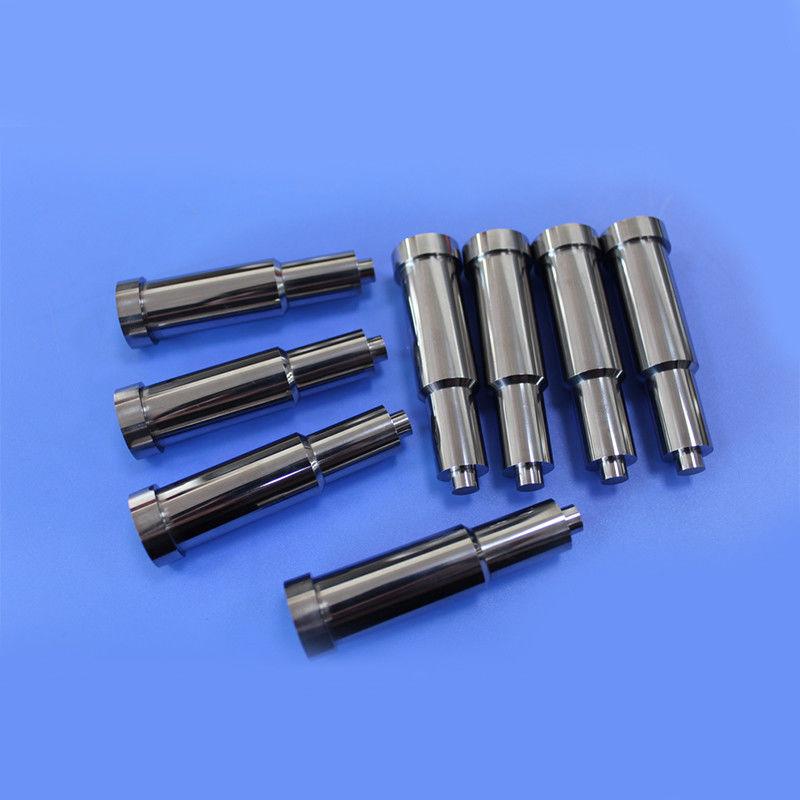

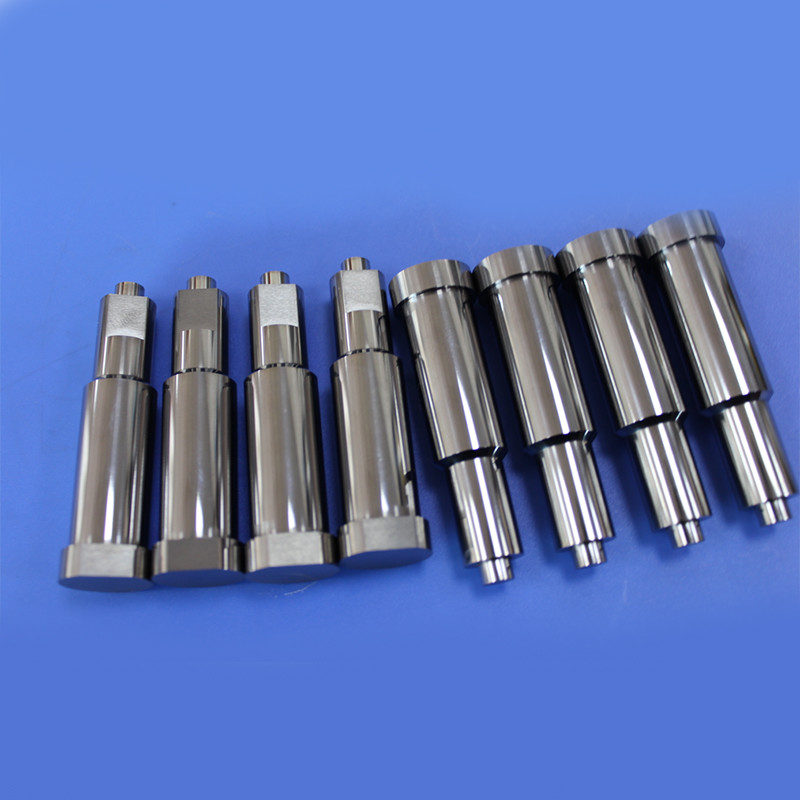

Non Standard High Precision Long Lasting Tungsten Carbide Punch and Mold Insert Non Standard High Precision Long Lasting Tungsten Carbide Punch and Mold Insert Non Standard High Precision Long Lasting Tungsten Carbide Punch and Mold Insert Non Standard High Precision Long Lasting Tungsten Carbide Punch and Mold Insert

Non Standard High Precision Long Lasting Tungsten Carbide Punch and Mold Insert

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX2047
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: Tungsten Carbide Punch Feature: Durable
Shape: Non Standard Application: Punching And Stamping
Grade: YG10, YG15, K30, K20, P10... Durability: Long Lasting
Customization: Available
Highlight:

tungsten carbide parts

,

tungsten carbide tools

Product Description

Non Standard High Precision Tungsten Carbide Rear Punch Mold
We specialize in precision-crafted custom tungsten carbide back mold inserts, including tungsten carbide back mold inserts, punch heads, back mold cores, and other tungsten carbide inserts designed for demanding industrial applications.
Dimensional Specifications
Φ18*Φ15.33*Φ12.11*Φ12.07*Φ6.44*Φ6.4*64.85
Our tungsten carbide back mold inserts feature complex outer diameter requirements, with precise tolerances crucial for hanging segment applications and various fitting requirements across different industrial scenarios.
Key Features
High-Precision Machining
Each insert undergoes precision machining to ensure accurate dimensions and consistent performance.
Versatile Design
Suitable for various applications with different outer diameter requirements including hanging segment configurations.
Wear & Corrosion Resistance
Crafted from high-quality tungsten carbide for outstanding durability in demanding environments.
We provide comprehensive tungsten steel punch precision production services, including non-standard shaped tungsten steel punching needle processing, hard alloy punching needles, with precision tolerance requirements of ±0.002.
Tungsten Carbide Punch Parameters
CO content: 10% ~ 20%
Density: 14.0 ~ 14.5 g/cm³
Hardness: 87-92.0 HRA
Grain size: 0.6 ~ 1.2 μm
Bending strength: 4000 MPa
Modulus of elasticity: 490 GPa
Thermal expansion coefficient: 5.4 * 10⁻⁶/°C
Dimensions and specifications are customized according to drawings with precision requirements of ±0.002
Manufacturing Expertise
We manufacture precision stator rotor core stamping dies including tungsten steel rotor measuring punches, stator forming punches, inner and outer rotor pushing needles, and forming needles for fixed rotor core stamping applications.
The precision of tungsten steel punches used in our molds is exceptionally high, with product consistency ensuring that each punch in mass production strictly meets dimensional accuracy tolerance requirements while maximizing mold service life.

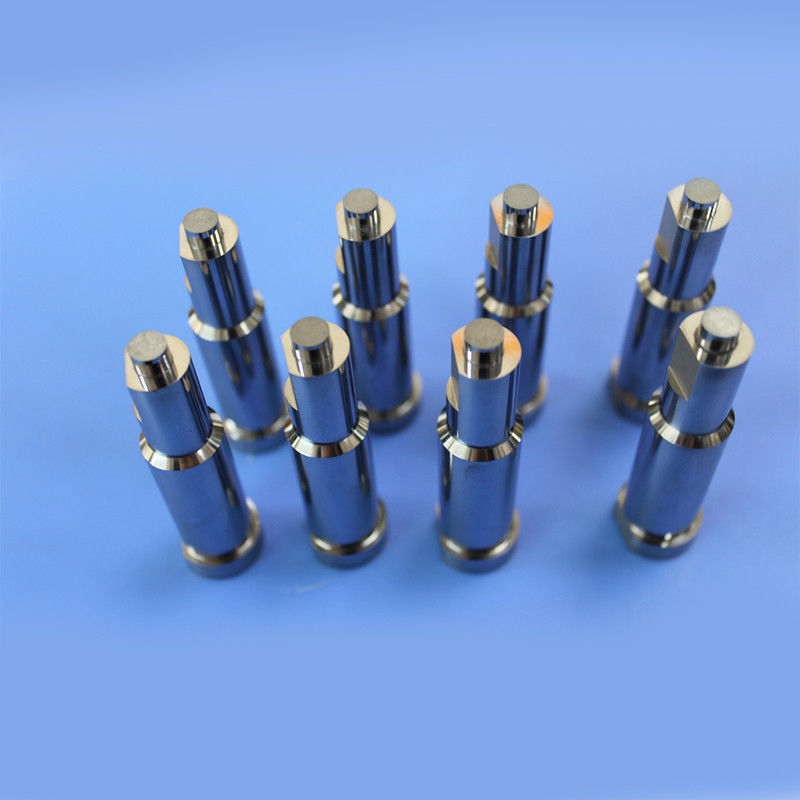

Non Standard High Precision Long Lasting Tungsten Carbide Punch and Mold Insert 0
