Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Sanxin |
| Certification: | ISO |
| Model Number: | SX1093 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Safety Packing |
| Delivery Time: | 15~45 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10-50000pcs/month |
|
Detail Information |
|||

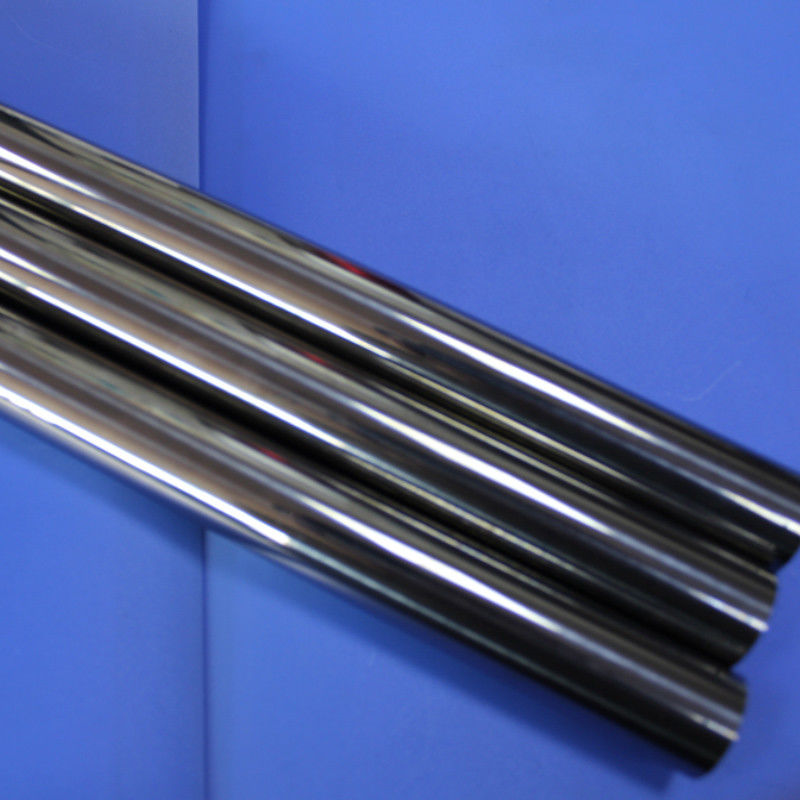

| Name: | Tungsten Alloy Rod | Shape: | Customized |
|---|---|---|---|
| Tungsten Steel Slider Insert Head: | Customized | Type: | W90NiFe4 Tungsten Bar |
| Model: | W90NiFe4 Tungsten Alloy Bar | Size: | OEM Accepted |
| Highlight: | Tungsten W90NiFe4 Rod,Heat Resistant Tungsten W90NiFe4 Rod,Anti Corrosion Tungsten Alloy Rod |
||
Product Description
Specifications
Tungsten alloy tips:
-- Good abrasive resistance high precision W90NiFe4 round bars.
-- Good heat and corrosion resistance.
Zhuzhou Sanxin Cemented Carbide is engaged in manufacturing,exporting and supplying a wide range of tungsten carbide tools, wear parts and components to suit different industries.
Quality and customer service are the core of our production. We have the capability toproduce parts ranging in different sizes and with a variety of grades available.
We have a team of highly qualified technical personnel with rich experience who provide complete service to the customers.
We could supply virouse tungsten carbide inserts for different purpose like bits, industries e.t.c
Material Property:
| High Density | Max as 18.8 g/cm3 |
| High Strength | Tensile strength as 700-1000 MPa. |
| Excellent Radiation Protection | Tungsten alloy is 1.7 times than Lead in radiation protection capability with same thickness. |
| The Coefficient of Thermal Conductivity | The thermal conductivity coefficient of tungsten alloy is 5 times of die steel. |
| Small Thermal Expansion Coefficient | Tungsten thermal expansion coefficient is 4~6×10-6/℃, only iron or steel 1/2-1/3. |
Normal Tungsten Nickel Iron Alloy Property
| Chemical Component% |
Density (g/cm3) |
Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation (%) |
HRC Max (HRC) |
Magnetic | |
| W Component | NiFe | ||||||
| 90 | Remain | 16.85-17.25 | ≥758 | ≥517 | ≥5 | 32 | Yes |
| 92.5 | Remain | 17.15-17.85 | ≥758 | ≥517 | ≥5 | 33 | Yes |
| 95 | Remain | 17.75-18.35 | ≥724 | ≥517 | ≥3 | 34 | Yes |
| 97 | Remain | 18.25-18.85 | ≥689 | ≥517 | ≥2 | 35 | Yes |
High Performance Sintering Tungsten Nickel Iron Alloy Property
| Density (g/cm3) |
Tensile Strength (MPa) |
Yield Strength Rp0.2(MPa) |
Elongation A(%) |
Hardness (HRC) |
Magnetic |
| 16.85-17.25 | 900 | 600 | 15 | ≤32 | Yes |
| 17.15-17.85 | 900 | 600 | 15 | ≤33 | Yes |
| 17.75-18.35 | 850 | 600 | 10 | ≤34 | Yes |
| 18.25-18.85 | 800 | 600 | 7 | ≤35 | Yes |
From the production of raw materials to the processing of finished products, our company's hard alloy inserting surfaces are complete and perfect. The entire project is based on the cemented carbide production process. The ingredients are thoroughly mixed. → pulverized → dried → sieved, then added to the former → re-dried → sieved to obtain a mixture → mixed granule pressing → forming → low pressure sintering → sintered blank → inspection (non-destructive ultrasonic test) → blank dimensional accuracy inspection → EDM (or wire cutting) → rough grinding → fine grinding → polishing → inspection → labeling → packaging. Mass production of carbide insertion needle requires product consistency, which directly affects production efficiency. Whether custom-made or mass-produced, our company's carbide countersunk bolts always control each processing procedure to ensure the consistency of the carbide countersunk bolts.
