Zhuzhou Sanxin Cemented Carbide Manufacturing Co., Ltd

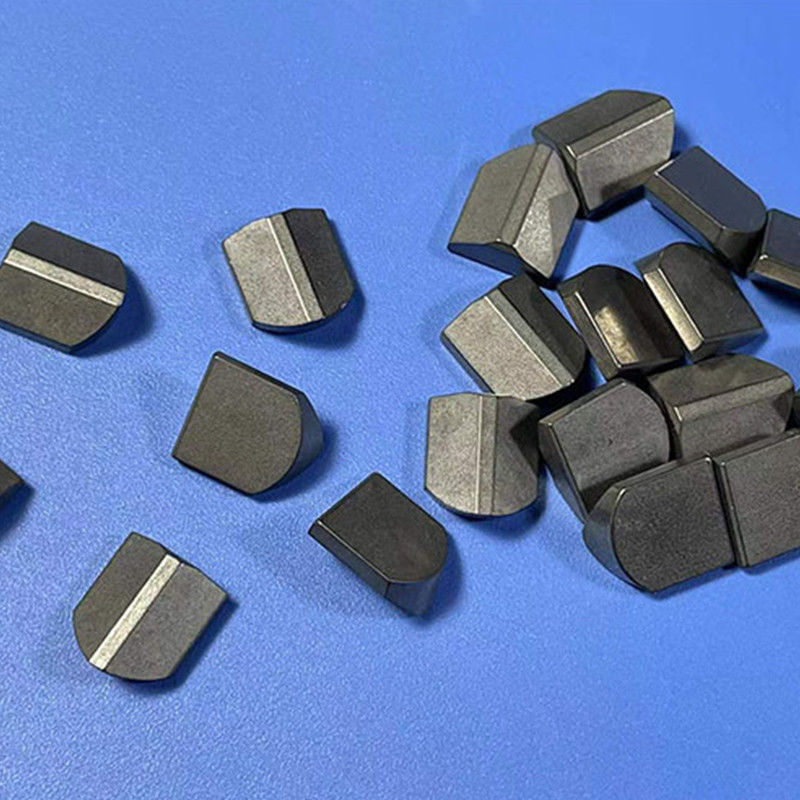

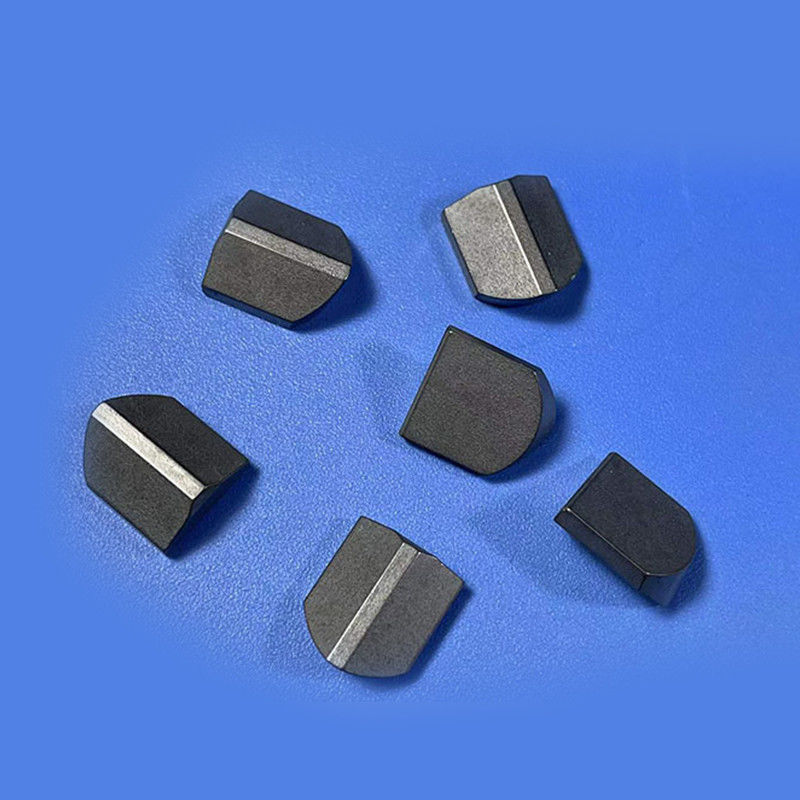

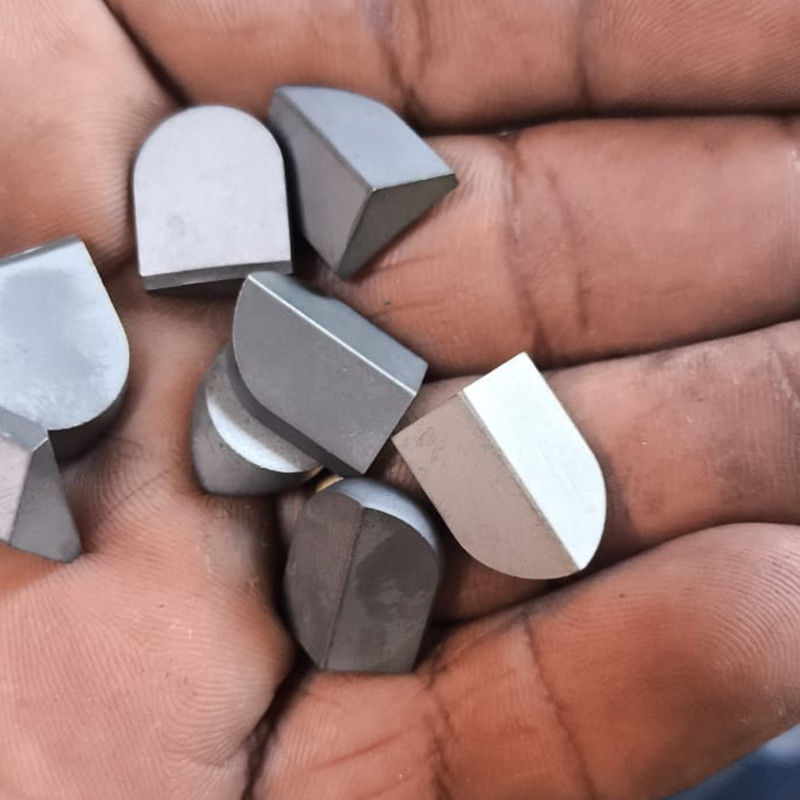

Customized Design High Wear Resistance YG8 Material Tungsten Carbide Button for Artesian Well Drill Bits

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX0026-9
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100000pcs/month
  • Detail Information
  • Product Description

Detail Information

Type: Construction Tool Parts,wear Resistant Parts,tungsten Carbide Wear Resistance Material: 100% Virgin Tungsten Carbide,Tungsten Carbide WC+Co
Size: Customized,OEM Accepted,Customer Requst Surface: Finish,rough Grinding,Polished Grinding
Grade: YK05/YK06/YG8/YG20,YG11,etc Shape: Costomized,Spherical,flat-top,cone,Round Or Other,parabolic
Service: OEM & ODM
Highlight:

YK06 Tungsten Carbide Button

,

YG8 Tungsten Carbide Button

,

OEM Cemented Carbide Inserts

Product Description

Artesian Wells Drill Bits with Tungsten Carbide Teeth
Artesian wells are water wells drilled into aquifers where water naturally rises to the surface without pumping. These specialized drilling operations require robust equipment capable of penetrating various geological formations to access underground water sources.
Tungsten Carbide Button Technology
Our drill bits feature strategically placed tungsten carbide buttons on the cutting teeth, providing exceptional hardness and wear resistance for demanding artesian well drilling applications.
Key Specifications
Primary Grade: YG8 material
Density: 14.7g/cm³
Hardness: HRA89
Assembly: HPGR cemented carbide segments
Mounting: Primarily welded
Replacement: Individual buttons can be replaced
Performance: Excellent impact and wear resistance
Available Tungsten Carbide Grades
Grade Density (g/cm³) Hardness (HRA) MPa
KZ40C13.30~13.4587.0~88.0≥3000
KZ30A14.03~14.1788.0~89.0≥3000
KZ3513.85~14.0487.5~88.9≥2800
YG2013.45~13.65≥84.5≥2480
YG1513.95~14.15≥86.5≥2400
YG16C13.75~13.95≥84.0≥2640
YG13C14.15~14.35≥85.5≥2450
Material Properties
  • High hardness and exceptional wear resistance
  • High elastic modulus
  • Superior compressive strength
  • Excellent chemical stability (resistant to acid, alkali corrosion, and high temperature oxidation)
  • Low expansion coefficient with thermal and electrical conductivity similar to iron alloys
Applications & Customization
Primarily designed for artesian wells drill bits, these tungsten carbide buttons are ideal for tough hard rock drilling applications. We accept customized drawings and specifications to meet your specific drilling requirements.
Performance Benefits
Our drill bits with tungsten carbide teeth deliver reliable performance, increased productivity, and extended service life in various geological conditions. The strategic button placement ensures effective cutting action and prolonged tool performance for successful water extraction from aquifers.

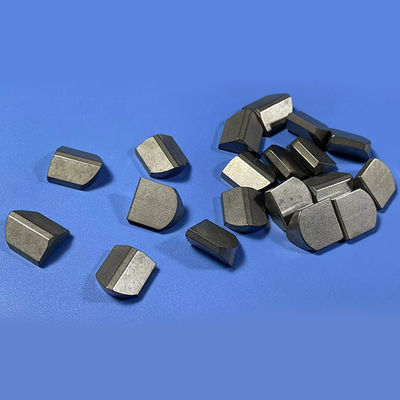

Customized Design High Wear Resistance YG8 Material Tungsten Carbide Button for Artesian Well Drill Bits 0

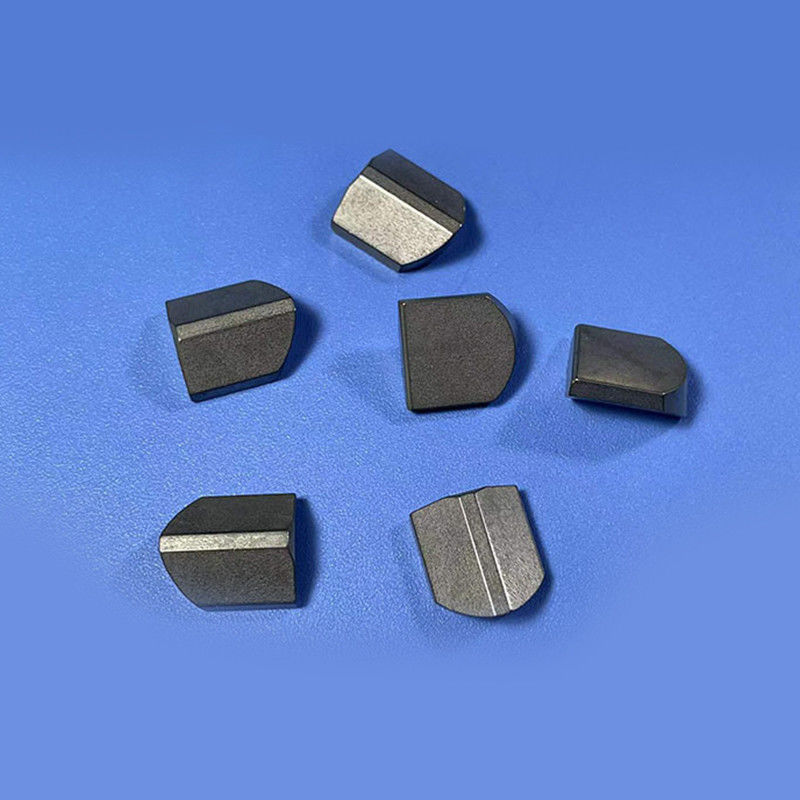

Customized Design High Wear Resistance YG8 Material Tungsten Carbide Button for Artesian Well Drill Bits 1
