Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Sanxin |
| Certification: | ISO |
| Model Number: | SX2129 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Safety Packing |
| Delivery Time: | 15~45 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10-50000pcs/month |
|
Detail Information |
|||
| Name: | Wolfram Carbide Sleeves | Usage: | Oil And Gas Valve Seat |
|---|---|---|---|
| Material: | 100% Virgin Tungsten Carbide, Wolfram Carbide And Cobalt | Size: | Φ25x18mm Customized, OEM Accepted |
| Surface: | Finish, Rough Grinding, Polished Grinding | Grade: | YK05/YK06/YG8/YG20,YG11,etc |
| Shape: | Trapezoid, Cylinder | Service: | OEM & ODM |
| Highlight: | Customized Tungsten Carbide Valve Seat,Wolfram Carbide Valve Seat,Wolfram Carbide Sleeves |
||
Product Description

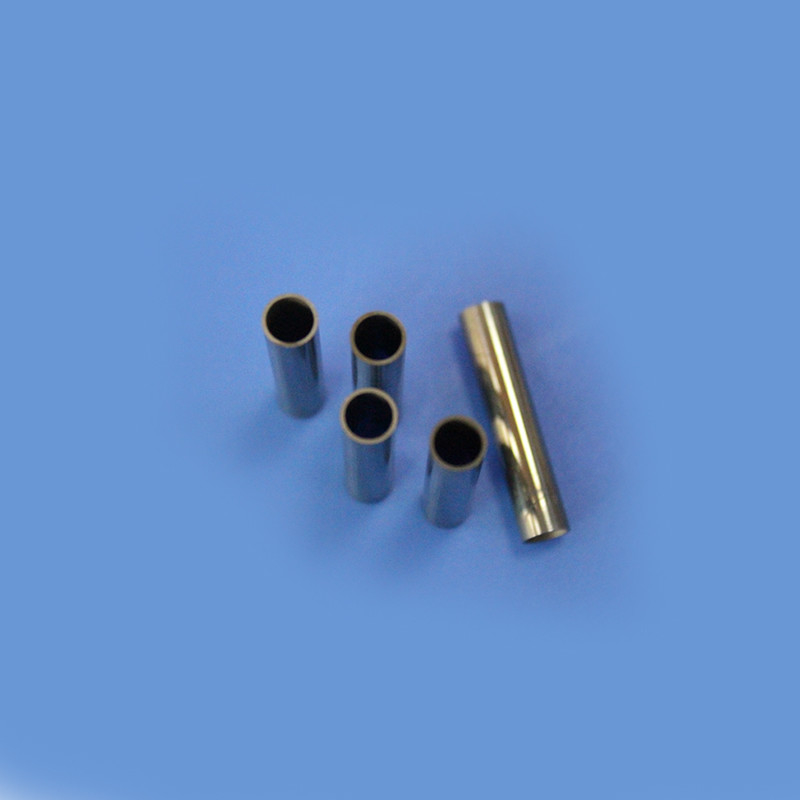

Customized Tungsten Carbide Valve Seat Wolfram Carbide Sleeves
Zhuzhou Sanxin Cemented Carbide Manufacturing Co., Ltd.
Located at No.8 Zhongxue Road, Baiguan Town, Lusong District, Zhuzhou 412102, Hunan, China.
It's a reliable and professional wolfram carbide nozzles, spray head parts manufacture with custom services.
The trapezoid shaped customized tungsten carbide valve seats normally are used together with spheres balls of diameter 16mm.
The whole sets is of large consumption in oil and gas industry, specially produced upon customer's hand drawings.
Dimensions:
Upper part: Φ 25mm diameter
Underside: Φ 21.9mm diameter
Inner diameter: Φ 14mm + Φ 12mm with side angles 45°
Key Points:
| Carbide Grade |
YG8, YG10, YG15, G10, K30, K40, etc |
| Raw Material | 100% virgin tungsten carbide powder, quality Cobalt powder. |
| Processing | Sintering, Grinding, Polishinig, etc. |
| Replacement | Can be replaced |
| Requirement | Good impact resistance and wear resistance |
| Other Grade | Density(g/cm3) | Hardness(HRA) | MPa |
| KZ40C | 13.30～13.45 | 87.0～88.0 | ≥3000 |
| KZ30A | 14.03～14.17 | 88.0～89.0 | ≥3000 |
| KZ35 | 13.85～14.04 | 87.5～88.9 | ≥2800 |
| YG20 | 13.45～13.65 | ≥84.5 | ≥2480 |
| YG15 | 13.95～14.15 | ≥86.5 | ≥2400 |
| YG16C | 13.75～13.95 | ≥84.0 | ≥2640 |
| YG13C | 14.15～14.35 | ≥85.5 | ≥2450 |
Basic properties:
1. High hardness and high wear resistance
2. High elastic modulus
3. High compressive strength
4. Good chemical stability (acid and alkali corrosion, high temperature oxidation)
5. Low impact toughness
6. Low expansion coefficient. The thermal conductivity and electrical conductivity is similar to iron and its alloys.
Real producing factory view provided.
