Customized Tungsten Carbide Sleeve with High Wear Resistance for Oil and Gas Valve Seat Applications
Customized Tungsten Carbide Sleeve with High Wear Resistance for Oil and Gas Valve Seat Applications Customized Tungsten Carbide Sleeve with High Wear Resistance for Oil and Gas Valve Seat Applications Customized Tungsten Carbide Sleeve with High Wear Resistance for Oil and Gas Valve Seat Applications Customized Tungsten Carbide Sleeve with High Wear Resistance for Oil and Gas Valve Seat Applications

Customized Tungsten Carbide Sleeve with High Wear Resistance for Oil and Gas Valve Seat Applications

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX2129
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: Wolfram Carbide Sleeves Usage: Oil And Gas Valve Seat
Material: 100% Virgin Tungsten Carbide, Wolfram Carbide And Cobalt Size: Φ25x18mm Customized, OEM Accepted
Surface: Finish, Rough Grinding, Polished Grinding Grade: YK05/YK06/YG8/YG20,YG11,etc
Shape: Trapezoid, Cylinder Service: OEM & ODM
Highlight:

Customized Tungsten Carbide Valve Seat

,

Wolfram Carbide Valve Seat

,

Wolfram Carbide Sleeves

Product Description

Customized Tungsten Carbide Valve Seat Wolfram Carbide Sleeves
Manufacturer Information
Zhuzhou Sanxin Cemented Carbide Manufacturing Co., Ltd.
No.8 Zhongxue Road, Baiguan Town, Lusong District, Zhuzhou 412102, Hunan, China
Professional manufacturer of wolfram carbide nozzles and spray head parts with custom services
Product Overview
Trapezoid-shaped tungsten carbide valve seats designed for use with 16mm diameter sphere balls. These components are widely used in the oil and gas industry and are custom-produced according to customer specifications and hand drawings.
Dimensions
Upper Part Diameter: Φ 25mm
Underside Diameter: Φ 21.9mm
Inner Diameter: Φ 14mm + Φ 12mm with 45° side angles
Material Specifications
Available Carbide Grades
YG8, YG10, YG15, G10, K30, K40, and others
Raw Materials
100% virgin tungsten carbide powder and quality cobalt powder
Processing Methods
Sintering, Grinding, Polishing, and other precision manufacturing processes
Performance Requirements
Excellent impact resistance and wear resistance for demanding industrial applications
Technical Properties
Grade Density (g/cm³) Hardness (HRA) MPa
KZ40C 13.30～13.45 87.0～88.0 ≥3000
KZ30A 14.03～14.17 88.0～89.0 ≥3000
KZ35 13.85～14.04 87.5～88.9 ≥2800
YG20 13.45～13.65 ≥84.5 ≥2480
YG15 13.95～14.15 ≥86.5 ≥2400
YG16C 13.75～13.95 ≥84.0 ≥2640
YG13C 14.15～14.35 ≥85.5 ≥2450
Key Properties
  • High hardness and exceptional wear resistance
  • High elastic modulus
  • Superior compressive strength
  • Excellent chemical stability (resistant to acid, alkali corrosion, and high temperature oxidation)
  • Low impact toughness
  • Low expansion coefficient with thermal and electrical conductivity similar to iron and its alloys

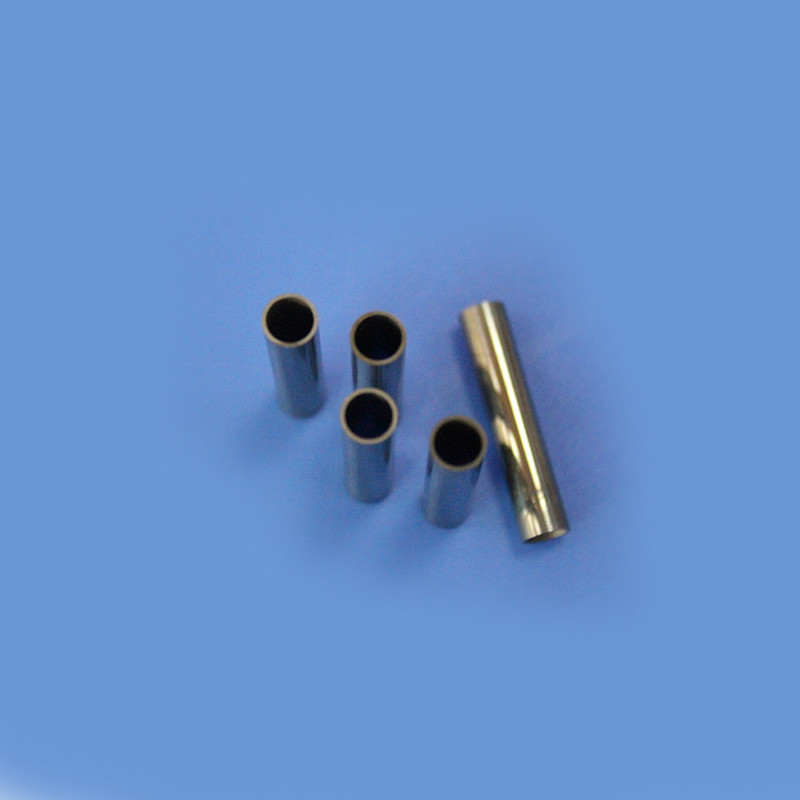

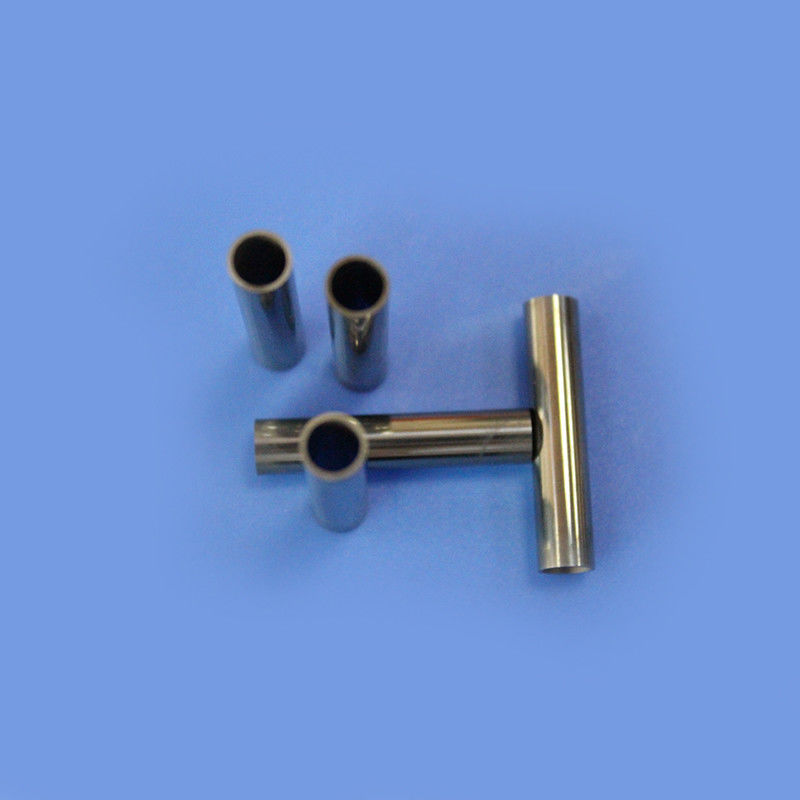

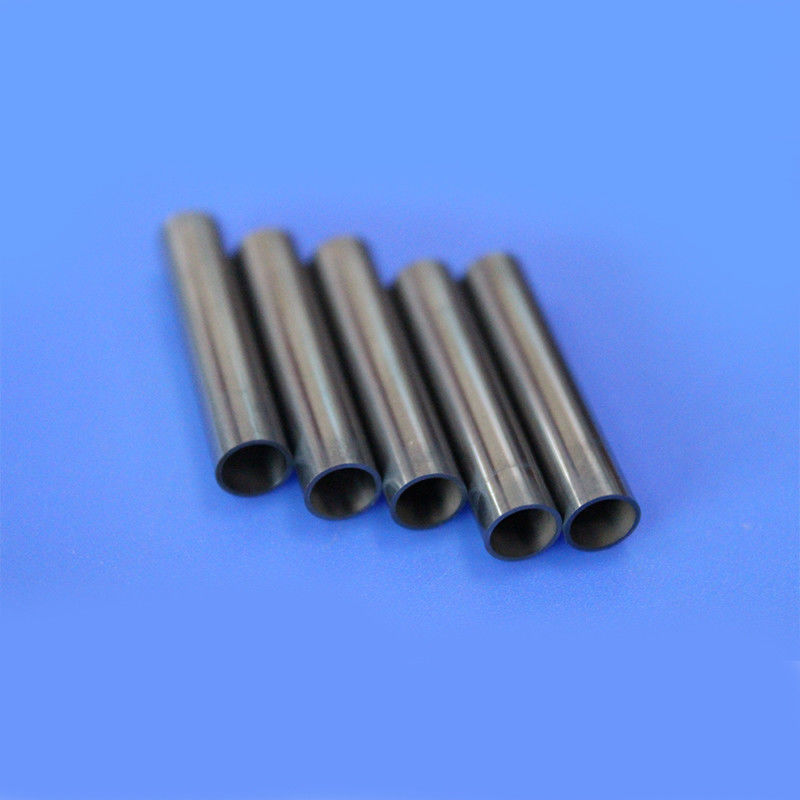

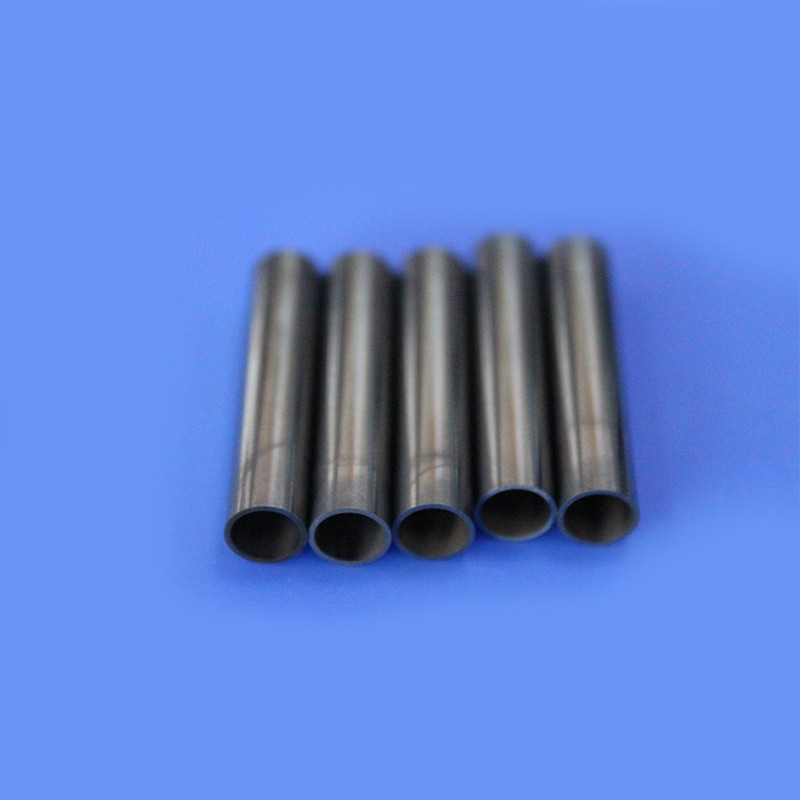

Factory Images
Customized Tungsten Carbide Sleeve with High Wear Resistance for Oil and Gas Valve Seat Applications 0 Customized Tungsten Carbide Sleeve with High Wear Resistance for Oil and Gas Valve Seat Applications 1 Customized Tungsten Carbide Sleeve with High Wear Resistance for Oil and Gas Valve Seat Applications 2
