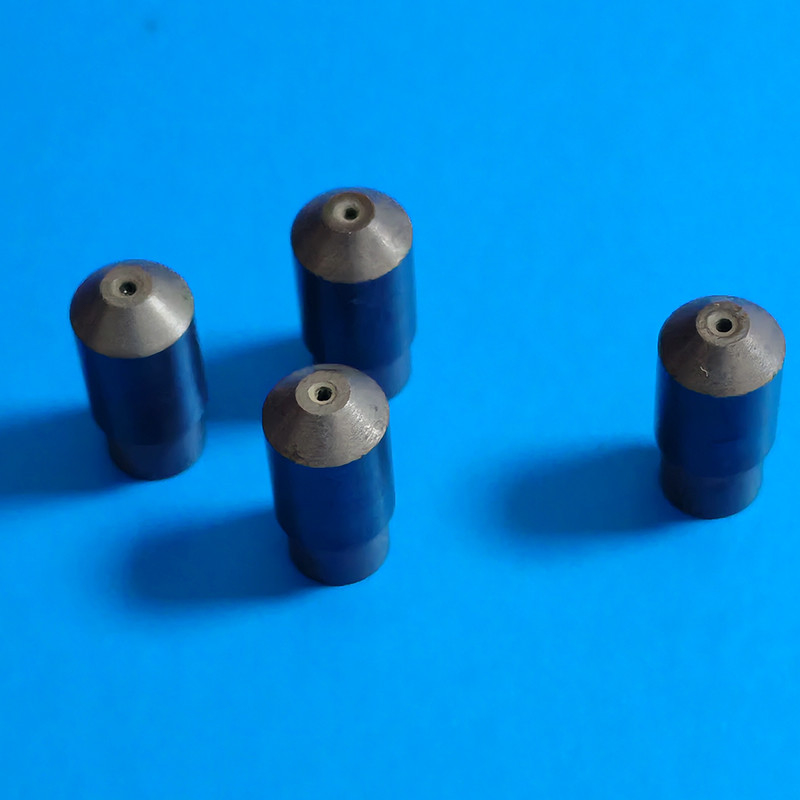

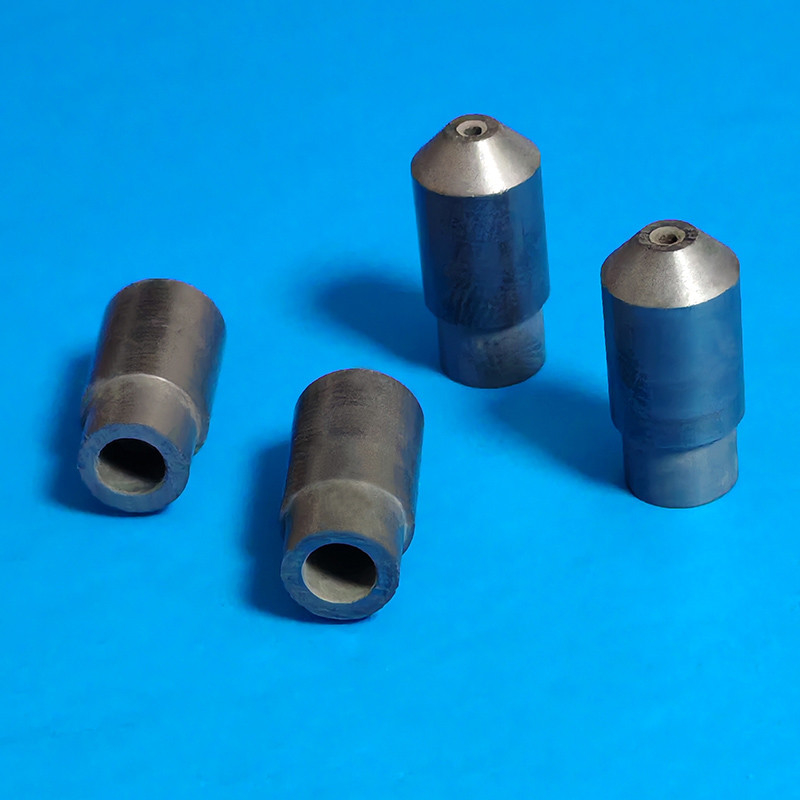

Laser Cutting Machining Inner Hole Diameter 1mm Silicon Carbide Nozzles

Product Description

Silicon carbide nozzles are commonly used in various industries for abrasive blasting, cutting, and cleaning applications due to their exceptional wear resistance, hardness, and thermal conductivity. These nozzles are particularly effective in applications where high abrasion resistance and durability are required, such as in sandblasting, water jet cutting, and shot peening processes. Additionally, silicon carbide nozzles are known for their ability to maintain their shape and performance in demanding environments, making them a popular choice for industrial applications that involve harsh operating conditions.

Due to the specific gravity of silicon carbide being 3.1 g/cm³, and its relatively high sublimation temperature (approximately 2700 °C), it is very suitable as a raw material for bearings or high-temperature furnaces. Under any pressure that can be achieved, it does not melt, and it has a relatively low chemical activity. Because of its high thermal conductivity, high breakdown electric field strength, and the highest current density, some have attempted to use it as a substitute for silicon, especially in the application of high-power semiconductor devices. In addition, silicon carbide has a strong coupling effect with microwave radiation, and due to its high sublimation point, it can be applied to heating metals.

However, to machine an internal hole with a diameter of 1mm (+0.02, -0), and Roughness Ra0.2-0.8 on such a material, our technicians tried many ways, taking as long as half a year, and finally succeeded in making it.

Half a year ago, our technicians met technical bottleneck on SSiC because of its frangibility.

First, silicon carbide is non-conductive, so EDM wire cutting cannot be used.

These are the methods we've tried:

1. Exceptional Wear Resistance: Silicon carbide is extremely hard and wear-resistant, making it ideal for applications involving abrasive materials. This property ensures a longer nozzle lifespan compared to traditional materials.
2. High Hardness: Silicon carbide's high hardness contributes to its excellent resistance to wear, erosion, and deformation, even in high-temperature and high-pressure environments.
3. Thermal Conductivity: Silicon carbide has high thermal conductivity, allowing for efficient heat dissipation. This property helps prevent overheating and maintains consistent performance during high-temperature operations.
4. Chemical Inertness: Silicon carbide is chemically inert and resistant to corrosion, making it suitable for use with a wide range of abrasive and corrosive materials without degradation.
5. Temperature Resistance: Silicon carbide can withstand high temperatures without losing its structural integrity, making it suitable for applications involving extreme heat.
6. Dimensional Stability: Silicon carbide maintains its shape and dimensional stability even under harsh operating conditions, ensuring consistent performance over time.
7. Reduced Maintenance: Due to its durability and resistance to wear, silicon carbide nozzles typically require less frequent replacement and maintenance compared to nozzles made from other materials.

Silicon carbide nozzles find applications in various industries that require high wear resistance, temperature resistance, and durability. Some common industries that use silicon carbide nozzles include:

1. Abrasive Blasting: Silicon carbide nozzles are used in abrasive blasting applications for surface preparation, cleaning, and coating removal in industries such as manufacturing, construction, and shipbuilding.
2. Water Jet Cutting: Silicon carbide nozzles are utilized in water jet cutting machines for precision cutting of materials like metal, stone, glass, and composites in industries such as aerospace, automotive, and fabrication.
3. Shot Peening: Industries like aerospace and automotive use silicon carbide nozzles for shot peening processes to enhance the fatigue strength and durability of metal parts.
4. Mining and Construction: Silicon carbide nozzles are employed in mining and construction industries for tasks like concrete cutting, tunneling, and rock drilling due to their wear resistance and durability.
5. Metalworking: In metalworking applications, silicon carbide nozzles are used for metal cutting, cleaning, and surface preparation processes in industries such as foundries and metal fabrication.
6. Oil and Gas: Silicon carbide nozzles find applications in the oil and gas industry for abrasive jetting, cleaning, and maintenance operations in drilling rigs and pipelines.
7. Automotive: The automotive industry uses silicon carbide nozzles for various applications, including surface cleaning, paint stripping, and weld seam preparation.
8. Glass Manufacturing: Silicon carbide nozzles are employed in the glass manufacturing industry for cutting, etching, and shaping glass products.
