High Precision Carbide Double Hole Insert Pin | Metal Ceramic

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: GB/T 19001-2016/ISO 9001:2015
Model Number: SX2210
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 5~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Name: Tungsten Carbide Double-Hole Insert Pin Categories: Metal Ceramic
Usage: Double-Hole Insert Pin Other Service: OEM & ODM
Samples: Available Appearance: Mirror Polishing
Hardness: HRA 89-91 Design: Double Heads Parallel
Highlight:

hardened steel pins

,

tungsten carbide parts

Product Description

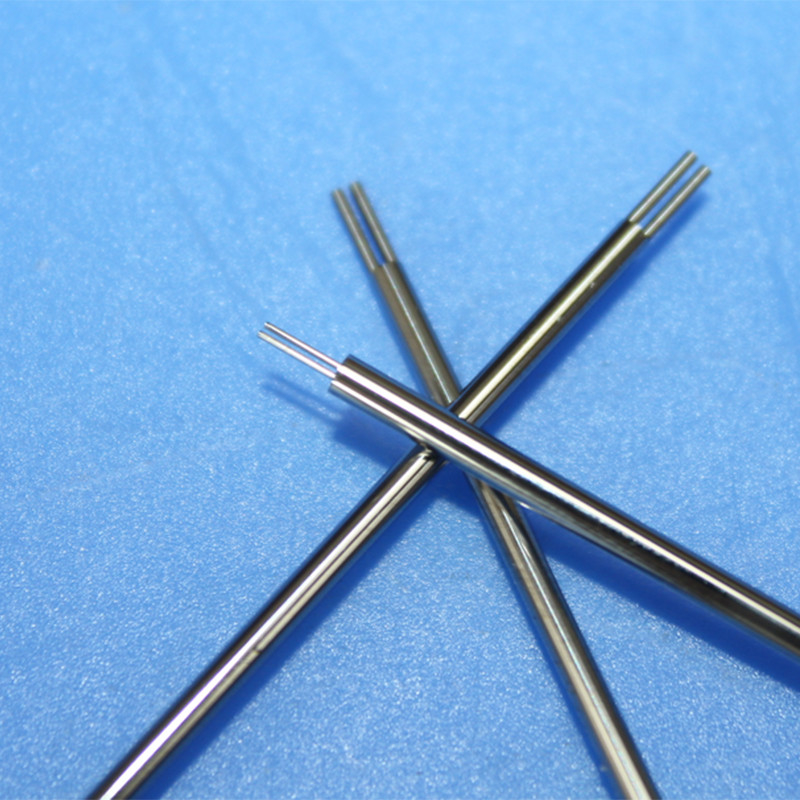

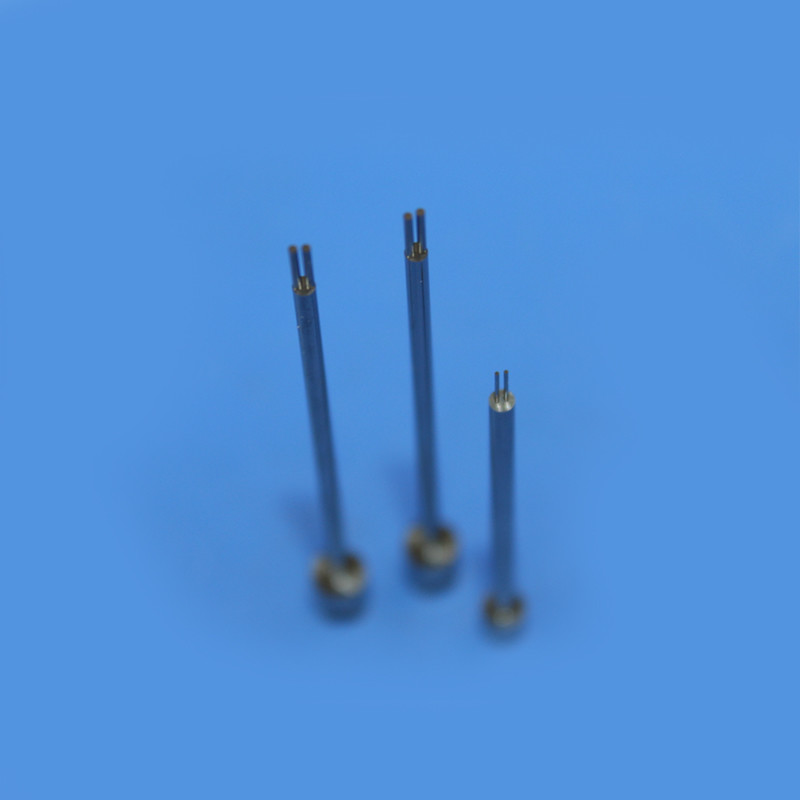

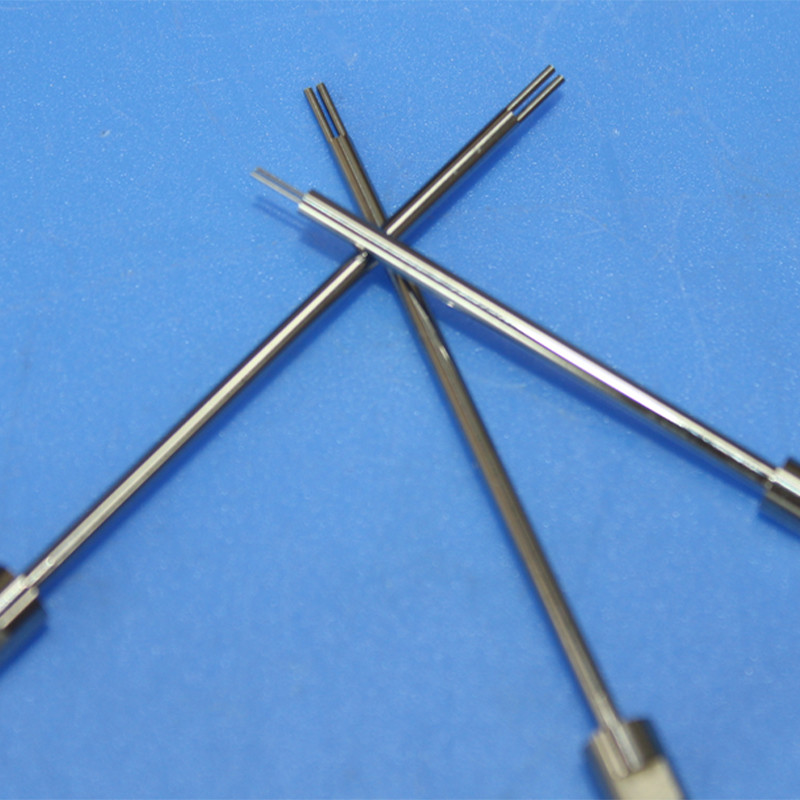

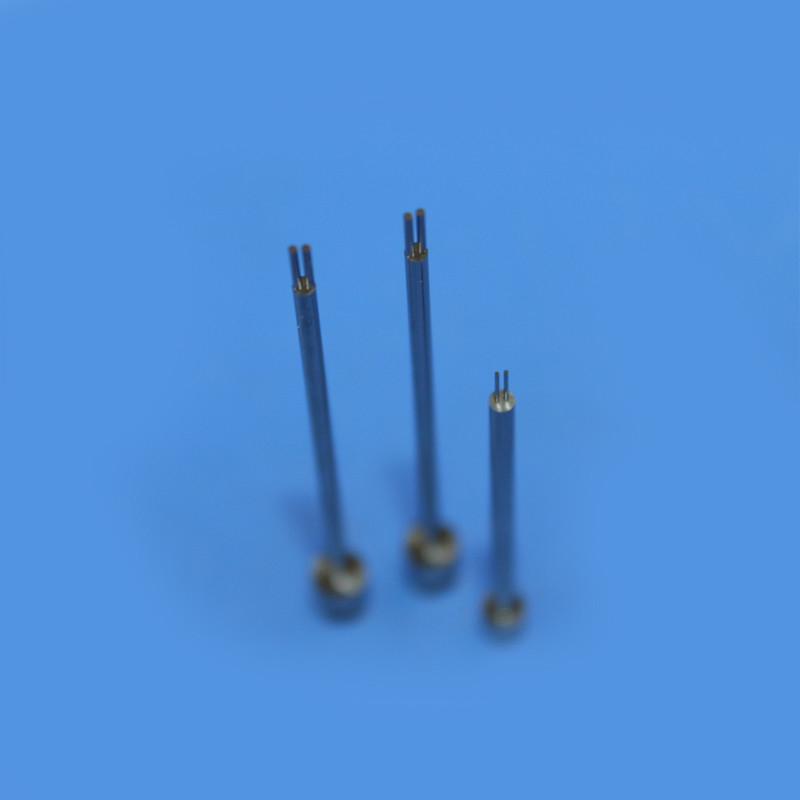

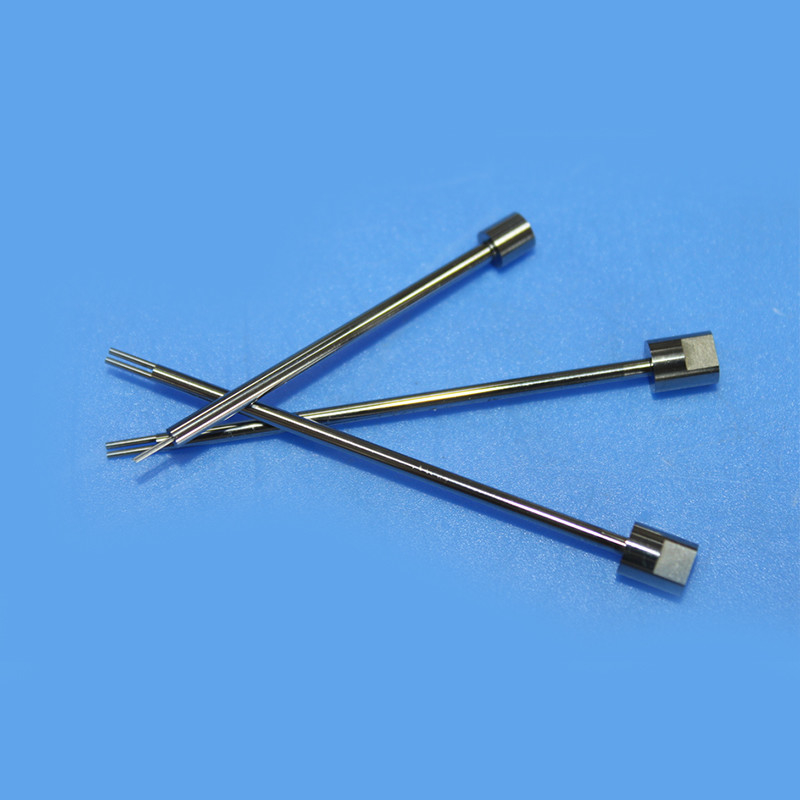

High Precision Tungsten Carbide Double-Hole Insert Pins
This high-performance metal ceramic double-hole insert pin is engineered for precision applications across various industrial sectors. Manufactured from advanced metal-ceramic composite materials, it delivers exceptional wear resistance, superior hardness, and outstanding thermal stability, making it ideal for demanding applications requiring durability and reliability.
When your assembly or stamping process requires dual-point precision, standard pins fall short. Our High-Precision Metal Ceramic Tungsten Carbide Double-Hole Insert Pins feature intricately machined micro-holes for precise fluid passage, sensor placement, or dual-pin alignment.
Product Features
  • High Durability: Constructed from premium metal-ceramic materials providing outstanding hardness and wear resistance, significantly extending service life
  • Precision Engineering: Double-hole design ensures high precision and stability in positioning and alignment tasks, enhancing application accuracy
  • Thermal Stability: Excellent performance in high-temperature environments up to 1000°C, maintaining integrity and reliability
  • Corrosion Resistance: Superior resistance to corrosion and oxidation, suitable for harsh industrial environments
  • Low Maintenance: Designed for minimal maintenance requirements, reducing downtime and operational costs
Technical Specifications
  • Material: Advanced metal-ceramic composite
  • Hardness: HRC 92-95
  • Operating Temperature: Up to 1000°C (1832°F)
  • Dimensional Accuracy: ±0.005mm
  • Surface Treatment: Anti-corrosion coating
Application Fields
  • Automotive Manufacturing: Precision assembly and alignment tasks in automotive production, ensuring high accuracy and durability
  • Aerospace Industry: High-precision applications where reliability and performance are critical
  • Electronics Manufacturing: Production of electronic components and devices requiring precise positioning and minimal wear
  • Machinery and Equipment: Manufacturing processes demanding high precision and durability in various machinery applications
Why Choose Our Dual-Hole Pins?
  • Micro-Hole Machining: Capable of sub-millimeter hole diameters with perfect roundness.
  • High Rigidity: Prevents bending or deflection under high lateral loads.
  • Flawless Surface Finish: Mirror-polished to reduce friction during insertion.
The metal ceramic double-hole insert pin combines exceptional durability, precision, and thermal stability, making it an indispensable tool in various industrial applications. Its advanced design and high-quality materials ensure optimal performance and longevity, meeting the stringent demands of modern manufacturing processes.
FAQ:
Q1.What is the tolerance for the hole spacing?
We can achieve ±0.002mm positional accuracy depending on your design.
Q2.Can you add threads to the pin?
Yes, custom threads (M-series or UNF) are available.

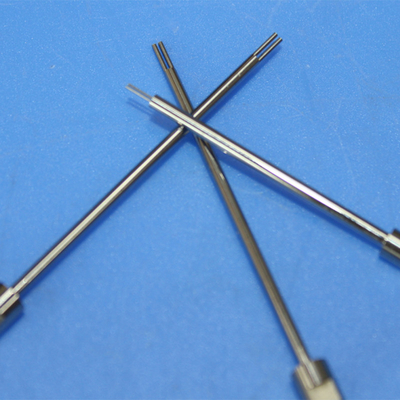

High Precision Metal Ceramic Tungsten Carbide Double-Hole Insert Pin product illustration
