Tungsten Carbide Wear Part Hard Metal Punch for Industrial Use

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX0014
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10-50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Name: Wear Part Hard Metal Punch Material: Tungsten Carbide
Grade: YG10, YG15, K30, K20, P10... Drawing: Your Drawing Is Accepted
Feature: Durable Surface: Blanks Or Polished Grinding
Customization: Available Categories: Tungsten Carbide Mold Parts
Industry: Electronic Appliances Industry
High Light:

High Efficiency Tungsten Carbide Punch

,

100% Virgin Cemented Tungsten Carbide Punch

,

costum carbide punch

Product Description

Tungsten Carbide Wear Part Hard Metal Punch Pins for Industrial Use

Purpose and Features:
This series of overall tungsten carbide punch pins is specifically used for the Panasonic Group's production equipment BM-B-2 end cover mold for the decision 2 inner diameter punch pin. The tungsten carbide material used must meet the chemical and physical management standards and the ROHS EU standards of the Panasonic Group's production equipment.
The dimensional specifications are:
Φ47.03 (±0.002) * Φ47 * Φ40 * Φ3 * M12-25 * 94.40
Φ47.025 (±0.002) * Φ47 * Φ40 * Φ3 * M12-25 * 94.40.

Compared to conventional hard alloy punch pins, the overall tungsten carbide punch pins for Panasonic Group have larger outer diameter dimensions. The outer diameter dimensions of Φ47.025 and Φ47.03 have a tolerance requirement of ±0.002. The outer diameter of Φ47 requires a transition with a radius of R0.50 and R1.00 to Φ47.025 and Φ47.03, respectively. The bottom of the punch pin has an M12 thread with a depth of 25mm. The Φ3 air hole runs through from the top to the side at a length of 50.9mm. The overall length of the punch pin is 94.4mm. It is a custom tungsten carbide punch pin designed for Panasonic Group's BM series equipment.

Drawing:

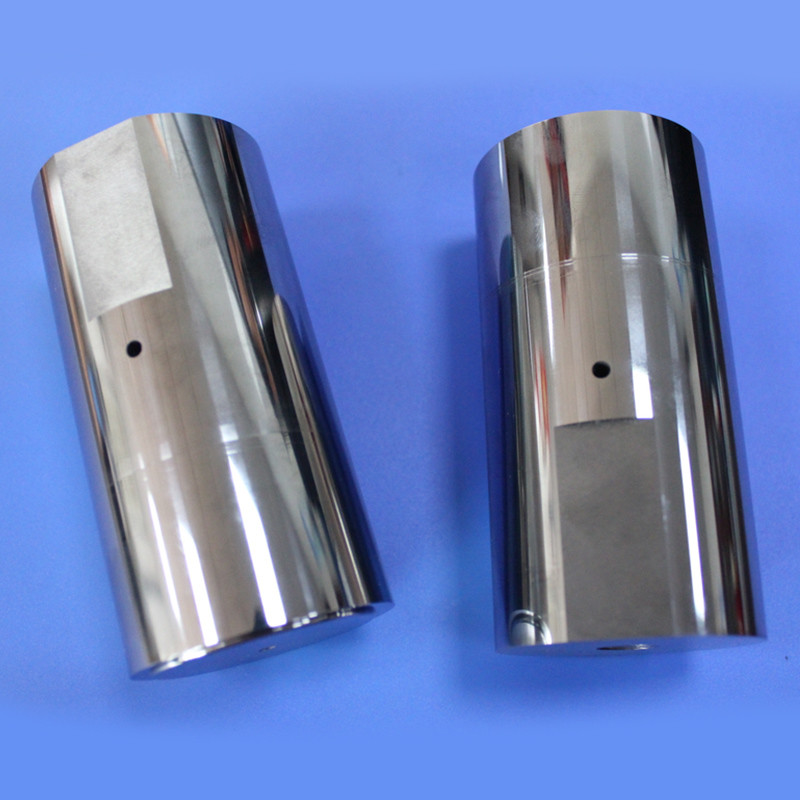

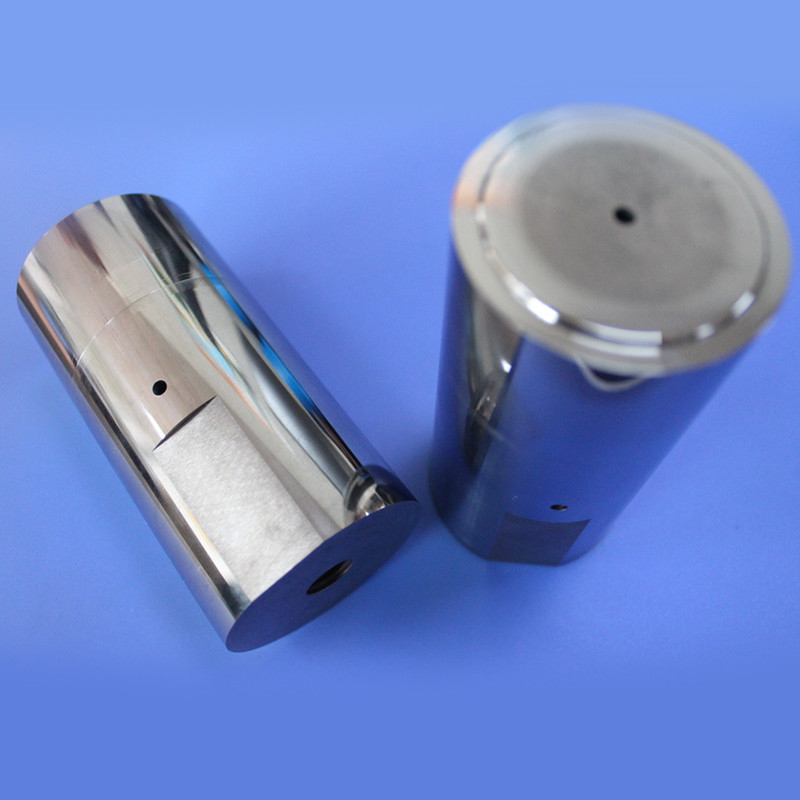

Tungsten Carbide Wear Part Hard Metal Punch for Industrial Use 0

Background:

This is a product that is compatible with Panasonic appliances.
Sanxin Tungsten Carbide, a subsidiary of Panasonic Group, specializes in precision custom processing of tungsten carbide. We provide non-standard tungsten carbide punch pins based on the drawings provided.
The application of tool materials is an effective way to improve operational efficiency in industrial production.
Tungsten carbide materials produced through powder metallurgy manufacturing processes possess characteristics such as high hardness, high strength, and good toughness.
They are an excellent choice for mold punch pins. With its excellent material performance, tungsten carbide punch pins are commonly used as core components in stamping die operations.

Key Points:

As a professional manufacturer of tungsten carbide, we are committed to providing high-performance and high-precision tungsten carbide punch pins for industrial production. Tungsten carbide punch pins used in stamping dies for industrial production can be made in different shapes according to the specific requirements of the product. They are used for batch hole processing. The design of stamping dies for different materials requires different punch pin shapes. The production of custom-shaped punch pins for matching stamping dies involves multiple steps of stamping operations to complete a product or semi-finished product. Zhuzhou Sanxin Tungsten Carbide processes and customizes various high-standard punch pins and punch rods according to customer drawings, enhancing the efficiency of your stamping operations. The parameters of commonly used hard alloy punch pins are as follows:

Cobalt content: 6%-20%
Density (g/cm3): 14.0-14.5
Hardness: 87-92.0 HRA
Grain size: 0.6-1.2 μm
Bending strength: 4000 MPa
Elastic modulus (GPa): 490
Thermal expansion coefficient (10^-6/°C) 5.4

The dimensions and specifications of tungsten carbide punch pins are customized according to the drawings, with a required precision of ±0.002mm.

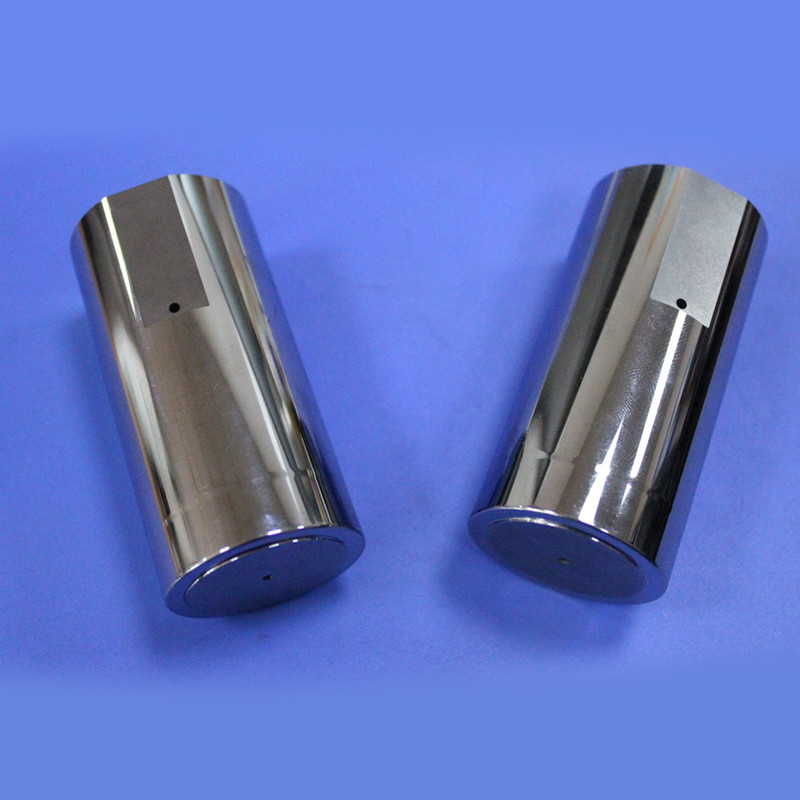

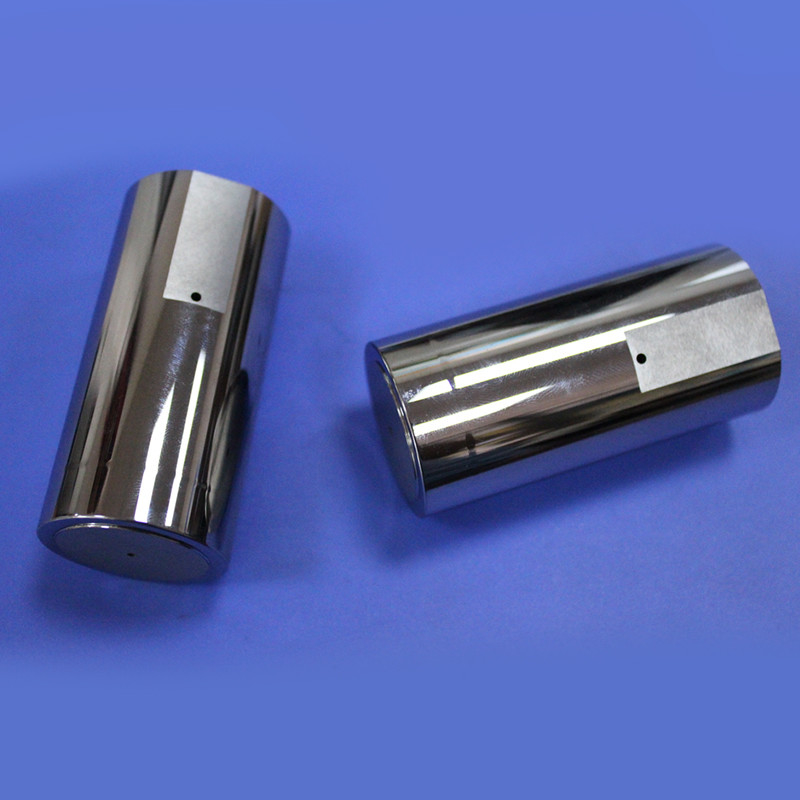

Tungsten Carbide Wear Part Hard Metal Punch for Industrial Use 1
