High Hardness Tungsten Carbide Steel Liner Sleeve Bearing with Oil Grooves

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX0959
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10-50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Name: Tungsten Carbide Liner Sleeve Design: With Oil Grooves
Material: 100% Virgin Tungsten Carbide WC+Co Chemical Composition: WC And Co
Types: Sleeve, Bushing Size Range: Customizable
Highlight:

carbide wear parts

,

tungsten carbide parts

Product Description

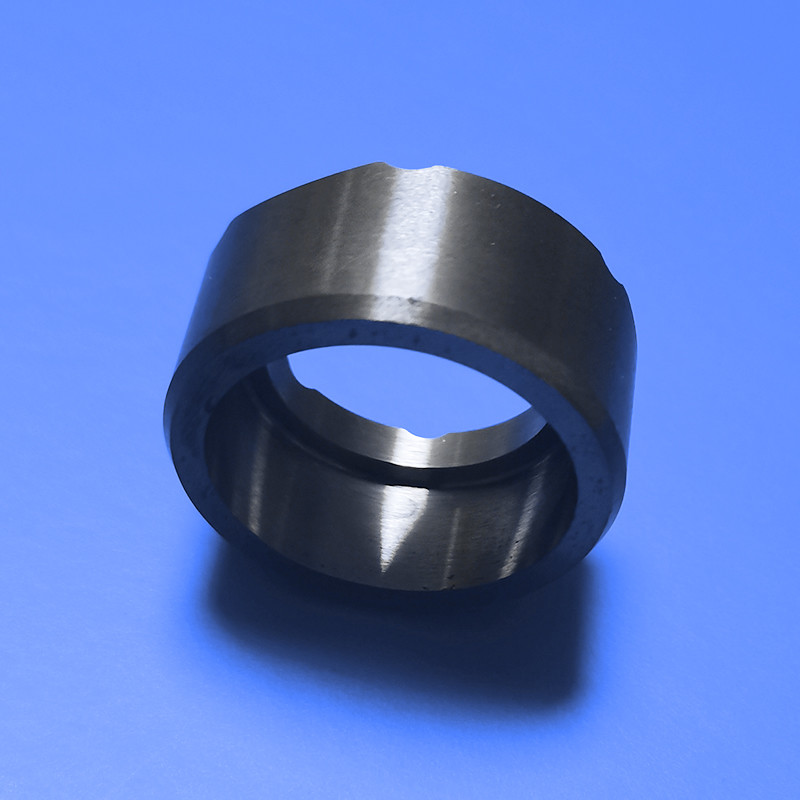

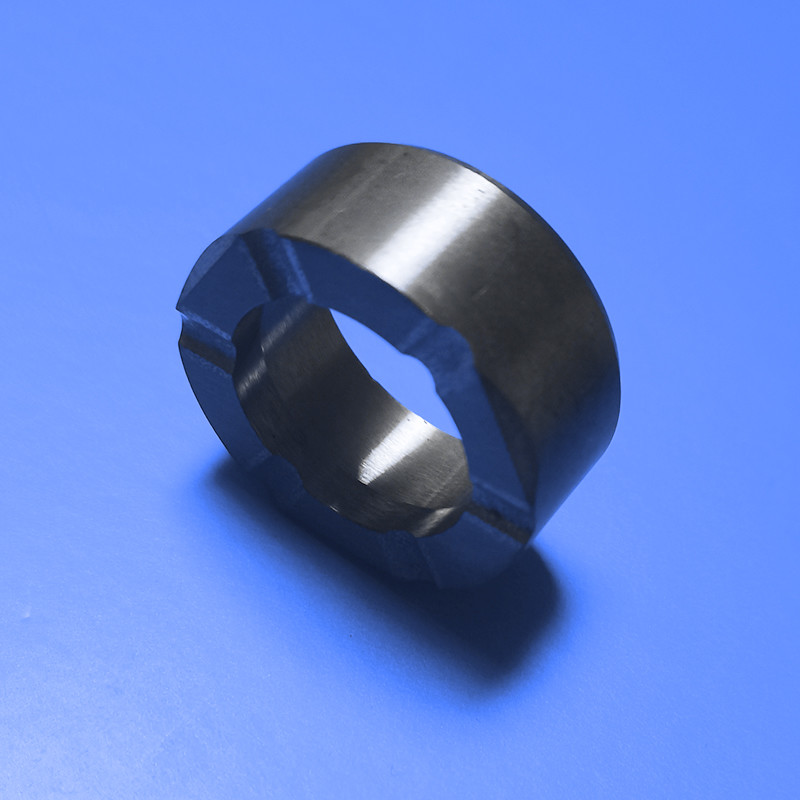

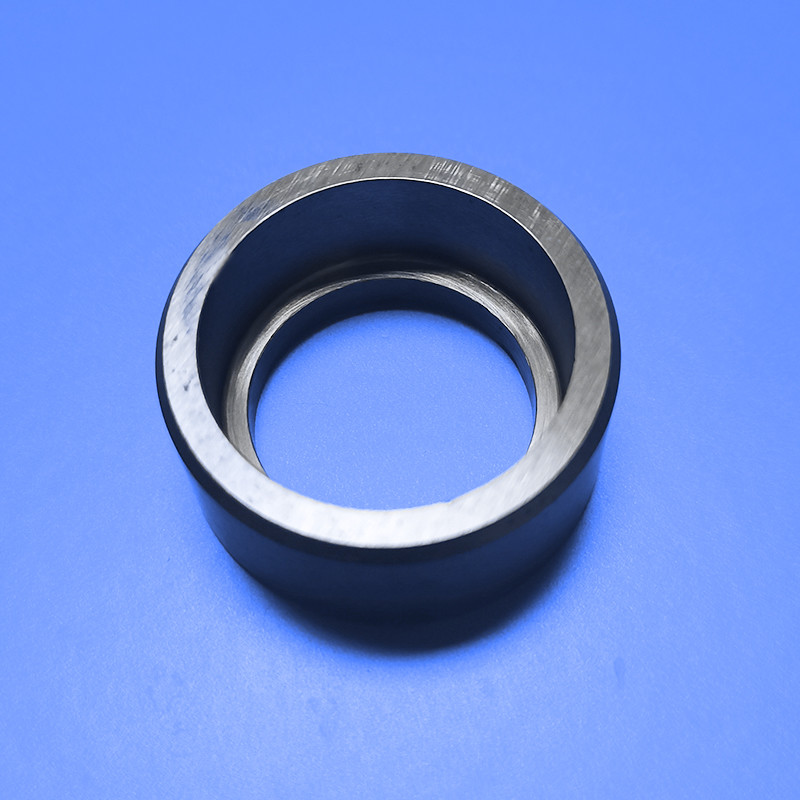

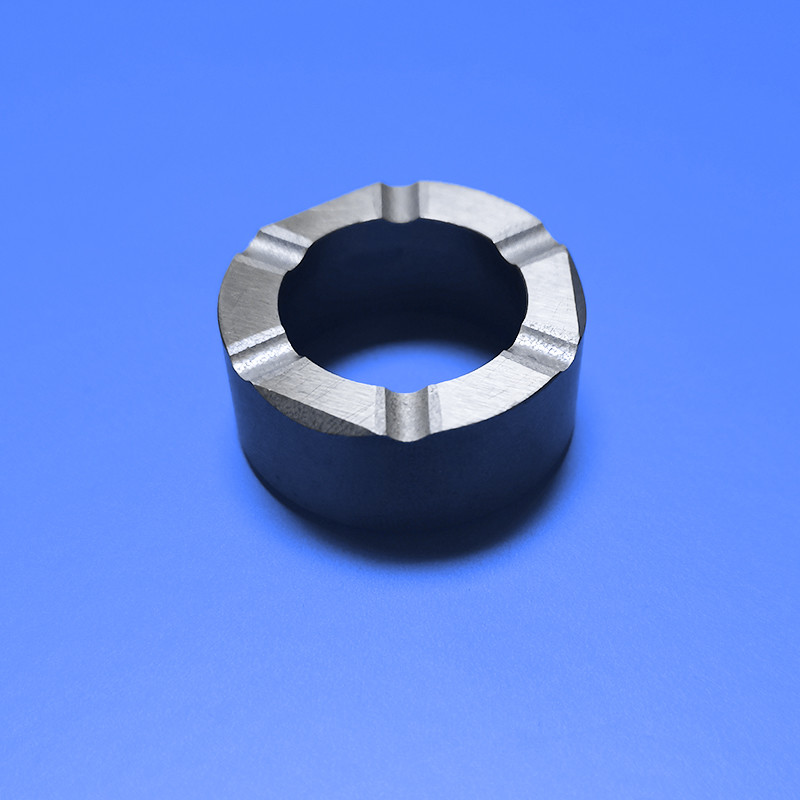

High Hardness Tungsten Carbide Steel Liner Sleeve Bearing with Oil Grooves

Tungsten carbide liner with oil grooves is a crucial component specifically designed for the petroleum industry, featuring a surface with oil grooves to provide excellent wear resistance and high-temperature stability. Crafted from high-quality tungsten carbide material through precision machining and special design, this product is suitable for harsh oil well environments, ensuring reliable well operations and long-term performance.



Product Features:
1. Outstanding Wear Resistance: One of the key features of the tungsten carbide liner is its remarkable wear resistance, capable of maintaining stability over extended periods in high-friction and extreme conditions.
2. High-Temperature Stability: Utilizing tungsten carbide material, the liner exhibits excellent high-temperature stability, ensuring reliable performance in high-temperature oil well operation conditions.
3. Oil Groove Design: The surface of the liner is designed with oil grooves to facilitate the flow of well fluids, enhancing lubrication effectiveness, and reducing frictional losses.
4. Corrosion Resistance: The unique properties of tungsten carbide confer exceptional corrosion resistance to the liner, making it suitable for environments in contact with well fluids and chemicals.
5. Precision Machining: Through precision machining processes, the liner's dimensions are accurately crafted to meet the high requirements of oil well operations.
Welcome other customized processing requirements with drawings.



Application:

Tungsten carbide liners with oil grooves find widespread application in the petroleum industry, particularly in well operations, including drilling, completion, and production phases. Its outstanding performance and oil groove design make it an indispensable and critical component in well systems.
This product plays a crucial role in the petroleum industry, providing a highly durable and reliable solution for well operations.



Tungsten carbide grade: K20, K10, K30 or other appointed high quality carbide grade

Non-magnetic carbide material can also be made for forming molds of magnetic materials, with high hardness, long service life, good wear resistance and strong resistance to corrosion.

1 Grain size (um): 1.0 ~ 2.0
2 Cobalt content (Co%): 8.0 ~ 10
3 Density (g / cm³): 14.41- ~ 14.95
4 Hardness (HRA): 89.5 ~ 93
5 Bending strength (Mpa): 3200 ~ 4500
6 Young's modulus (Gpa): 570 ~ 620
7 Compressive strength (Mpa): 4700



We offer high-quality technical support and services to ensure that you get the most out of your Tungsten Carbide Processing products. Our team of experts is available to help with any questions you may have, and to provide you with the most up-to-date information on our products and services.

We provide technical support for all our Tungsten Carbide Processing products, including product selection, installation, and maintenance. We can also provide training and education on the best practices for using our products. Our team of experts is available to answer any questions you may have, provide guidance, and provide technical support as needed.

We also offer a range of services to help you get the most out of your Tungsten Carbide Processing products. We provide repair and maintenance services for all our products, as well as custom fabrication services to create one-of-a-kind solutions for your specific needs. Our team of experts is available to answer any questions you may have, aid, and ensure that you get the most out of your products.
