Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Sanxin |
| Certification: | ISO |
| Model Number: | SX2183 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Safety Packing |
| Delivery Time: | 15~45 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10-50000pcs/month |
|
Detail Information |
|||
| Name: | Cemented Carbide (Tungsten Steel) Cylinder | Type: | Carbide (tungsten Steel) Rod |
|---|---|---|---|
| Model: | Carbide (tungsten Steel) Bar | Quality: | High Wear Resistance And Hardness |
| Binder: | Nickel Binder, Cobalt Binder | Feedback: | Within 24 Hours |
| Diameter: | Standard 2~32mm/OEM | Surface Treatment: | Blank/ Polished |
| Corrosion Resistance: | Excellent | Alternative: | Pure Tungsten Bar, Tungsten Alloy Bar |
| Highlight: | tungsten carbide round bar,tungsten carbide bar |
||
Product Description

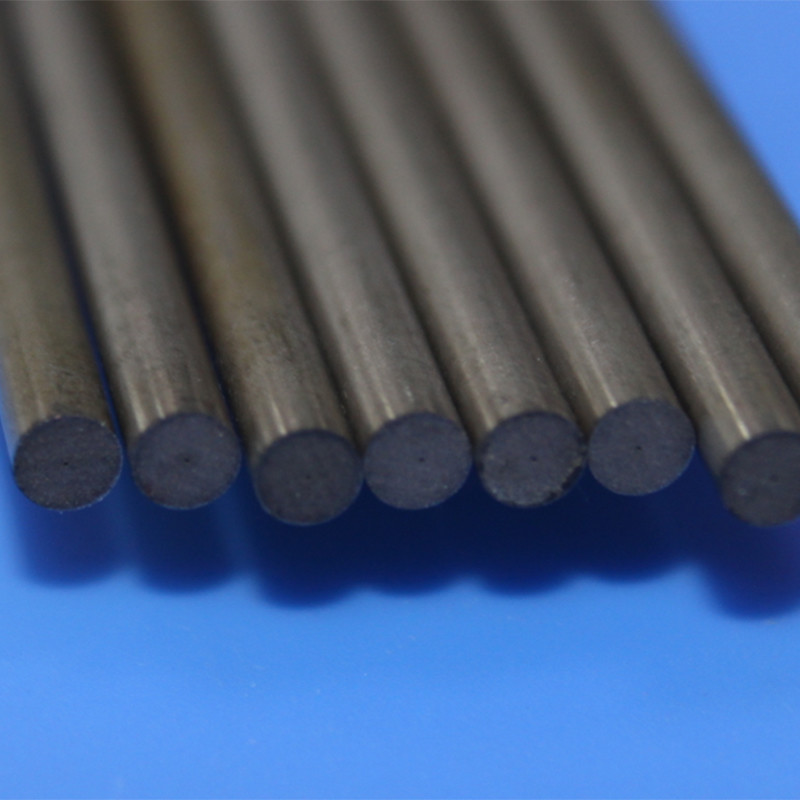

Customized Sintered Tungsten Carbide Cylinders for Cutting Tools
We supply various material grades includes standard YG8, YG6, YG6X, etc. Using good carbide is like using thin kerf saw blades.
Tungsten Carbide Cylinders:
1. 100% virgin material
2. Various sizes and full types stock available
3. Products can be customized upon requirement
Features of tungsten carbide rod:
As for tungsten carbide rod, below are the general features for your reference:
1. Better wear resistance, higher toughness, better deformation and fracture resistance, results in a long life and good size accuracy
2. Adopt advanced automatic extrusion equipment
3. HIP sintering and precision grinding to ensure the good performance
4. Both blank and finished tungsten carbide rods available
5. Can reach a mirror effect surface after accurate grinding and polishing
For more details of specific type, please inform us.
Applications:
For making the drill bits, end-mills, reamers
Technical parameters
Properties and application of tungsten steel round rod material
| Grade | Co% | Hardness (HRA) | Density (g/cm³) | Bending strength (Mpa) | Elastic Modulus (Gpa) | Suitable processing materials |
| SX10F | 6 | 92.9 | 14.8 | 3300 | 530 | Copper aluminum alloy, PCB, glass fiber reinforced material, brake material, graphite |
| SX11F | 8 | 92.3 | 14.6 | 3800 | 510 | Aluminum alloy, hardened steel, chilled cast iron, brake material |
| SX12F | 9 | 93.8 | 14.4 | 5100 | 500 | Stainless steel, high hardened steel, especially suitable for high speed cutting and dry cutting of metals |
| SX20F | 10 | 91.7 | 14.4 | 4300 | 490 | Strong versatility, mainly suitable for gray cast iron, chilled cast iron, alloy steel, etc. |
| SX25F | 12 | 92.5 | 14.1 | 4500 | 460 | Superalloy, stainless steel, titanium alloy, hardened steel, tap |
The following grades of tungsten carbide rod for your reference:
Production Process
Why choose us:
We always implement these business policies of "quality first, customer first"; "both wholesale and retail are welcome, excellent price for large quantity"; "timely delivery, mutual benefit and simultaneous growth with customer " to expand ourselves in the market.
