High Precision Tungsten Steel Set Carbide Valve Core Valve Sleeve

Product Description

High Precision Tungsten Steel Set Carbide Valve Core Valve Sleeve

Product Usage: Pneumatic Hydraulic Equipment
Product Application: Sliding in Clearance

Tungsten steel, prepared using powder metallurgy, boasts characteristics like high strength, hardness, wear resistance, corrosion resistance, high-temperature resistance, and minimal linear expansion coefficient. Its exceptional physical stability, especially in wear resistance, stands out prominently. Widely employed in precision equipment requiring wear-resistant parts, tungsten steel's precision machining capability ensures longevity.

The precision-machined tungsten steel valve core and valve sleeve are custom-manufactured based on design blueprints from the Hydraulic and Pneumatic Center at Huazhong University of Science and Technology. The specifications are as follows:

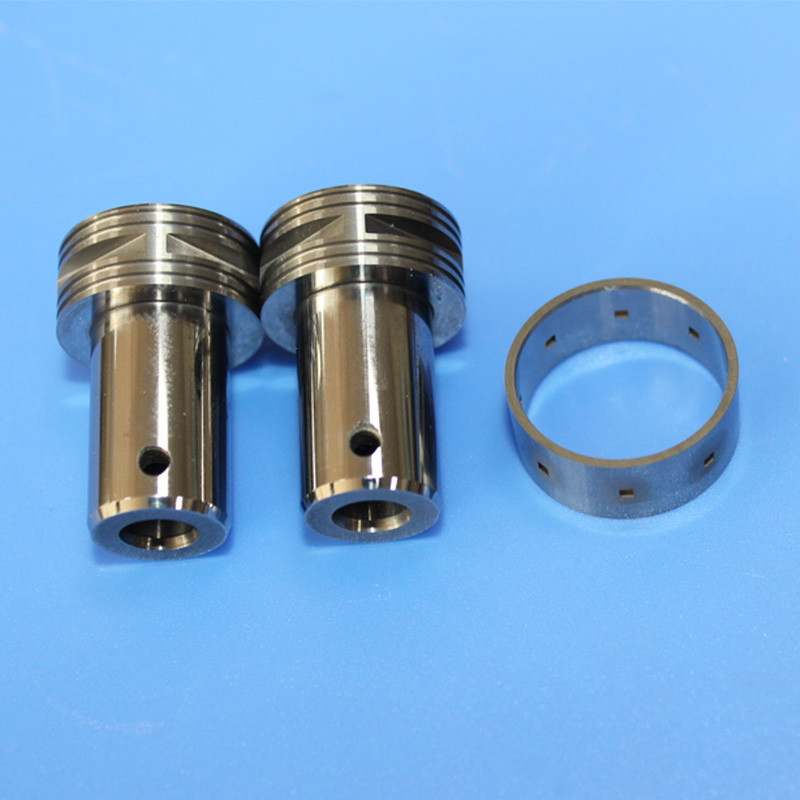

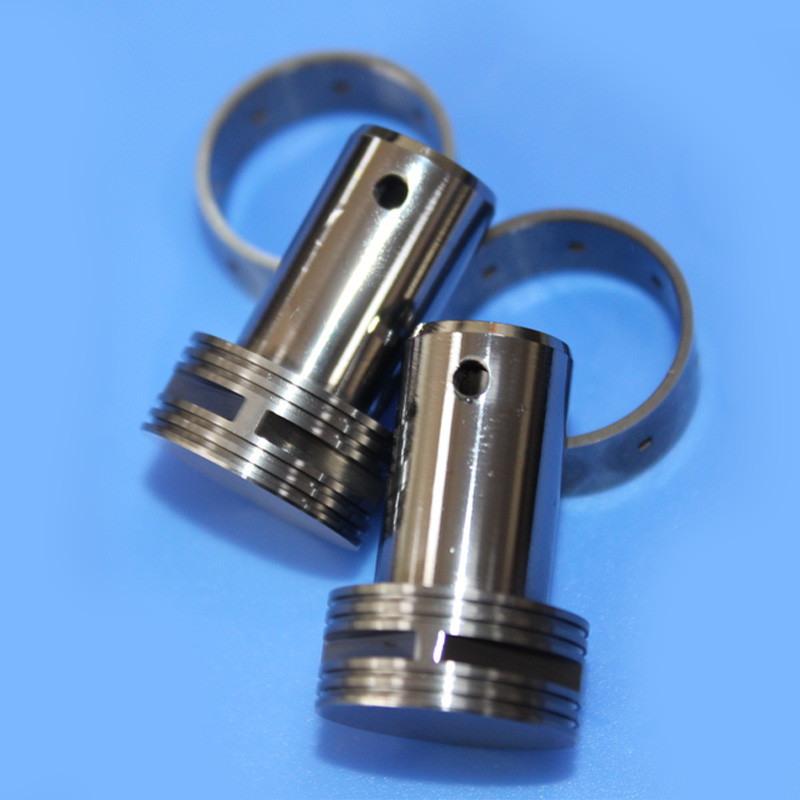

1,Tungsten Steel Valve Core: Φ18-8*13.873*13.873-2*Φ12-19*Φ6-18*M3*27

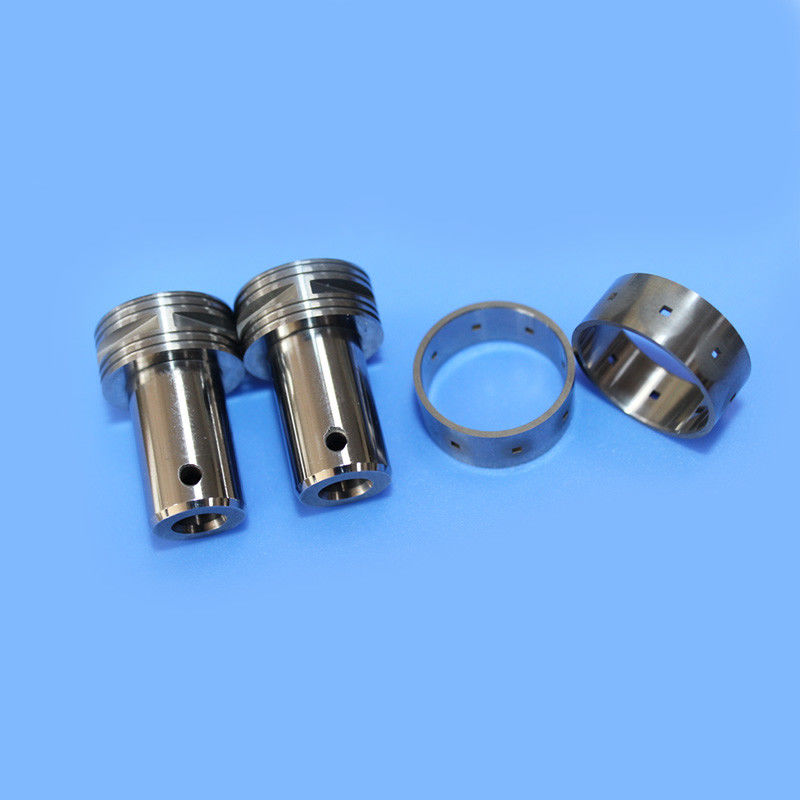

2,Tungsten Steel Valve Sleeve: Φ20*Φ18*1.2-1.2-8-45°*0.5-20°*8

For the Φ18 tungsten steel valve core, the outer diameter tolerance is -0.001,-0.002, with a roundness requirement of 0.001. A precise grinding match ensures a clearance fit of 0.003-0.005 between the larger cylindrical surface and the valve sleeve. The symmetry requirement is 0.008, with tolerances of +0.006,-0.017 for the Φ12 head and +0.028,+0.010 for the Φ6 inner hole, and a coaxiality of 0.008. For the Φ20 tungsten steel valve core, the outer diameter tolerance is -0.020,-0.041, while the inner hole Φ18 tolerance is +0.003,+0.002. The valve sleeve's inner surface matches the valve core, with eight 1.2*1.2 rectangular windows at a tolerance of ±0.005, evenly distributed. The angle tolerance is 45°±0.02°, with a roundness requirement of 0.001 and a coaxiality requirement of 0.005 for both the Φ18 inner hole and Φ20 valve core.

We offer a variety of options for tungsten steel machining hard alloy materials. Common physical parameters include:
