Solid Carbide V-Cut & Chamfer Tools for Precision Grooving

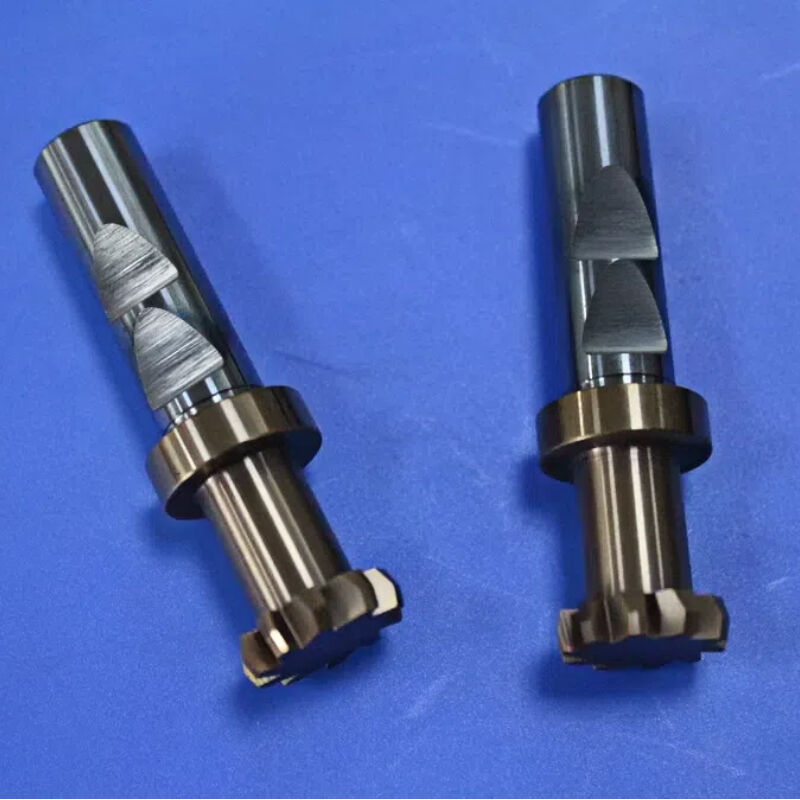

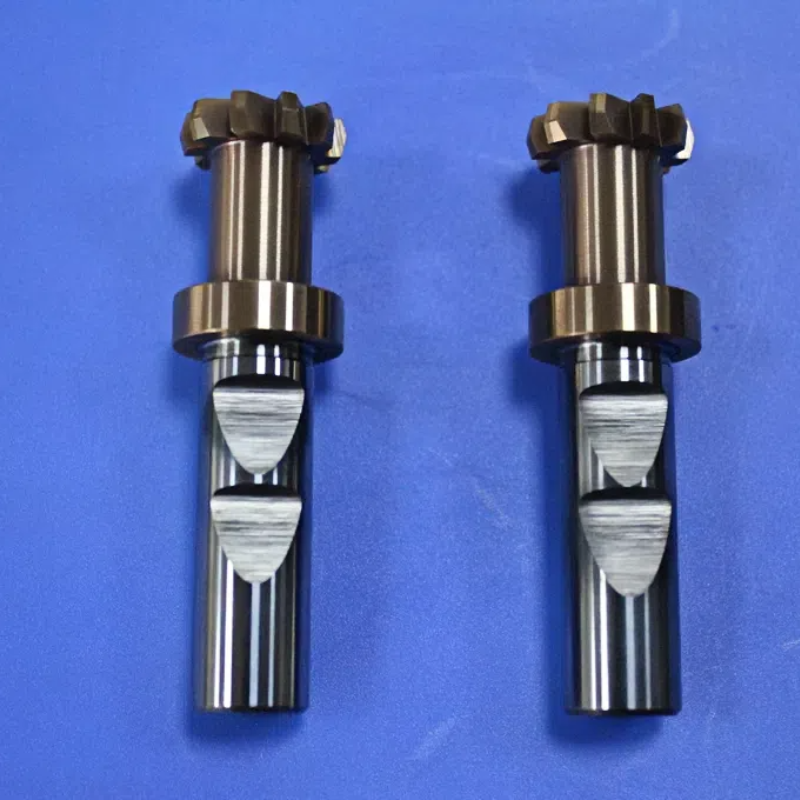

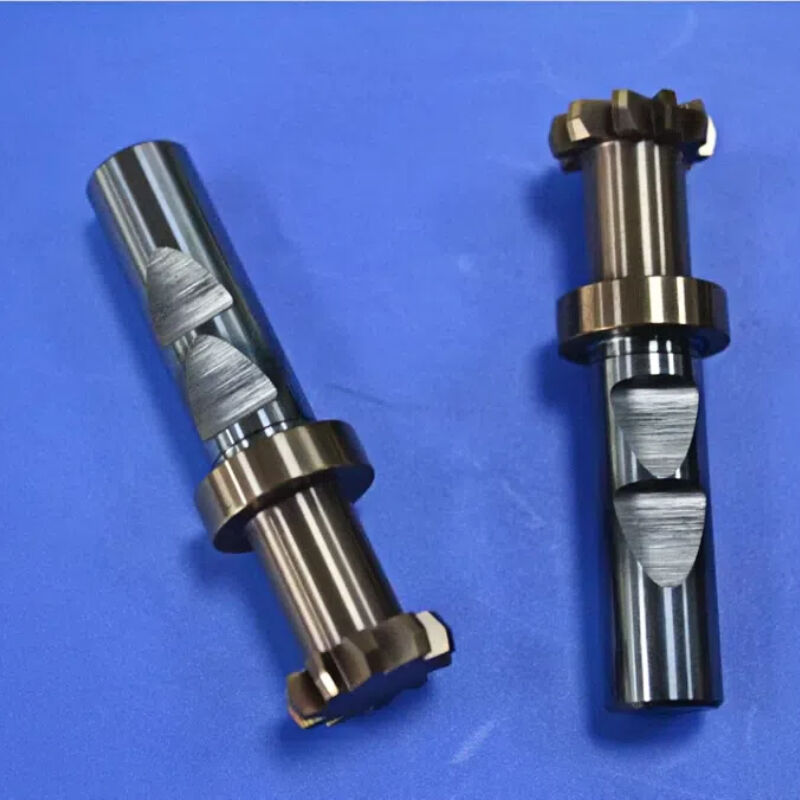

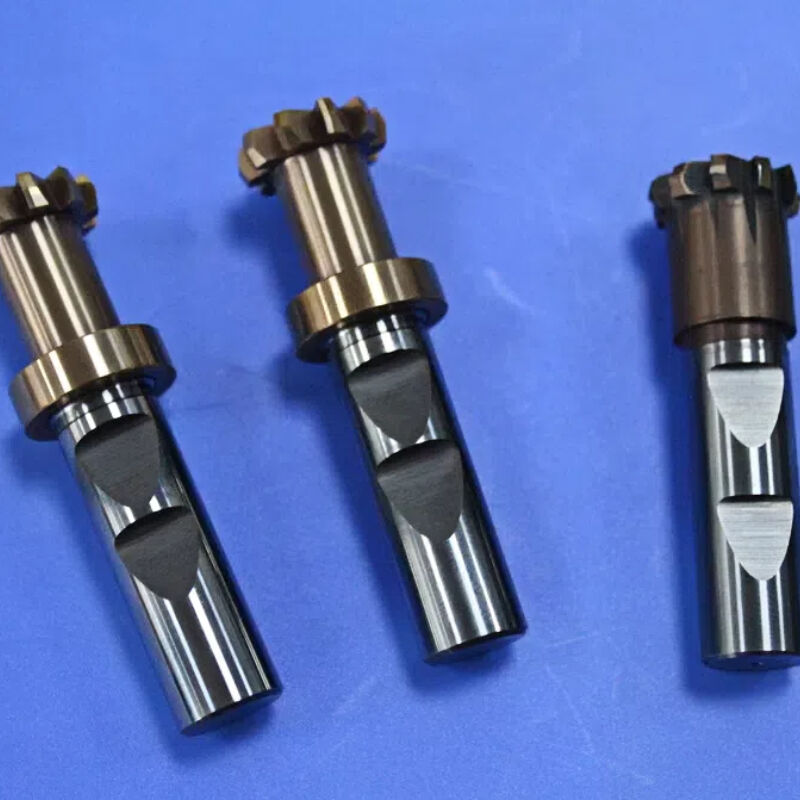

Tungsten Carbide V-Groove Milling Cutters
High-precision tungsten carbide V-groove milling cutters for PCB V-CUT, chamfering, deburring, and engraving applications. Solid carbide construction with 20°-120° angles, sub-micron grain, and TiAlN coating options. Custom diameters and angles available.
Product Overview
In precision machining, creating accurate V-shaped grooves, chamfers, and edge preparations requires specialized tooling that maintains dimensional accuracy and surface finish over extended production runs. Our Tungsten Carbide V-Groove Milling Cutters (also known as V-CUT tools, V-slot cutters, or chamfering end mills) are engineered to deliver precise, consistent V-shaped cuts across various materials and applications.
Manufactured from premium solid tungsten carbide with sub-micron grain structure, these tools combine exceptional hardness, wear resistance, and edge retention to achieve clean, burr-free grooves with superior surface finish. Available in angles from 20° to 120° with customizable diameters and lengths.
Material Science & Performance
| Property |
Tungsten Carbide V-Cutter |
HSS Tool |
Benefit |
| Hardness |
89-91 HRA (~1500-1600 HV) |
~65-67 HRC |
Superior wear resistance; maintains sharp edge |
| Transverse Rupture Strength |
≥3800 MPa |
~3000 MPa |
Withstands cutting forces without fracture |
| Grain Size |
0.8-1.2 μm (sub-micron) |
N/A |
Dense microstructure; excellent edge retention |
| Cobalt Content |
10-12% |
N/A |
Balanced toughness and hardness |
| Tool Life |
3-5× longer than HSS |
Baseline |
Reduced tool changes; lower cost per part |
Key Performance Characteristics
- Exceptional Hardness & Wear Resistance: Maintains cutting edge significantly longer than HSS tools
- Sub-Micron Grain Structure: Dense, homogeneous microstructure enhances edge retention
- High Strength Under Load: Withstands cutting forces without fracture or chipping
- Superior Surface Finish: Precision-ground cutting edges deliver clean, burr-free grooves
- Excellent Thermal Stability: Maintains hardness and edge sharpness at elevated temperatures
Applications & Industries
PCB & Electronics Manufacturing
- V-CUT scoring for PCB panel separation
- Panel routing for breakaway channels
- Edge preparation for assembly
Mold & Die Making
- V-groove engraving in mold cavities
- Chamfering edge preparation
- V-lettering for identification marks
Automotive Manufacturing
- Engine component chamfering
- Structural part edge preparation
- Precision component deburring
Aerospace & General Machining
- Structural component chamfering
- Part deburring and edge finishing
- V-groove lettering and decorative features
Angle Selection Guide
| Angle |
Primary Applications |
Typical Industries |
| 20°-30° |
Fine engraving, detailed lettering, shallow V-grooves |
Mold making, decorative machining |
| 45° |
General chamfering, standard edge preparation, PCB V-CUT |
PCB manufacturing, general machining |
| 60° |
Standard V-grooves, seal grooves, guide slots |
Mold making, general engineering |
| 90° |
Standard chamfering, PCB V-CUT, deburring, edge finishing |
Automotive, aerospace, general machining |
| 120° |
Wide chamfers, heavy edge preparation, specialized grooving |
Automotive, aerospace, heavy engineering |
Coating Selection Guidance
- Uncoated: Non-ferrous metals, plastics, wood, low-speed applications
- TiN: General-purpose coating for steel and stainless steel
- TiAlN: High-speed machining, hard materials, dry machining
- AlTiN: Extreme conditions, aerospace alloys, high-temperature applications
Frequently Asked Questions
Q1: What is a V-CUT tool used for?
A V-CUT tool is primarily used in PCB manufacturing to cut V-shaped grooves on printed circuit boards, enabling easy panel separation. It is also used for chamfering, deburring, and engraving applications.
Q2: What coating should I choose for my application?
For general-purpose machining of steel and stainless steel, TiN coating is recommended. For high-speed machining and hard materials, TiAlN or AlTiN coatings provide superior heat resistance and wear resistance.
Q3: Can you manufacture custom V-groove cutters with specific angles and diameters?
Yes. We manufacture V-groove milling cutters to your exact specifications, including custom V-angles, diameters, lengths, and flute configurations. Please provide your drawing or requirements for a prompt quote.
