0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping
0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping 0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping 0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping 0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping 0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping

0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping

Product Details:
Place of Origin: Zhuzhou
Brand Name: Sanxin
Model Number: SX1260
Payment & Shipping Terms:
Minimum Order Quantity: 5
Delivery Time: 5-25days
Payment Terms: L/C,T/T,Western Union
Contact Now
  • Detail Information
  • Product Description

Detail Information
Features: Excellent Wear And Corrosion Resistance Chemical Resistance: Resistant To Most Acids And Alkalis
Melting Point: 2,870°C Service: OEM&ODM
Density: 15.63 G/cm3 Surface: Blanks Or Polished Grinding
Compressive Strength: 5,000 MPa Tensile Strength: 2,000 MPa
Magnetic Properties: Non-magnetic Available Shape: Round, Square, Rectangular

Product Description

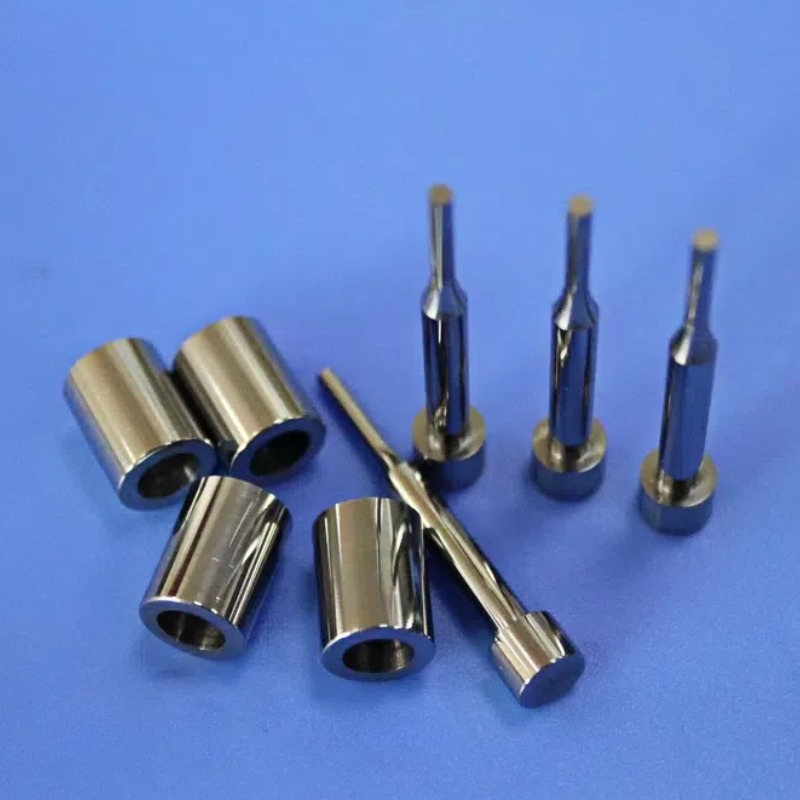

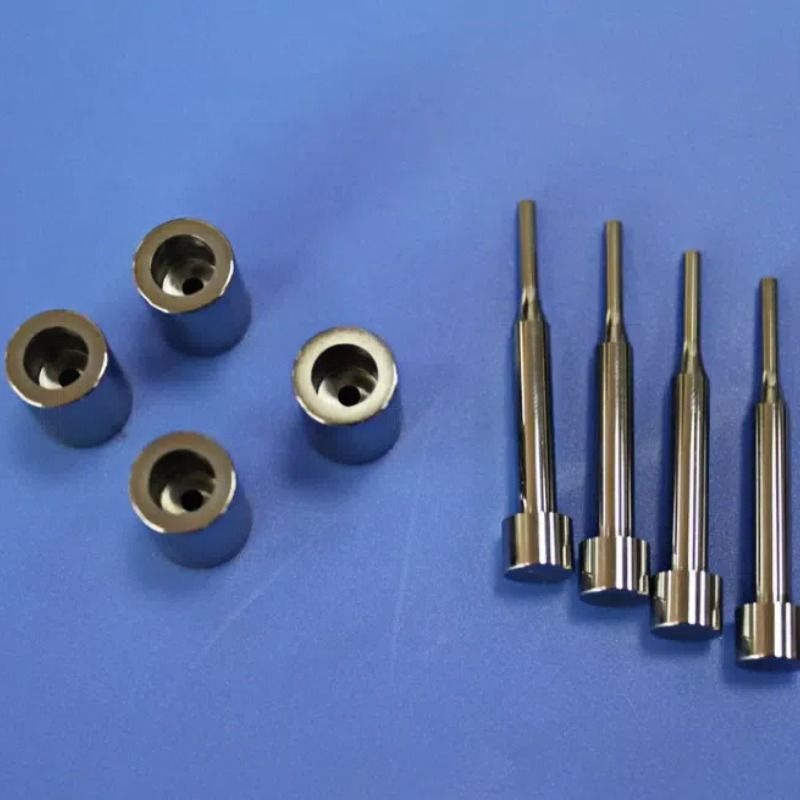

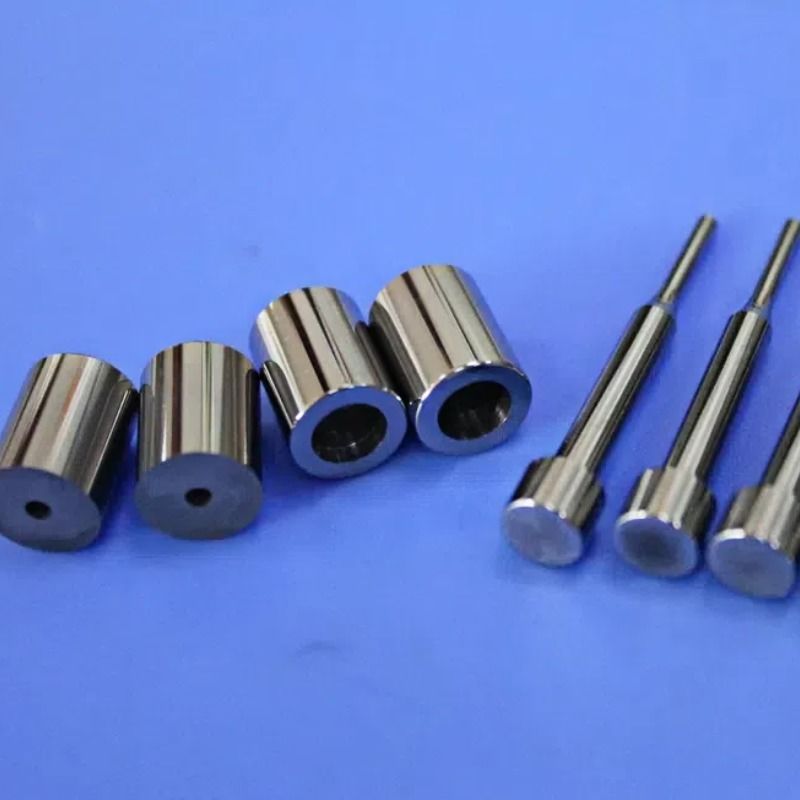

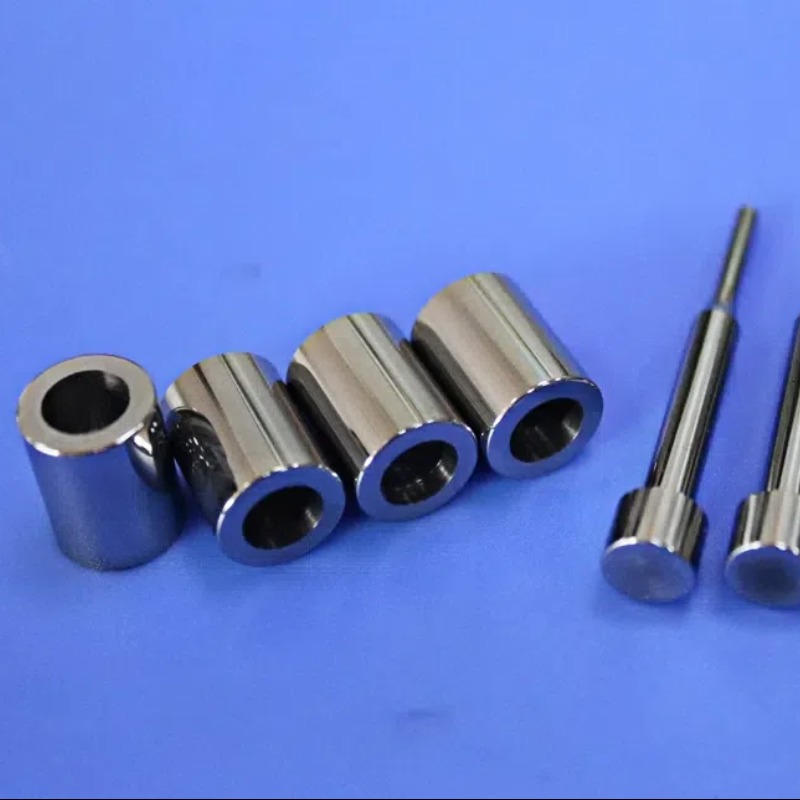

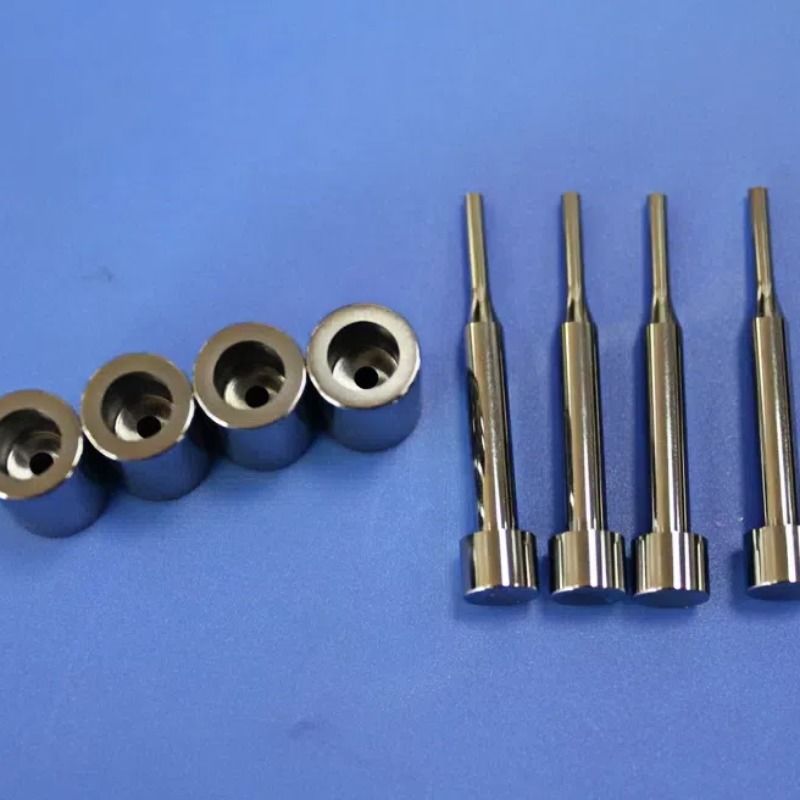

0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping


Introduction:

The bushing punch adopts 94% tungsten carbide matrix (YG15 grade), with 92HRA body hardness + deep cold strengthened toughness, breaking through the bottleneck of edge breakage and deformation of traditional Cr12MoV mold steel, and achieving the ultimate match of ≤0.003mm gap between the guide bushing and the punch in 0.1mm precision blanking.


Performance-benchmark:

Key indicators Tungsten steel bushing punch (YG15)
 Breakage resistance life  >3 million times
 Guide clearance  0.002-0.003mm
 Thermal deformation  <0.001mm/100℃
 Wear rate  0.05μm/10,000 times


Precision-stamping:


Automotive core components
- Seat belt buckle progressive die (0.8mm thick 65Mn steel, lifespan > 5 million times)
- Engine fuel injector baffle (±0.003mm coaxiality to ensure oil hole accuracy)
- EV battery pole punching (resistant to copper-aluminum adhesion corrosion)


Electronic precision manufacturing
- Type-C interface terminal (0.2mm thick phosphor bronze, burr < 5μm)
- Mobile phone SIM card tray (12-station progressive die main punch)
- Relay silver contact (anti-arc ablation)


Home appliance wear-resistant parts
- Air conditioner fin multi-row hole punching (0.1mm thick aluminum foil, 20 holes/second)
- Washing machine reducer ratchet (hardened steel HRC50 continuous stamping)


0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping 0
