Non Standard High Precision Tungsten Carbide Rear Punch Mold

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX2047
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10-50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Name: Tungsten Carbide Punch Feature: Durable
Shape: Non Standard Application: Punching And Stamping
Grade: YG10, YG15, K30, K20, P10... Durability: Long Lasting
Customization: Available
Highlight:

tungsten carbide parts

,

tungsten carbide tools

Product Description

Non Standard High Precision Tungsten Carbide Rear Punch Mold

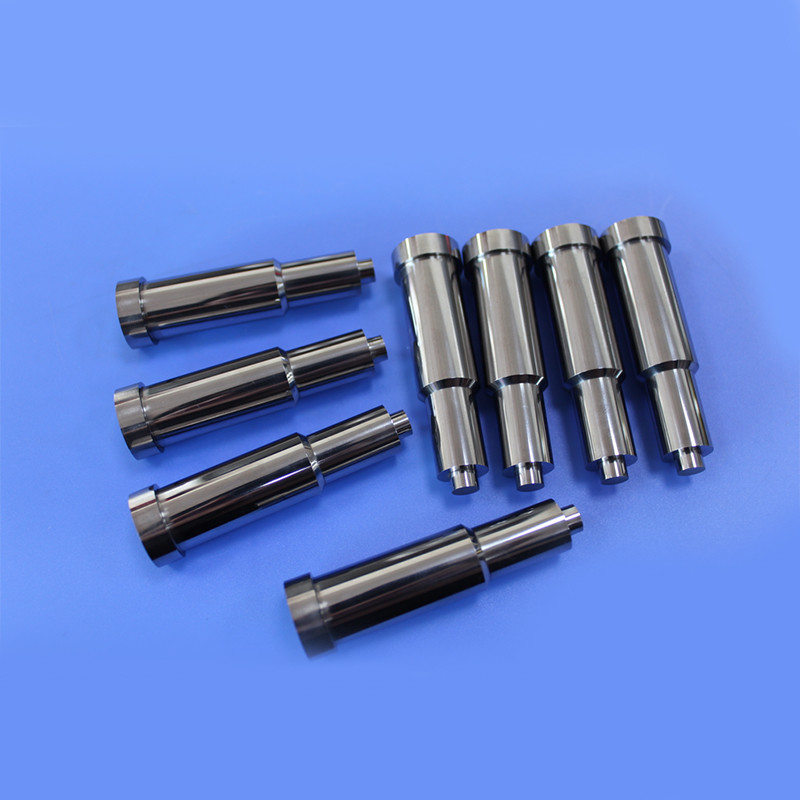

We take pride in offering precision-crafted custom Tungsten carbide back mold inserts, including Tungsten carbide back mold inserts, Tungsten carbide punch heads, Tungsten carbide back mold cores, and other Tungsten carbide inserts.

Dimensional Specifications:

  • Φ18*Φ15.33*Φ12.11*Φ12.07*Φ6.44*Φ6.4*64.85.

The Tungsten carbide back mold insert has complex outer diameter requirements, especially for hanging segment, where precise tolerances are crucial to meet various fitting requirements in different application scenarios.

High-Precision Machining: Each Tungsten carbide back mold insert undergoes precision machining to ensure accurate dimensions.
Versatile Design: Suitable for various applications, including different outer diameter requirements such as hanging segment.
Wear and Corrosion Resistance: Crafted from high-quality Tungsten carbide, ensuring outstanding wear and corrosion resistance.

What's more, we can provide tungsten steel punch precision production, non-standard shaped tungsten steel punching needle processing, hard alloy punching needle, and precision tolerance requirements can be±0.002.

Punch materials used for stamping die are various, like conventional tool steel, die steel, high-speed steel and so on. The punch used in the rotor core stamping die has special requirements, mainly it uses the tungsten steel punch series with high precision requirements and good service life. For the tungsten steel punch non-standard production and processing, the dimensional accuracy is ± 0.002, especially meeting the requirements of the precision stamping die row size. The tungsten steel punch produced mainly adopts the following common tungsten steel material



Tungsten Carbide Punch ​parameters:



1. CO content: 10% ~ 20%

2. Density(g/cm³): 14.0 ~ 14.5

3. Hardness: 87-92.0HRA

4. Grain size: 0.6 ~ 1.2 um

5. Bending strength: 4000MPa.

6. Modulus of elasticity (GPa):490

7. Thermal expansion coefficient 10-6/0C: 5.4.

8. The dimensions and specifications of the cemented carbide punch are customized according to the drawings, and the precision requirements are ±0. 002.



About us:

We manufacture precision stator rotor core stamping die: tungsten steel rotor measuring punch, tungsten steel stator forming punch, tungsten steel stator punch, tungsten steel inner and outer rotor pushing needle, tungsten steel inner and outer rotor forming needle, tungsten steel inside and outside and series of fixed rotor core stamping die precision punch needle. The precision of tungsten steel punch used in precision molds is very high, and the consistency of the products requires that each punch of mass production must strictly meet the dimensional accuracy tolerance requirements and maximize the service life of the mold. As a tungsten steel punch needle punch used in precision molds, product consistency is a key factor, which will directly affect the life of the mold and the dimensional accuracy of the product.
