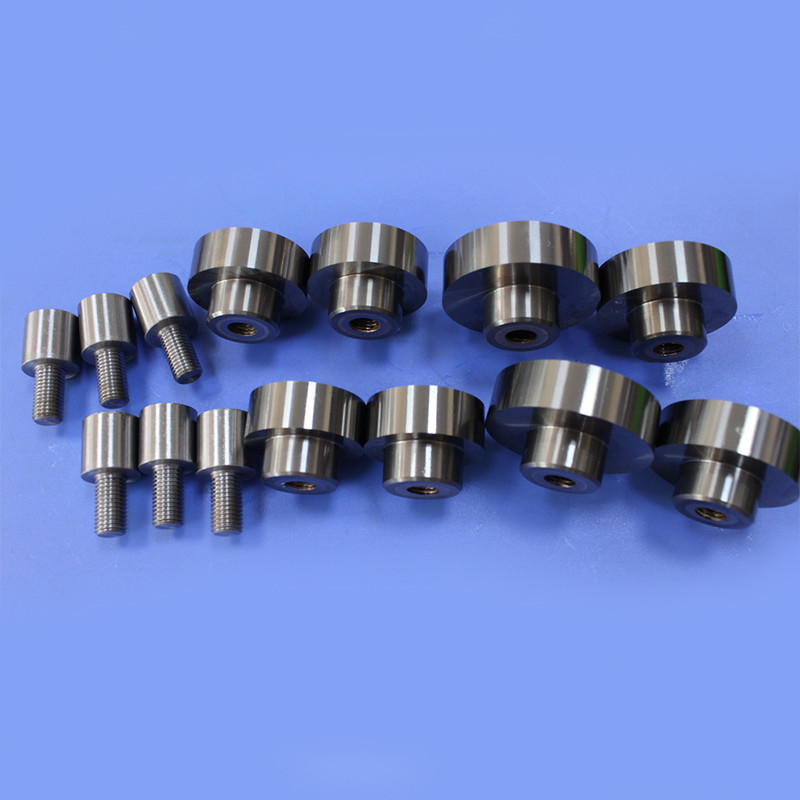

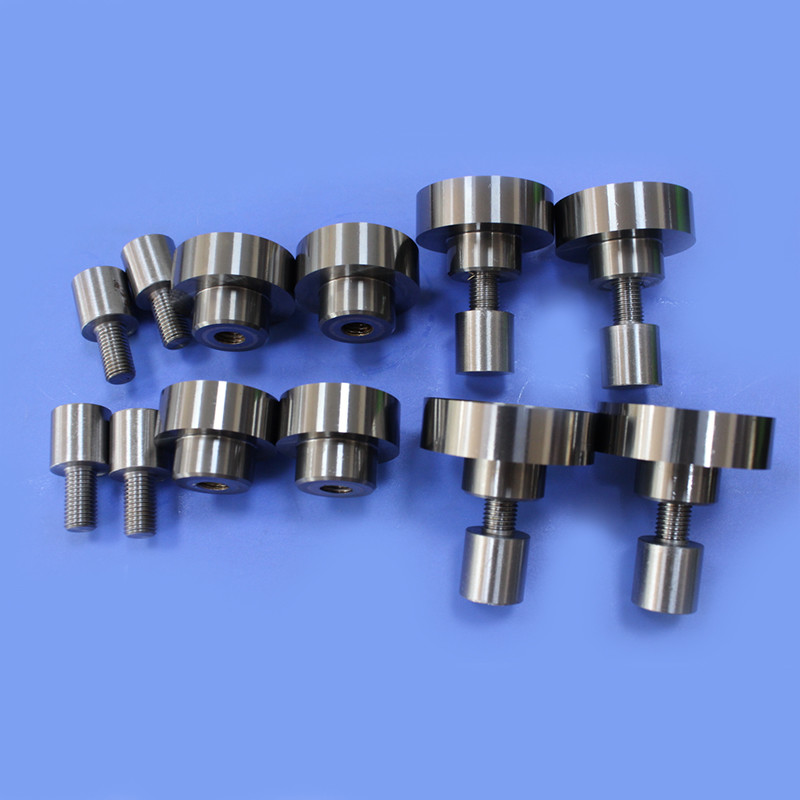

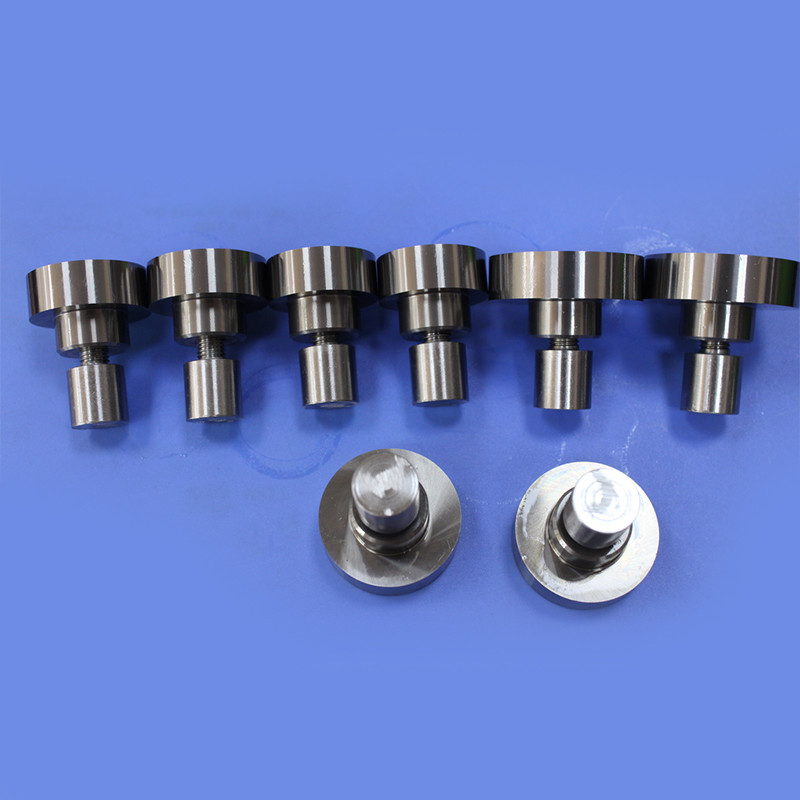

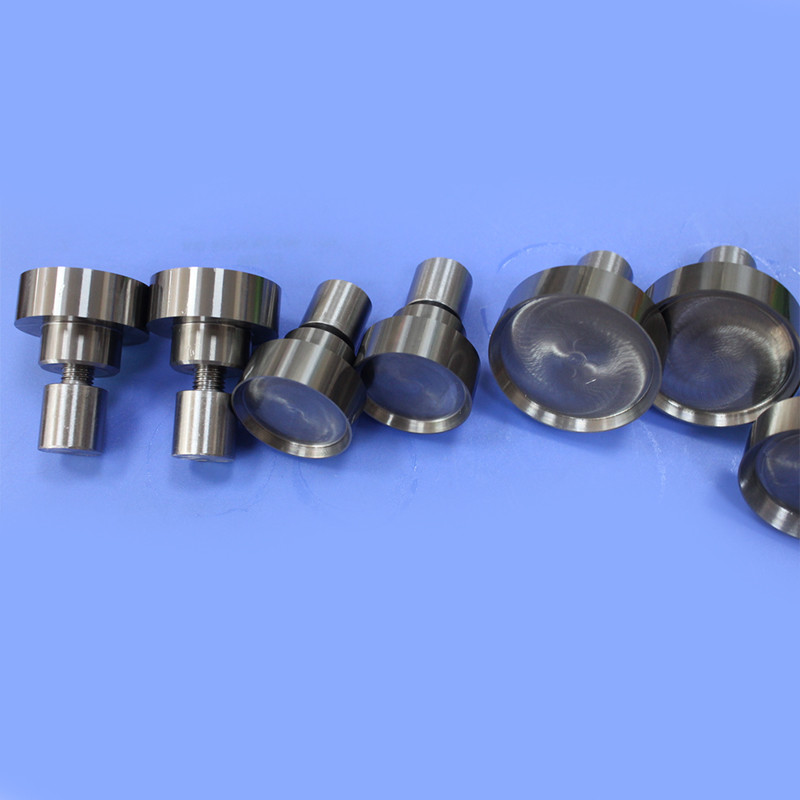

Abrasion Resistant Threaded Tungsten Carbide Die Set for Forming Operations
Abrasion Resistant Threaded Tungsten Carbide Die Set for Forming Operations Abrasion Resistant Threaded Tungsten Carbide Die Set for Forming Operations Abrasion Resistant Threaded Tungsten Carbide Die Set for Forming Operations Abrasion Resistant Threaded Tungsten Carbide Die Set for Forming Operations

Abrasion Resistant Threaded Tungsten Carbide Die Set for Forming Operations

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX2341
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: Tungsten Carbide Die Set Material: 100% Virgin Tungsten Carbide, Wolfram Carbide And Cobalt
Size: Customized Carbide Mold, OEM Accepted Surface: Finish, Rough Grinding, Polished Grinding
Grade: YK05/YK06/YG8/YG20,YG11,etc Shape: Trapezoid, Cylinder, Various Shape
Service: OEM & ODM
Highlight:

Tungsten Carbide Mold

,

Cemented Carbide Mold

,

Cemented Carbide Wire Drawing Die

Product Description

Abrasion Resistant Threaded Tungsten Carbide Die Set for Forming Operations
This tungsten carbide die set is engineered for demanding forming operations, offering exceptional durability and precision in threading applications across various industrial sectors.
Material and Construction
  • Material: Tungsten carbide (WC) hard alloy with extremely high hardness and wear resistance for high-strength processing conditions
  • Structure: Modular combination design with multiple components including die frame, die core, die base, and guide devices for easy replacement and maintenance
Key Features and Advantages
  • High Hardness: HV1700-2000 rating, significantly higher than traditional steel for extended service life
  • Exceptional Wear Resistance: Suitable for high-frequency, high-intensity threading processes
  • Heat Resistance: Maintains stable performance in high-temperature environments with minimal deformation
  • Corrosion Resistance: Excellent resistance to most chemicals for harsh processing environments
  • High Precision: Produces threads with superior precision and consistency for precision component manufacturing
Industrial Applications
  • Automotive Manufacturing: Threading critical components for engines and transmissions
  • Aerospace: High-demand, high-precision component processing
  • Mold Manufacturing: Production of molds requiring high strength and wear resistance
  • Machinery Manufacturing: Threading applications for machine tools, pumps, valves, and mechanical equipment
Technical Specifications
Carbide Grades: YG8, YG10, YG15, G10, K30, K40, etc.
Raw Material: 100% virgin tungsten carbide powder, quality Cobalt powder
Processing: Sintering, Grinding, Polishing, etc.
Replacement: Modular design allows for component replacement
Requirements: Good impact resistance and wear resistance
Material Grade Properties
Grade Density (g/cm³) Hardness (HRA) MPa
KZ40C 13.30～13.45 87.0～88.0 ≥3000
KZ30A 14.03～14.17 88.0～89.0 ≥3000
KZ35 13.85～14.04 87.5～88.9 ≥2800
YG20 13.45～13.65 ≥84.5 ≥2480
YG15 13.95～14.15 ≥86.5 ≥2400
YG16C 13.75～13.95 ≥84.0 ≥2640
YG13C 14.15～14.35 ≥85.5 ≥2450
Basic Material Properties
  1. High hardness and high wear resistance
  2. High elastic modulus
  3. High compressive strength
  4. Good chemical stability (acid and alkali corrosion, high temperature oxidation)
  5. Low impact toughness
  6. Low expansion coefficient with thermal and electrical conductivity similar to iron and its alloys
Abrasion Resistant Threaded Tungsten Carbide Die Set for Forming Operations 0 Abrasion Resistant Threaded Tungsten Carbide Die Set for Forming Operations 1
Performance Summary: Tungsten carbide thread combination dies are essential for high-strength, high-precision threading processes. Their superior hardness, wear resistance, and heat resistance make them ideal for various industrial applications. Proper use and maintenance significantly extend service life and enhance production efficiency.
