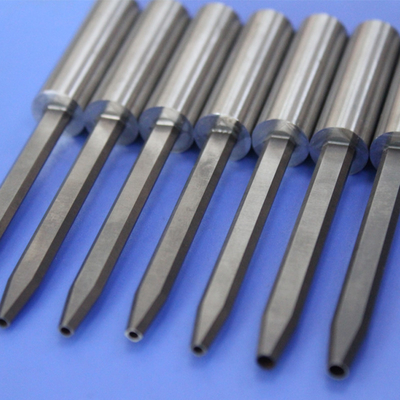

Customized Tungsten Carbide Wire Drawing Dies
Zhuzhou Sanxin Cemented Carbide Manufacturing Co., Ltd.
No.8 Zhongxue Road, Baiguan Town, Lusong District, Zhuzhou 412102, Hunan, China
Our customized tungsten carbide wire drawing dies are precision molds designed for punching, blanking, and bending modulus applications. These composite structure tools incorporate advanced bore design with carbon fiber elements for enhanced resistance checking and material verification.
These dies are valued for their exceptional piercing capability, superior wear resistance, extended service life, and consistent quality. The integrated tool carrier design facilitates efficient material loading while improving operational accuracy.
Product Specifications
Available Carbide Grades
YG8, YG10, YG15, G10, K30, K40, and other custom grades
Material Composition
100% virgin tungsten carbide powder with premium quality cobalt powder
Manufacturing Process
Sintering, grinding, polishing, and precision finishing
Performance Requirements
Excellent impact resistance and superior wear resistance
Technical Properties
| Grade |
Density (g/cm³) |
Hardness (HRA) |
Strength (MPa) |
| KZ40C | 13.30～13.45 | 87.0～88.0 | ≥3000 |
| KZ30A | 14.03～14.17 | 88.0～89.0 | ≥3000 |
| KZ35 | 13.85～14.04 | 87.5～88.9 | ≥2800 |
| YG20 | 13.45～13.65 | ≥84.5 | ≥2480 |
| YG15 | 13.95～14.15 | ≥86.5 | ≥2400 |
| YG16C | 13.75～13.95 | ≥84.0 | ≥2640 |
| YG13C | 14.15～14.35 | ≥85.5 | ≥2450 |
Material Properties
- High hardness and exceptional wear resistance
- High elastic modulus for superior performance
- Excellent compressive strength
- Outstanding chemical stability (resistant to acid, alkali corrosion, and high temperature oxidation)
- Low impact toughness
- Low expansion coefficient with thermal and electrical conductivity similar to iron alloys
Application Fields
- Telecommunications: Production of communication cables and optical fibers
- Electronics: Manufacturing wires and cables for electrical components and devices
- Metalworking: Production of metal wires for various industrial applications
- Automotive: Wire drawing processes for automotive components and wiring harnesses
Tungsten carbide wire drawing dies are essential for achieving precise wire dimensions and superior surface quality across multiple industries. Their exceptional material properties ensure extended service life and consistent performance, making them a valuable investment for wire manufacturing and processing operations.
Cemented carbide wearing parts, also known as wolfram carbide (WC) parts, represent high-end components in the hardware machinery industry. These parts feature high hardness, excellent toughness, superior temperature wear resistance, minimal adhesion, excellent corrosion resistance, high thermal conductivity, low friction coefficient, and resistance to acid and alkali corrosion without rusting, ensuring easy maintenance.
With outstanding toughness, high temperature resistance, and exceptional wear resistance, these components deliver service life that is 10-50 times longer than conventional metal parts.
Our manufacturing facility maintains ISO 9001:2015 Quality Management System certification and National High-Tech Enterprise certification, supported by more than 20 patent certificates.
