Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold
Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold

Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX2033
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: Carbide Mold Fetaure: Wear Resistant
Material: Non-Magnetic Tungsten Carbide Usage: Motot Mold Wear Parts
Samples: Available Technology: Powder Metallurgy
Highlight:

carbide wire drawing dies

,

cold heading dies

Product Description

Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold
Product Overview
Precision tungsten carbide motor molds engineered for superior wear resistance and non-magnetic properties in demanding industrial applications.
Specification Details
Brand Name OEM
Die Type Precision tungsten carbide punch
Draw Format Auto CAD/DWG/PDF etc
Tolerance ±0.002mm
Hardness Upon request
Mould Size Customized size
Production Application Mobile/laptop/digital camera/HD digital TV/automobile/electronics etc
Certificate ISO 9001:2008 & ISO 14001:2004
Surface Treatment Polishing/mirror polishing/plating/heat treatment or according to your parts
Precision Machining CNC/surface grinding machine/punching machine/sandik wire cutting/EDM/WIDA optical curve grinder etc
Measuring Instruments Profile projector/electronic height gauge/2D measuring instrument/vernier caliper/microscope/micrometer etc
Steel Material KD20/DC53/GD650/SKD11/SLD/YG15/CR12MOV/SKH-9/Tungsten etc
Mould Life Depends on the steel material and your request
Main Service Made-to-order
Key Features
  • Non-magnetic Properties: Utilizes non-magnetic tungsten carbide superhard alloy material with high hardness, strength, and wear resistance, suitable for production and processing of magnetic metal products or mechanical components requiring non-magnetic properties.
  • Wide Applicability: Primarily used for production of magnetic ring rotors, magnetic ring cavities, sensing magnetic rings, and other mold components for fixed rotor motor mechanical equipment.
  • Enhanced Production Efficiency: Superior performance replaces traditional non-magnetic steel, significantly improving production efficiency.
Product Specifications

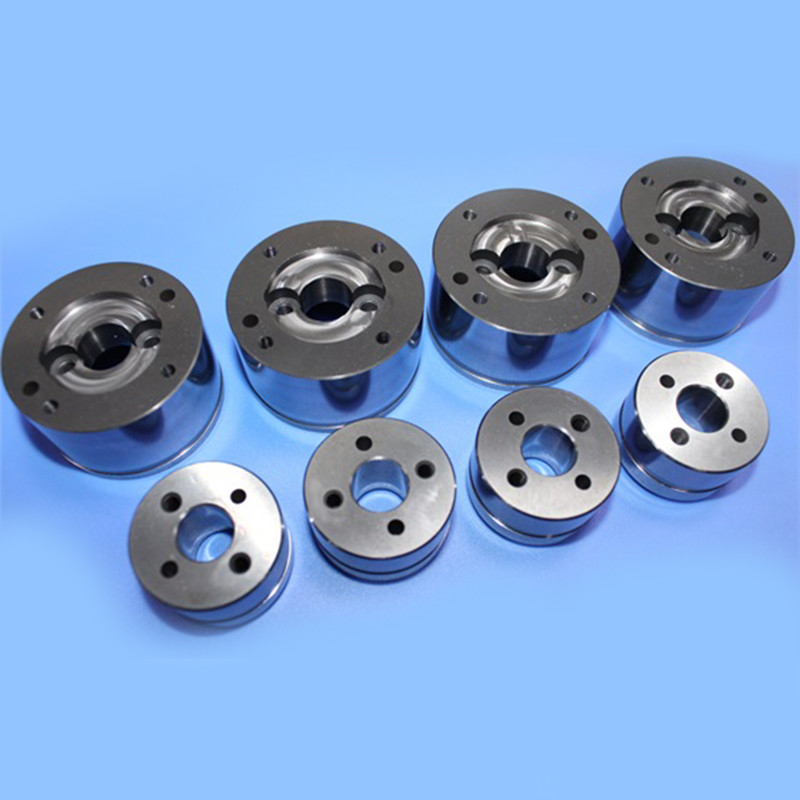

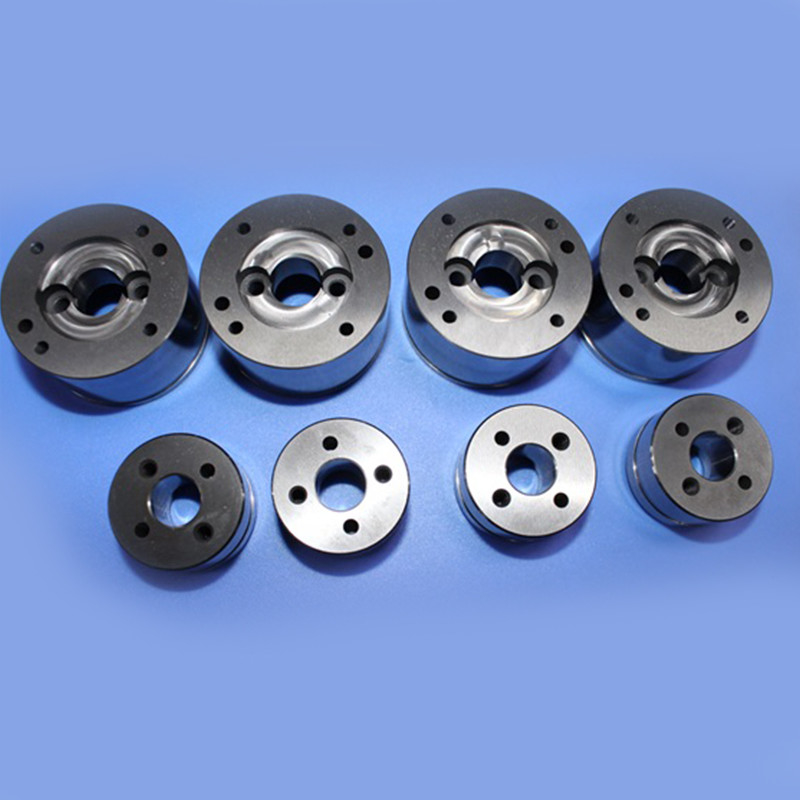

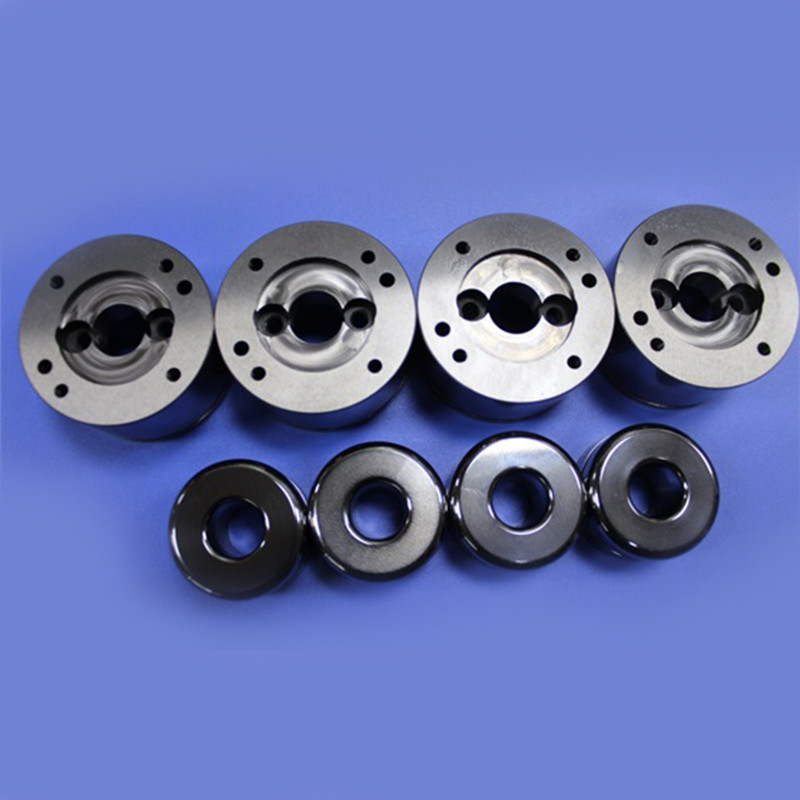

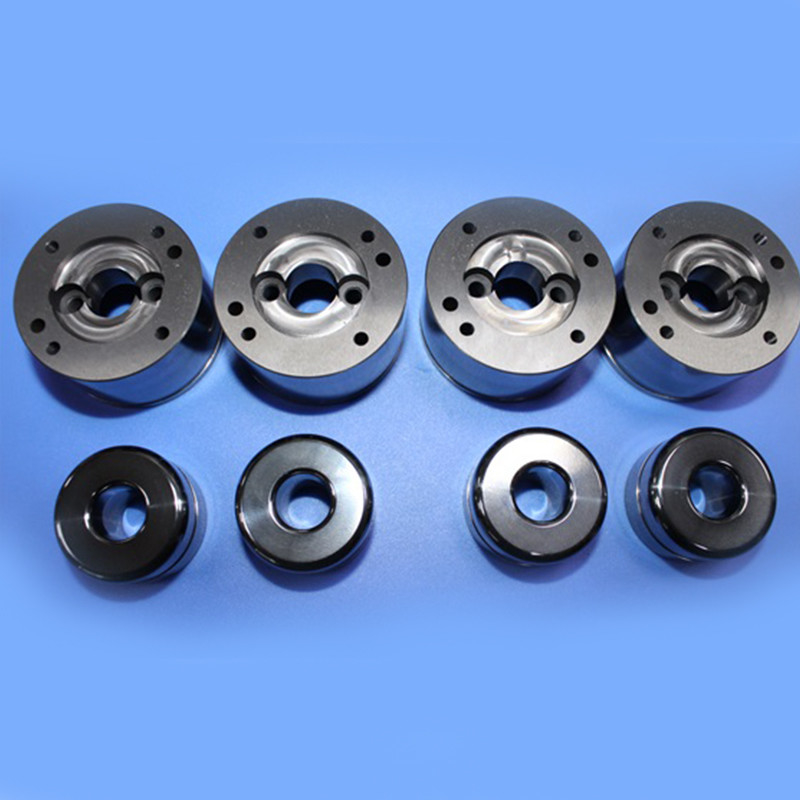

Non-magnetic Tungsten Carbide Rotor Mold Core
Parameter Value
Diameter φ35.4
Inner Diameter φ16.91
Height φ13.92
Corner Radius R1.5
Groove Width φ13
Groove Depth 21.35
Screw Specifications M4*2
Drill Specifications φ4
Non-magnetic Tungsten Carbide Rotor Mold Cavity
Parameter Value
Maximum Diameter φ50.5
Inner Diameter φ35.4
Height φ30
Inner Groove Diameter φ14
Inner Groove Depth 29.2
Screw Specifications M4*2, M5*2
Drill Specifications φ8*2, φ3
Customization Services
Based on customer-provided drawings for fixed rotor motor mechanical equipment molds, we offer customized production of non-magnetic tungsten carbide rotor mold cores and non-magnetic tungsten carbide rotor mold cavities to ensure products meet precise size and quality requirements.
Manufacturing Advantages
As a cemented carbide manufacturer in Zhuzhou, we leverage advanced cemented carbide production technology combined with years of production experience and state-of-the-art processing equipment to provide alloy molds, carbide wear parts, and hard alloy parts. We work closely with customers to understand specific requirements and provide optimal solutions through custom manufacturing services.
Wear Resistant Advanced Non-Magnetic Tungsten Carbide Motor Mold 0
