Detail Information
Product Description

Detail Information
Name:	Tungsten Carbide Dies Manufacturers	Carbide Mold Design:	Custom
Advantage:	High Precision	Type:	Carbide (tungsten Steel) Mold
Feature:	Wear Resistance	Trial Orders:	Available
Highlight:	carbide wire drawing dies , progressive punching die

Product Description

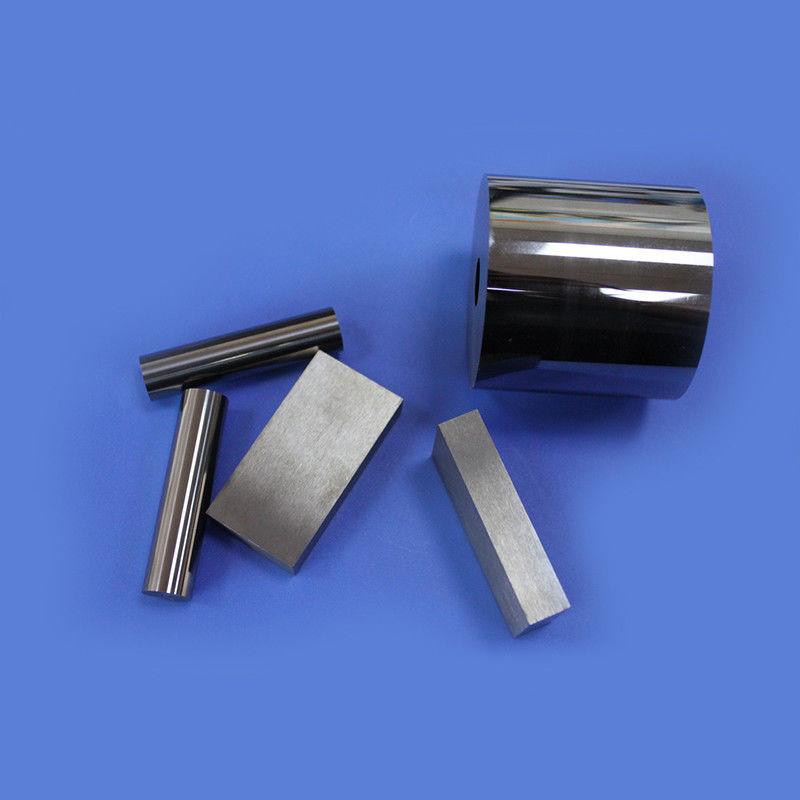

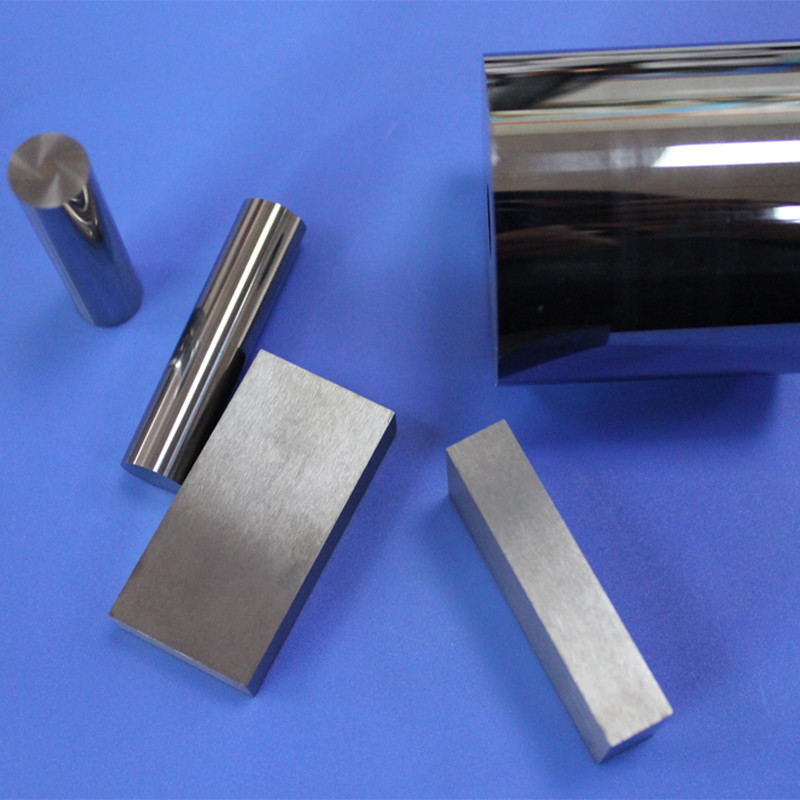

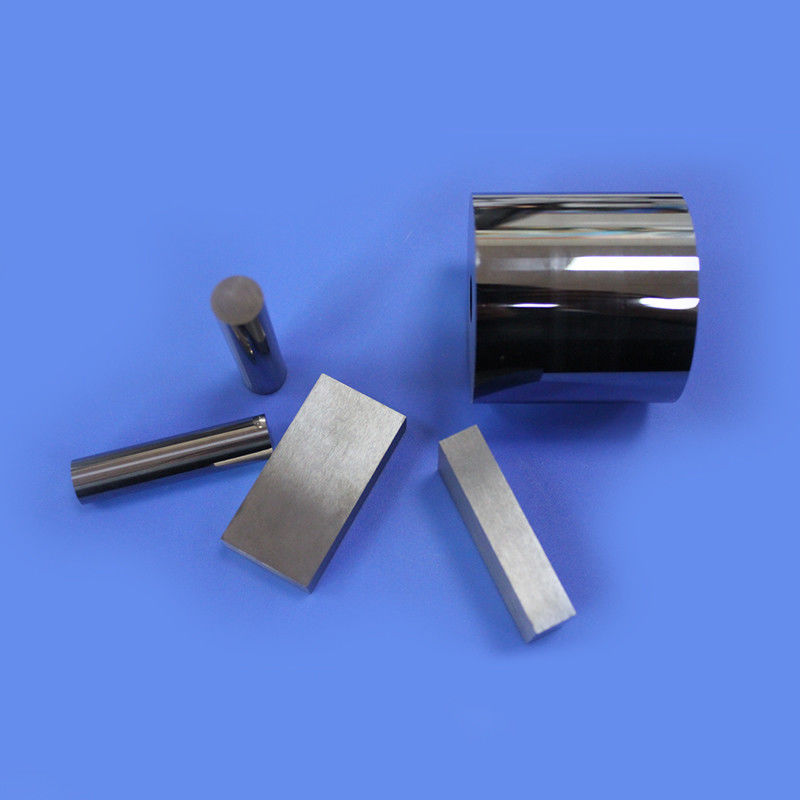

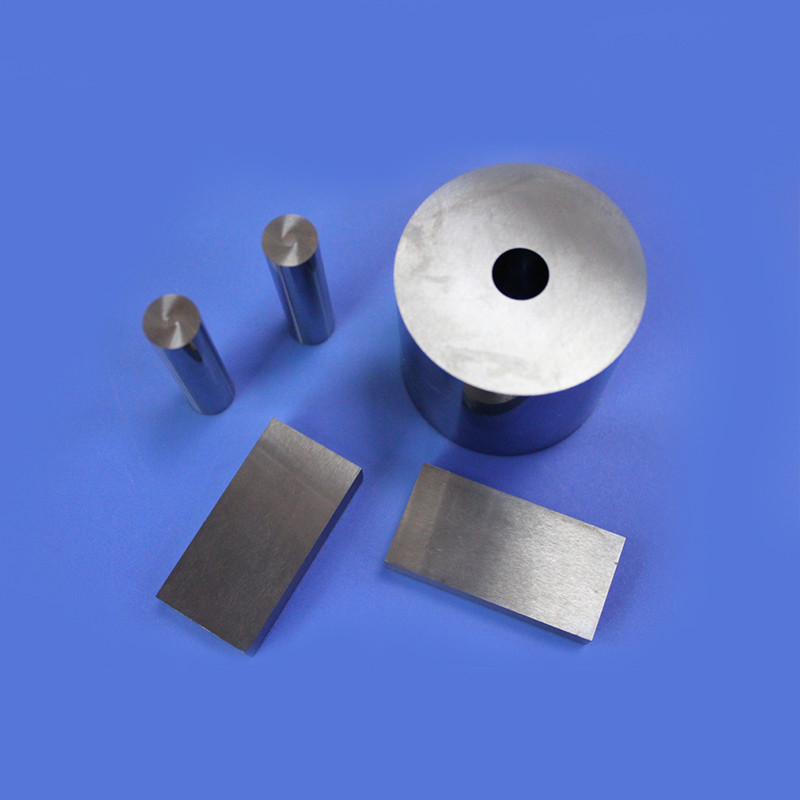

High Precision Mold Manufacturing Tungsten Carbide Dies

Our tungsten carbide mold inserts and round bar dies are specialized components crafted from high-strength tungsten carbide material, engineered for demanding applications in metalworking and mold manufacturing industries. These precision tools deliver exceptional performance through superior hardness, outstanding wear resistance, and reliable corrosion resistance, ensuring efficient and precise machining results in complex industrial environments.

Key Features

High Hardness: Constructed from premium tungsten carbide material, these dies exhibit exceptional hardness suitable for processing various metal materials with precision.
Excellent Wear Resistance: Engineered to perform exceptionally well under high-intensity use conditions, significantly extending mold service life and reducing replacement frequency.
Corrosion Resistance: Features excellent corrosion resistance properties, making them suitable for use in various harsh working environments and challenging industrial applications.
Precision Machining: Manufactured using advanced precision machining processes to ensure dimensional accuracy and superior surface quality, enhancing overall machining accuracy and operational efficiency.

Application Fields

Metalworking: Ideal for stamping dies, cutting dies, and various types of metalworking molds requiring durability and precision.
Mold Manufacturing: Serves as essential mold components for both mold manufacturing processes and maintenance operations.
Precision Engineering: Provides reliable and precise machining support for processes demanding the highest levels of accuracy and consistency.
Industrial Manufacturing: Widely utilized across heavy industries including automotive manufacturing, aerospace, and other precision-dependent manufacturing sectors.

Tungsten Carbide Punch Mold Technical Parameters

Grade	Density (g/cm³)	Bending Strength (TRS)	Hardness (HRA or HV)	Porosity	Performance and Application
SXL03	14.95～15.11 15.15～15.35	1130~1300	91.5		Good wear resistance, primarily used for small-sized drawing molds
SXL06	14.88～15.04 14.85～15.05 14.0～14.95	1530~1550 1580	89.5	2.0~1.6	Good wear resistance, used for drawing molds of steel with drawing diameter ≤20mm, and carbide, non-ferrous metals and carbide wires/bars ≤35mm
SXL08	14.65～14.85 14.65～14.85	1840~2100	89.0	2.0~1.6	Good toughness and wear resistance, used for drawing molds of steel with drawing diameter ≤50mm, and carbide, non-ferrous metals and carbide wires/bars ≤30mm
SXL30	14.29～14.49	1910	HV:1210		Excellent strength and toughness, primarily used for drawing molds for workpiece pipes and rods
SXL50	13.86～14.06 13.95～14.15	2060~2220	86.5		Excellent strength and toughness, primarily used for drawing molds for workpiece pipes, rods and plates

Tungsten carbide mold inserts and round bar dies play a crucial role in metalworking and mold manufacturing industries due to their exceptional performance characteristics and broad application scope. These precision components provide reliable machining solutions and essential support for industrial production processes across multiple sectors.

Tag:

Product Details:
Place of Origin:	China
Brand Name:	Sanxin
Certification:	ISO
Model Number:	SX2352
Payment & Shipping Terms:
Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	Safety Packing
Delivery Time:	15~45 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10-50000pcs/month
