Special Customized Precision Carbide Punch Mold and Carbide Stamping Die Set
Special Customized Precision Carbide Punch Mold and Carbide Stamping Die Set Special Customized Precision Carbide Punch Mold and Carbide Stamping Die Set Special Customized Precision Carbide Punch Mold and Carbide Stamping Die Set Special Customized Precision Carbide Punch Mold and Carbide Stamping Die Set

Special Customized Precision Carbide Punch Mold and Carbide Stamping Die Set

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX2157
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: Carbide Punch Mold And Stamping Die Tolerance: ±0.01mm Or ±0.001mm
Technology: Powder Metallurgy Production Process: Precision Tungsten Machining
Hard Alloy: High Stability Processing: Cutting, Grinding, Polishing
Design: Custom Carbide Punch Pin Trial Orders: Available
Highlight:

carbide wire drawing dies

,

progressive punching die

Product Description

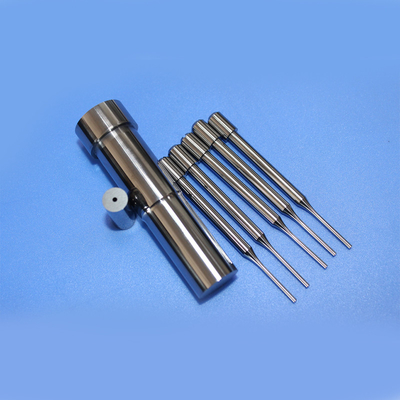

Special Customized Precision Carbide Punch Mold and Carbide Stamping Die Set
The Precision Carbide Punch Mold and Carbide Stamping Die Set is engineered for high-accuracy applications in industrial measuring devices and automated production lines. Designed for precise stamping and forming operations, this product processes various materials including metals and plastics.
Product Name Carbide Punch Mold and Carbide Stamping Die Set
Material Tungsten carbide
Grade Tungsten carbide/White steel, etc.
Size Customized
Thread Polishing, coating and many more
Processing Object Stainless steel, aluminum alloy, copper alloy, cast iron and more
Used Stamping, stretching, drawing, forging
Key Features
  • High Precision Processing: Advanced CNC machining technology ensures industry-leading dimensional accuracy and geometric tolerances
  • Premium Materials: Constructed from high-strength alloy steel or carbide with stringent heat treatment for excellent wear resistance and longevity
  • Various Specifications: Available in multiple sizes and dimensions, customizable to meet different production requirements
  • Efficient Production: Optimized mold design reduces waste during stamping, enhancing production efficiency and product quality
  • Easy Maintenance: Reasonable mold structure facilitates easy assembly and disassembly, minimizing equipment downtime
Technical Parameters
  • Material: High-strength alloy steel or carbide
  • Hardness: HRC 58-62
  • Dimensional Accuracy: ±0.001mm
  • Geometric Tolerance: ±0.001mm
  • Service Life: Over 1 million stamping cycles
Material Properties
Property Range
Grain Size (μm) 0.4-2.0
Cobalt Content (% Co) 6-20
Density (g/cm³) 13.96-14.85
Hardness (HRA) 86-93
Flexural Strength (MPa) 3200-4500
Young's Modulus (GPa) 570-620
Applications
  • Electronics Manufacturing: Production of high-precision electronic components such as connectors and micro switches
  • Automotive Industry: Precision stamping and forming of automotive parts
  • Medical Devices: Manufacturing of small parts for medical equipment
  • Precision Instruments: Production of various precision parts for instruments and meters
Service Support
We provide professional technical support and comprehensive after-sales service to ensure worry-free usage for our customers. Our team offers mold design optimization advice and customized solutions tailored to specific production requirements.
